Cold Storage & Freezer LED High Bay Lights
- -40°C Cold Start
- Nano-Coated Anti-Corrosion
- 100-240W, 3 Series
- Up to 200 lm/W
Select a Model
HARSH & SPECIALIZED
GENERAL INDUSTRIAL

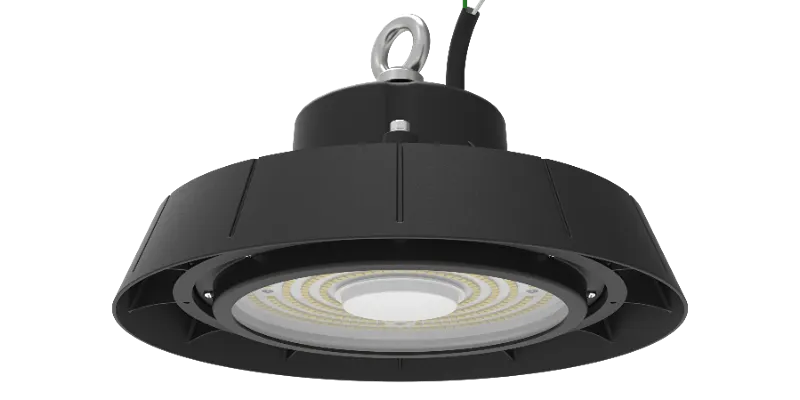

HB103
The HB103 Series Low-Temperature High Bay Light is purpose-built to deliver dependable ...

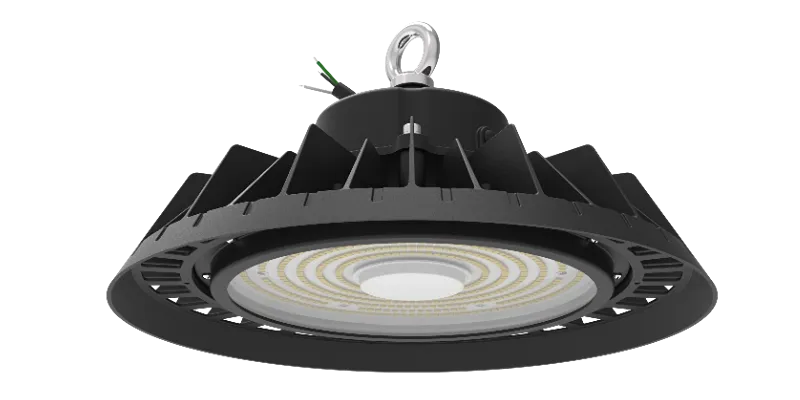

HB102
The HB102 Series Low-Temperature High Bay Light is specifically crafted for cold ...

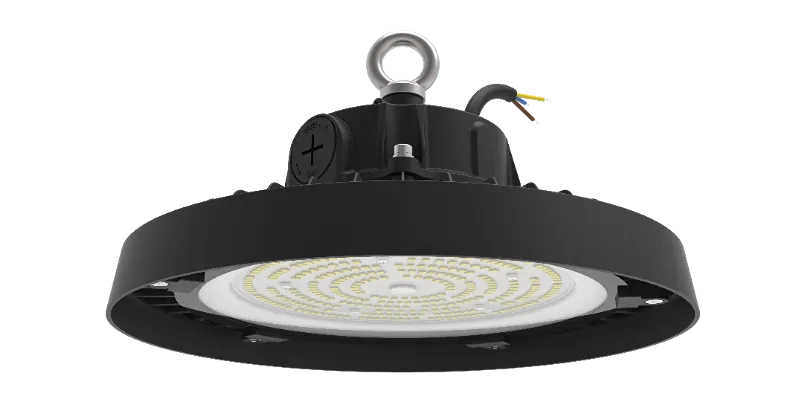

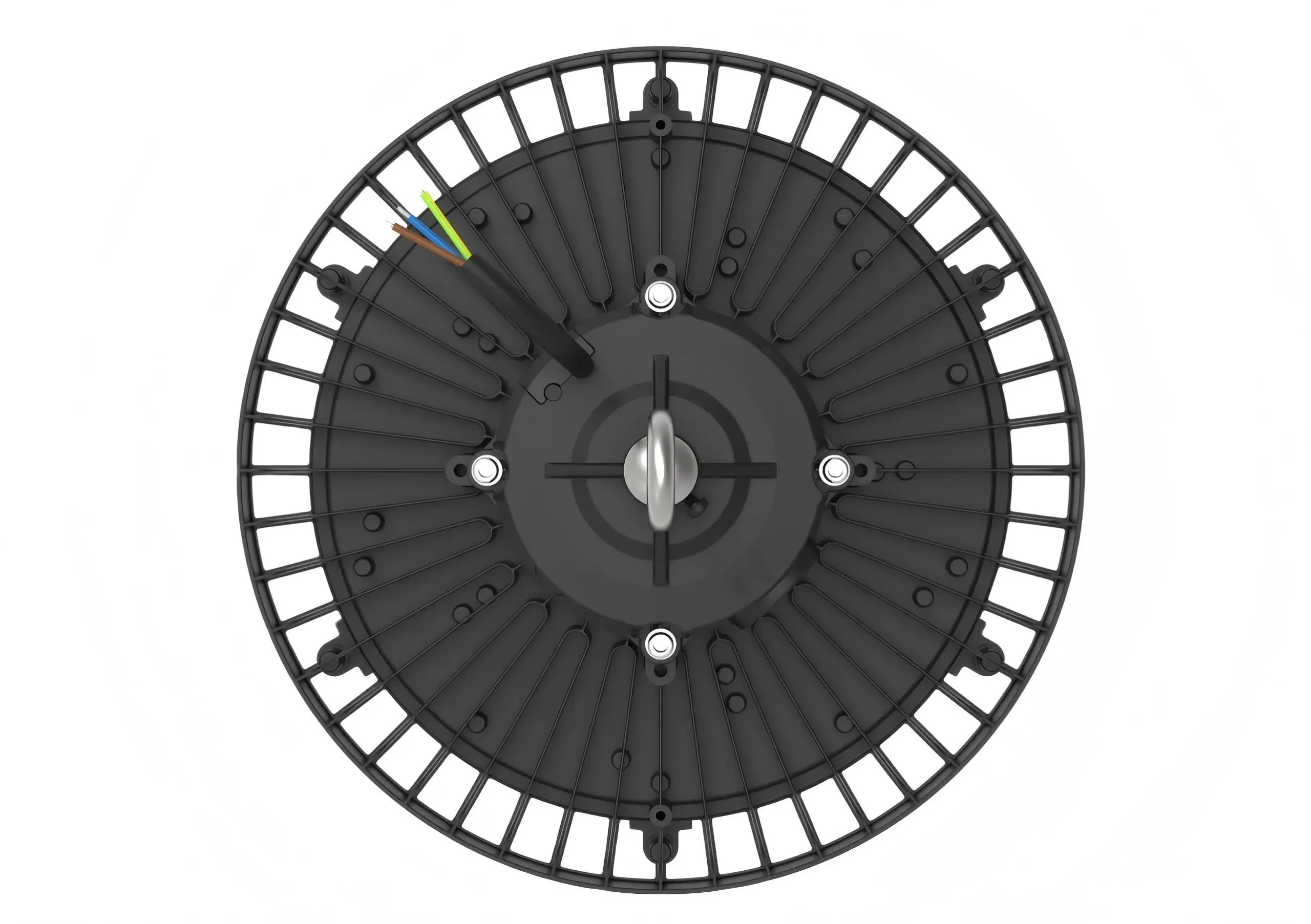

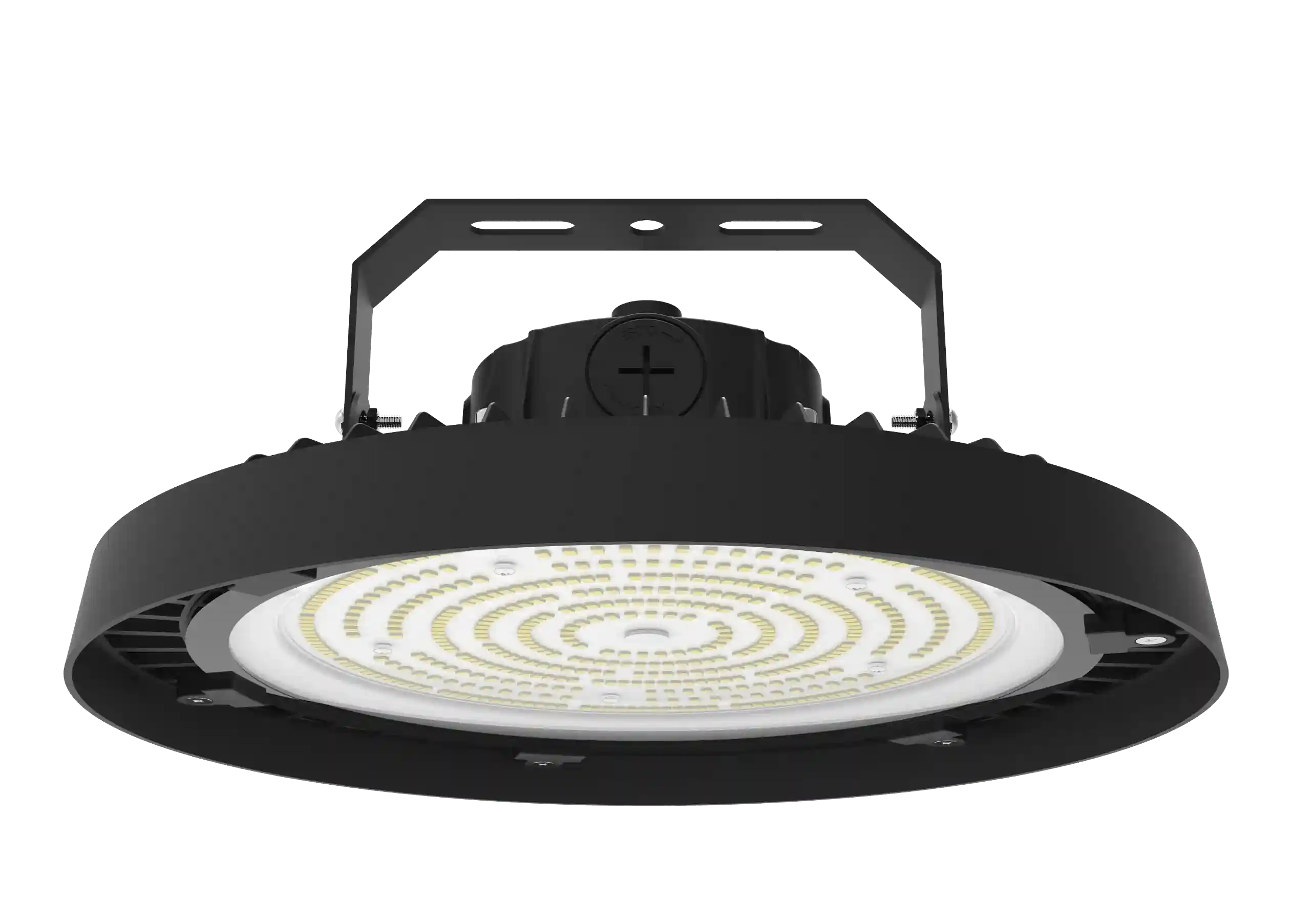

HB101
The HB101 Series Low-Temperature Cold Storage High Bay Light is engineered specifically ...
Engineered Around Two Cold Room Failures
Freezer facilities kill standard high bays in two ways: drivers that fail to start in extreme cold, and condensation that creeps into the electronics during defrost cycles. These three series address both at the component level.
Cold Start at -40°C
A custom low-temperature driver built with cryogenic solid capacitors powers on and holds stable luminous output at -40°C. Every series carries a 5-year warranty on the full fixture.
Sealed Against Condensation
The driver PCB goes through a nano vacuum coating process that resists corrosion and moisture, and the LED board is fully covered in glue, sealing the PCB and LEDs from water vapor penetration.
Cold Storage Series Technical Data
| Model | HB101 / HB102 / HB103 |
| Power | 100W / 150W / 200W / 240W (±5%) |
| Efficacy | HB101: 150/190 lm/W / HB102, HB103: 150/200 lm/W (±5%) |
| Input Voltage | AC120-277V 50/60Hz |
| Operating Temperature | -40°C to 45°C |
| Beam Angle | 120° |
| Driver Type | Custom Low‑Temperature Led Driver With Cryogenic Solid Capacitors |
| Moisture Protection | Driver Pcb Nano Vacuum Coating, Glue‑Sealed Led Board |
| Ingress Protection | IP65, IK09 Rated |
| Product Size | HB101: Φ254-366 x H149-154mm / HB102: Φ240-320 x H110-117mm / HB103: Φ240-320 x H111-117mm |
| Warranty | 5 Years Standard |
Three Series, One Cold-Rated Platform
All three series share the same cold-rated internals: the low-temperature driver, nano-coated driver PCB, and glue-sealed LED board. HB101 delivers up to 190 lm/W. HB102 and HB103 reach up to 200 lm/W in two different compact housing designs, letting you match the fixture to your mounting layout.
IP65
IK09
5-Year Warranty
Documentation Available for Download
All certifications available on request. Contact us for the complete compliance package for your region.
CE
CB
RoHS
3C
ISO 9001
ISO 14001
ISO 18001
Three Checks Before a Fixture Ships to the Cold
Cold storage fixtures run on the same die-casting and assembly line as our standard high bays, with added verification for the components that face the cold.
Driver Cold-Rating Verification
Every custom low-temperature driver is built with cryogenic solid capacitors and verified for stable output across the full -40°C to 45°C operating range.
Coating and Seal Inspection
Nano vacuum coating coverage on each driver PCB and full glue coverage on each LED board are inspected before assembly, confirming the moisture barrier.
Burn-In and Output Test
Every fixture completes a burn-in cycle, and luminous output is checked against the rated efficacy before packing.
Where the Cold Runs Around the Clock
Facilities that hold sub-zero temperatures all shift and cycle through defrost and door openings every day.
Cold Storage
Long-term frozen warehouses running at stable sub-zero temperatures.
Quick-Freezing Room
Rapid pull-down zones where fixtures face the lowest temperatures in the building.
Cold Chain Logistics
Distribution and transfer hubs with constant door cycles and temperature swings.
Freezing Room
Daily freeze-and-defrost cycles that test every seal on the fixture.
