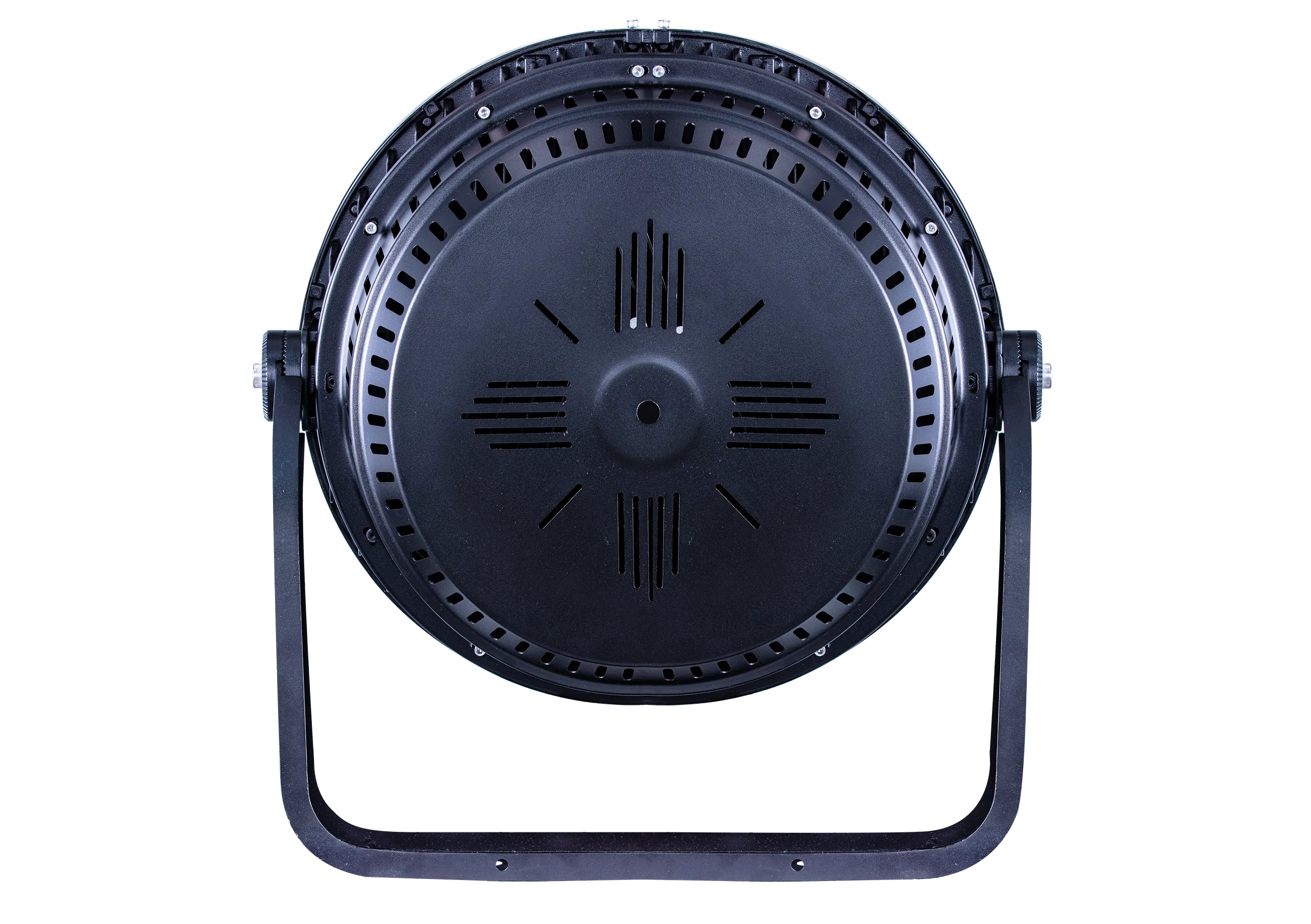

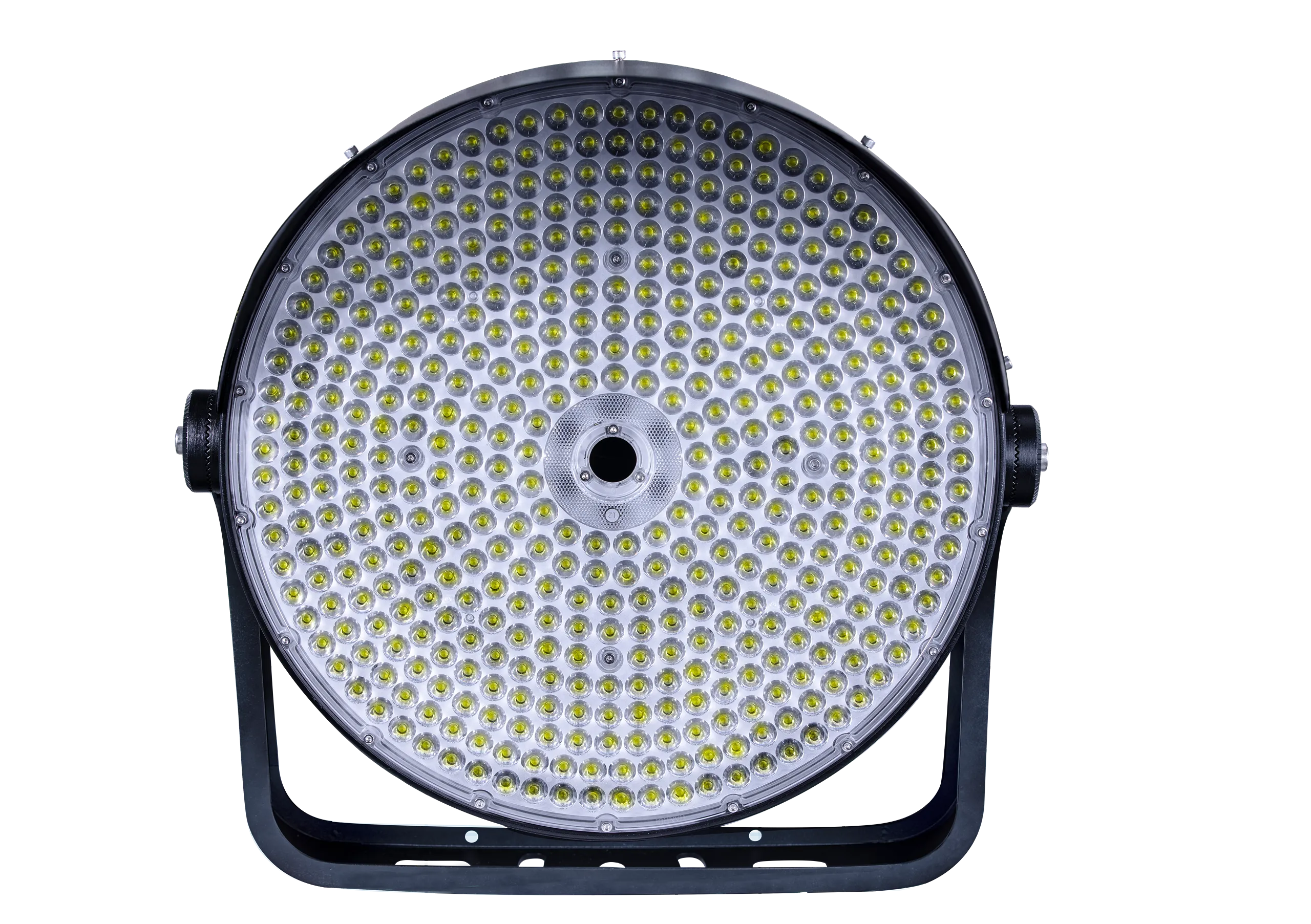

SP05

High-performance SP05 Series LED stadium lights serve ports, tennis, basketball, golf and football fields etc.
They cover 600–1200 W with up to 180 lm/W efficacy, precise 5° aiming and 5-year warranty for reliable sports lighting.

Key Features

Broad Power High Efficiency

Complete range spans 600–1200 W across four sizes with selectable 150 lm/W or 180 lm/W options, providing adaptable high-output lighting for large sports venues.

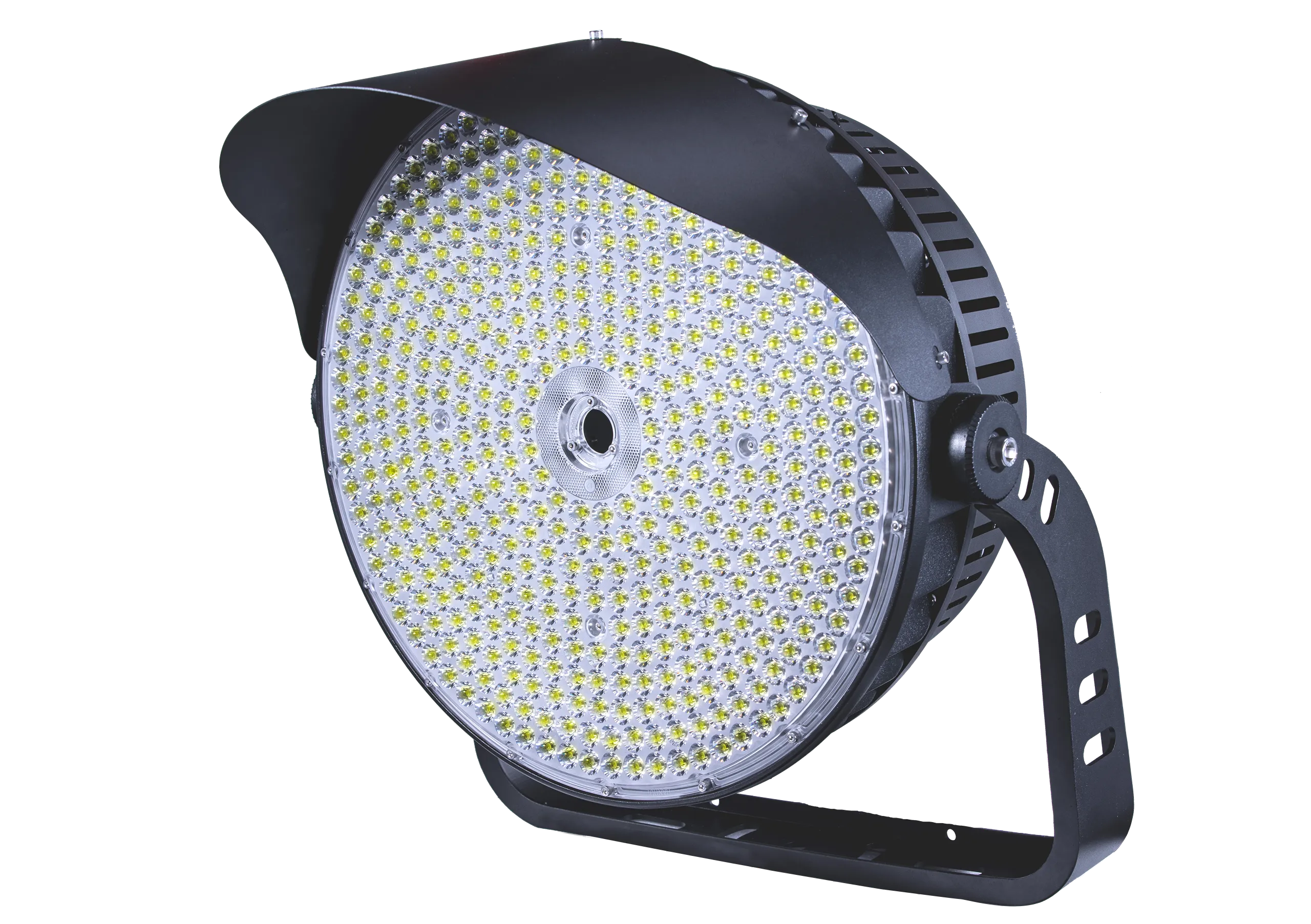

Laser Pointer & Accessories

Compatible with laser pointer, shade cover, protective cover and related accessories for precise aiming and enhanced protection during installation and use.

Smart Control Surge Protection

Supports optional 0-10V, DALI-2, D4i and DMX512 dimming with built-in 20 kV surge protection for flexible intelligent control and enhanced lightning resistance.

Branded Drivers Long Warranty

Top-tier branded power supplies and LEDs, plus optional laser pointer, shade cover and protective accessories, ensure lasting reliability backed by a full 5-year warranty.

Inquire Now

Technical Specifications

Series	SP05 - LED Stadium Light
Power	600W, 800W, 1000W, 1200W
Lumen Output	9000-216000 lm
Efficacy	150 lm/W, 180 lm/W
Input Voltage	AC 120-277V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	150lm/W, Ra: 80±2; 180lm/W, Ra: 70±2
Beam Angle	15° / 25° / 40° / 60°
Operating Temperature	-30°C to +50°C, RH: 5%-90% non-condensing
IP Rating	IP66
IK Rating	IK09
Housing Material	ADC12 + PC Lens
Mounting	Adjustable-angle bracket mounting (other mounting methods available upon request)
Dimming	0-10V / DALI-2 / D4i / DMX512
Certifications	CE / RoHS / CCC / CQC
Warranty	5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
