SP01

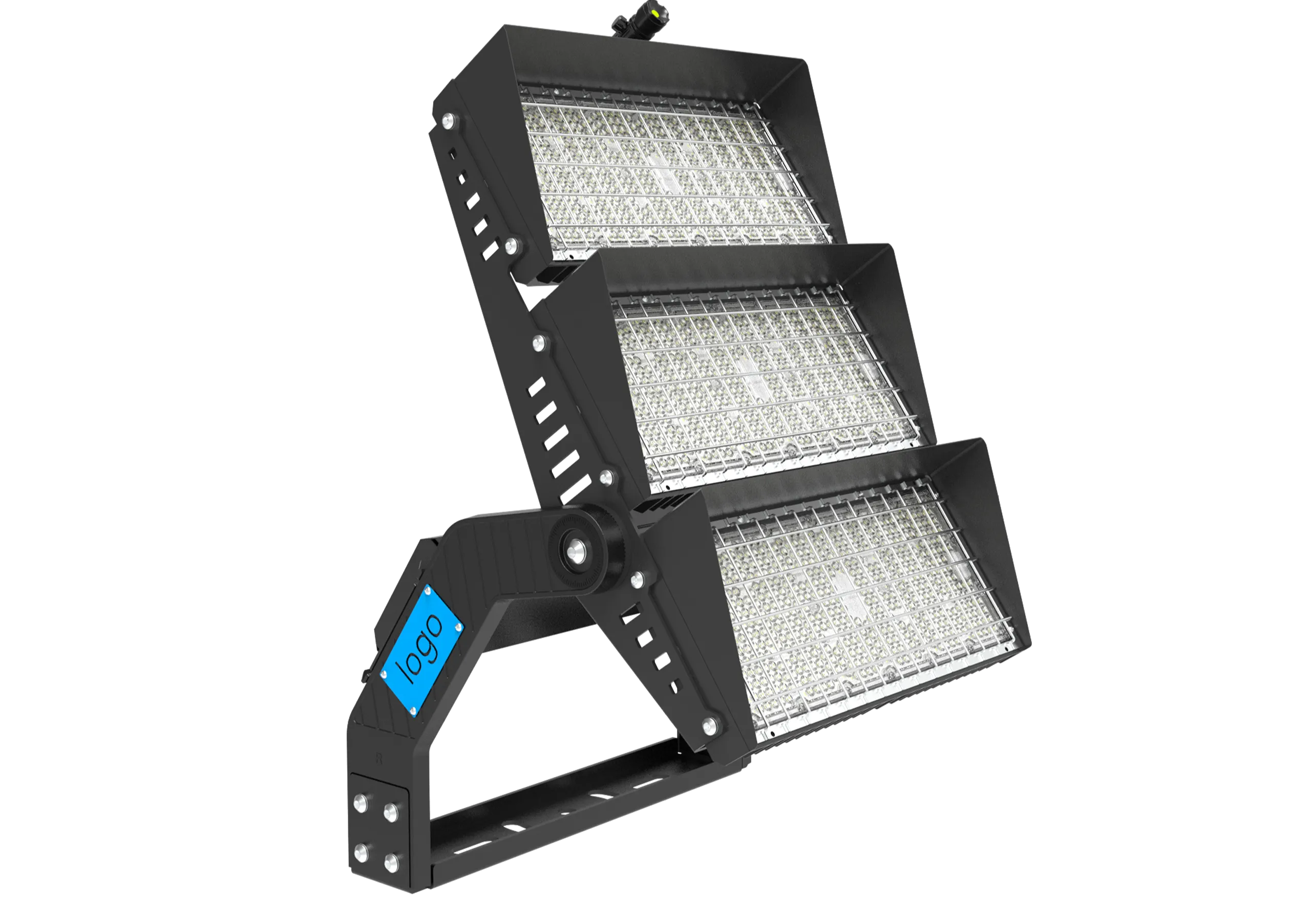

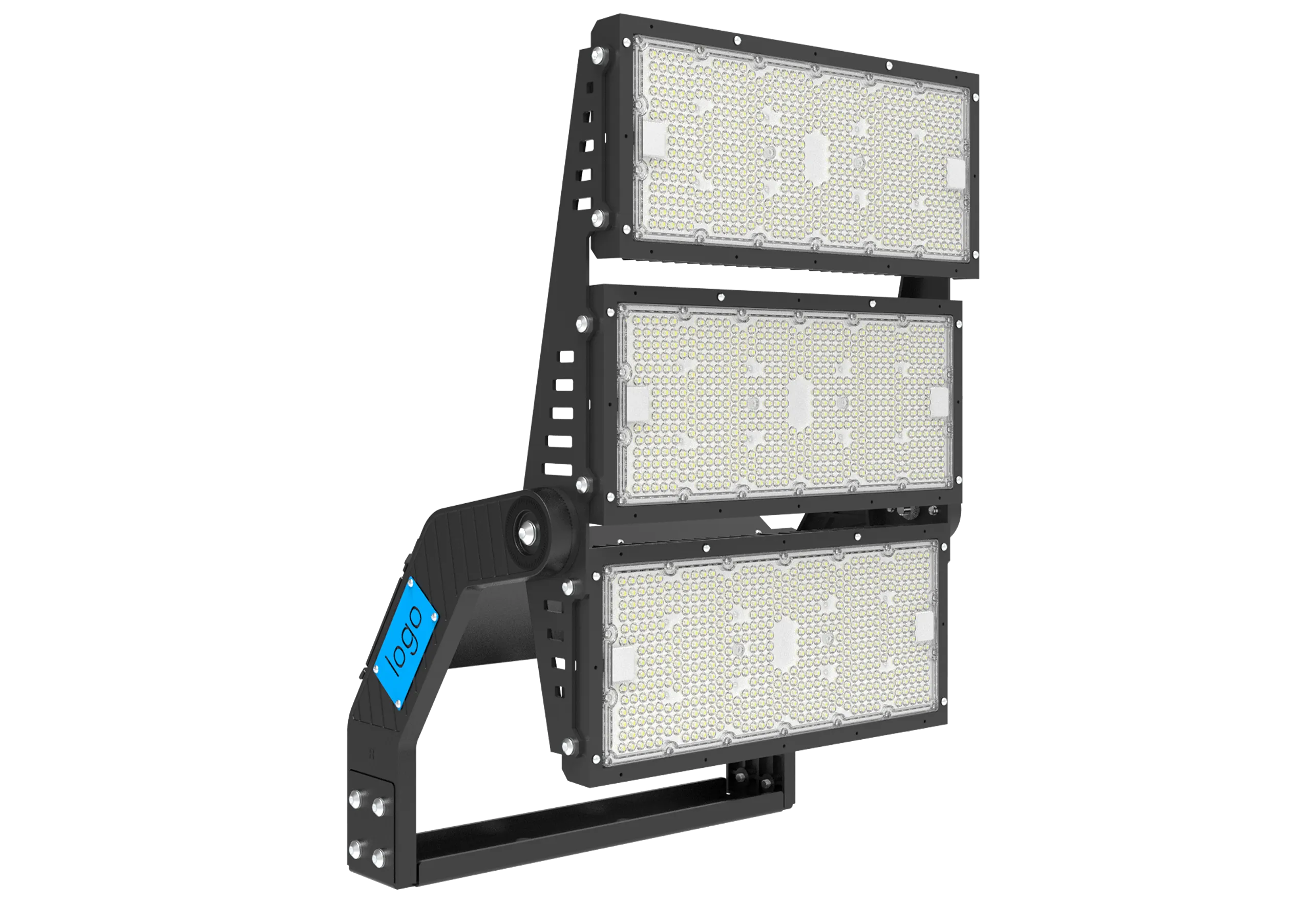

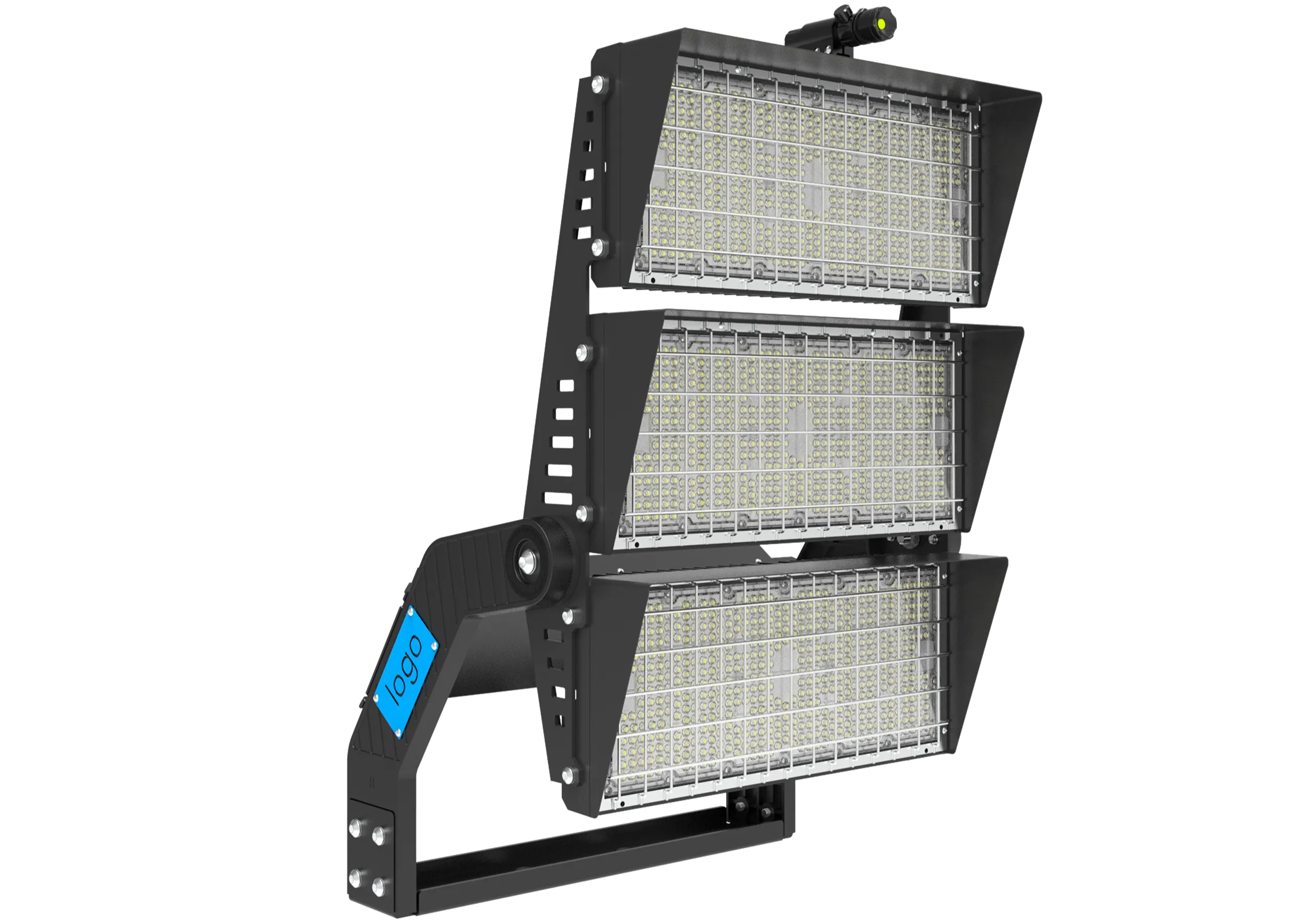

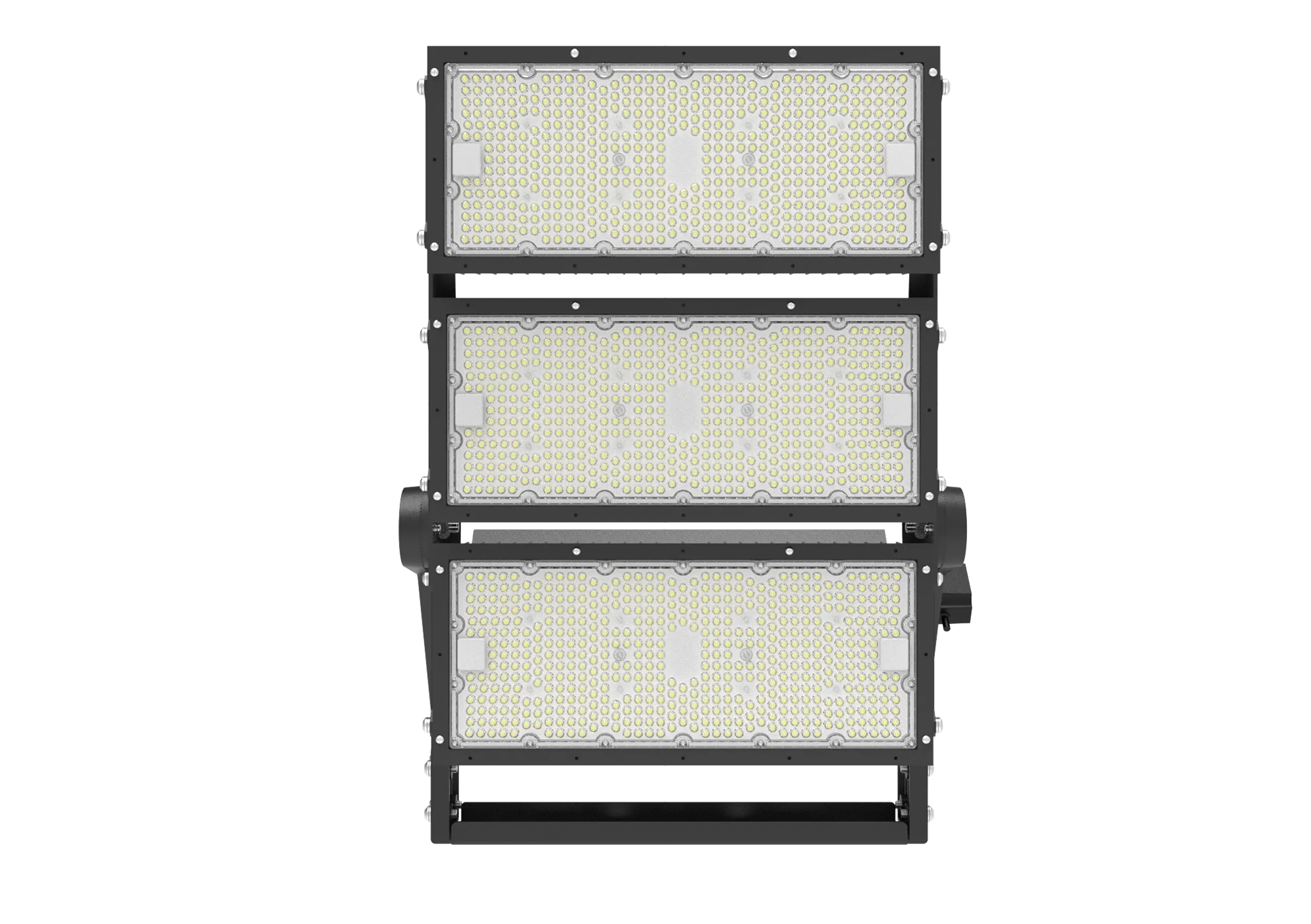

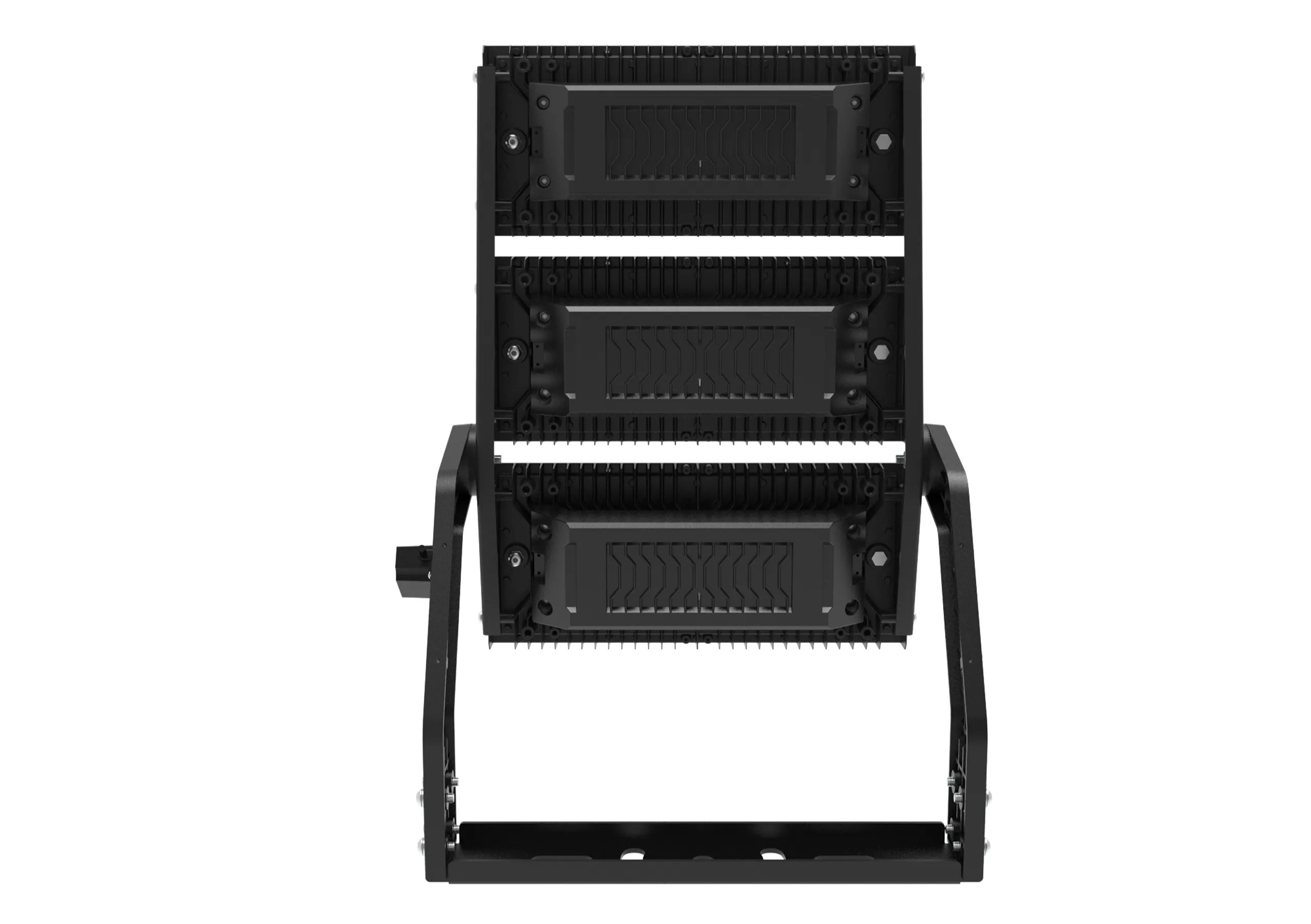

The SP01 Series Stadium Lights are high-power LED floodlights for docks, tennis, basketball, football and golf courts.
They deliver max to 180 lm/W efficacy across 320–1300 W with precise aiming and robust protection for reliable sports lighting.

Key Features

Wide Power High Efficacy

Full series covers 320–1300 W in multiple sizes with optional 150 lm/W or 180 lm/W packages, providing flexible high-output solutions for large sports venues.

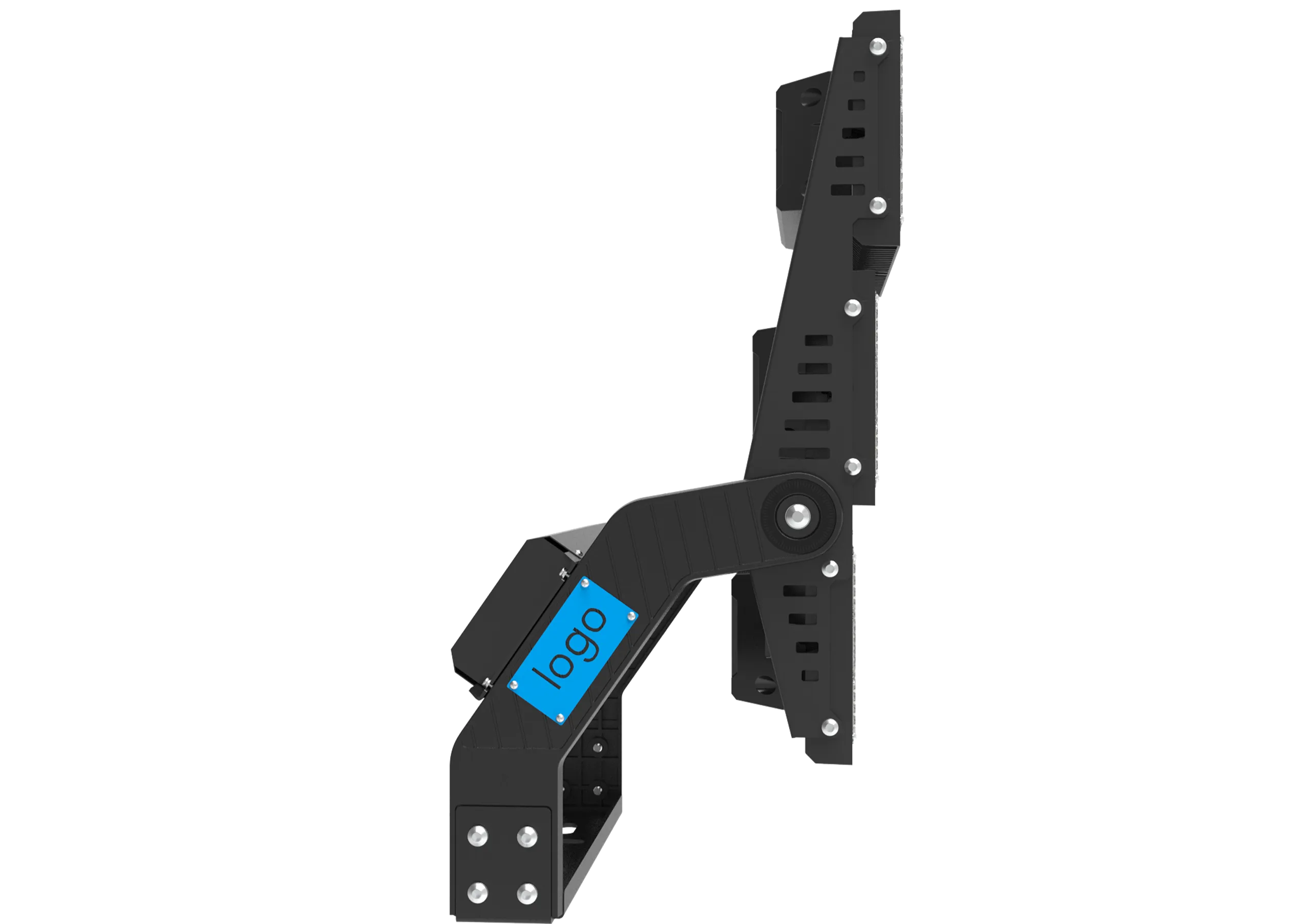

5° Angle Dial

Minimum 5-degree adjustable scale dial enables accurate on-site aiming and fine-tuning for optimal light distribution on courts and fields.

Advanced Dimming & Surge Protection

Optional 0-10V, DALI-2, D4i or DMX512 control plus standard 20 kV surge protector ensure flexible smart control and superior lightning protection.

Premium Drivers 5-Year Warranty

High-quality branded drivers and LEDs with optional laser pointer, shade and guards deliver durable performance backed by a full 5-year warranty.

Inquire Now

Technical Specifications

SeriesSP01 - LED Stadium Light
Power320W, 650W, 960W, 1300W
Lumen Output45000-216000 lm
Efficacy150 lm/W, 180 lm/W
Input VoltageAC 120-277V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRI150lm/W, Ra: 80 ± 2; 180lm/W, Ra: 70 ± 2
Beam Angle15° / 30° / 60° / 90°
Operating Temperature-30°C to +45°C, RH: 5%-90% non-condensing
IP RatingIP66
IK Rating
IK09
Housing MaterialADC12 + PC Lens
MountingAdjustable-angle bracket mounting (other mounting methods available upon request)
Dimming0-10V / DALI-2 / D4i / DMX512
CertificationsCE / RoHS / CCC / CQC
Warranty5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
