Ultra-High Power LED High Bay Lights
600W to 1200W for high ceilings and large-span spaces. 5050 high-efficiency LEDs deliver up to 180 lm/W, and four beam options put the light on the floor from 20 meters and above.
- Up to 1200W
- Up to 180 lm/W
- 12° / 22° / 40° / 60° Beams
- IP65 + IK09
Select a Model
HARSH & SPECIALIZED
GENERAL INDUSTRIAL
Built for Height and Long Running Hours
At 20 meters and above, a standard high bay runs out of lumens before the light reaches the floor. High-ceiling facilities need raw power, controlled beams, and thermal design that holds output through long shifts.
600 to 1200W From One Fixture
5050 high-efficiency LEDs drive system efficacy up to 180 lm/W, so a single fixture covers the output that high ceilings and large-span floors demand, with uniform ground illumination.
Beam Control and Thermal Headroom
A high K-value lens offers 12°, 22°, 40°, and 60° beam options to match mounting height, while an internal die-cast heat sink manages the thermal load of continuous high-wattage operation.
Ultra-High Power Series Technical Data
| Model | HB70 / HB71 |
| Power | 600W / 800W / 1000W / 1200W (±5%) |
| Efficacy | 150/180 lm/W (±5%) |
| LED Type | 5050 High‑Efficiency LEDs |
| Input Voltage | AC120-277V 50/60Hz |
| Operating Temperature | -30°C to 45°C |
| Beam Angle | 12° / 22° / 40° / 60° |
| Lens | High K‑Value Lens |
| Heat Sink | Internal Die‑Cast Heat Sink |
| Mounting | Adjustable Bracket |
| Dimming | Dimmable, DALI / D4i Certified |
| Ingress Protection | IP65, IK09 Rated |
| Product Size | 600W: Φ391 x H260mm / 800W: Φ473 x H300mm / 1000W: Φ526 x H327mm / 1200W: Φ586 x H357mm |
| Warranty | 5 Years Standard |
Two Housings, One High-Power Platform

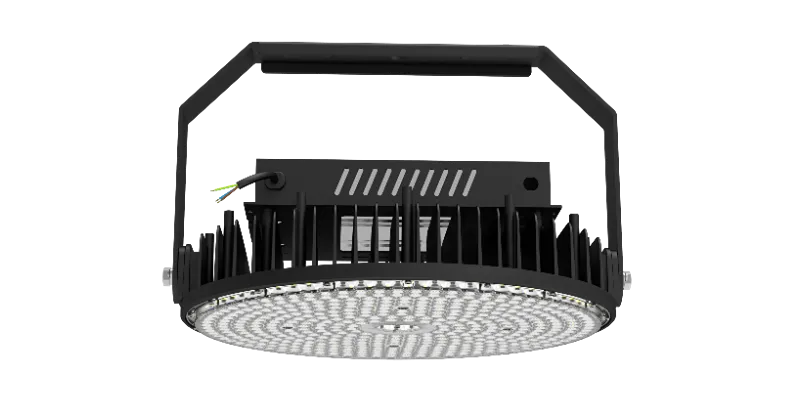

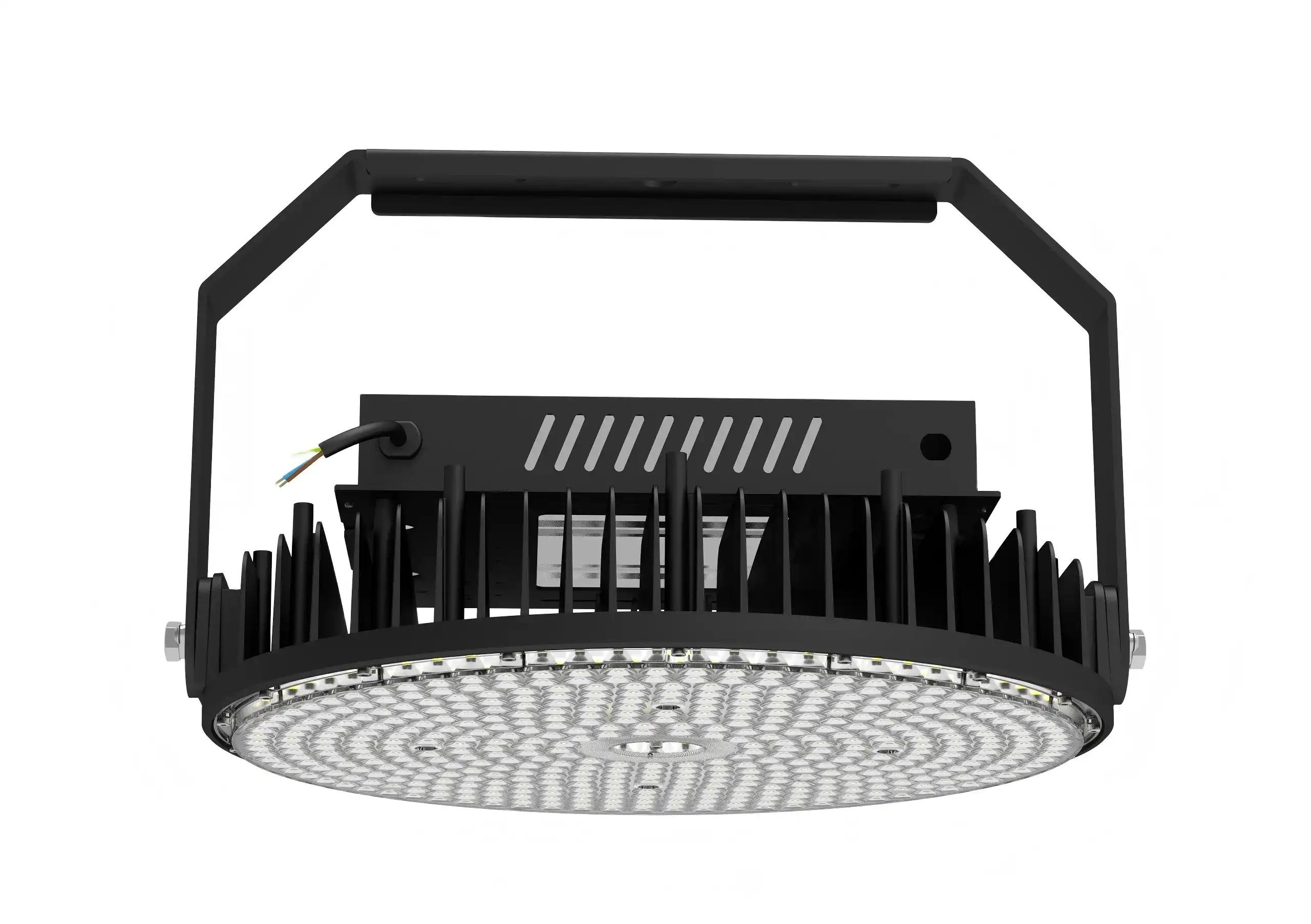

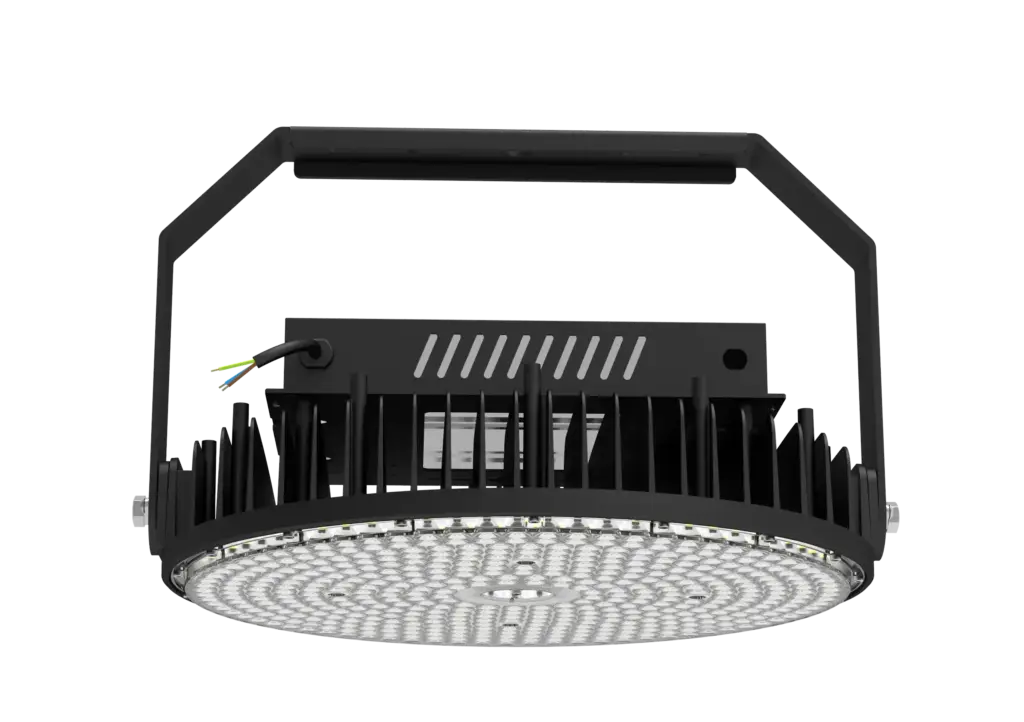

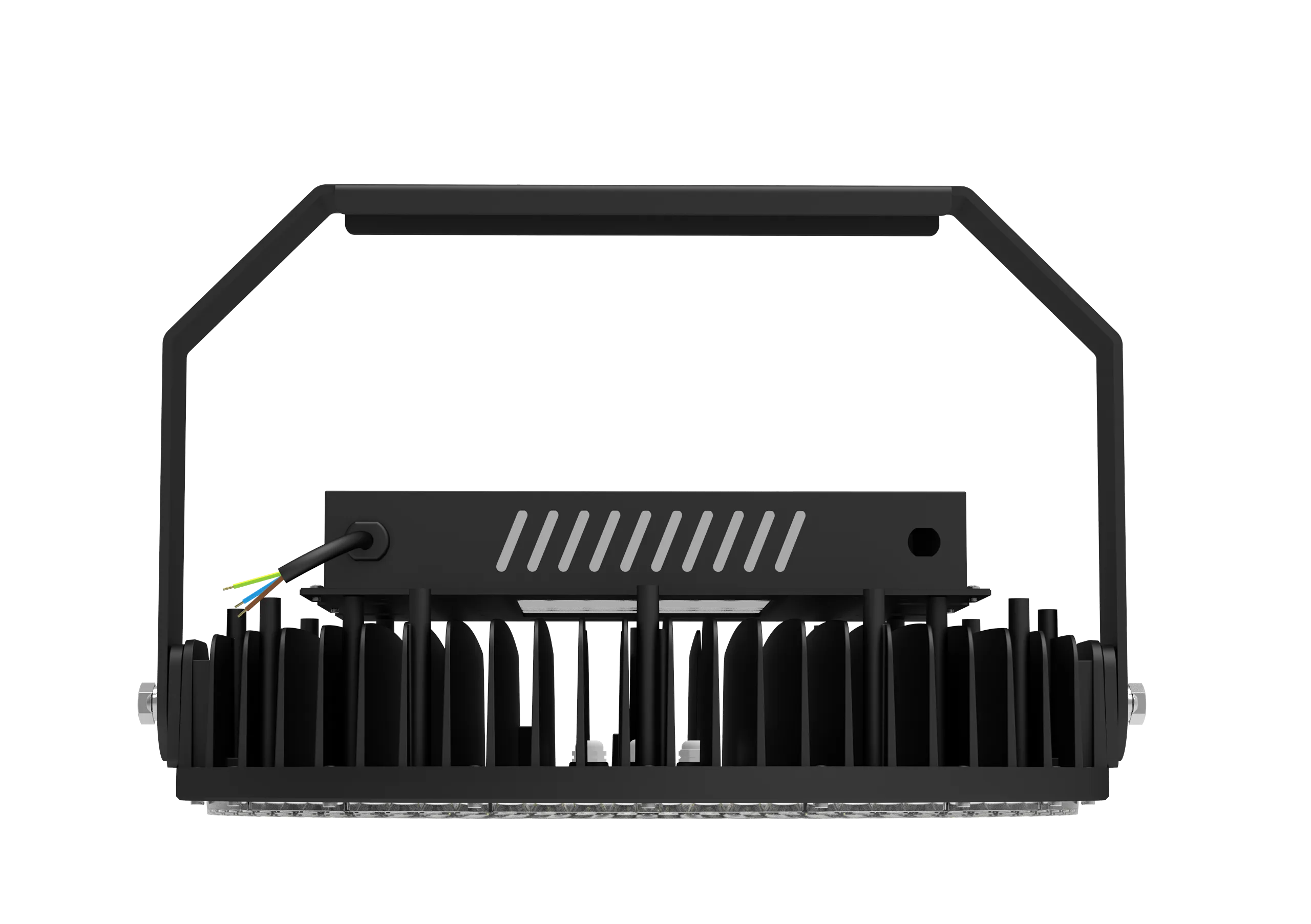

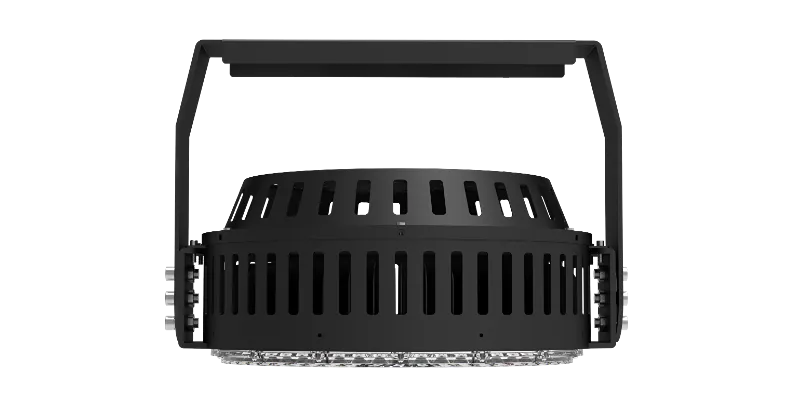

HB70 and HB71 share the same electrical platform: 600 to 1200W, 5050 LEDs, high K-value lens, and adjustable bracket mounting. HB70 uses an exposed driver housing on a finned base. HB71 integrates the driver into a rounded dome housing. Both carry the same beam options, dimming capability, and IP65 + IK09 protection.
IP65
IK09
5-Year Warranty
Documentation Available for Download
All certifications available upon request. Contact us for the complete compliance package for your region.
CE
CB
RoHS
3C
ISO 9001
ISO 14001
ISO 18001
Verified at Full Rated Power
High-wattage fixtures place the highest thermal and electrical stress on every component. Three checks confirm each unit before it leaves the line.
Full-Power Thermal Test
Every fixture runs at its rated wattage, from 600W to 1200W, to verify the internal die-cast heat sink holds stable operating temperature and output.
Beam Configuration Check
Each unit is checked against its ordered beam angle, confirming the high K-value lens assembly matches the specified 12°, 22°, 40°, or 60° distribution.
Burn-In and Dimming Function Test
Every fixture completes a burn-in cycle at full power, and dimmable units run a dimming function check before packing.
Where Ceiling Height Sets the Spec
High-ceiling and large-span facilities where fixtures mount far above the working floor and run long hours.
Industrial Plants
Tall production halls that need uniform ground illumination from height.
High-Speed Railway Stations
Large-span concourses and platforms with continuous operating hours.
Airports
Terminals and aprons where fixtures mount high and service access is limited.
Logistics Centers
High-bay warehouses with tall racking and round-the-clock shifts.
Aircraft Hangars
Ceilings at 20 to 30 meters, with uniform light required at floor level.
Port & Container Yards
High-mast installations at 25 to 40 meters covering wide outdoor areas.
