Linear LED High Bay Lights
Rectangular-beam high bays for aisles and long work rows. Your choice of Philips, MOSO, Inventronics, or Mean Well driver, and a standard waterproof breather valve that keeps the optics clear of fogging and frosting.
- 150 / 200 / 240W
- 150/180 lm/W
- 90x120° / 40x120° Rectangular Beams
- IP65 + IK09
Select a Model
HARSH & SPECIALIZED
GENERAL INDUSTRIAL

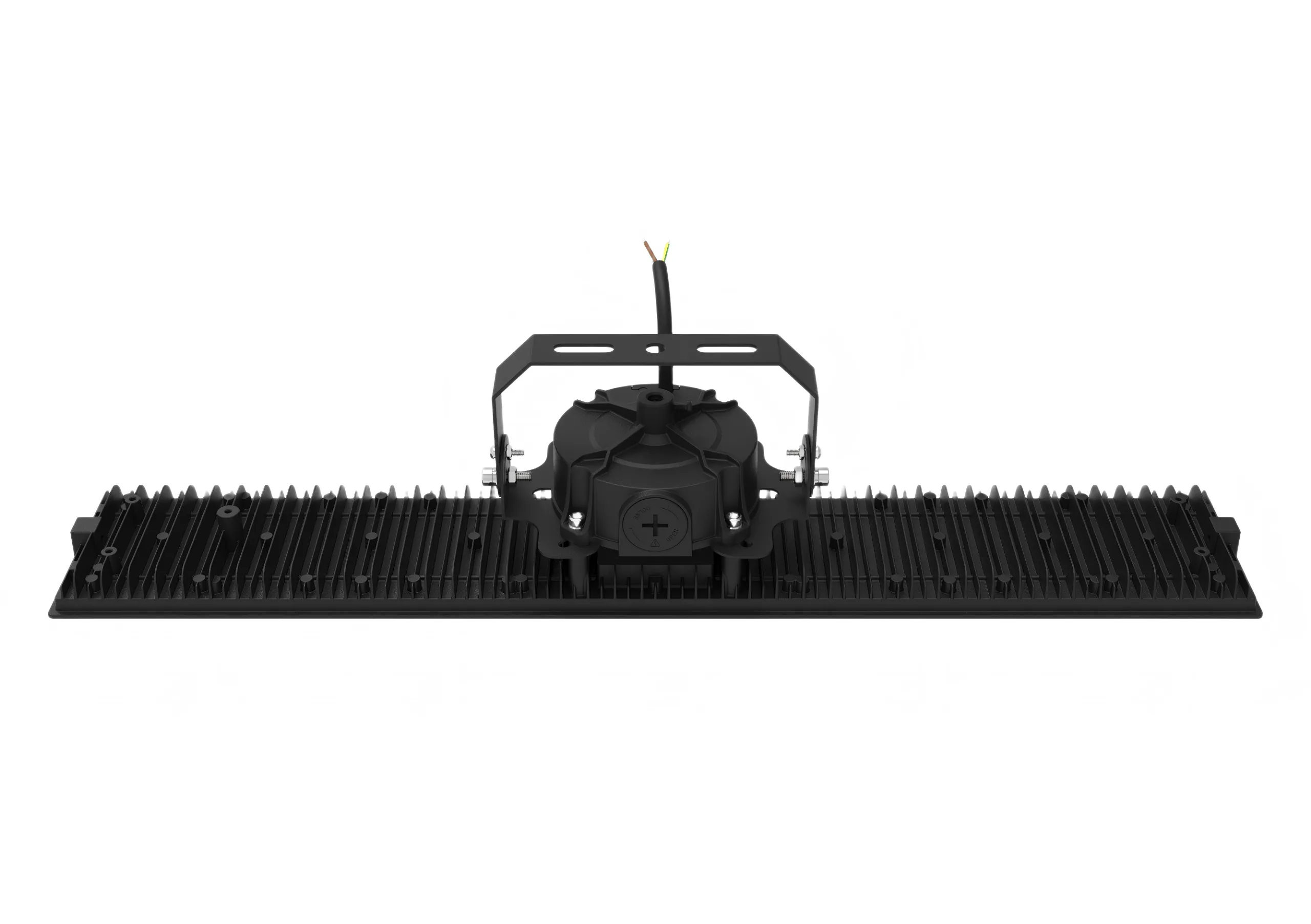

LHB04
The LHB04 Series Linear High Bay Light offers high-efficiency illumination (up to ...

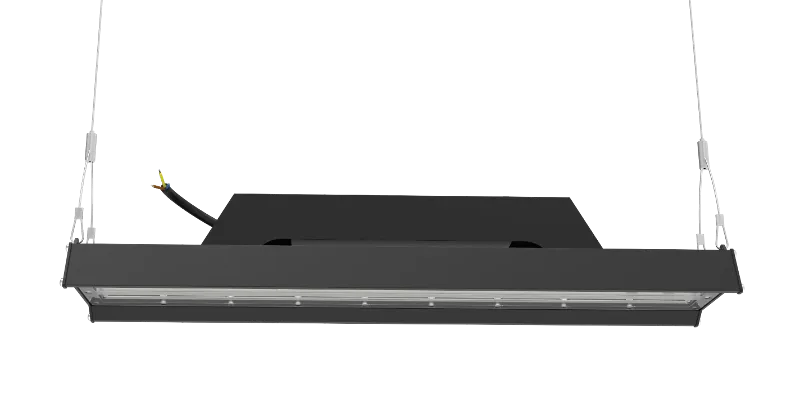

LHB03
The LHB03 Series Linear High Bay Light offers high-efficiency illumination for industrial ...

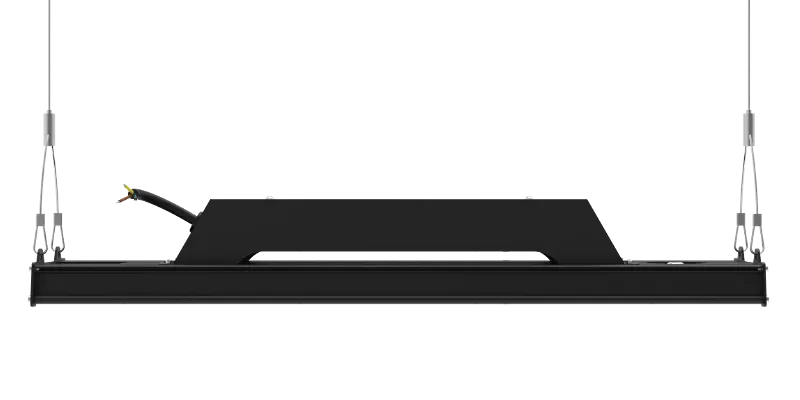

LHB02
The LHB02 Series Linear Highbay Light delivers high-efficiency illumination for industrial plants, ...
Rectangular Light, Specified Your Way
A round beam over a long aisle throws light onto rack tops and walls. The linear format puts a rectangular beam along the work path, and the build details below keep that output stable for years.
Driver Brands You Already Specify
Every series is available with Philips, MOSO, Inventronics, or Mean Well drivers. You match the fixture to the driver brand already approved in your projects, with no change to the housing or optics.
Breather Valve and Aluminum Profile Heat Sink
A waterproof breather valve comes standard, balancing internal and external air pressure to stop fogging and frosting inside the fixture. The aluminum profile heat sink moves heat off the LEDs fast.
Linear Series Technical Data
| Model | LHB02 / LHB03 / LHB04 |
| Power | 150W / 200W / 240W (±5%) |
| Efficacy | 150/180 lm/W (±5%) |
| Input Voltage | AC120-277V 50/60Hz |
| Operating Temperature | -40°C to 45°C |
| Beam Angle | 90x120° / 40x120° |
| Driver Options | Philips / MOSO / Inventronics / Mean Well |
| Housing | Aluminum Profile Heat Sink, Waterproof Breather Valve Standard |
| Mounting | Chain Installation / Bracket |
| Options | Motion Sensor; LHB04: Power & CCT Selectable |
| Ingress Protection | IP65, IK09 Rated |
| Product Size | LHB02: 570x116x85mm / LHB03: 570x140x95mm / LHB04: 637x105x71mm |
| Warranty | 5 Years Standard |
Three Series, One Optical Platform
All three series share the same 150 to 240W range, 150/180 lm/W efficacy, and 90×120° or 40×120° rectangular beams. LHB02 and LHB03 offer two aluminum profile housings with chain or bracket mounting and a sensor option. LHB04 adds power and CCT selection in a slimmer 71mm-deep housing, so one fixture covers multiple project specs.
IP65
IK09
5-Year Warranty
Documentation Available for Download
All certifications available upon request. Contact us for the complete compliance package for your region.
CE
CB
RoHS
3C
ISO 9001
ISO 14001
ISO 18001
Checked From Driver to Optics
Linear fixtures run on the same assembly line as our round high bays, with checks added for the components that define this product family.
Driver Configuration Per Order
The specified driver brand, whether Philips, MOSO, Inventronics, or Mean Well, is fitted and verified against the order before assembly closes.
Breather Valve and Seal Check
Each fixture receives its waterproof breather valve and passes an IP65 sealing inspection, confirming pressure balance and moisture protection.
Burn-In and Function Test
Every fixture completes a burn-in cycle. Sensor-equipped units and LHB04 power and CCT selection run a function check before packing.
Where the Floor Runs Long and Narrow
Facilities laid out in rows, where a rectangular beam puts light on the work surface instead of the walls.
Warehouse Aisles
The 40x120° beam runs along racking aisles and keeps light off the rack tops.
Production Lines
The 90x120° beam covers long assembly and packing rows evenly.
Logistics Centers
Chain-mounted rows follow conveyor and sorting layouts.
Humid & Temperature-Swing Areas
The breather valve keeps internal fogging and frosting away from the optics.
