HB101

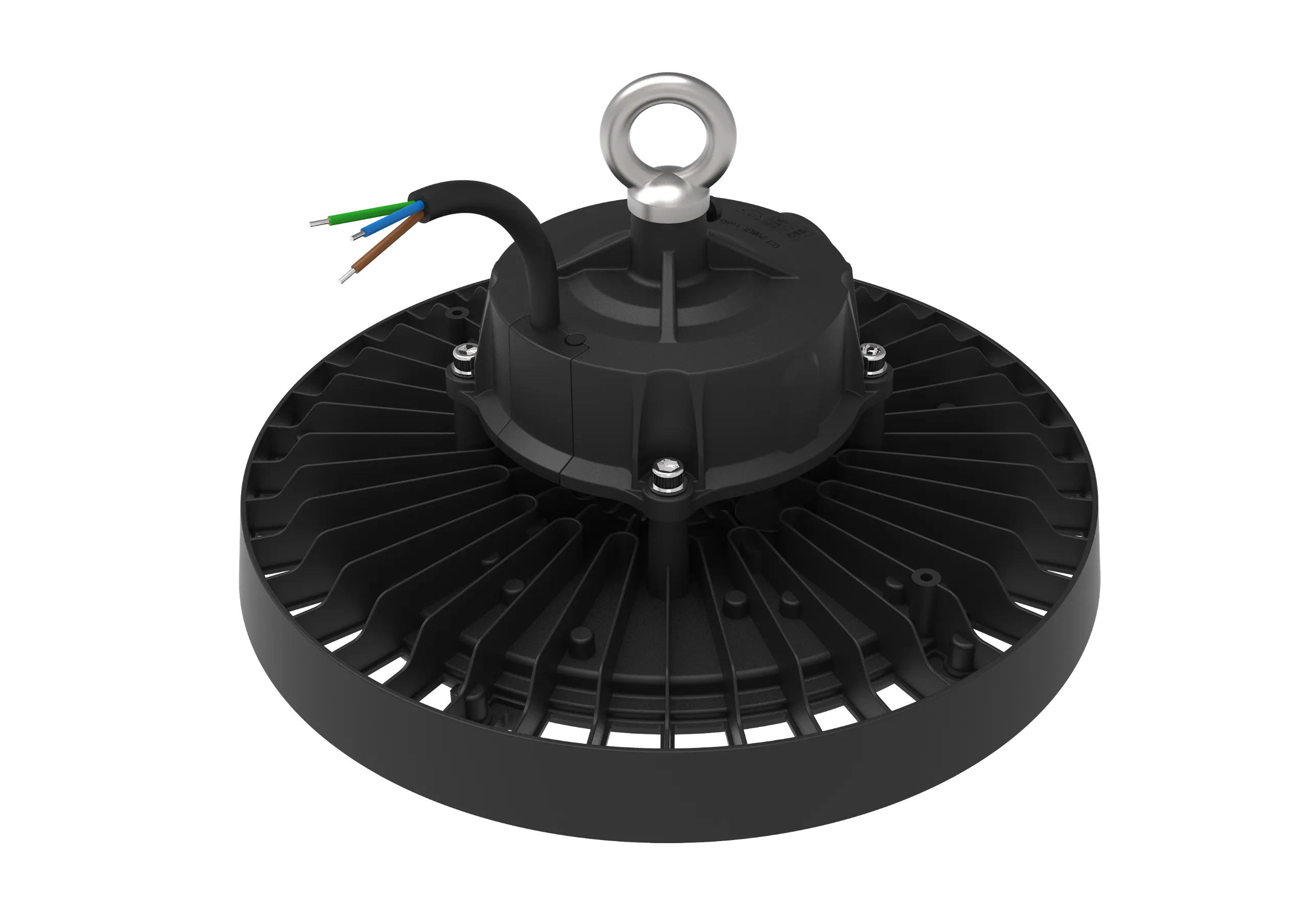

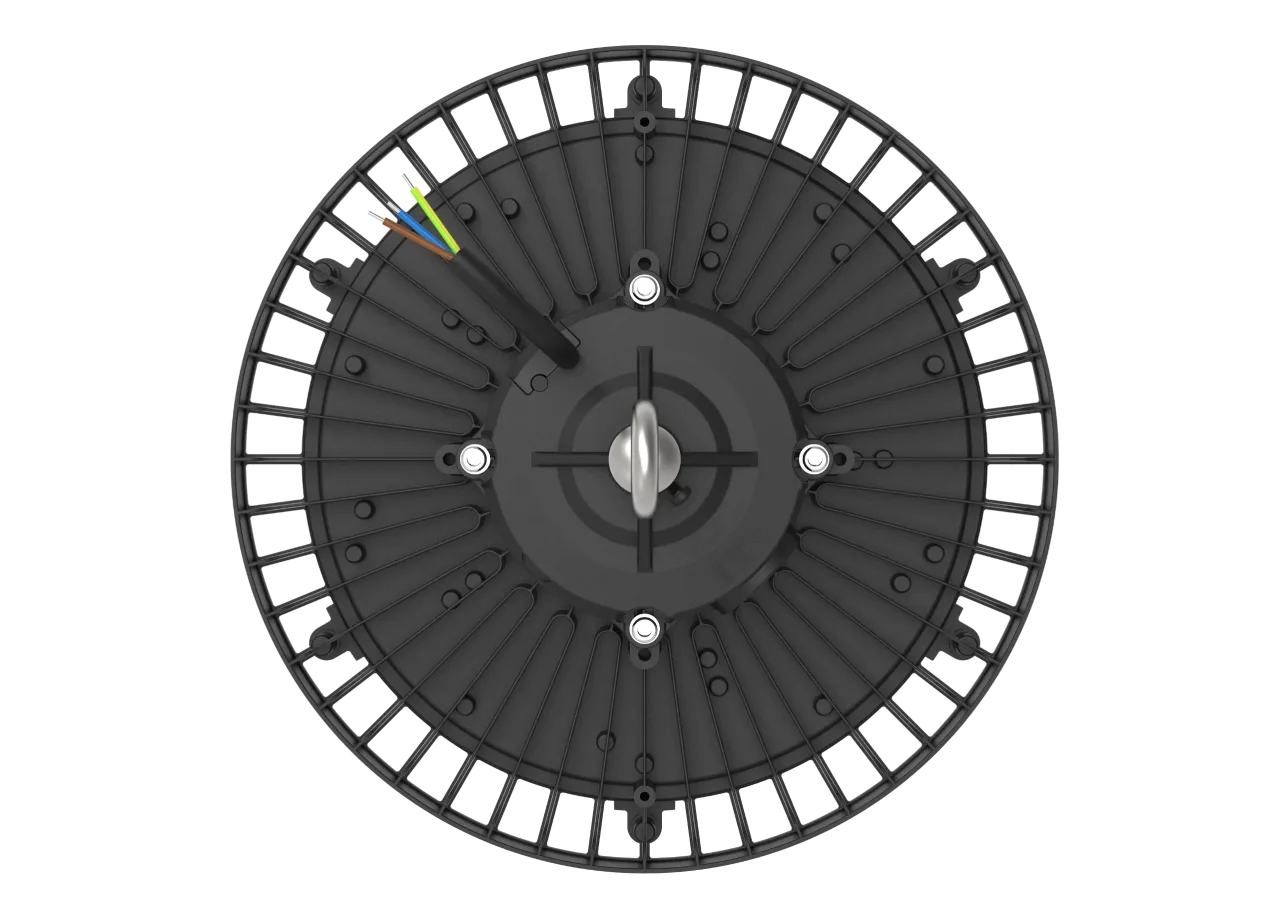

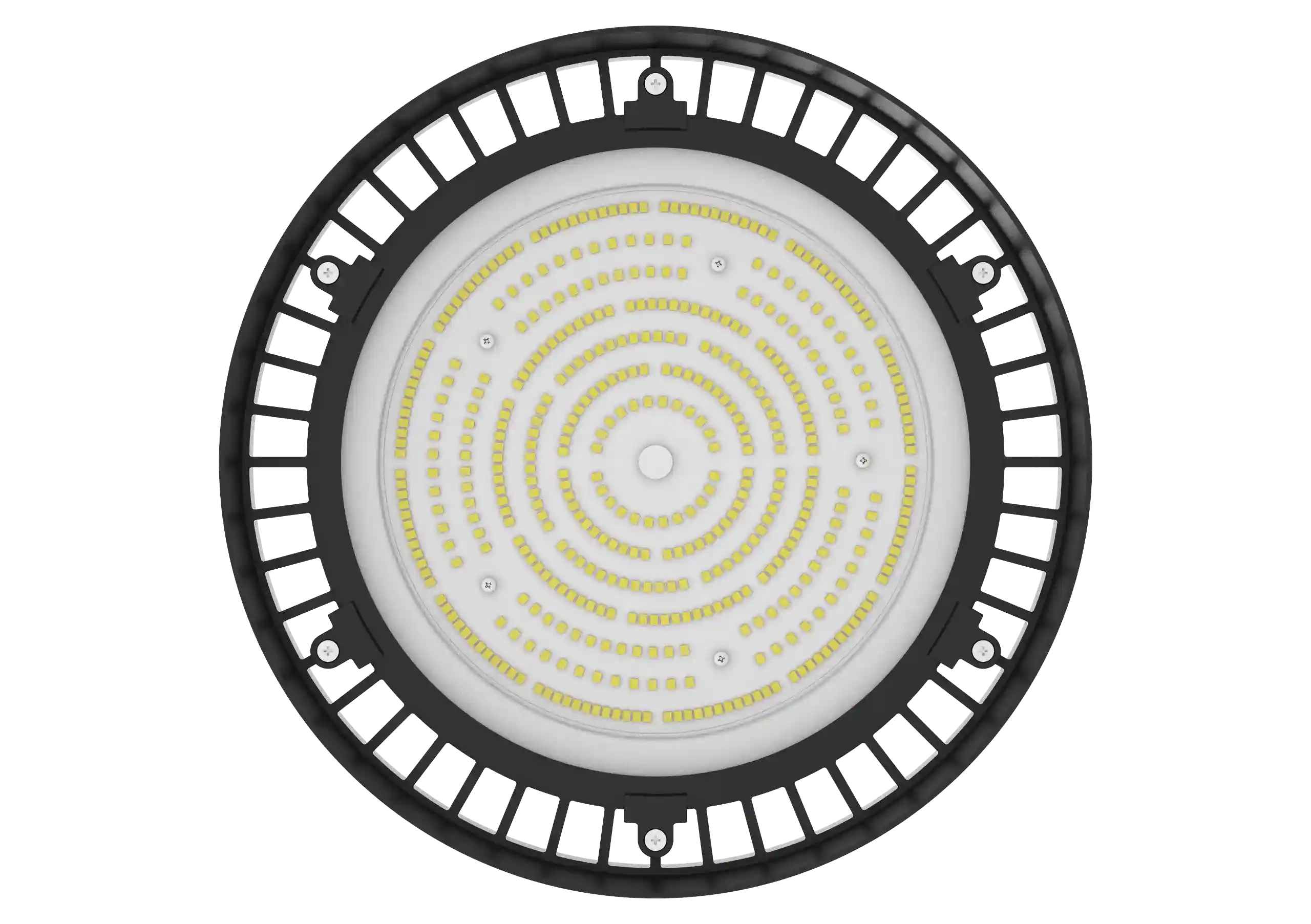

The HB101 Series Low-Temperature Cold Storage High Bay Light is engineered specifically for cold storage facilities and freezing rooms.
Built to operate reliably down to -40°C, it delivers robust, energy-efficient illumination for sub-zero industrial environments.

Key Features

Low-Temperature Solid Capacitors

Equipped with ultra-low-temperature solid capacitors, this custom power supply ensures seamless, reliable cold starting in severe freezing environments down to -40°C.

Nano-Coated Power Board Protection

The power supply PCB features a protective nano-vacuum coating, shielding internal components from moisture damage in humid, low-temperature working conditions.

Glue-Encapsulated LED Light Board

A protective glue-dispensing layer covers the light board, preventing water vapor ingress from compromising the LED chips or PCB integrity.

High Efficiency and Long Warranty

Delivers high luminous efficacy up to 190 lm/W with an IP65/IK07 rating, backed by a 5-year warranty for low-maintenance cold-chain performance.

Inquire Now

Technical Specifications

SeriesHB101-Cold Storage & Freezer LED High Bay
Power100W, 150W, 200W, 240W
Lumen Output15000-19000 lm, 22500-28500 lm, 30000-38000 lm, 36000-43000 lm
Efficacy150 lm/W, 190 lm/W
Input VoltageAC 120–277V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRIRa: 80 / Ra: 70
Beam Angle120°
Operating Temperature-30°C to +50°C, RH: 5%-95% non-condensing
IP RatingIP65
IK Rating
IK07
Housing MaterialADC12 Alloy + Tempered Glass

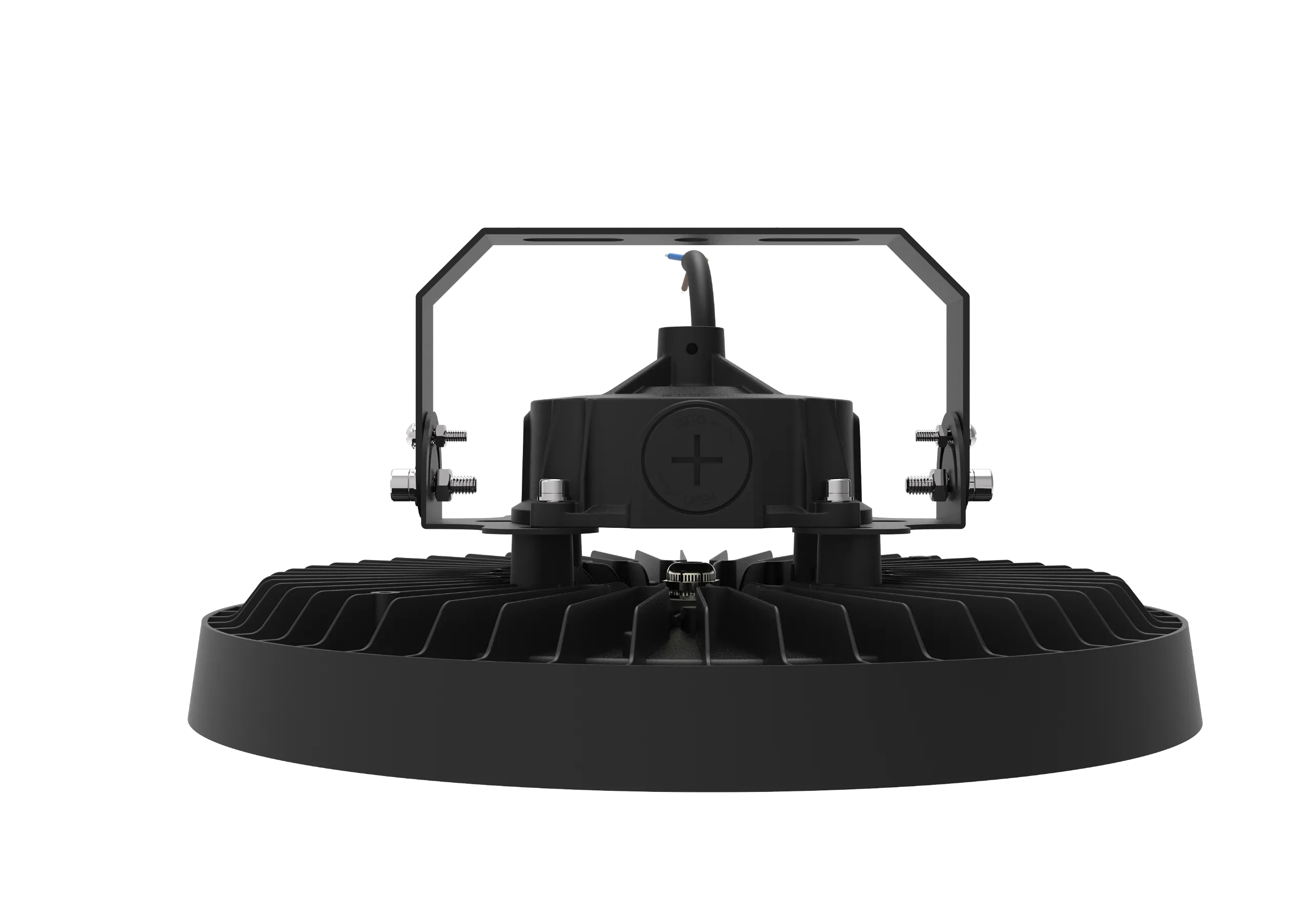

MountingStandard with lifting ring; hook, bracket mount and 3/4'' thread adapter optional
Dimming0-10V
CertificationsCE / RoHS / CCC / CQC
Warranty5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
