Low-temp high bay luminaire HB102 for frozen food plants
Cold-resistant high bay LED HB102 for logistics freezers
HB102 cold chain LED high bay for freezer facilities
Freezer warehouse high bay lights HB102 cold storage
Low-temp high bay luminaire HB102 for frozen food plants
Cold-resistant high bay LED HB102 for logistics freezers
HB102 cold chain LED high bay for freezer facilities
Freezer warehouse high bay lights HB102 cold storage

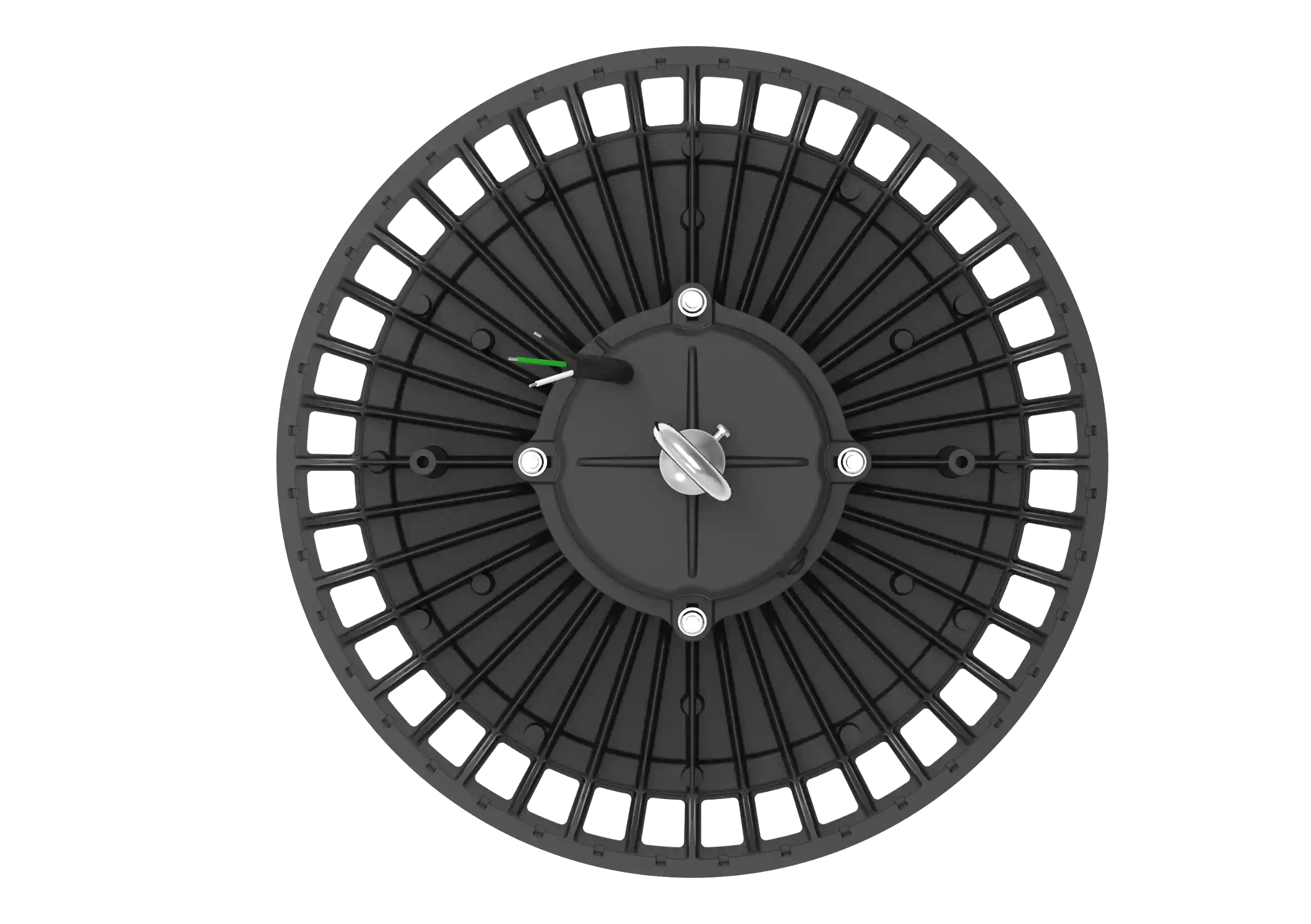

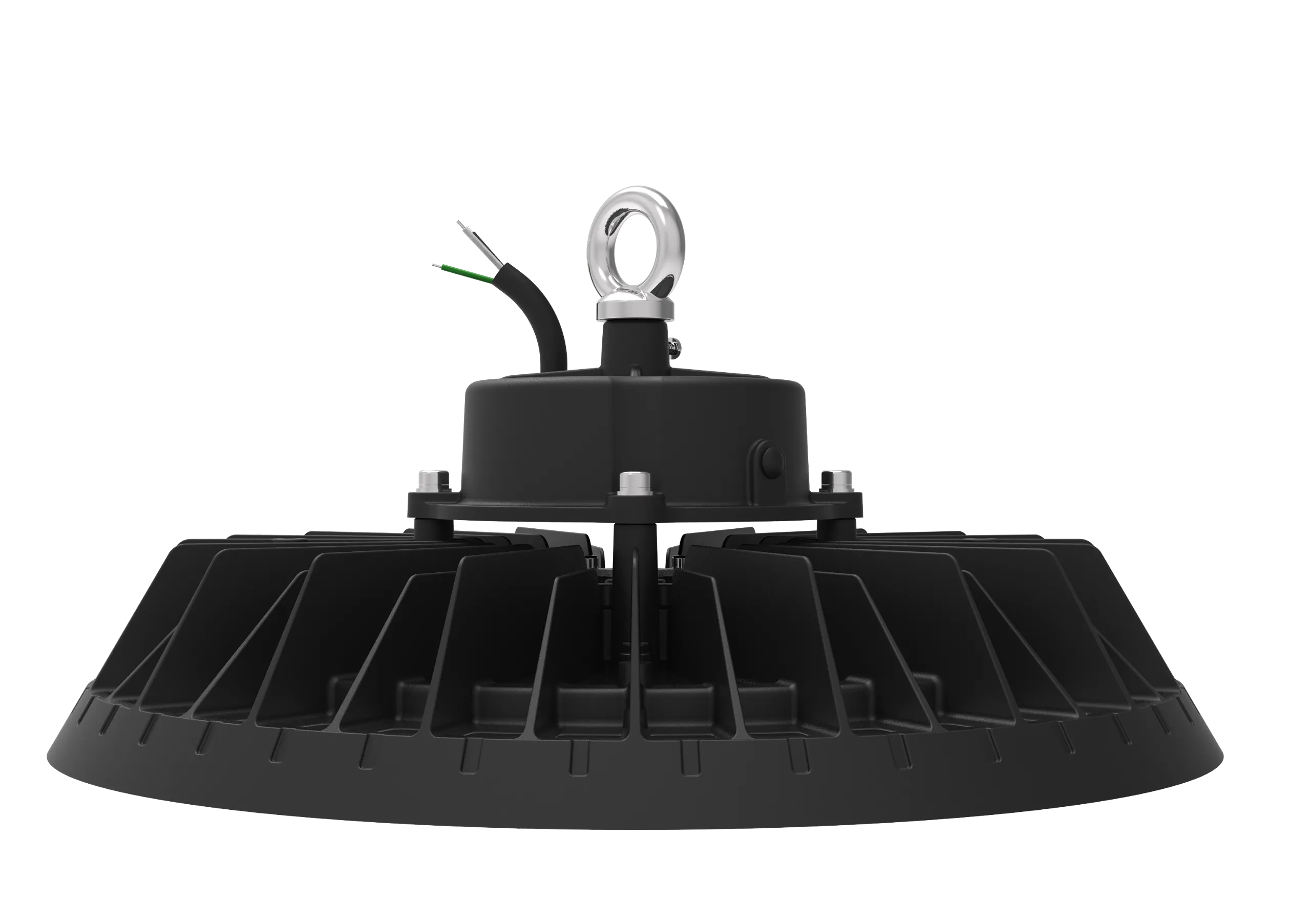

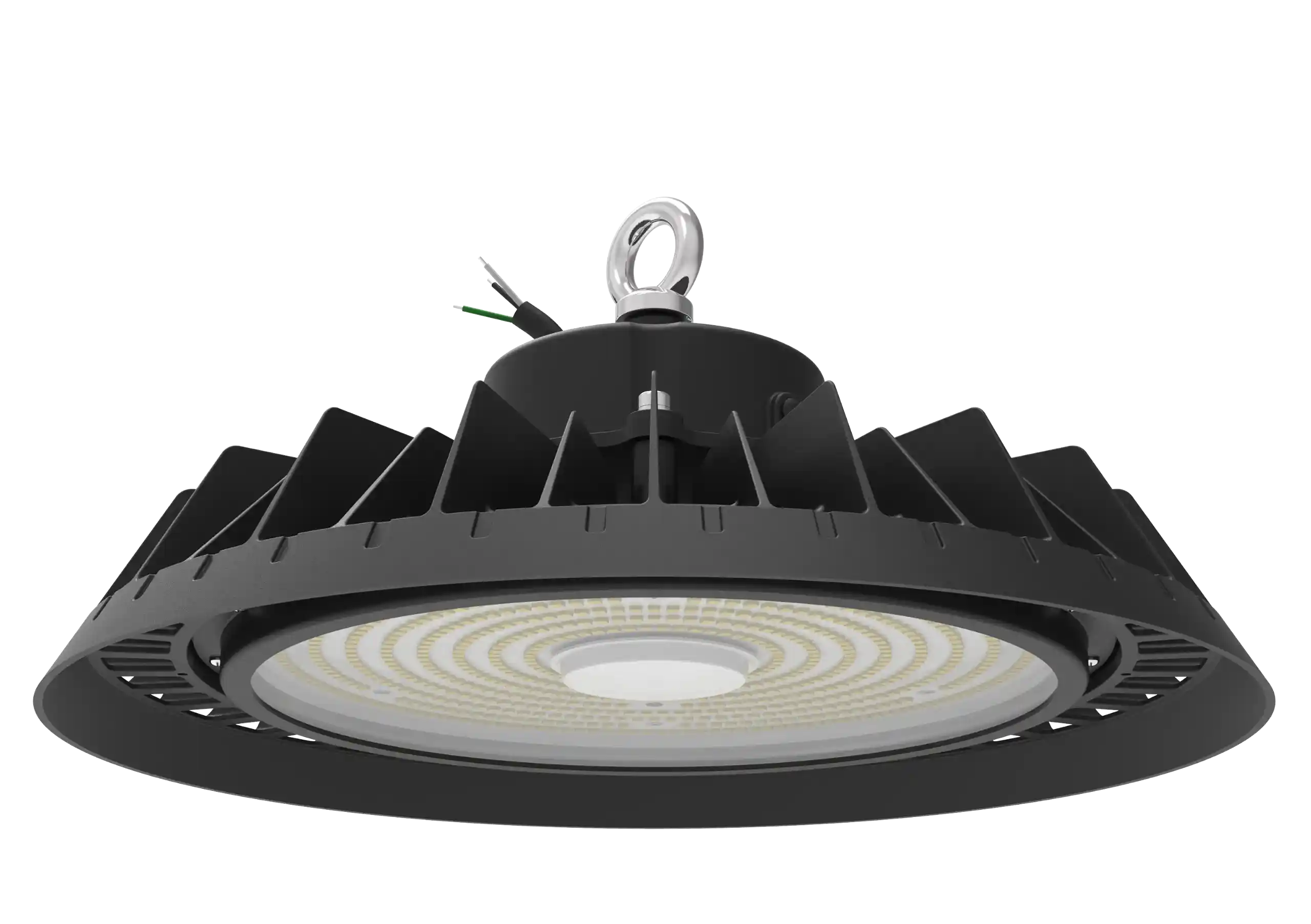

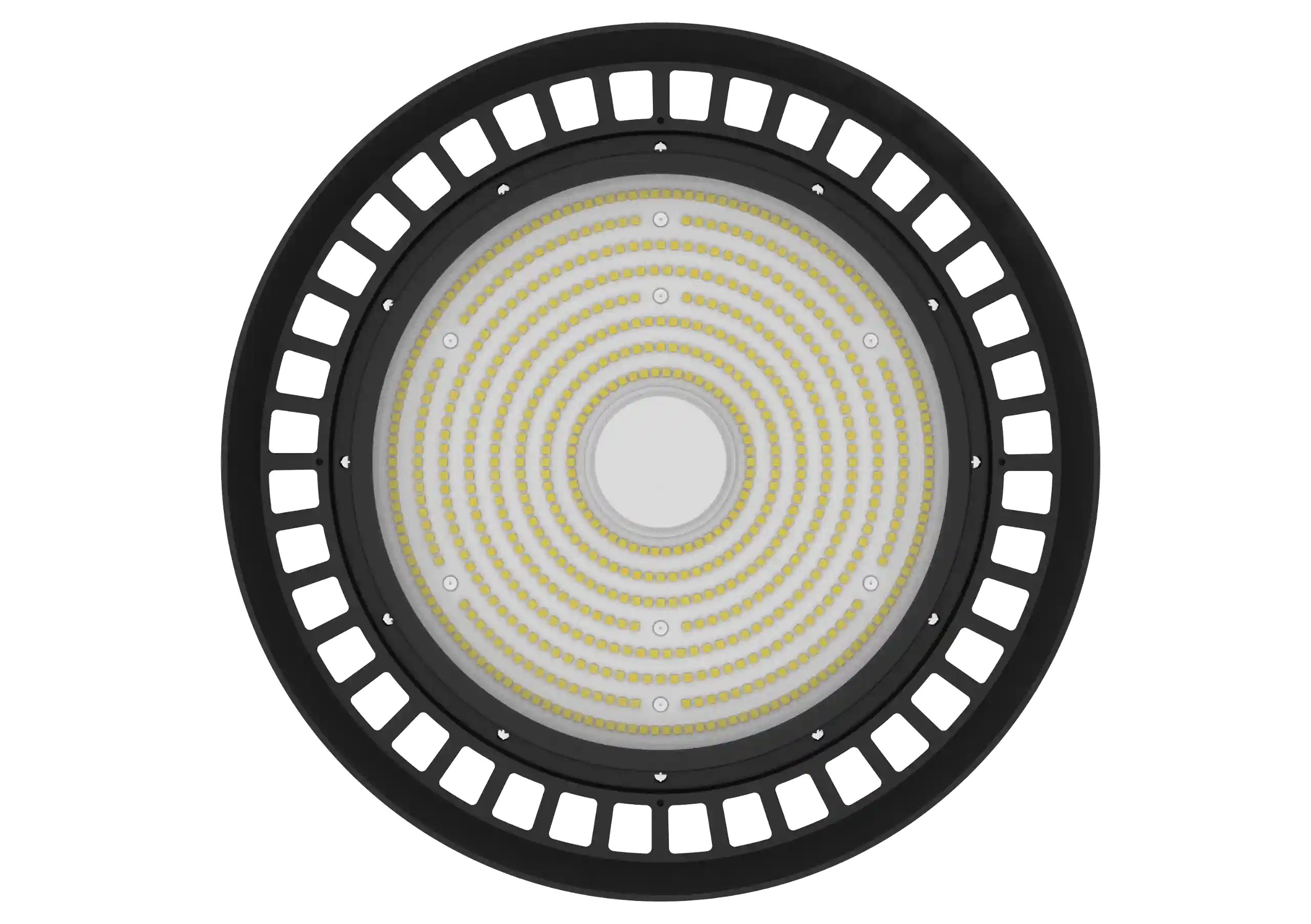

HB102

The HB102 Series Low-Temperature High Bay Light is specifically crafted for cold storage facilities and freezing units.
Engineered to maintain uninterrupted operation down to -40°C, it delivers energy-efficient, high-performance illumination tailored for demanding sub-zero industrial environments.

Key Features

Low-Temp Solid Capacitor Driver

Integrates tailored ultra-low temperature solid capacitors that guarantee instant, smooth ignition and reliable power performance in extreme freezing conditions as low as -40°C.

Vacuum Nano-Coated Circuitry

The driver PCB is treated with a specialized nano-vacuum coating, shielding electronic components against severe dampness and moisture degradation in high-humidity cold environments.

Fully Sealed Encapsulated Lightboard

Features a protective potting glue layer over the LED board, effectively sealing out water vapor to prevent corrosion and long-term damage to the chips and circuitry.

Rugged Efficiency with Extended Coverage

Outputs exceptional luminous efficacy up to 200 lm/W inside an IP65/IK08 die-cast aluminum housing, supported by a 5-year warranty for maximum operational reliability.

Inquire Now

Technical Specifications

SeriesHB102-Cold Storage & Freezer LED High Bay
Power100W, 150W, 200W, 240W
Lumen Output14500-19500 lm, 22500-30000 lm, 30000-40000 lm, 36000-48000 lm
Efficacy150 lm/W, 200 lm/W
Input VoltageAC 120-277V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRI150-170lm/W, Ra: 80±2; 200lm/W, Ra: 70±2
Beam Angle120°
Operating Temperature-30°C to +45°C, RH: 5%-95% non-condensing
IP RatingIP65
IK Rating
IK08
Housing MaterialADC12 Alloy + Tempered Glass
MountingStandard with lifting ring; hook, bracket mount and 3/4'' thread adapter optional
Dimming0-10V
CertificationsCE / RoHS / CCC / CQC
Warranty5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
