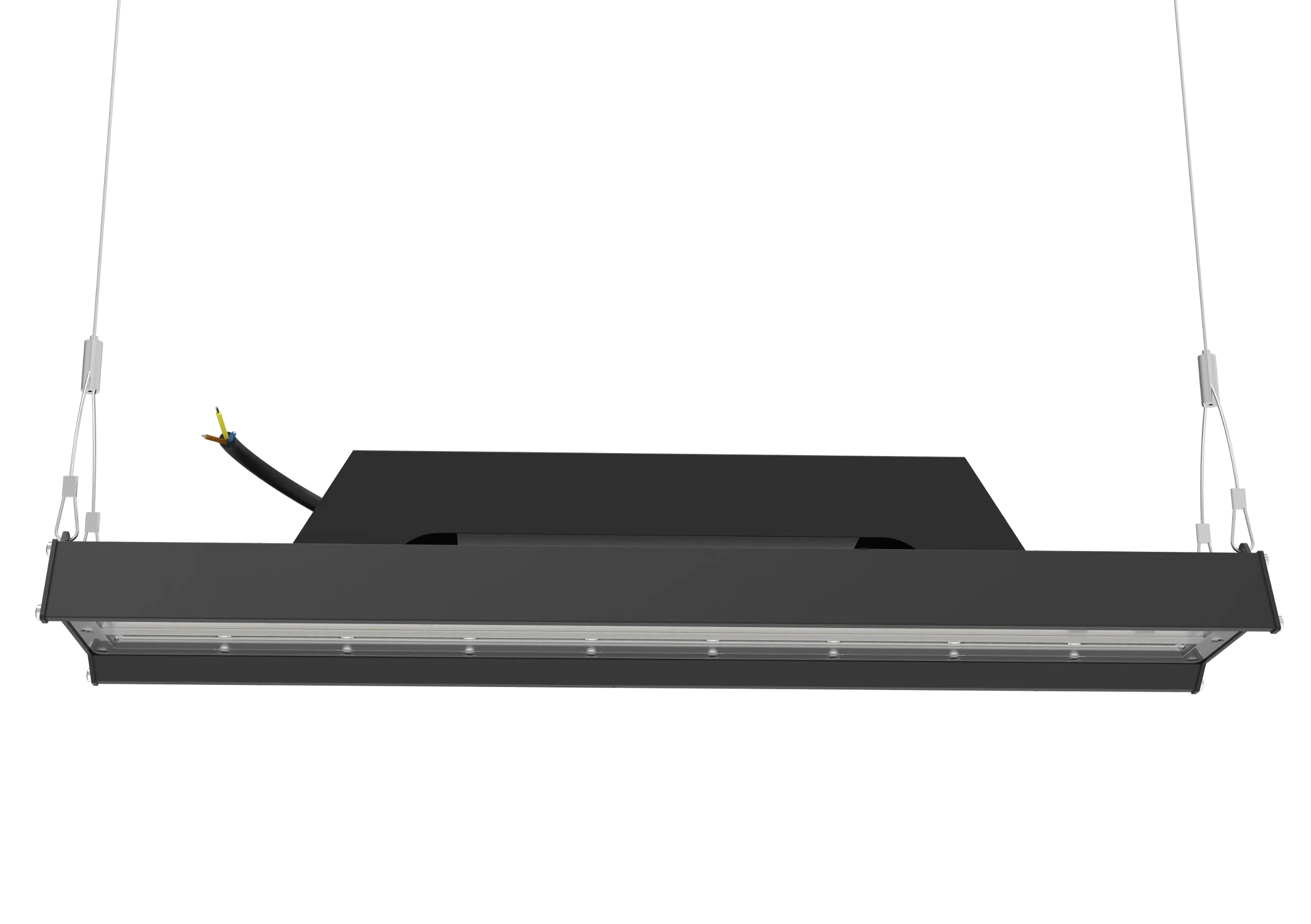

Professional linear high bay luminaires ideal for high-ceiling industrial corridors and assembly environments, model LHB03

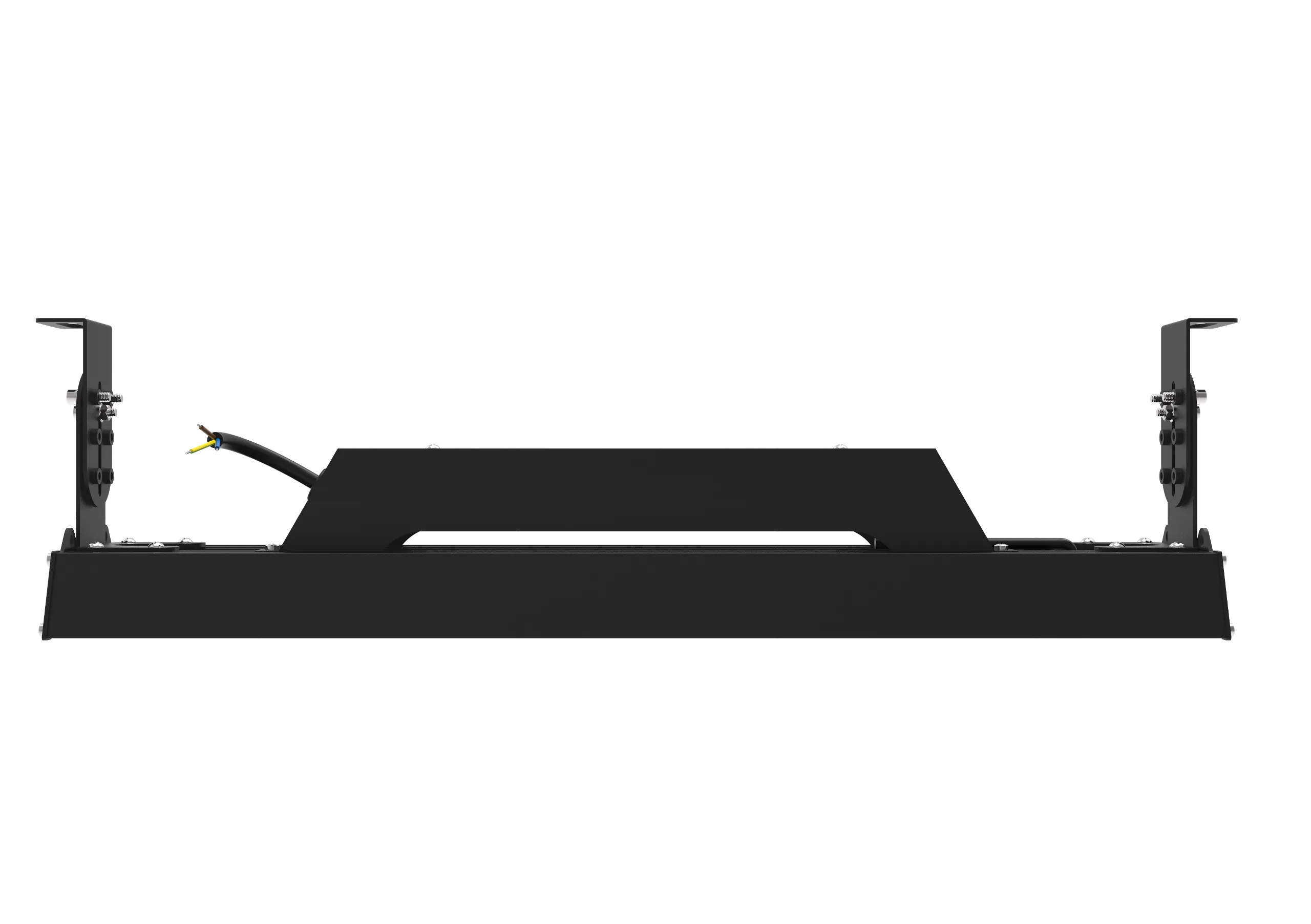

LED Linear High Bay Luminaire for Industrial Corridors and Halls LHB03

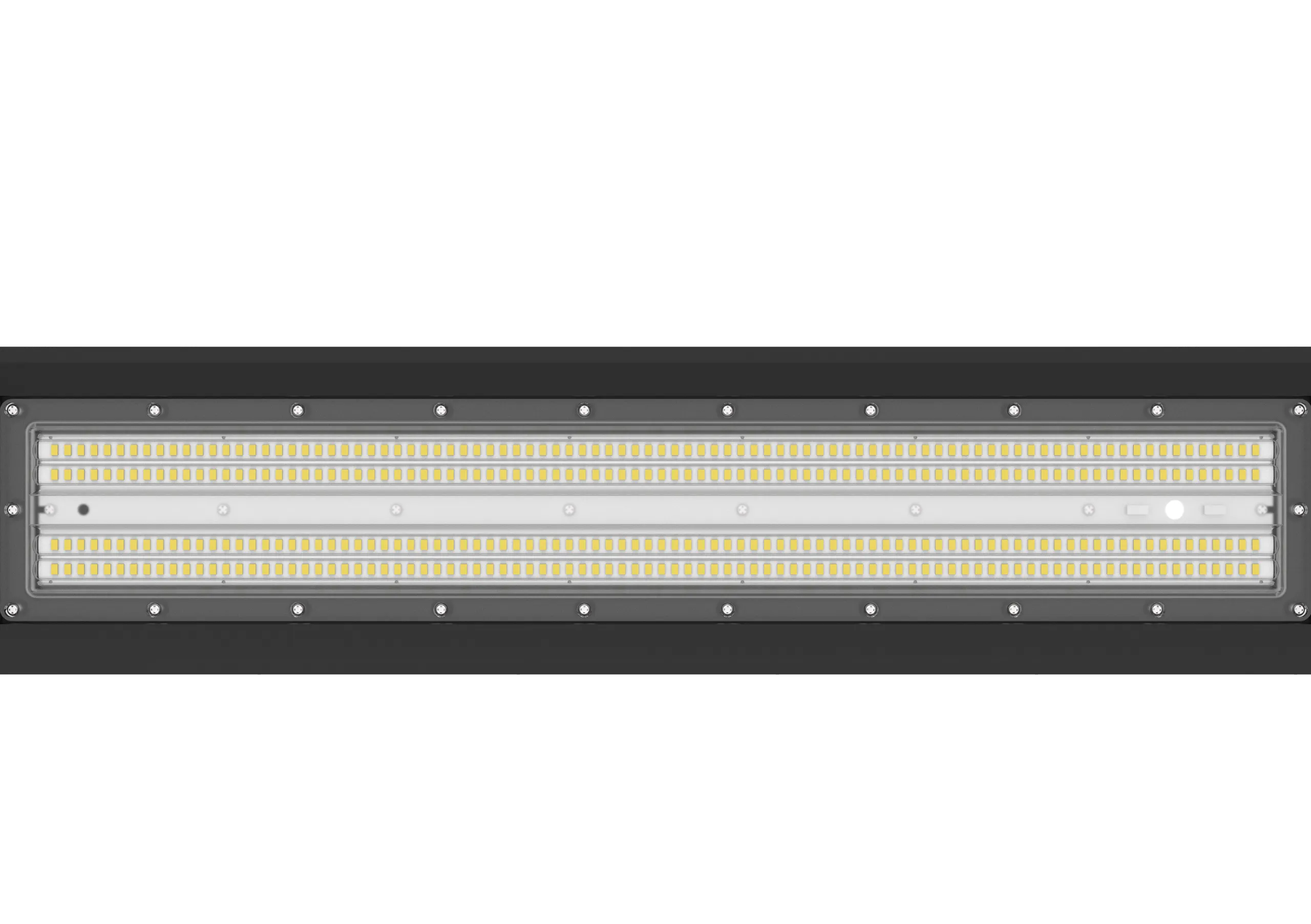

Efficient linear high bay fixtures designed for assembly lines, warehouse aisles and manufacturing facilities, model LHB03

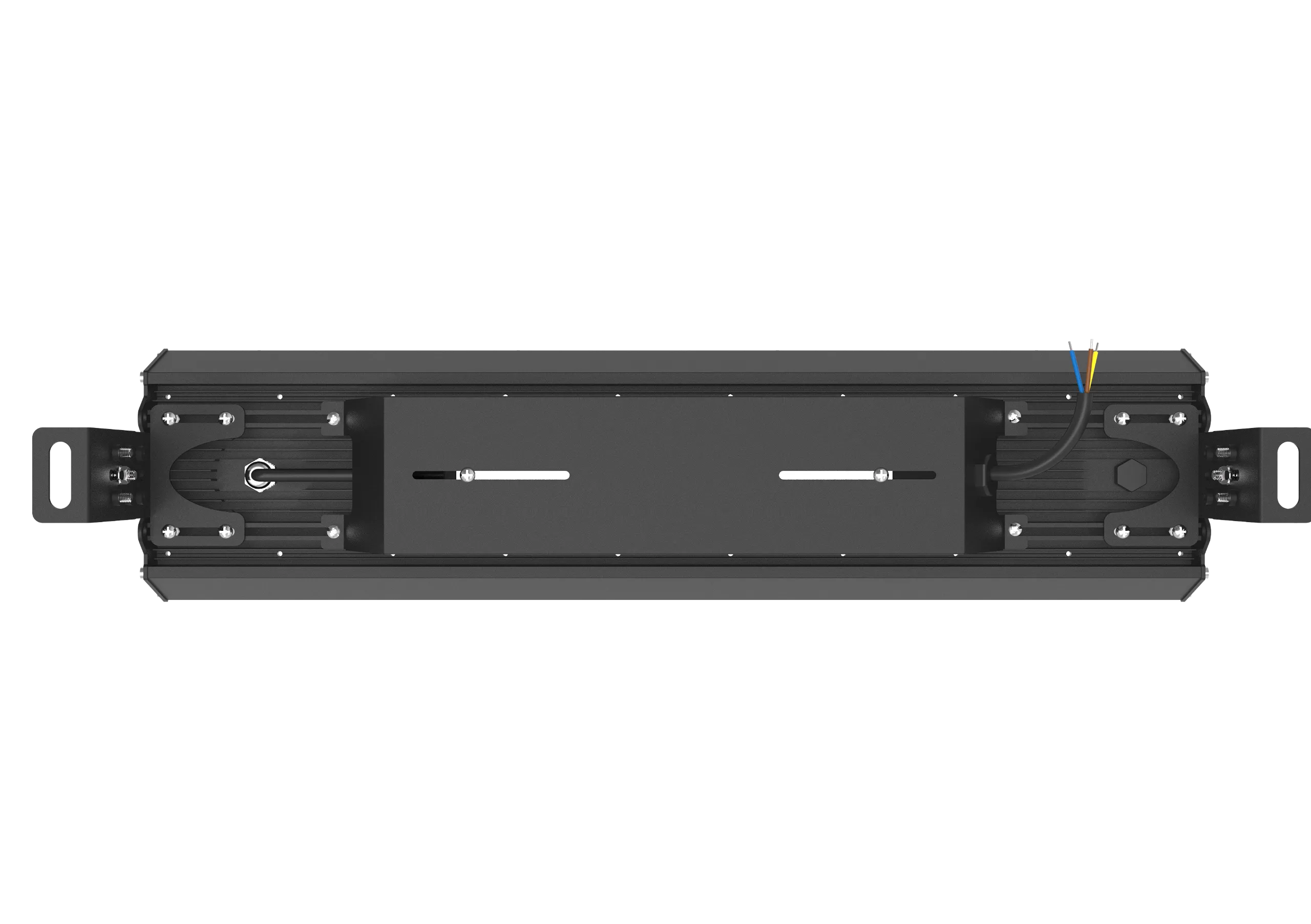

Industrial Linear High Bay Lights for Distribution Warehouses LHB03

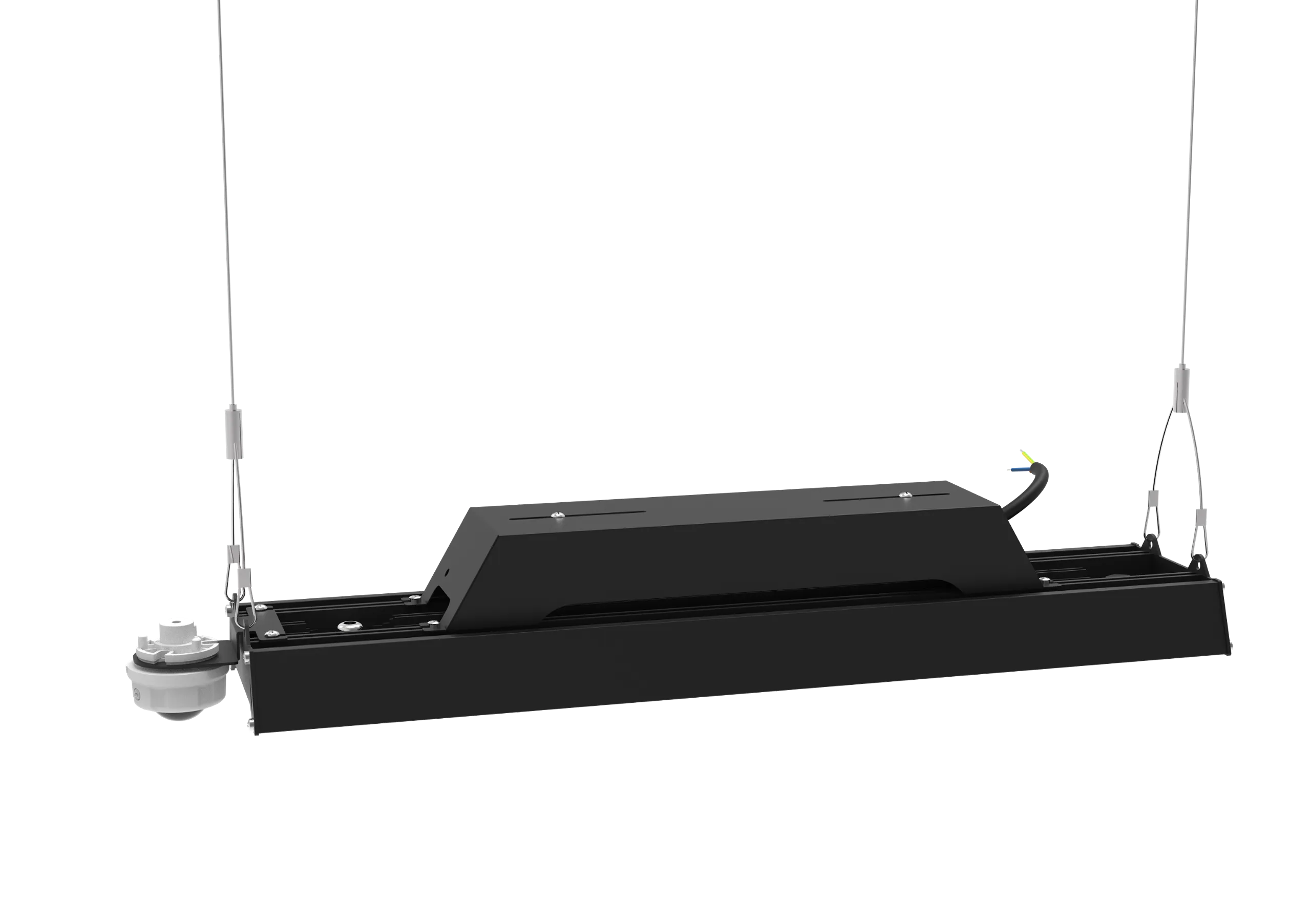

LHB03 LED Linear High Bay for Industrial Corridors and Factories

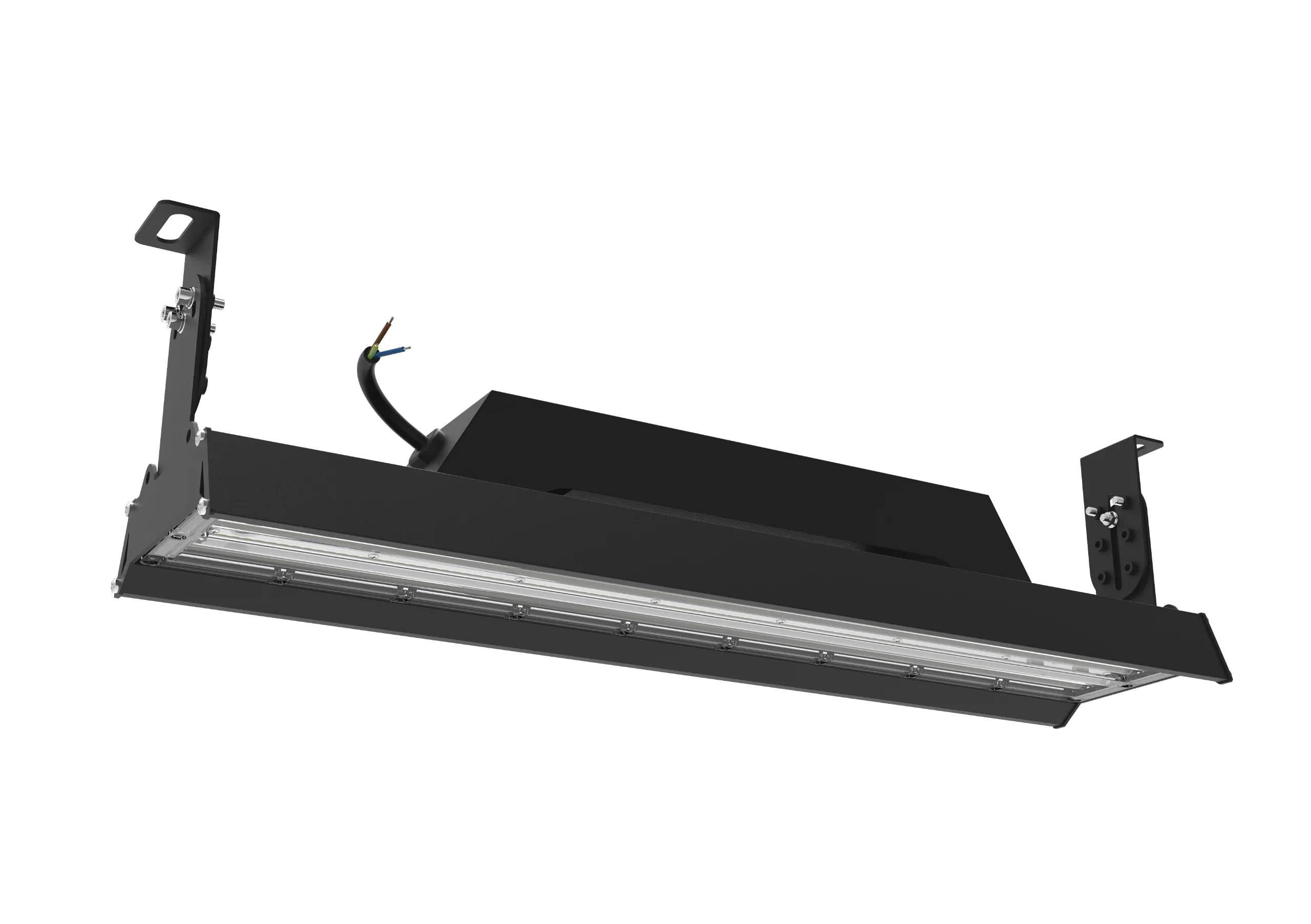

Durable linear high bay fixtures built for continuous use in distribution warehouses and production facilities, model LHB03
Professional linear high bay luminaires ideal for high-ceiling industrial corridors and assembly environments, model LHB03
LED Linear High Bay Luminaire for Industrial Corridors and Halls LHB03
Efficient linear high bay fixtures designed for assembly lines, warehouse aisles and manufacturing facilities, model LHB03
Industrial Linear High Bay Lights for Distribution Warehouses LHB03
LHB03 LED Linear High Bay for Industrial Corridors and Factories
Durable linear high bay fixtures built for continuous use in distribution warehouses and production facilities, model LHB03

LHB03

The LHB03 Series Linear High Bay Light offers high-efficiency illumination for industrial workshops, warehouses, and logistics centers.
Built with robust aluminum heat sinks and customizable optical lenses, it delivers exceptional energy savings and reliable performance in demanding high-bay environments.

Key Features

High-Efficiency LED Illumination

Delivers luminous efficacy up to 180 lm/W, providing powerful, energy-efficient lighting across large industrial spaces while reducing overall operational costs.

Standard Waterproof Breather Valve

Features an integrated breather valve to equalize pressure, actively preventing internal fogging and frosting to maintain clear, long-lasting performance in tough environments.

Smart Sensor Compatibility

Supports optional microwave, infrared, and daylight sensors via screw-in or Zhaga bases, enabling automated, intelligent lighting control to optimize energy use.

Rugged IP65 IK08 Design

Engineered with an aluminum heat sink and UV-resistant PC lens, providing IP65 waterproof protection and IK08 impact resistance for maximum durability.

Inquire Now

Technical Specifications

SeriesLHB03-Linear LED High Bay Light
Power150W, 200W, 240W
Lumen Output22500-27000 lm, 30000-36000 lm, 36000-43000 lm
Efficacy150 lm/W, 180 lm/W
Input VoltageAC 120-277V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRI150lm/W, Ra: 80±2; 180lm/W, Ra: 70±2
Beam Angle90°*120° / 40°*120°
Operating Temperature-30°C to +45°C, RH: 5%-90% non-condensing
IP RatingIP65
IK Rating
IK08
Housing MaterialHigh-quality Aluminum Profile + PC Lens
MountingRope installation (standard) / bracket installation (optional)
Dimming1-10V
CertificationsCE / RoHS / CQC
Warranty5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
