Food-Grade LED High Bay Lights
- Smooth Wipe-Clean Surface
- IP65 + IK09
- 100-200W, 3 Series
- Up to 190 lm/W
Select a Model
HARSH & SPECIALIZED
GENERAL INDUSTRIAL
Product Model
What this feature does and why it matters. Example: “Driver and LED ...
Product Model
What this feature does and why it matters. Example: “Driver and LED ...
Product Model
What this feature does and why it matters. Example: “Driver and LED ...
Product Model
What this feature does and why it matters. Example: “Driver and LED ...
Product Model
What this feature does and why it matters. Example: “Driver and LED ...
Product Model
What this feature does and why it matters. Example: “Driver and LED ...
Built for Daily Washdown and Audits
Smooth Surface That Wipes Clean
The housing carries a smooth finish with sealed joints and a flush glass lens. Dust, grease, and washdown water rinse off in one pass, so cleaning crews spend minutes per fixture.
Sealed for Wet, Dusty Shifts
IP65 sealing keeps water and flour dust out of the optics, and an IK09 impact rating covers accidental knocks from lifts and equipment.

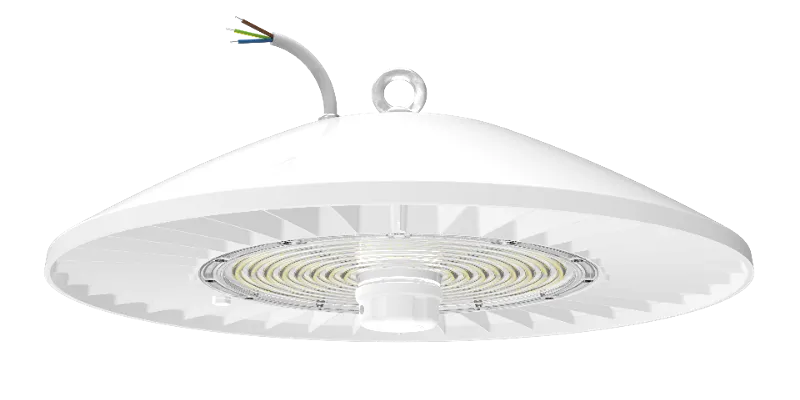

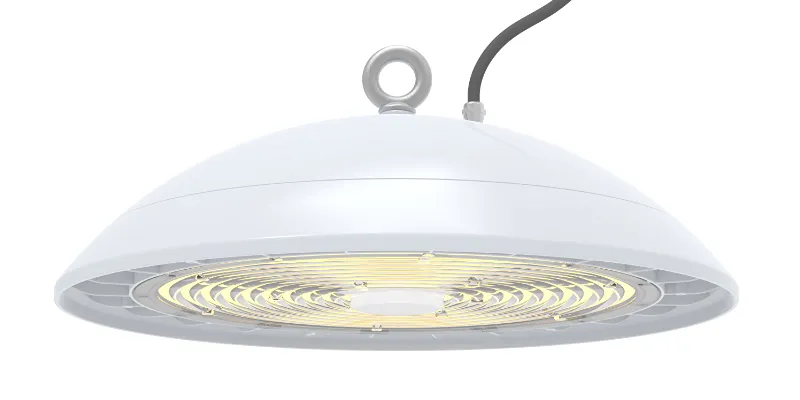

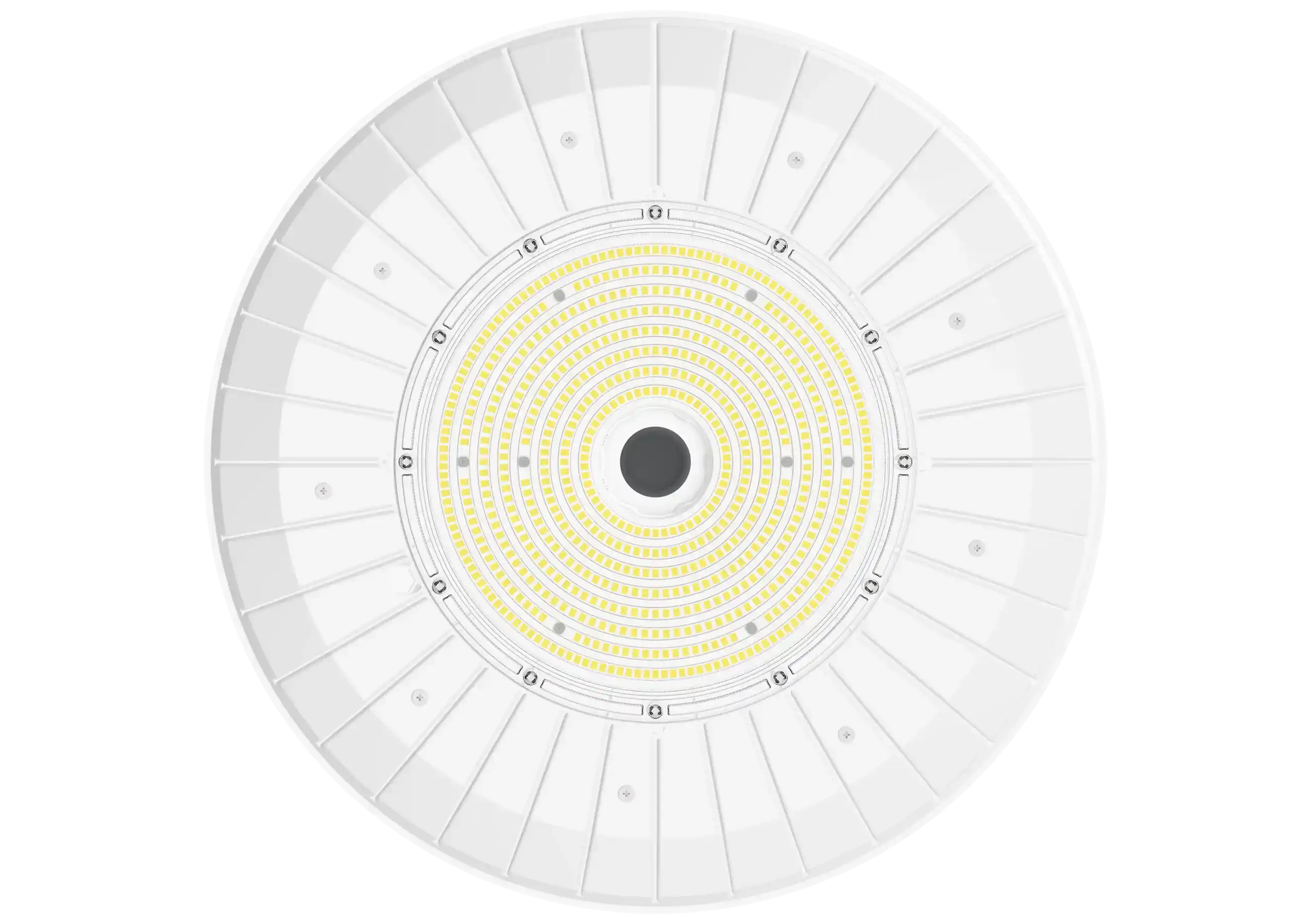

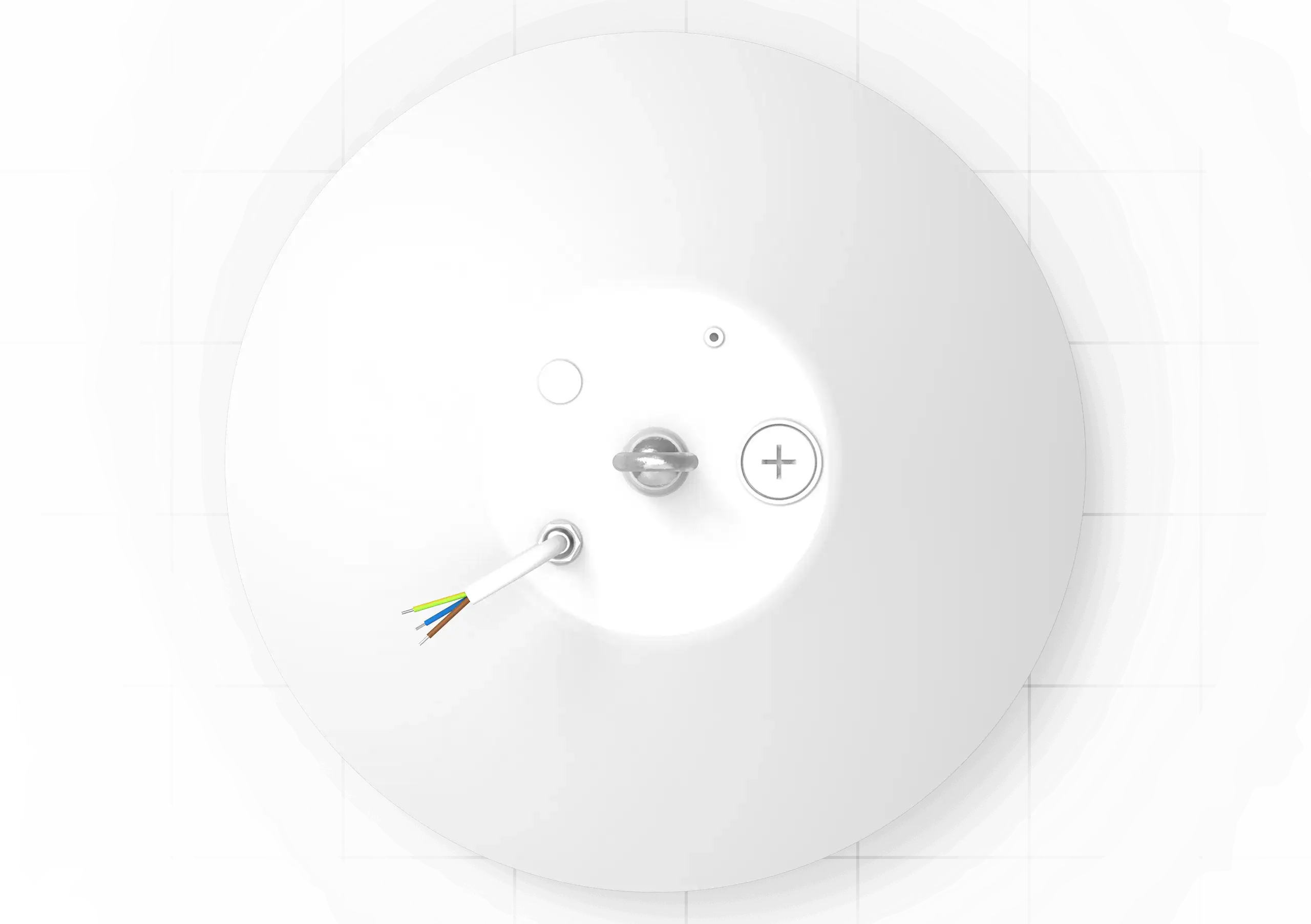

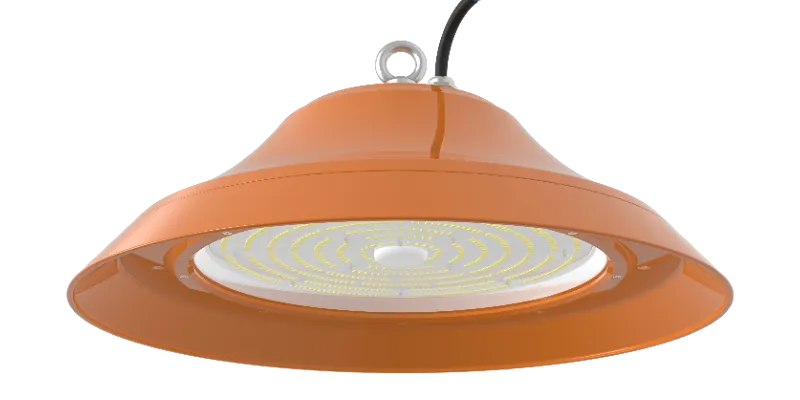

Food-Grade Series Technical Data
| Model | HB61 / HB62 / HB63 |
| Power | 100W / 150W / 200W (±5%) |
| Efficacy | HB61/62: 160/190 lm/W / HB63: 150/170/190 lm/W (±5%) |
| Input Voltage | AC120-277V 50/60Hz |
| Operating Temperature | -30°C to 45°C |
| Beam Angle | HB61: 120° / HB62: 90° / HB63: 60°/90°/120° |
| Lens | Glass Lens |
| Surface | Smooth Finish, Wipe-Clean |
| Options | Hb63: Power & CCT Selectable, Sensor |
| Ingress Protection | IP65, IK09 Rated |
| Product Size | HB61: Φ417 x H151mm / HB62: Φ425 x H130mm / HB63: Φ420 x H108mm |
| Warranty | 5 Years Standard |
Three Series, One Hygiene Standard
IP65
IK09
5-Year Warranty
Documentation Available for Download
All certifications available on request. Contact us for the complete compliance package for your region.
CE
CB
RoHS
3C
ISO 9001
ISO 14001
ISO 18001
Three Extra Steps for Food-Grade Reliability
Surface Finish Inspection
Every unit passes a visual surface check. The finish must be smooth and free of casting burrs, so the housing wipes clean in a single pass.
Waterproof Tested to IP65 Standard
Each fixture passes water jet testing at every joint and lens edge, confirming the seal through repeated washdown cycles.
Burn-In Plus Function Check
Every fixture completes a burn-in cycle. HB63 units also run a power-select, CCT-select, and sensor function test before packing.
Where Hygiene Rules the Spec
Food and hygiene-critical facilities where fixtures face daily cleaning and regular audits.
Meat & Poultry Processing
Daily high-pressure washdown with hot water and cleaning agents.
Dairy Processing
Steam, spray, and frequent cleaning cycles all shift long.
Beverage & Bottling
Glass lens fixtures above open lines and filling stations.
Prepared Food Facilities
Open processing lines with documented hygiene controls.
Bakery & Milling
Flour dust stays out of the optics, and surfaces wipe clean fast.
Pharmaceutical Production
Smooth, sealed fixtures for GMP-compliant areas.
