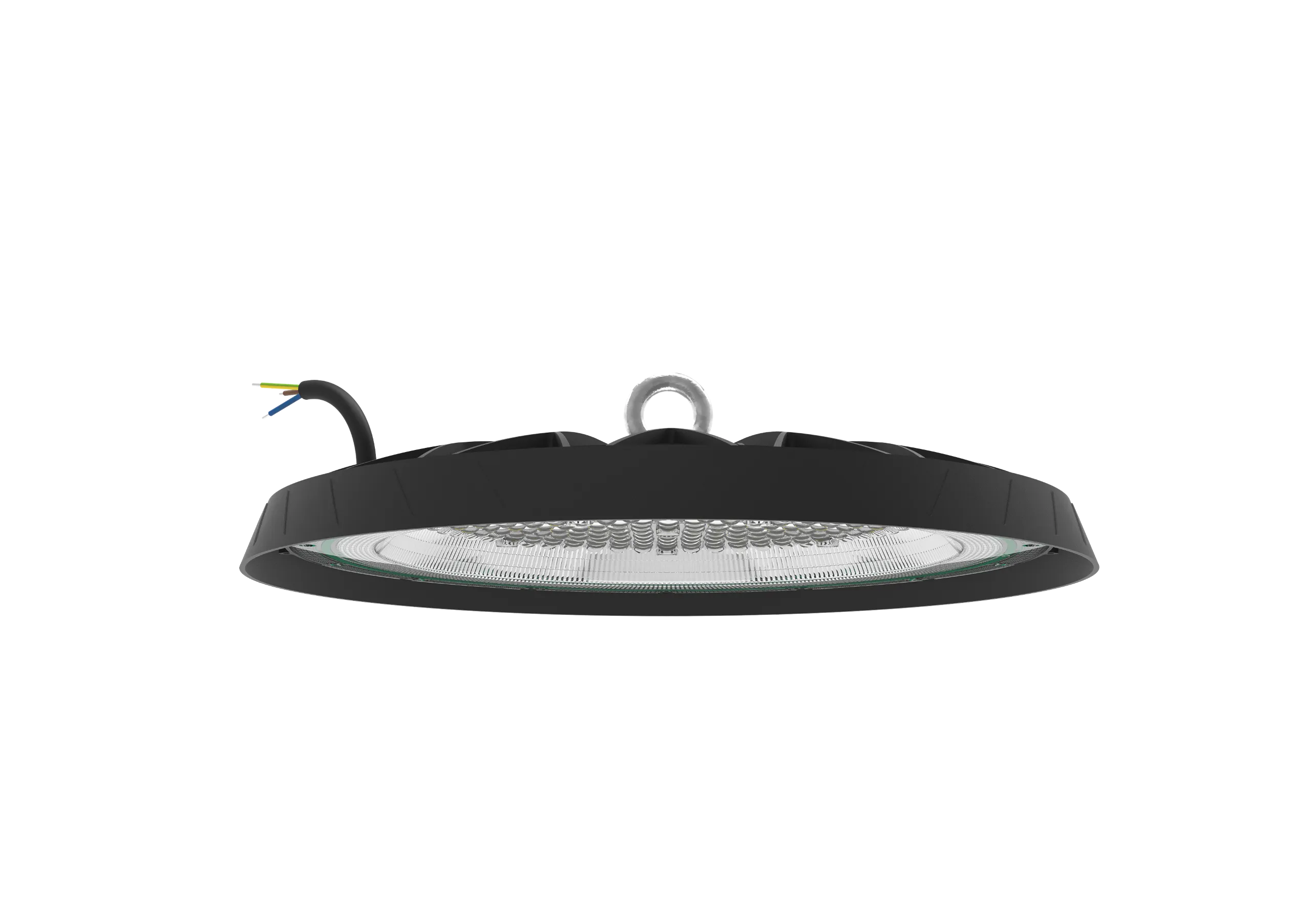

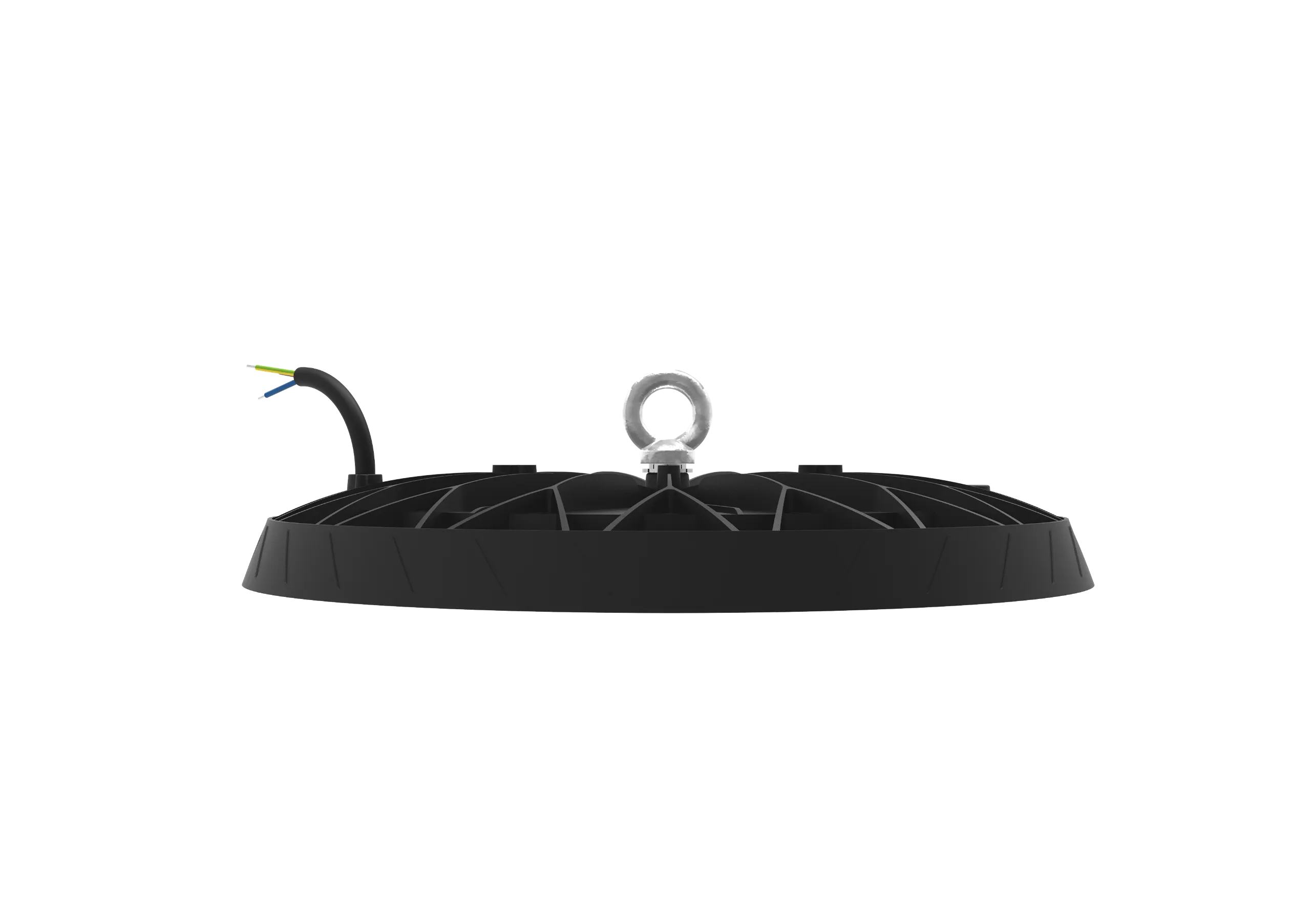

HB42

The HB42 Series (DOB high bay) is engineered for space‑sensitive industrial applications. They are ideal for high‑bay environments such as storage facilities, production floors, and sorting centres, where they reduce both operational energy consumption and upfront logistics costs.

Key Features

Compact Lightweight Design

Small size and light weight reduce packaging volume and logistics costs while maintaining robust performance for industrial use.

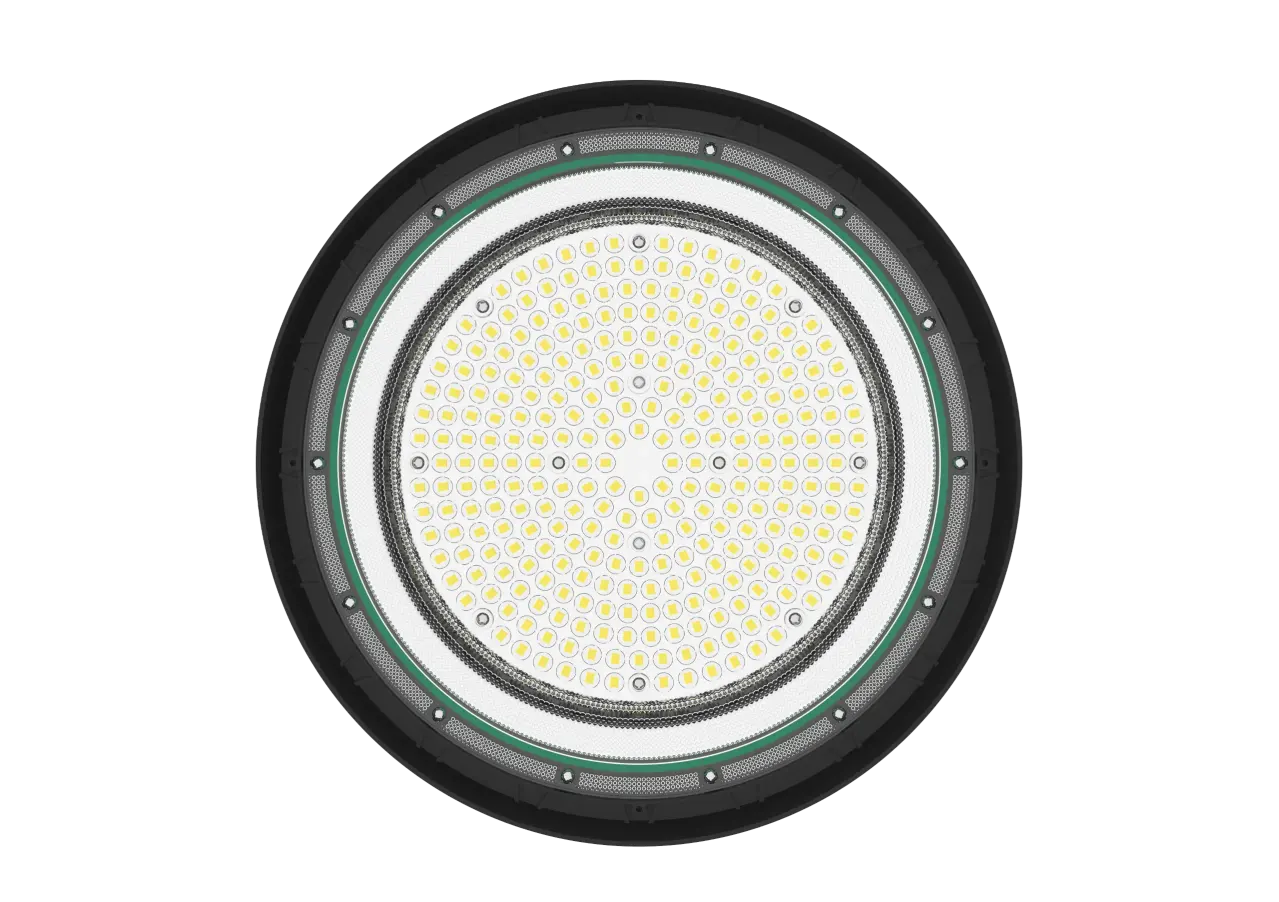

Advanced DOB Technology

IC-controlled linear DOB integrates key components on the LED PCB for stable performance and lower overall system cost.

Dual Efficacy Options

Select 100 lm/W or 130 lm/W versions to meet brightness needs and energy-saving goals across different applications.

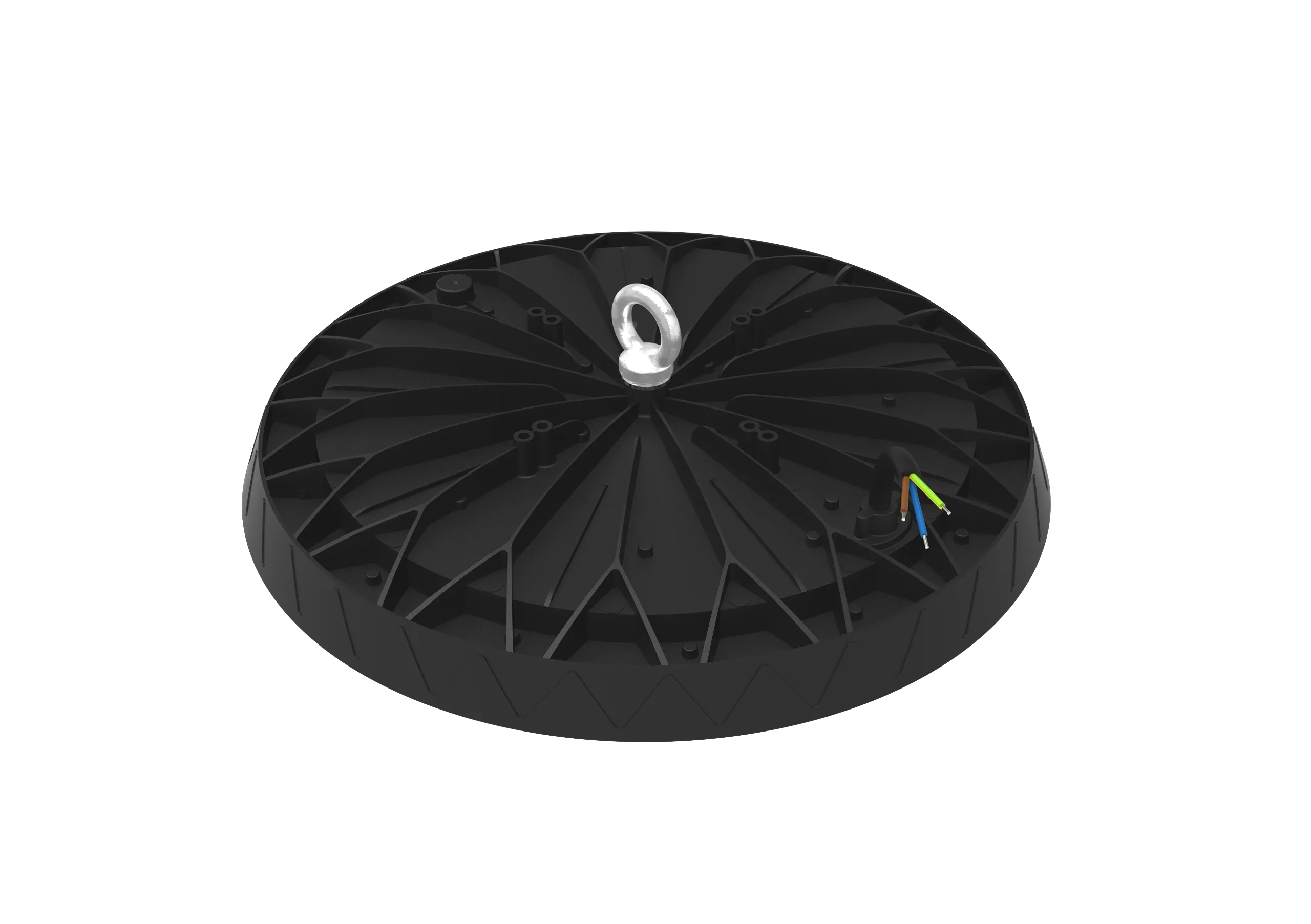

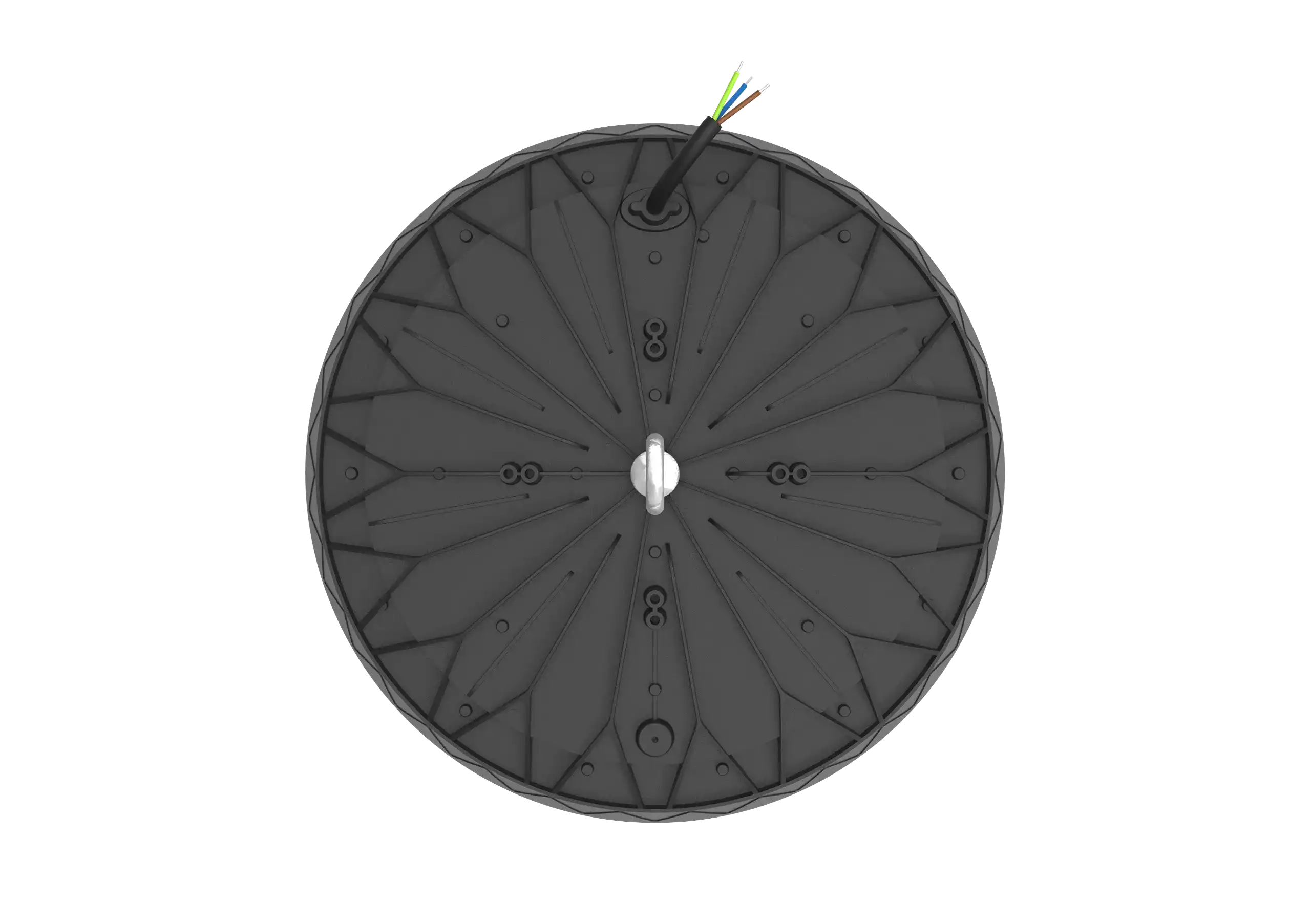

Superior Heat Dissipation

Large ADC12 die-cast aluminum housing with rear fin structure ensures excellent cooling and extended service life up to 50,000 hours.

Inquire Now

Technical Specifications

Series	HB42-Round UFO LED High Bay Light
Power	100W, 150W, 200W
Lumen Output	10000-13000 lm, 15000-19500 lm, 20000-26000 lm
Efficacy	100 lm/W, 130 lm/W
Input Voltage	AC 200-240V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	100lm/W, Ra: 80±2; 130lm/W, Ra: 70±2
Beam Angle	90°
Operating Temperature	-30°C to +40°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK08
Housing Material	ADC12 + PC Lens
Mounting	Standard with hanging ring; optional hook, 3/4" NPT adapter
Dimming	/
Certifications	CE / RoHS / CCC
Warranty	2 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
