HB41

HB41-Series Linear LED High Bay Lights offer compact, cost-effective illumination for warehouses, factories, and logistics centers.
With 100, 150, 200W options, up to 130lm/W efficacy, lightweight design, and efficient heat dissipation, they reduce transport costs while delivering reliable performance in industrial spaces.

Key Features

Compact Lightweight Design

Streamlined structure with small size and low weight reduces packaging volume and significantly cuts transportation costs.

Economical DOB Solution

Industry-leading IC-controlled linear DOB technology integrates components on PCB for stable performance at lower cost.

Dual Efficacy Options

Choose 100lm/W or 130lm/W to meet diverse brightness needs while maintaining high power factor above 0.95.

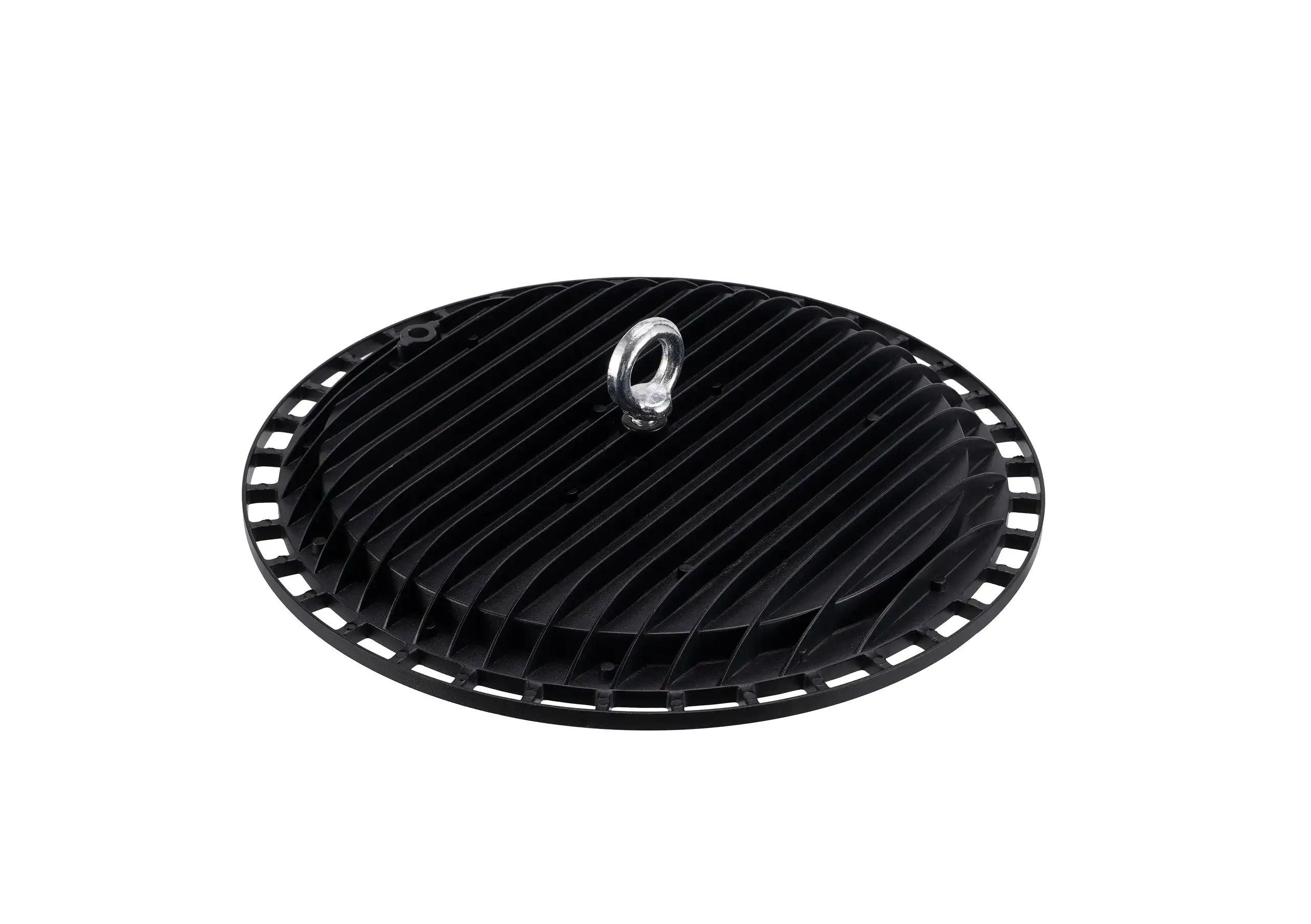

Efficient Heat Dissipation

ADC12 die-cast aluminum housing with ventilated rear cooling fins ensures reliable operation and extended service life.

Inquire Now

Technical Specifications

Series	HB41-Round UFO LED High Bay Light
Power	100W, 150W, 200W
Lumen Output	10000-13000 lm, 15000-19500 lm, 20000-26000 lm
Efficacy	100 lm/W, 130 lm/W
Input Voltage	AC 200-240V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	100lm/W, Ra: 80±2; 130lm/W, Ra: 70±2
Beam Angle	90°
Operating Temperature	-30°C to +40°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK08
Housing Material	ADC12 + PC Lens
Mounting	Standard with hanging ring; optional hook, 3/4" NPT adapter
Dimming	/
Certifications	CE / RoHS / CCC
Warranty	2 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
