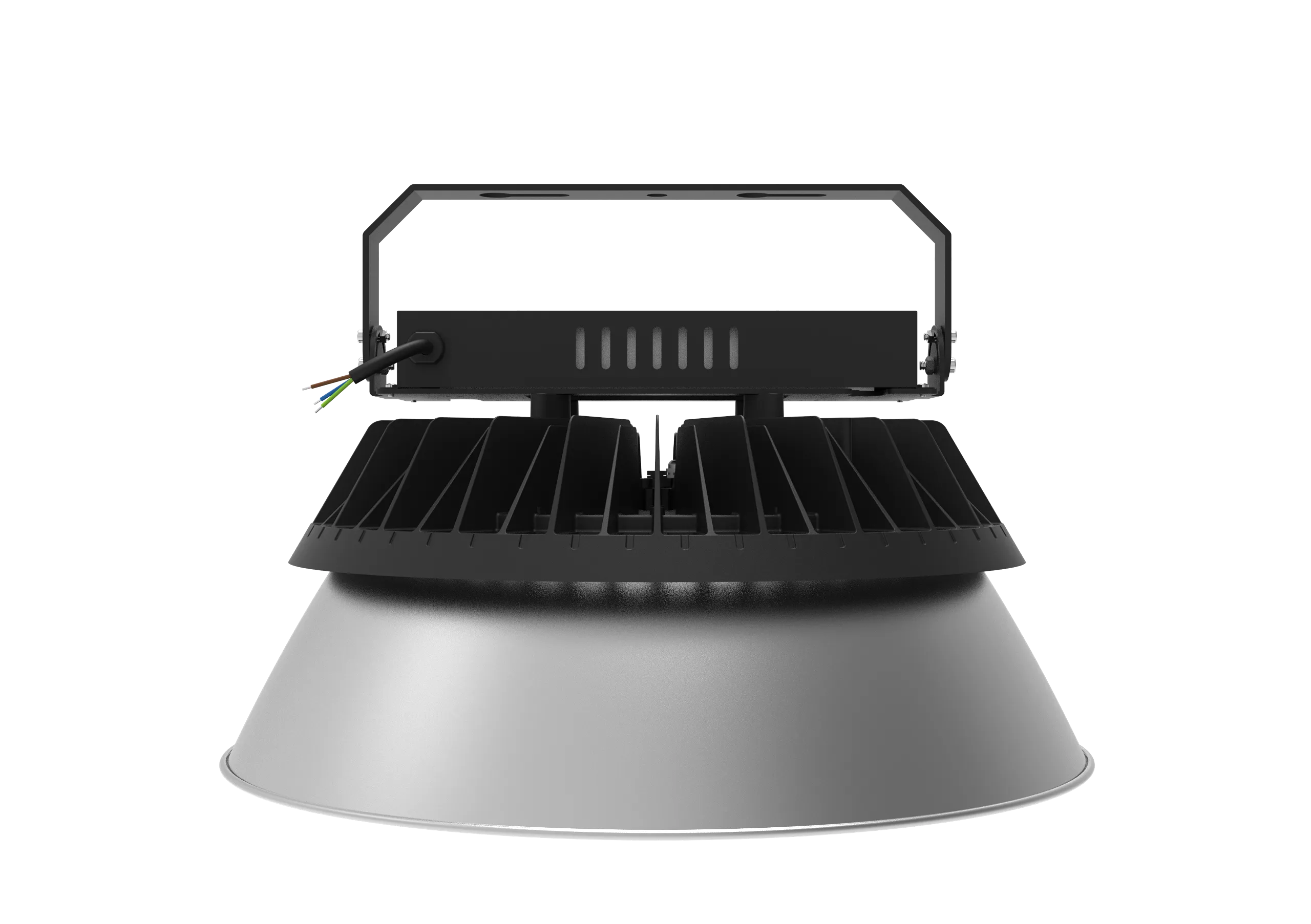

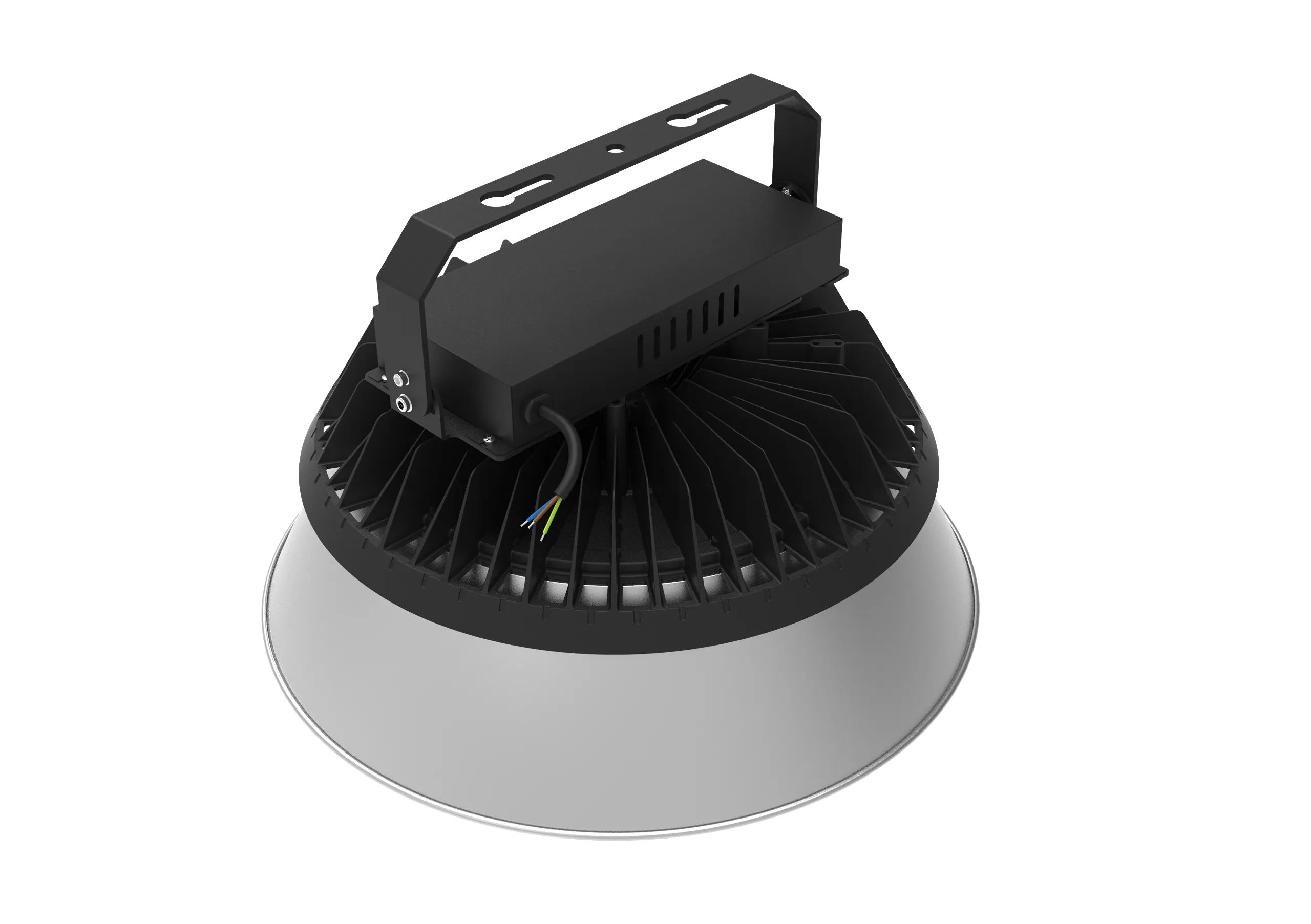

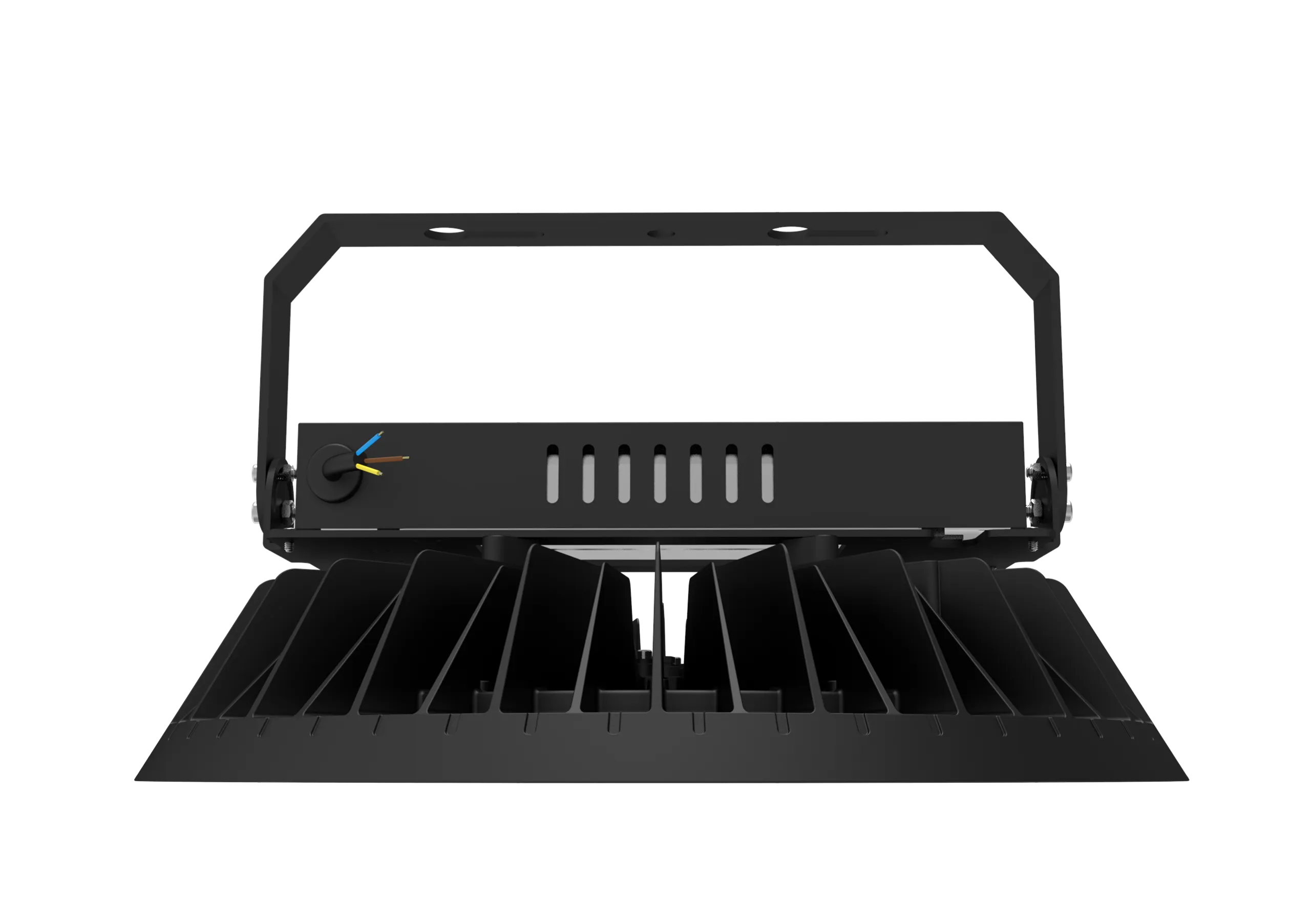

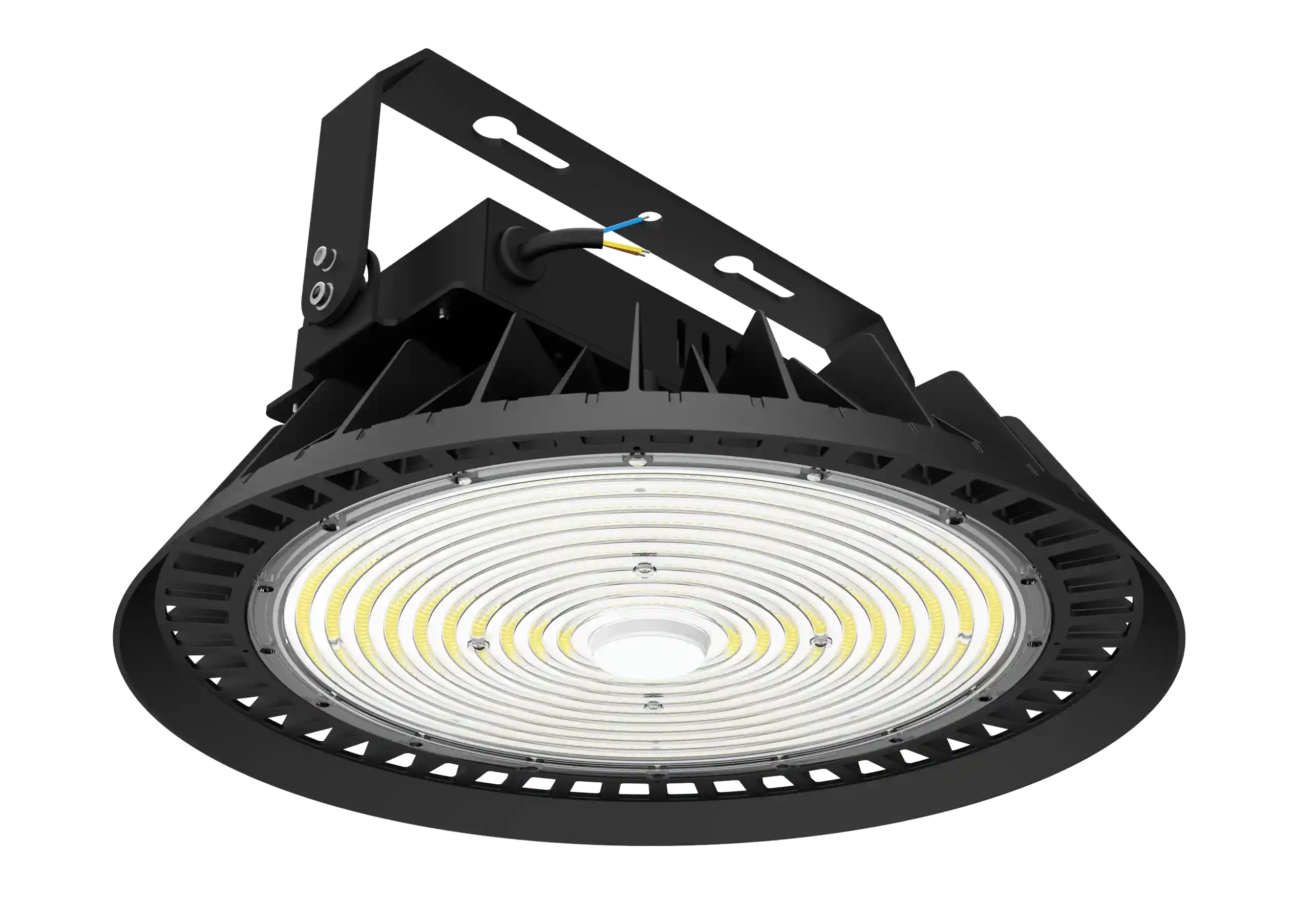

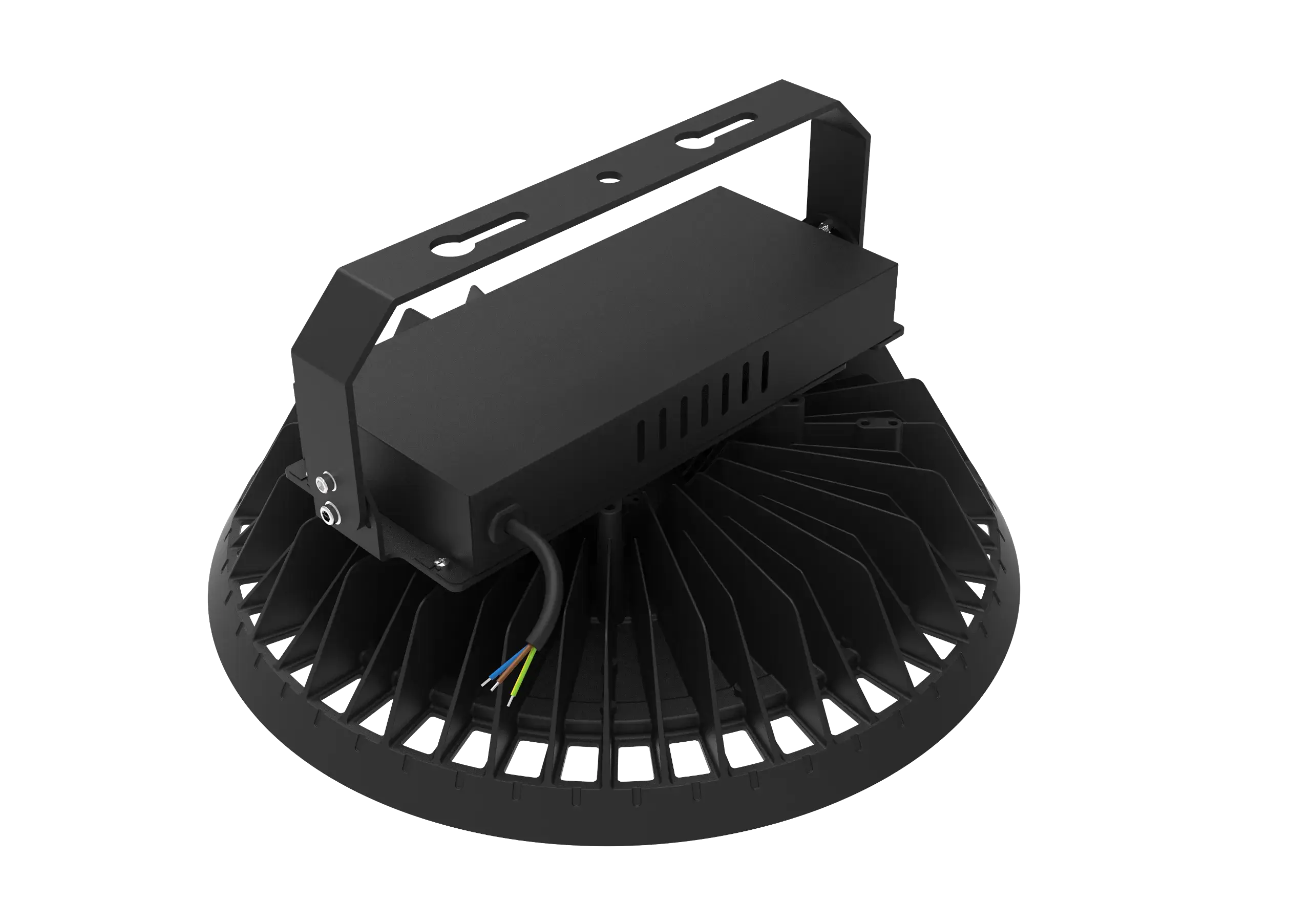

HB02B

The HB02B Strip Isolated Power Supply high-bay light provides high-efficiency illumination for industrial workshops, warehouses, and logistics hubs.
Built for rugged environments, it combines customizable power, advanced optical controls, and top-tier driver reliability to optimize commercial lighting infrastructure.

Key Features

Flexible Power and Size Range

Spanning 50W to 500W across 6 distinct housing sizes, this versatile series scales seamlessly to meet diverse ceiling heights and illumination demands.

Ultra-High Luminous Efficacy

Choose between 140lm/W and 170lm/W high-efficiency chip configurations to significantly reduce operational energy costs while maximizing total light output.

Premium Isolated Brand Drivers

Equipped with trusted drivers from Mean Well, Inventronics, Philips, or Moso, ensuring stable power delivery, advanced dimming capability, and long-term operating safety.

Smart Sensor Integration

Compatible with optional ZHAGA or screw-in bases for microwave, PIR, and Zigbee sensors, enabling automated control and superior energy management.

Inquire Now

Technical Specifications

Series	HB02B-Round UFO LED High Bay Light
Power	50W, 100W, 150W, 200W, 240W, 300W, 400W, 500W
Lumen Output	7000-85000 lm
Efficacy	140 lm/W, 170 lm/W
Input Voltage	AC 120-277V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	140lm/W, Ra: 80±2; 170lm/W, Ra: 70±2
Beam Angle	60° / 90° / 120°
Operating Temperature	-30°C to +45°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK08
Housing Material	ADC12 + PC Lens
Mounting	Bracket mounting
Dimming	1-10V
Certifications	CE / RoHS / CCC / CQC
Warranty	5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
