UFO-shaped High Bay Light HB02 Round Industrial Light
HB02 UFO-shaped High Bay Light for Industrial Lighting
Warehouse HB02 High Bay with UFO Shape
HB02 Round High Bay Light with UFO Side Profile
UFO-shaped High Bay LED Light for Industrial Space HB02

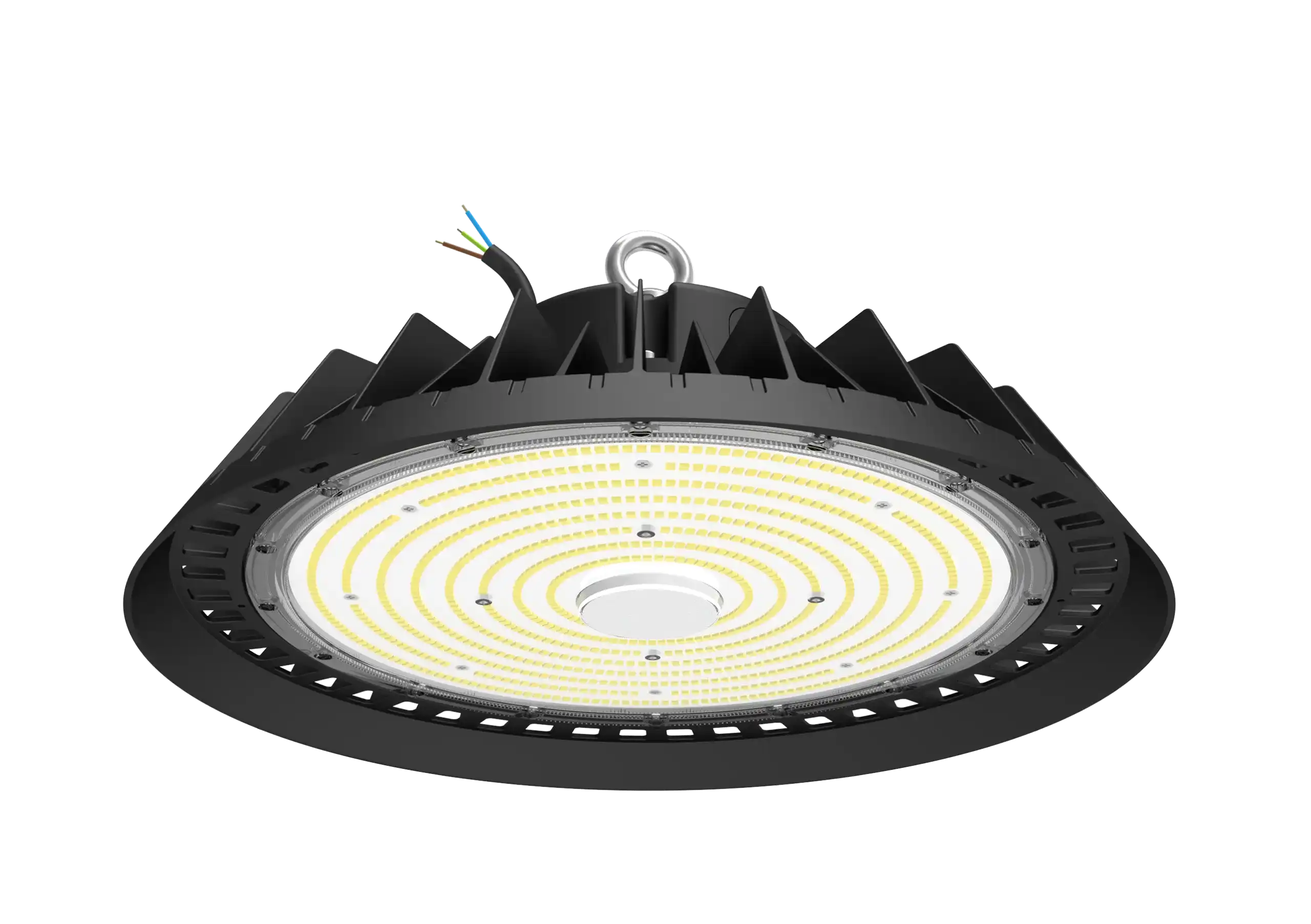

UFO-shaped High Bay Light HB02 Round Industrial Light

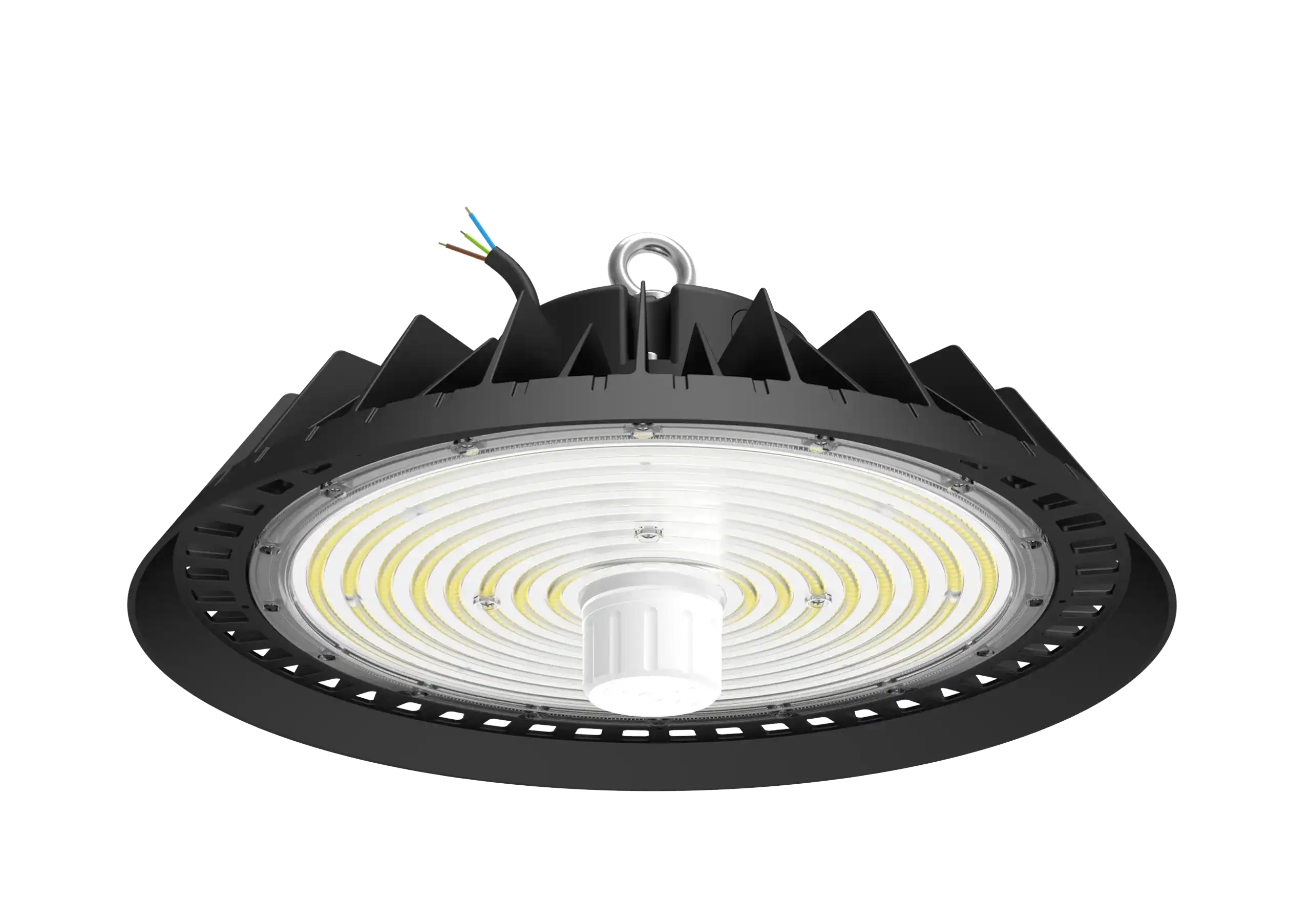

HB02 UFO-shaped High Bay Light for Industrial Lighting

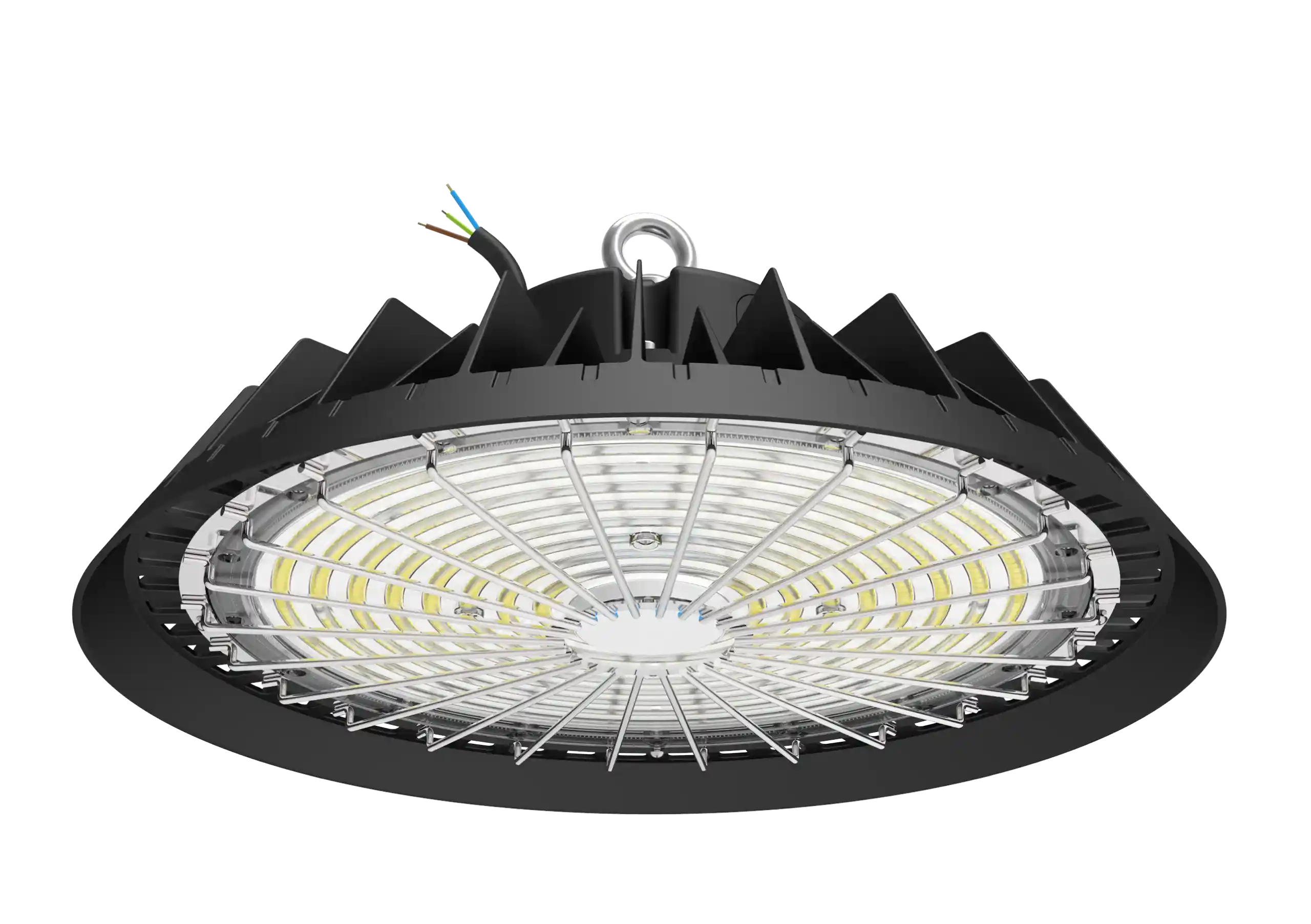

Warehouse HB02 High Bay with UFO Shape

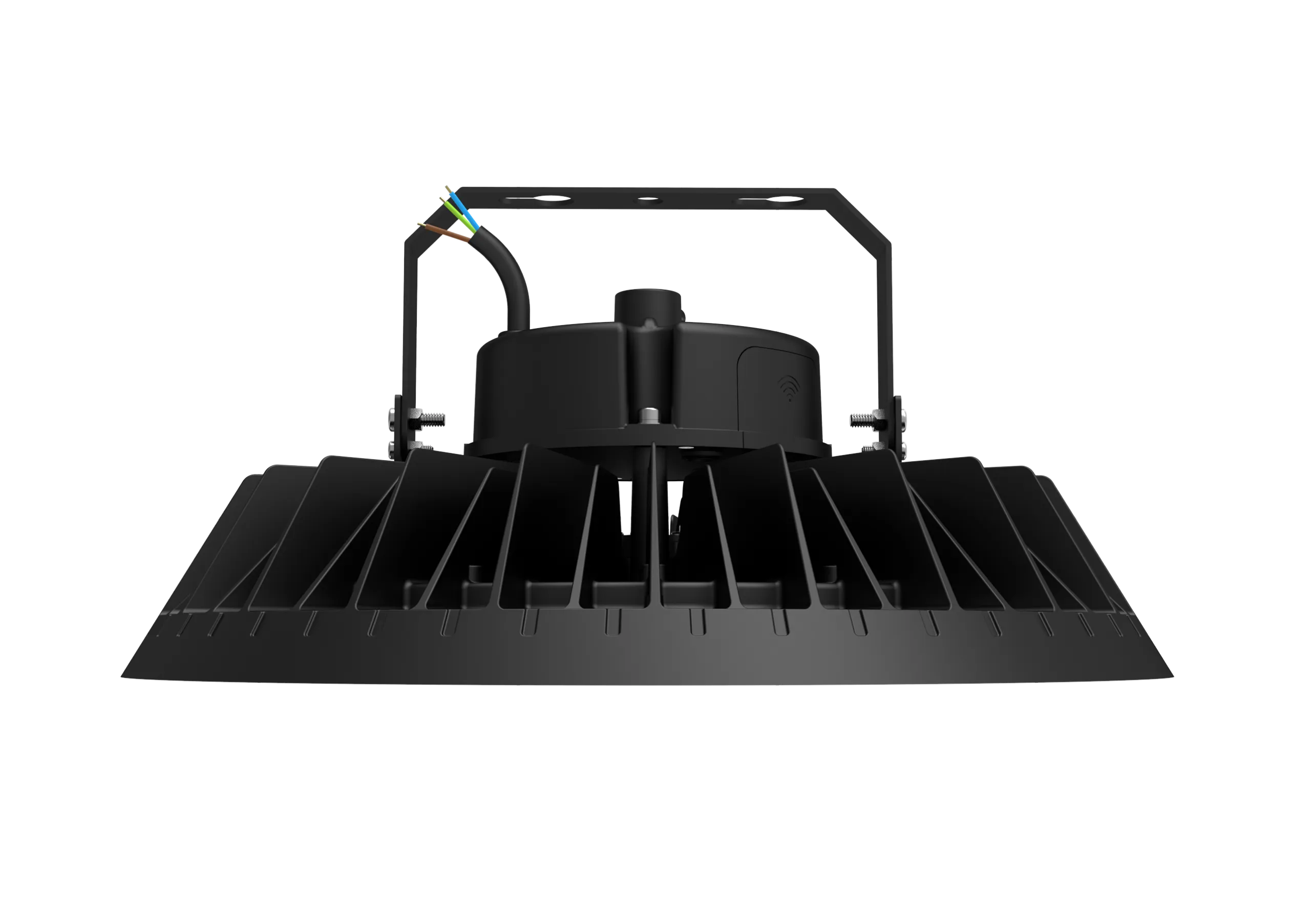

HB02 Round High Bay Light with UFO Side Profile

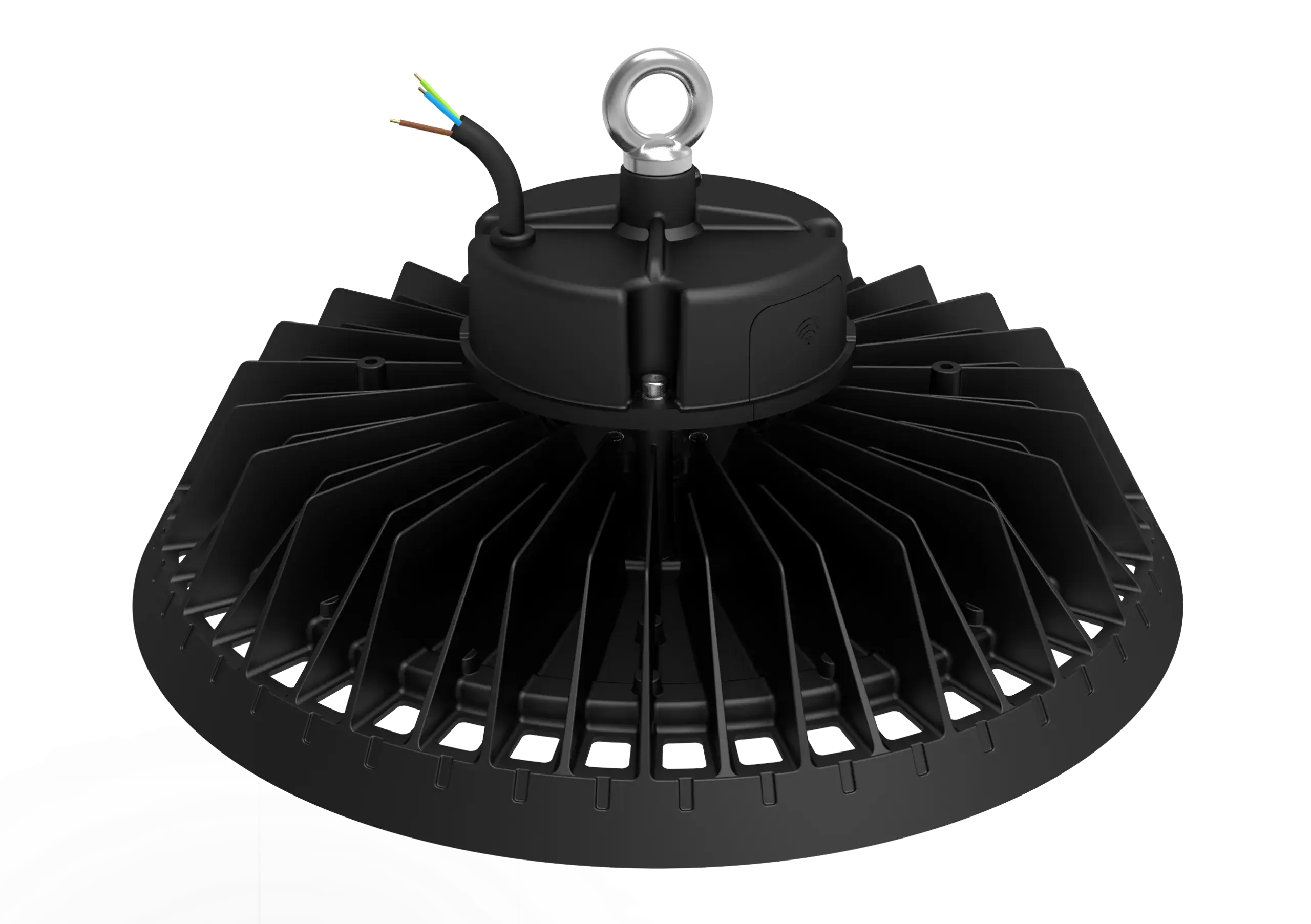

UFO-shaped High Bay LED Light for Industrial Space HB02

HB02

The HB02 Series LED High Bay Light delivers high-efficiency, industrial-grade illumination for warehouses, logistics hubs, and large venues.
Built with rugged die-cast aluminum, it combines customizable smart controls, versatile mounting options, and maximum energy savings to streamline high-ceiling operations.

Key Features

Ultra-High Efficacy Performance

Delivering up to 200 lm/W across 60W–500W options, it drastically reduces energy consumption while providing powerful illumination.

Industrial-Grade Durability

Constructed with ADC12 die-cast aluminum, an IP65 waterproof rating, and IK08 impact resistance for long-lasting reliability.

Smart Control Compatibility

Supports 0-10V dimming, motion sensors, Zhaga bases, and Tuya/Zigbee systems for automated, flexible energy management.

Adaptable Mounting and Optics

Features interchangeable 60°/90°/120° PC lenses alongside loop, bracket, and pipe adapters to fit diverse spaces.

Inquire Now

Technical Specifications

SeriesHB02-Round UFO LED High Bay Light
Power60W, 100W, 150W, 200W, 240W, 300W, 400W, 500W
Lumen Output8400-100000 lm
Efficacy150 lm/W, 170 lm/W, 200 lm/W
Input VoltageAC 120-277V 50/60Hz
Color Temperature3000K / 4000k / 5000K / 5700K / 6500K
CRI150-170lm/W, Ra: 80±2; 200lm/W, Ra: 70±2
Beam Angle60° / 90° / 120°
Operating Temperature-30°C to +45°C, RH: 5%-90% non-condensing
IP RatingIP65
IK Rating
IK08
Housing MaterialADC12 + PC Lens
MountingStandard with hanging loop, optional hook, bracket mount, 3/4" tube tooth adapter
Dimming0-10V
CertificationsCE / RoHS / CCC / CQC
Warranty5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
