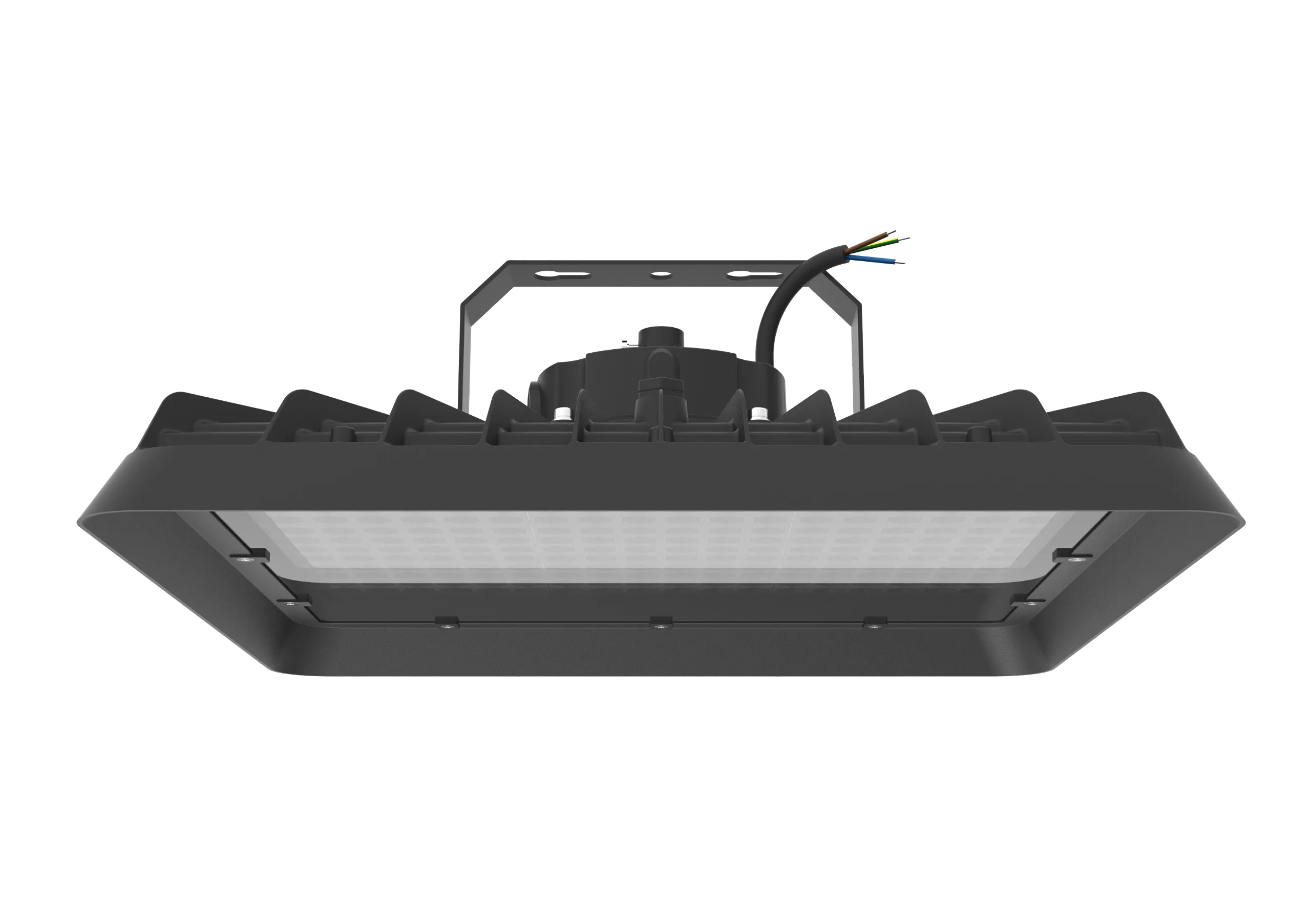

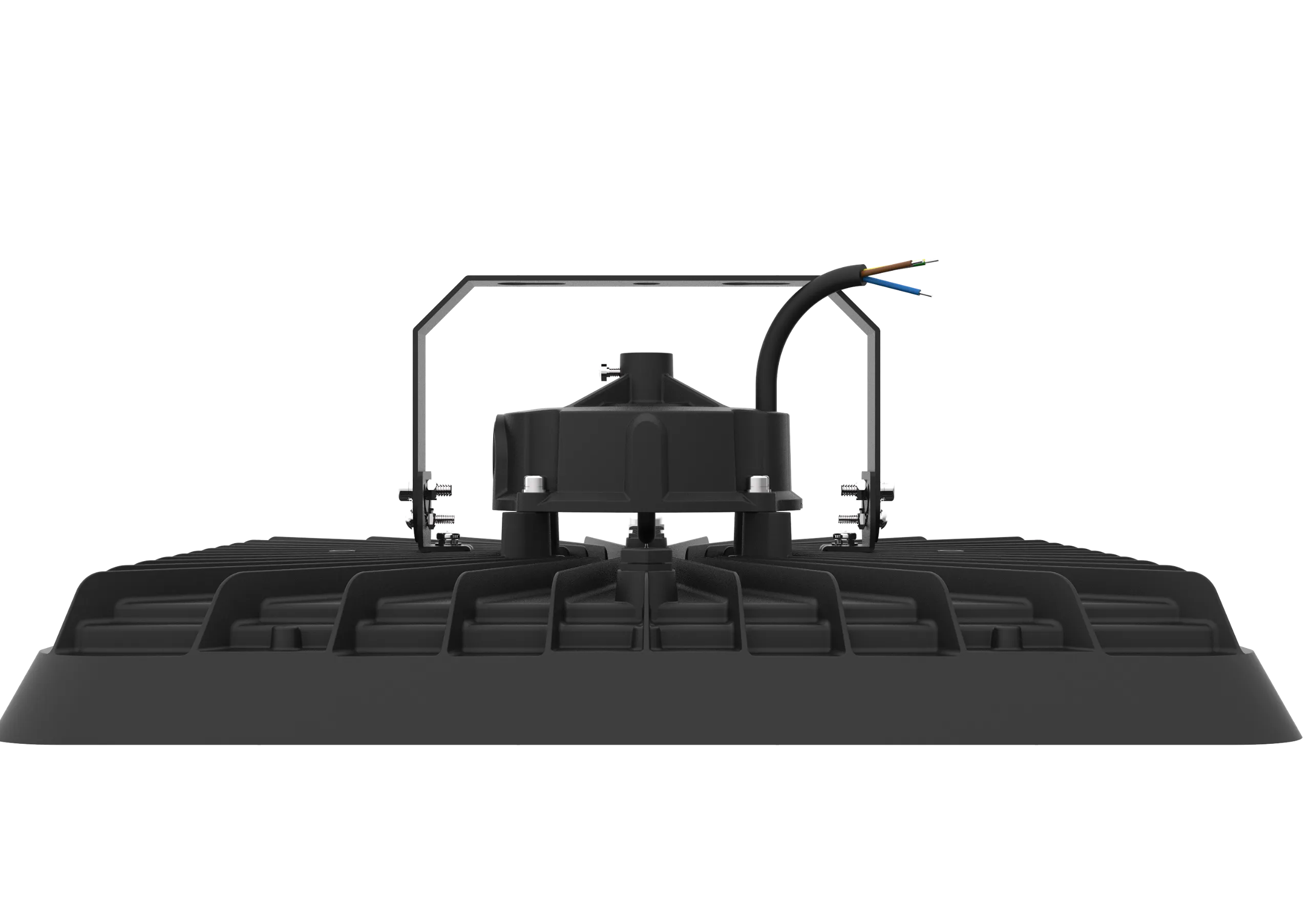

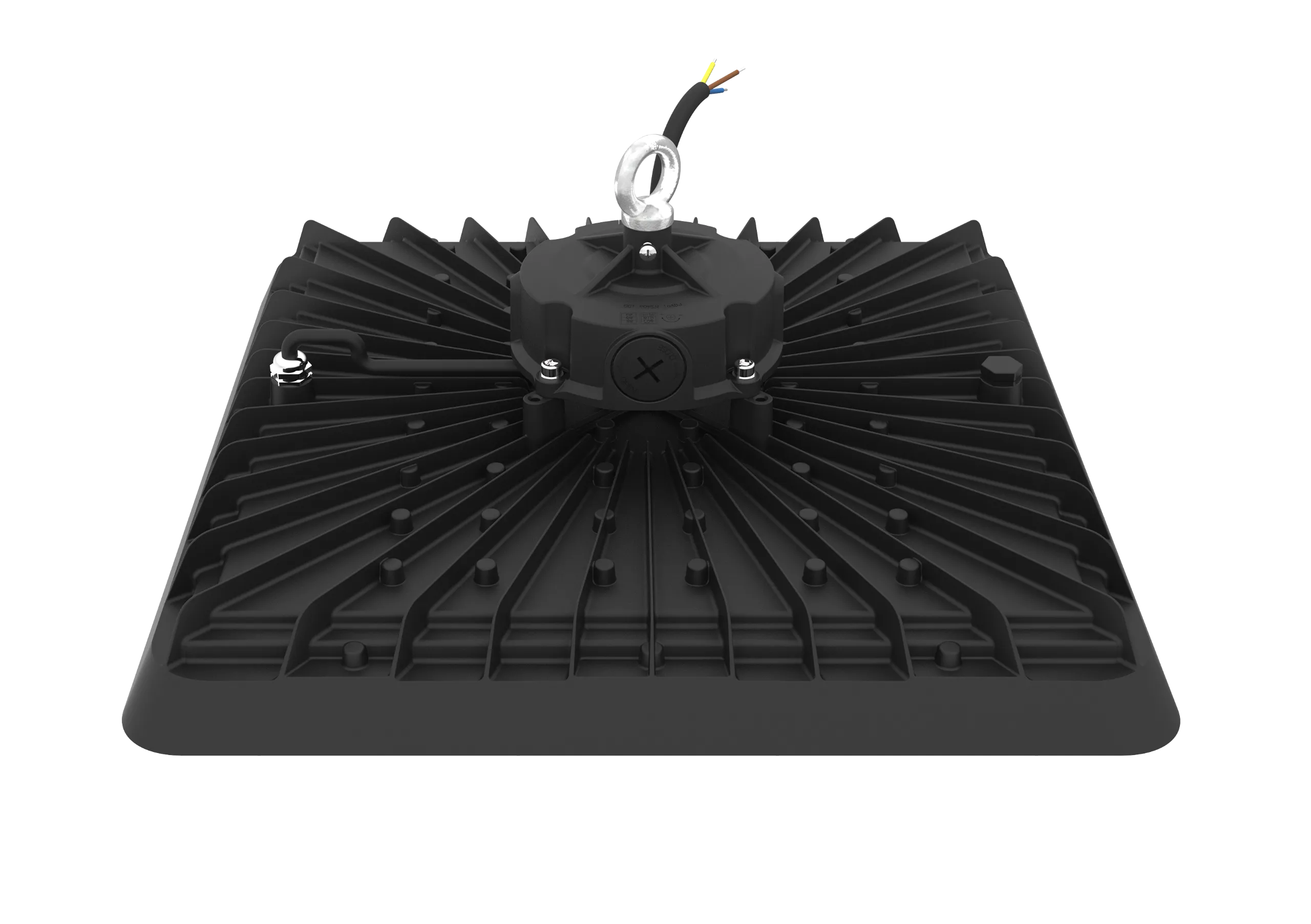

HB92

The HB92 high bay light delivers comfortable, low-glare illumination across industrial facilities like warehouses, factories, and transit hubs.
Combining high-efficiency LED output with a rugged, IP65-rated housing, it ensures reliable long-term performance for heavy-duty commercial applications.

Key Features

Low-Glare Visual Comfort

Advanced optics achieve UGR ≤19 to eliminate harsh glare, protecting workers’ visual comfort and creating a safer, more productive environment in high-ceiling facilities.

Rugged IP65 Weatherproof Structure

Engineered with heavy-duty die-cast aluminum and tempered glass, this durable housing effectively dissipates heat while resisting dust, water, and harsh industrial conditions.

Smart Control Integration

Features 100-240W power options, 0-10V dimming, and auxiliary DC power, seamlessly connecting with automated control networks for maximum energy savings.

Versatile Mounting Flexibility

Supports ring, hook, bracket, or pipe installations with optional DIP-switch power tuning, allowing customized setup for diverse ceiling heights and architectural layouts.

Inquire Now

Technical Specifications

Series	HB92-Low-UGR Anti-Glare LED High Bay
Power	100W, 150W, 200W, 240W
Lumen Output	11000-13000 lm, 15000-18000 lm, 22000-26000 lm, 24000-28800 lm
Efficacy	110-130 lm/W, 100-120 lm/W, 110-130 lm/W, 100-120 lm/W
Input Voltage	AC 120-277V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	100lm/W, Ra: 80±2 ; 120lm/W, Ra: 70±2
Beam Angle	60° / 75°
Operating Temperature	-30°C to +45°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK07
Housing Material	ADC12 + PC Lens + Tempered Glass
Mounting	Standard: Lifting ring. Optional: Hook, bracket mount, 3/4" pipe thread adapter
Dimming	0-10V
Certifications	CE / RoHS / CCC / CQC
Warranty	5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
