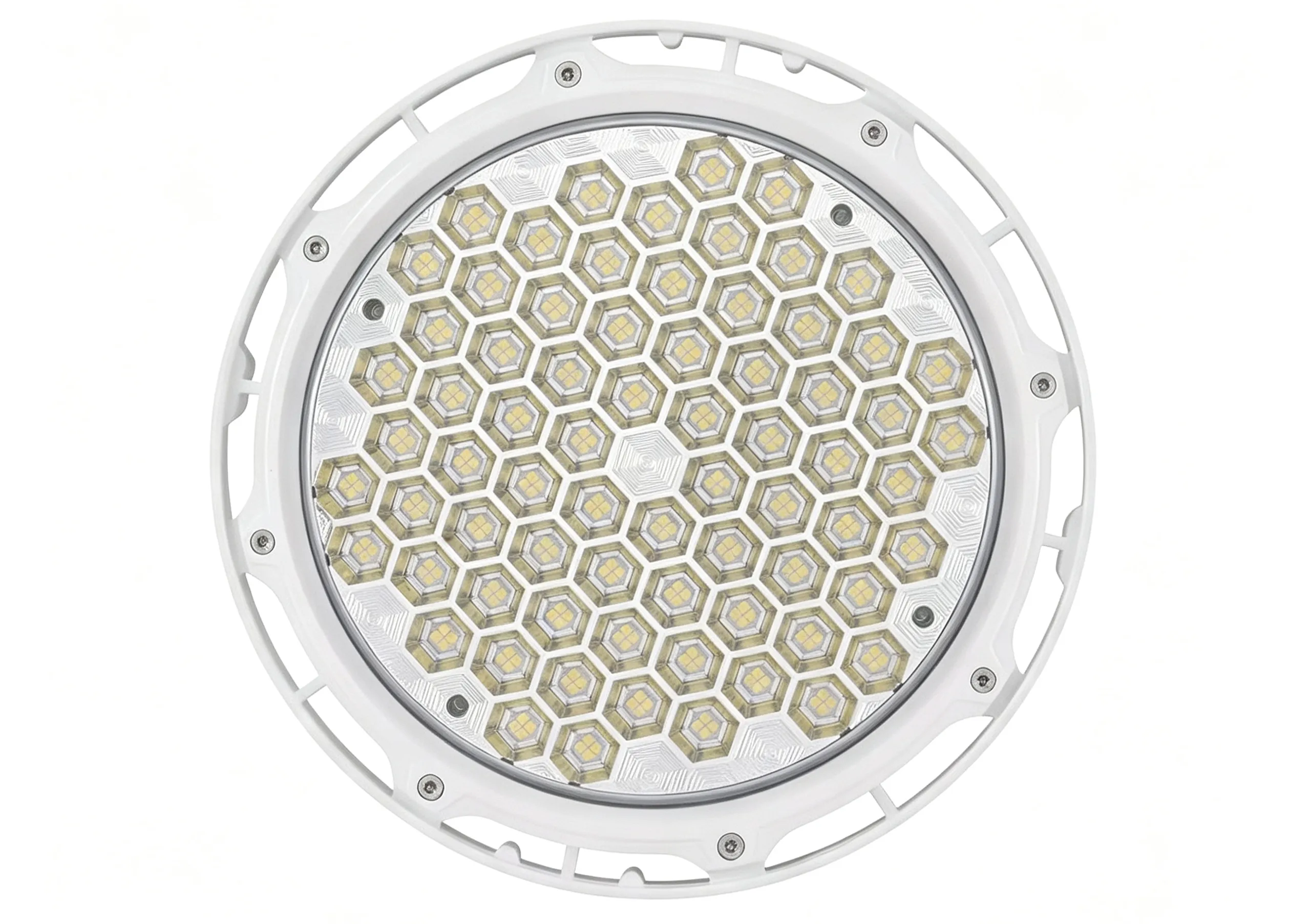

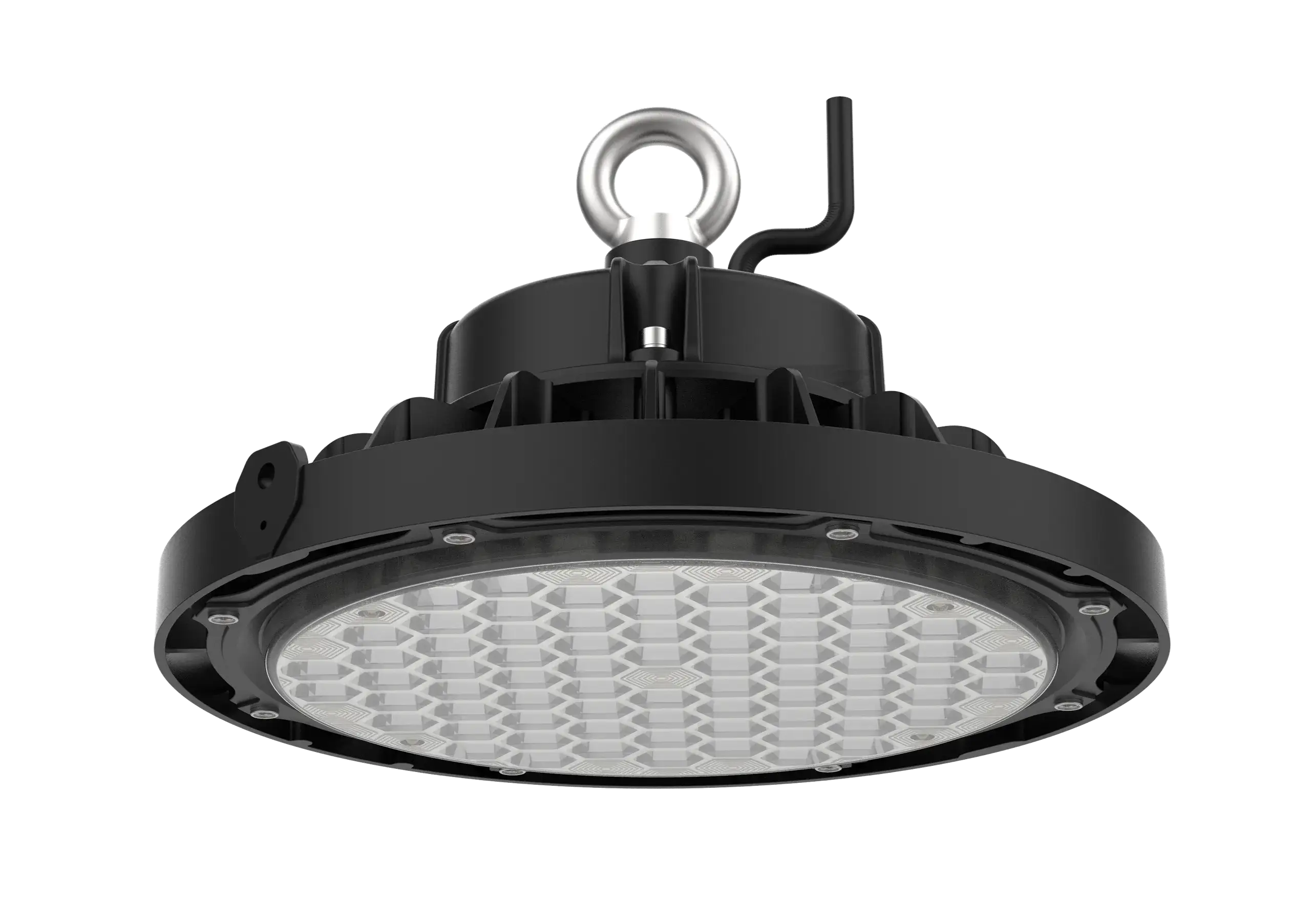

The HB91 LED High Bay delivers high-efficiency illumination for indoor sports facilities like badminton and basketball courts. Engineered with low-glare optics, premium isolated drivers, and broad power options, it provides visual comfort, flexible control, and long-lasting performance in demanding spaces.
Engineered with special reflector cups to keep glare below UGR 19, protecting eyes and enhancing visual comfort during active indoor sports.
Delivers output up to 150 lm/W across 100W–240W models, providing brilliant illumination while significantly lowering energy consumption and operational costs.
Equipped with a high-grade Mean Well driver for stable, safe energy supply, ensuring a long operational lifetime backed by a 5-year warranty.
Supports optional 1-10V and DALI dimming capabilities alongside motion sensors, giving users effortless lighting customization and additional energy savings.
| Series | HB91-Low-UGR Anti-Glare LED High Bay |
|---|---|
| Power | 100W, 150W, 200W, 240W |
| Lumen Output | 15000 lm, 21000 lm, 26000 lm, 28800 lm |
| Efficacy | 150 lm/W, 140 lm/W, 130 lm/W, 120 lm/W |
| Input Voltage | AC 120-277V 50/60Hz |
| Color Temperature | 3000K / 4000k / 5000K / 5700K / 6500K |
| CRI | 130lm/W, Ra: 80±2 ; 150lm/W, Ra: 70±2 |
| Beam Angle | 60° |
| Operating Temperature | -30°C to +45°C, RH: 5%-90% non-condensing |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Housing Material | ADC12 + Glass |
| Mounting | Standard eye bolt; optional hook and 3/4-in threaded adapter |
| Dimming | 1-10V, DALI |
| Certifications | CE / RoHS / CCC |
| Warranty | 5 Years |
