HB90

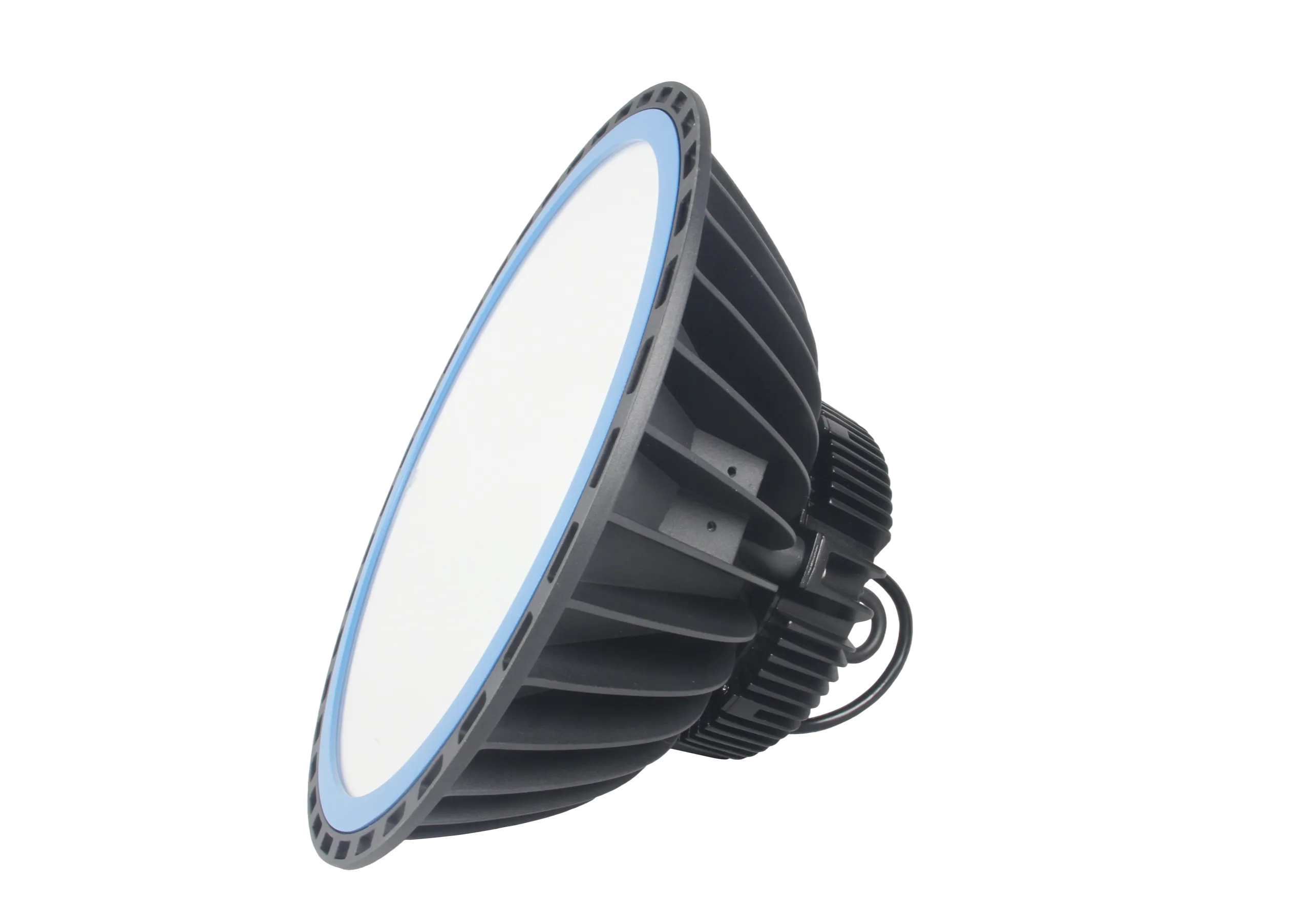

The HB90 is an anti-glare high bay LED light designed for indoor sports facilities like badminton, basketball, and tennis courts.
Ranging from 100W to 240W, it delivers exceptional brightness with low glare for maximum visual comfort and energy efficiency.

Key Features

Anti-Glare Optics

With a UGR rating under 22 and an anti-glare reflector, it minimizes harsh glare, ensuring optimal visual clarity for athletes and players during high-speed indoor sports.

Premium Mean Well Driver

Equipped with a high-quality Mean Well isolated driver to guarantee stable power, long-lasting performance, and reliable operation backed by a 5-year warranty.

Flexible Smart Control

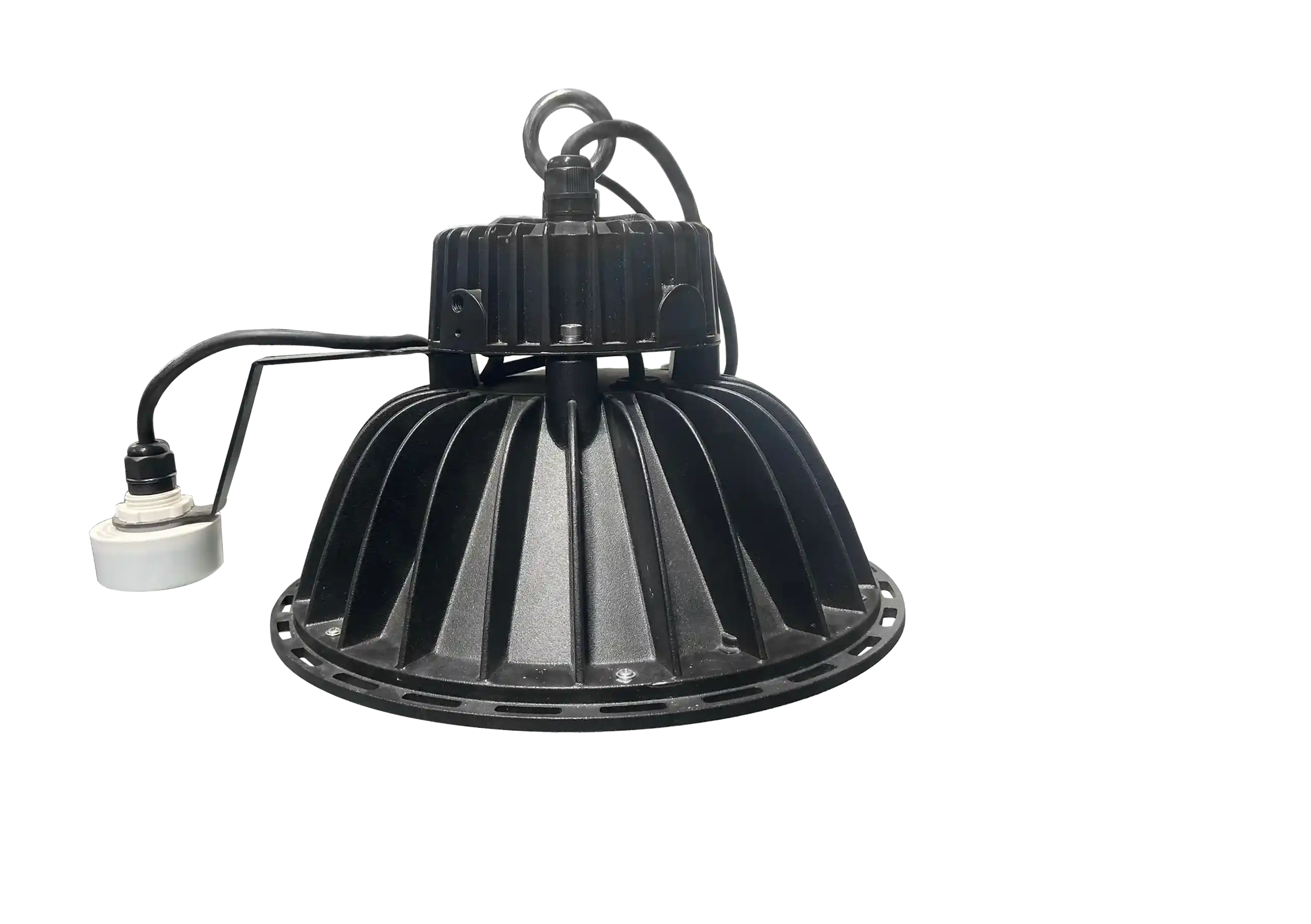

Supports optional 1-10V or DALI dimming alongside external microwave motion sensors to enable custom light management and maximize energy savings.

Durable IP65/IK08 Build

Constructed from ADC12 aluminum and glass with IP65 and IK08 ratings, providing strong resistance against dust, water, and accidental physical impacts.

Technical Specifications

SeriesHB90-Low-UGR Anti-Glare LED High Bay
Power100W, 150W, 200W, 240W
Lumen Output13000-15000 lm, 19500-22500 lm, 26000-30000 lm, 31200-36000 lm
Efficacy130 lm/W, 150 lm/W
Input VoltageAC 120-277V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRI130lm/W, Ra: 80±2 ; 150lm/W, Ra: 70±2
Beam Angle90°
Operating Temperature-30°C to +50°C, RH: 5%-90% non-condensing
IP RatingIP65
IK Rating
IK08
Housing MaterialADC12 + Glass
MountingStandard eye bolt; optional hook and 3/4-in threaded adapter
Dimming1-10V, DALI
CertificationsCE / RoHS / CCC
Warranty5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
