TL02

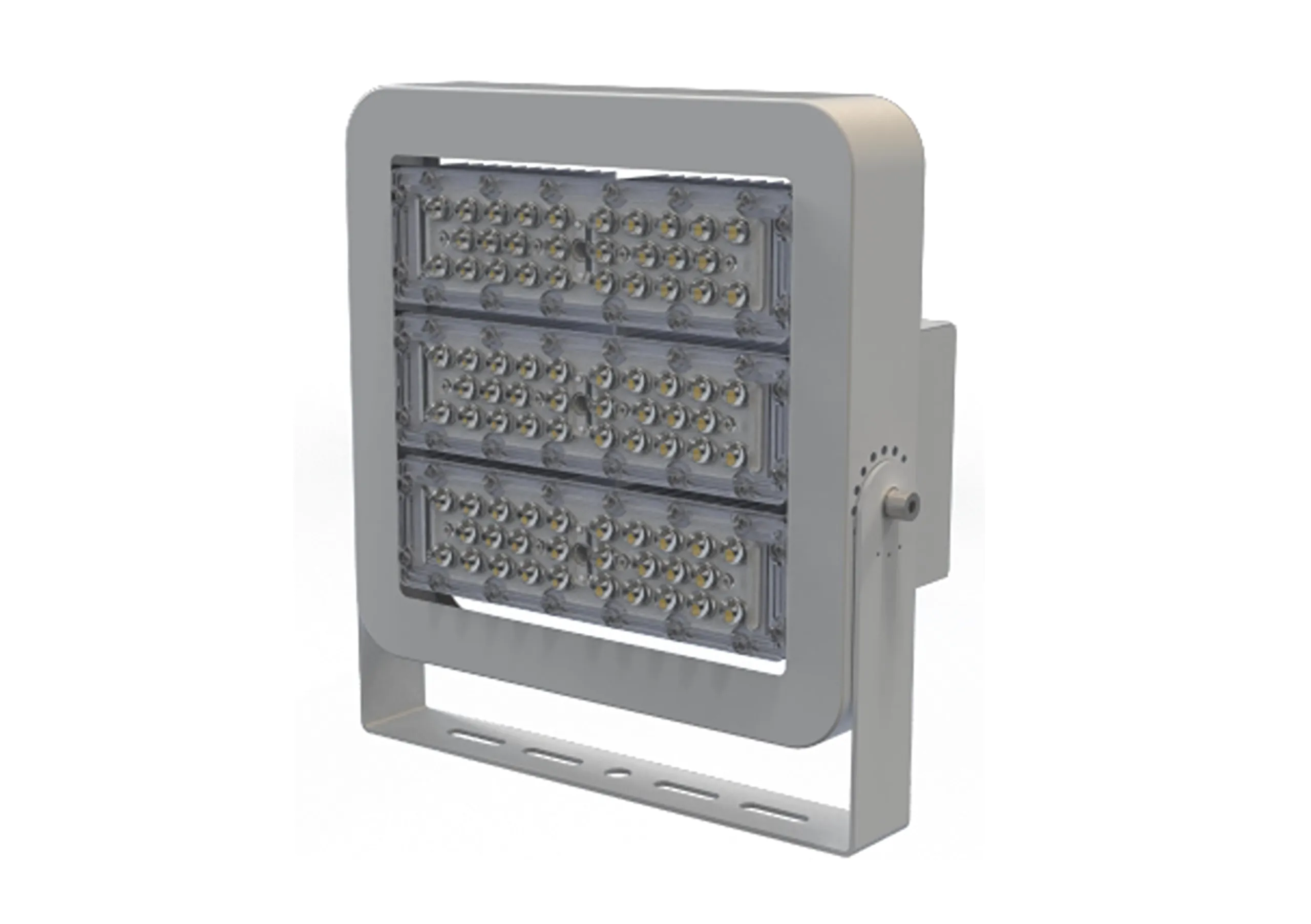

The TL02 Series Tunnel light is a versatile outdoor light for construction sites, stadiums, sports facilities, parking lots and airports.
It delivers reliable 50W–600W illumination with efficient thermal management and durable construction for long service life.

Key Features

Versatile Power & Optics

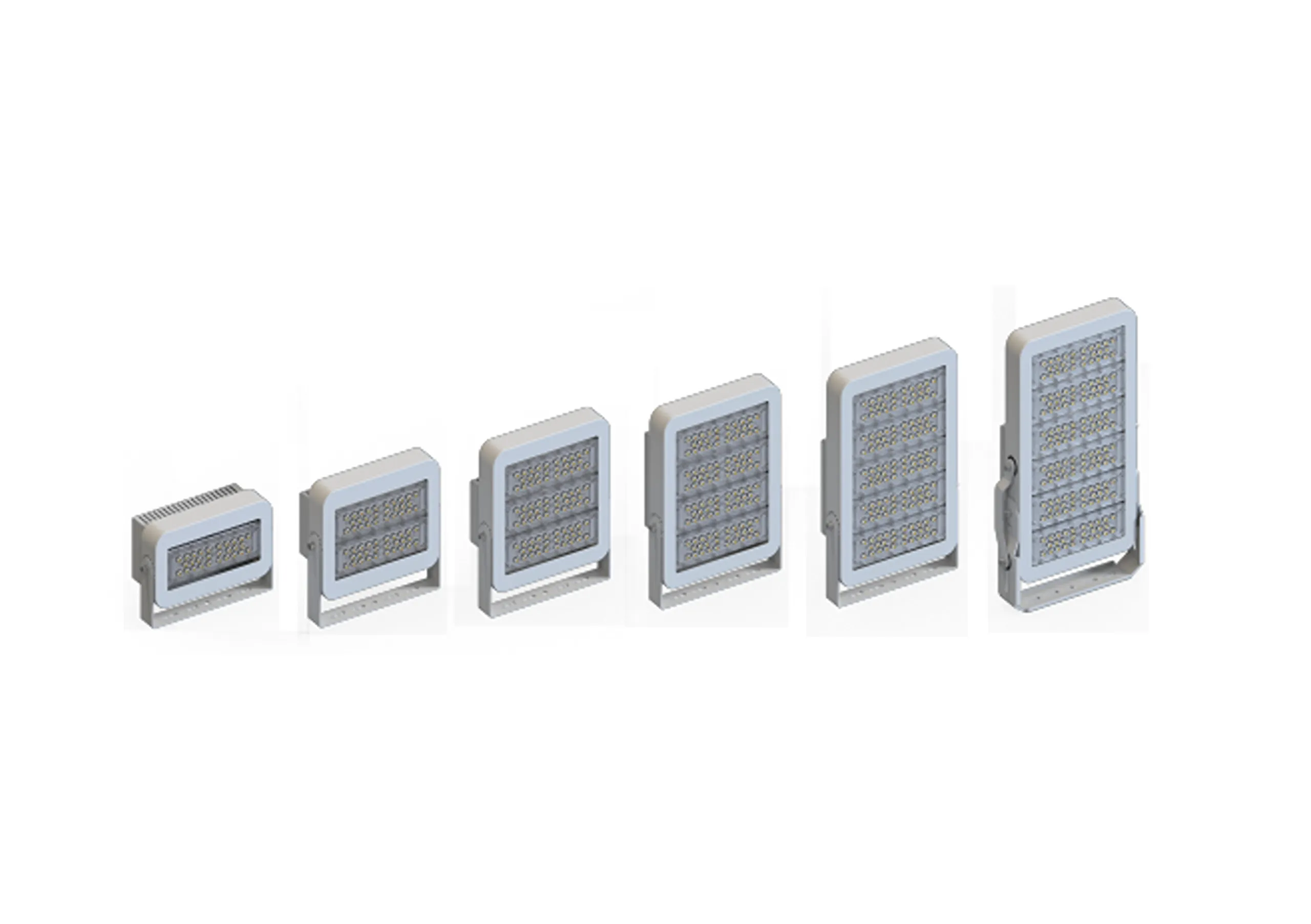

National standard modules support multiple beam angles (15°–120°) and six sizes from 50W to 600W, covering diverse outdoor lighting needs with high efficacy options.

Efficient Heat Dissipation

Aluminum heat sinks with high thermal conductivity enable rapid cooling, maintaining low operating temperatures for extended LED lifespan and stable high-power performance.

Corrosion-Resistant Steel Frame

High-strength galvanized steel frame resists oxidation and corrosion, ensuring long-term durability in harsh outdoor environments with IP65/IK08 protection.

Fast Installation Design

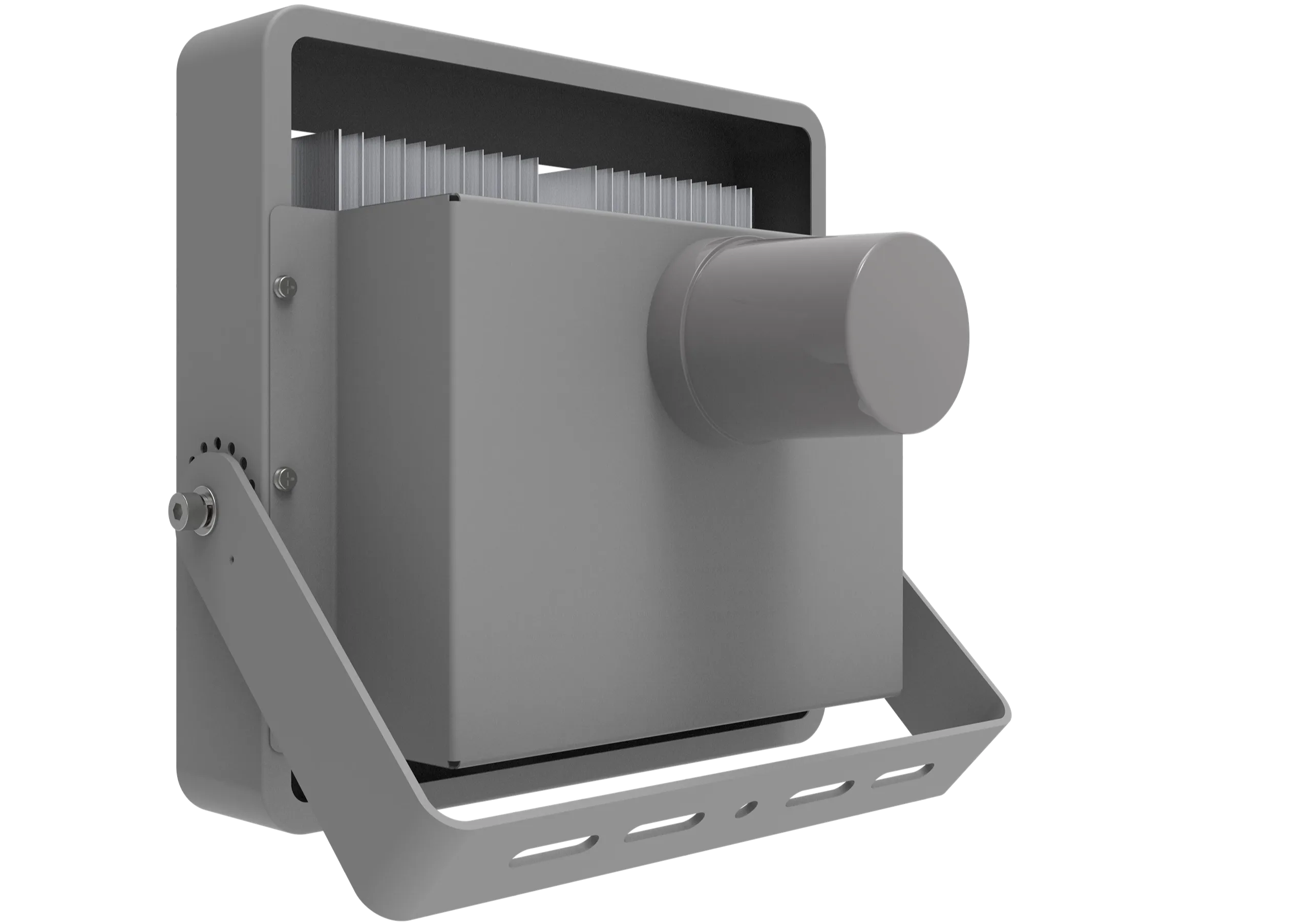

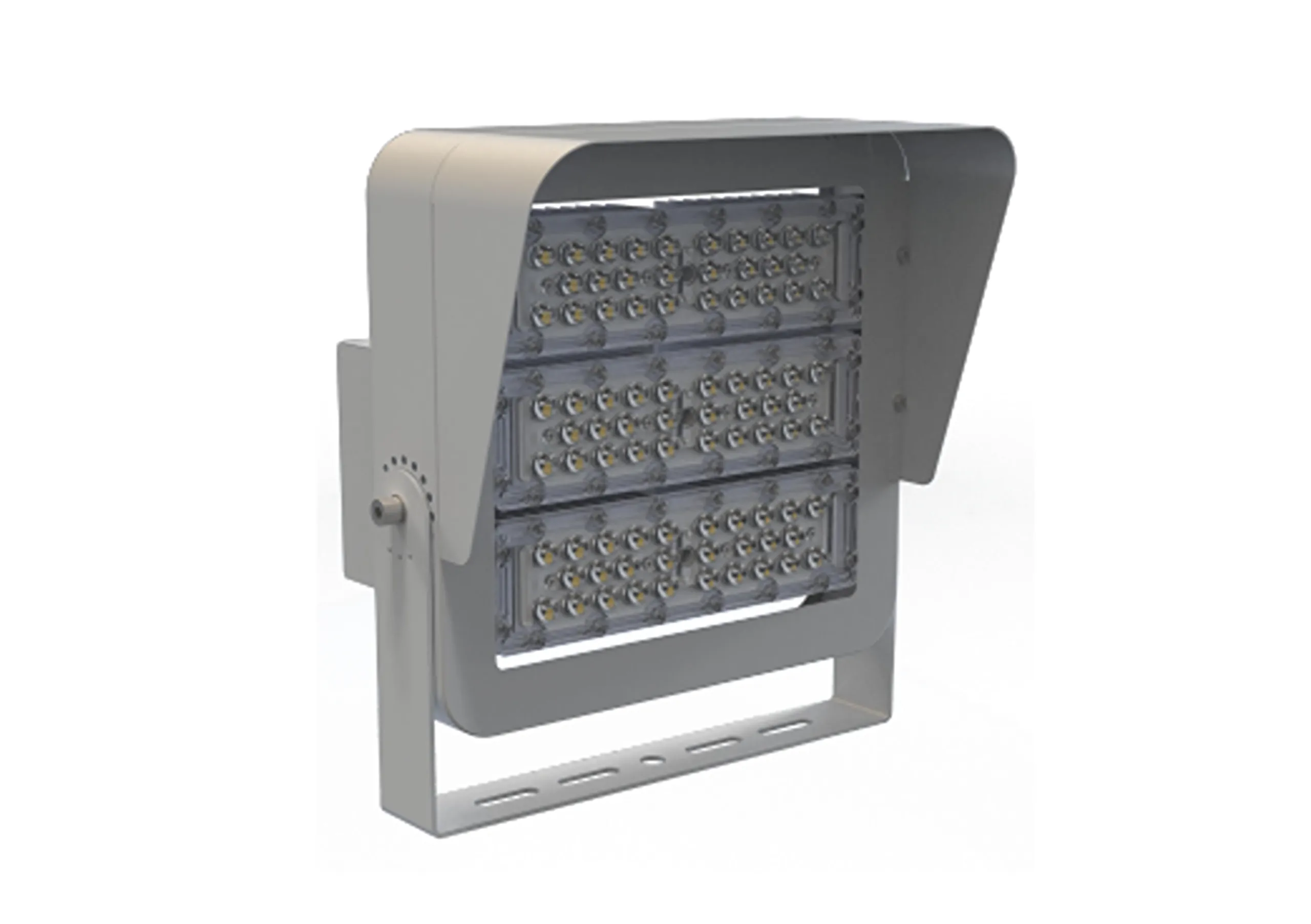

Support protrusion and U-shaped bracket enable quicker mounting, while the rear power supply box provides a sleek, clean appearance for efficient setup.

Inquire Now

Technical Specifications

SeriesTL02 - LED Tunnel Light
Power50/100W, 100/200W, 150/300W, 200/400W, 250/500W, 300/600W
Lumen Output7000-108000 lm
Efficacy140 lm/W, 180 lm/W
Input VoltageAC 120-277V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRI140lm/W, Ra: 80 ± 2; 180lm/W, Ra: 70 ± 2
Beam Angle15° / 25° / 30° / 45° / 60° / 90° / 120° / T2 / T3 / T4
Operating Temperature-30°C to +45°C, RH: 5%-90% non-condensing
IP RatingIP65
IK Rating
IK08
Housing MaterialADC12 + SGCC + PC Lens
MountingU-shaped stent installation
DimmingOptional: 1–10 V dimming / 0–10 V dimming + DC 12 V auxiliary power source
CertificationsCE / RoHS / CCC / CQC
Warranty3 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
