TL01

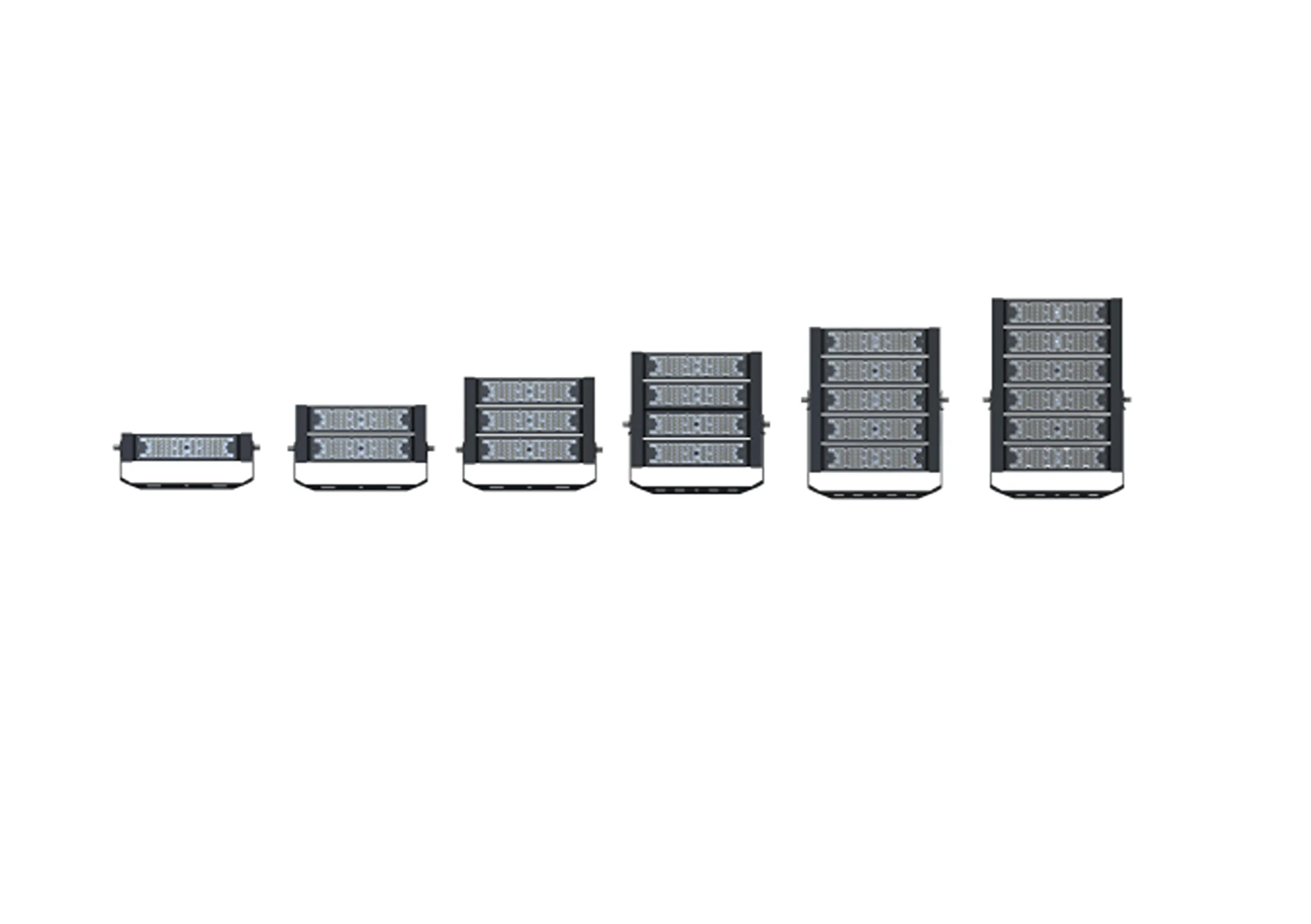

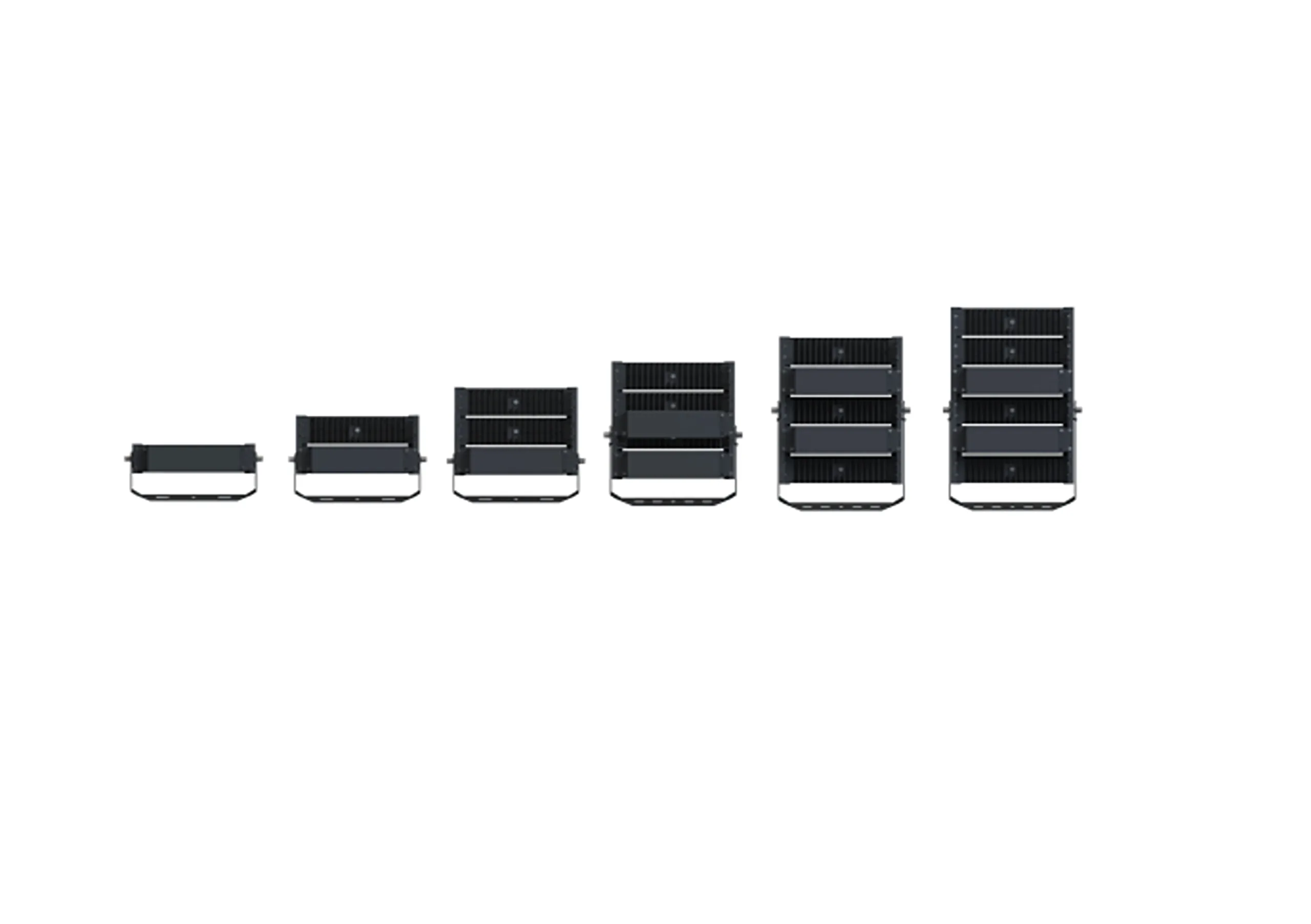

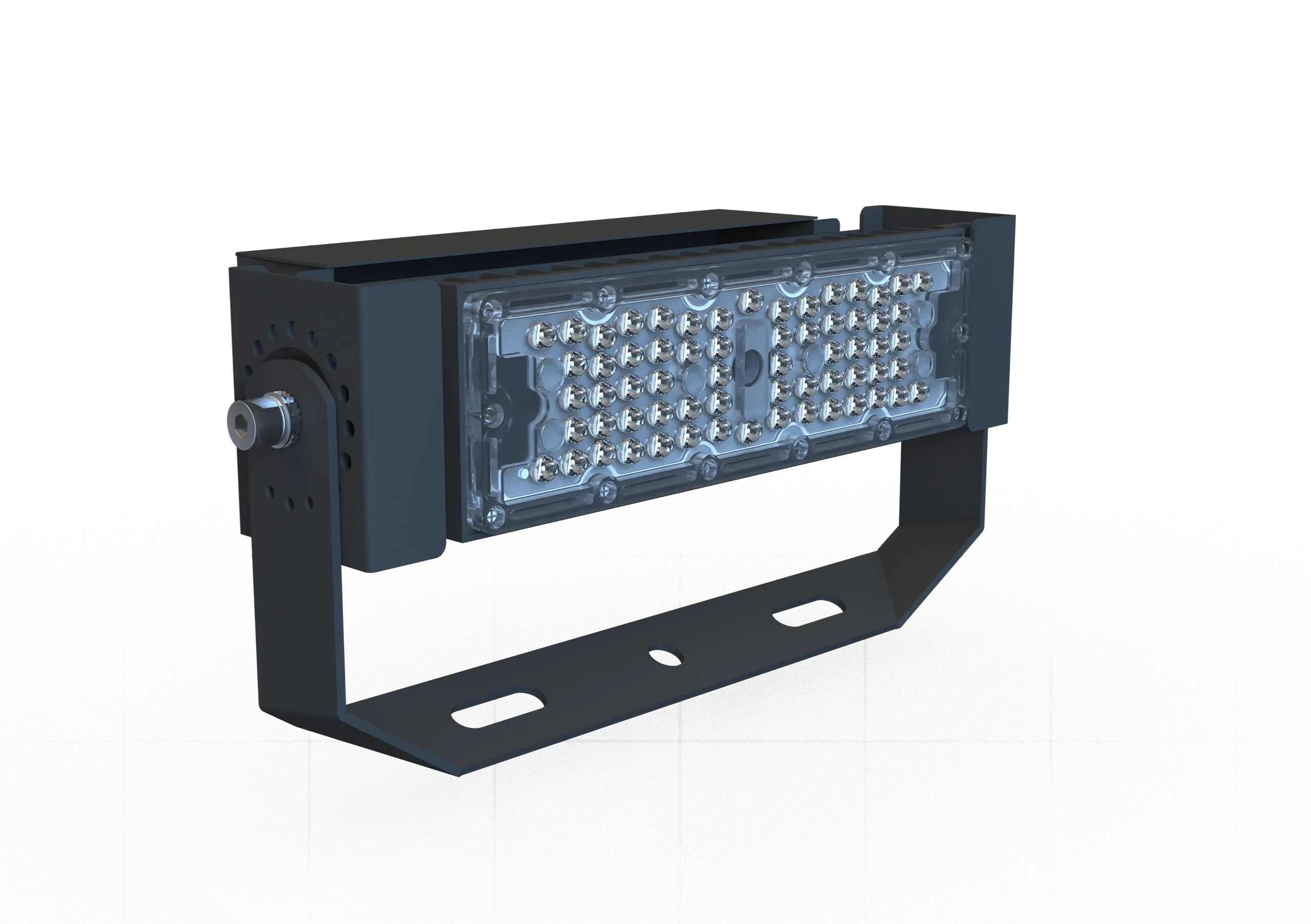

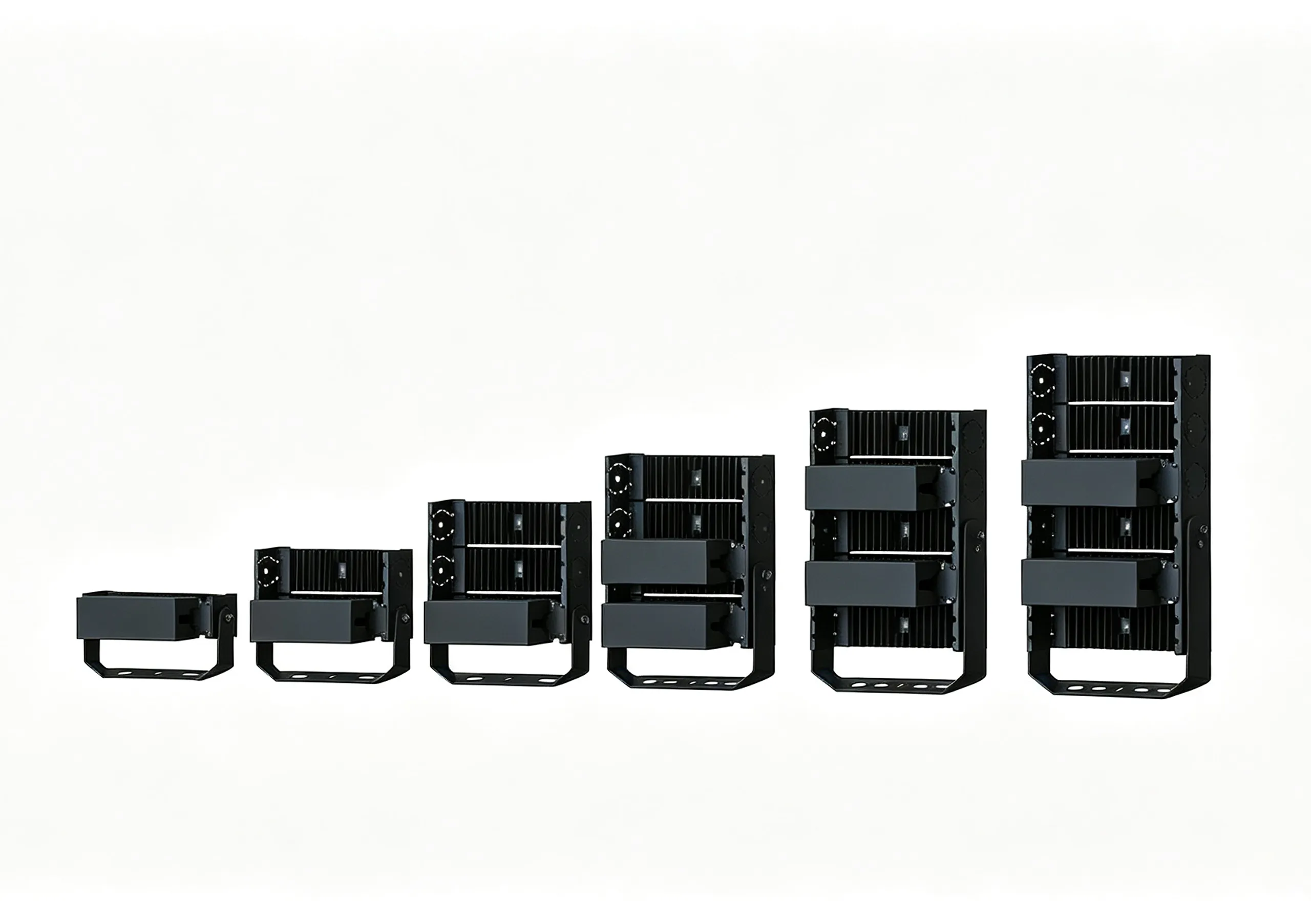

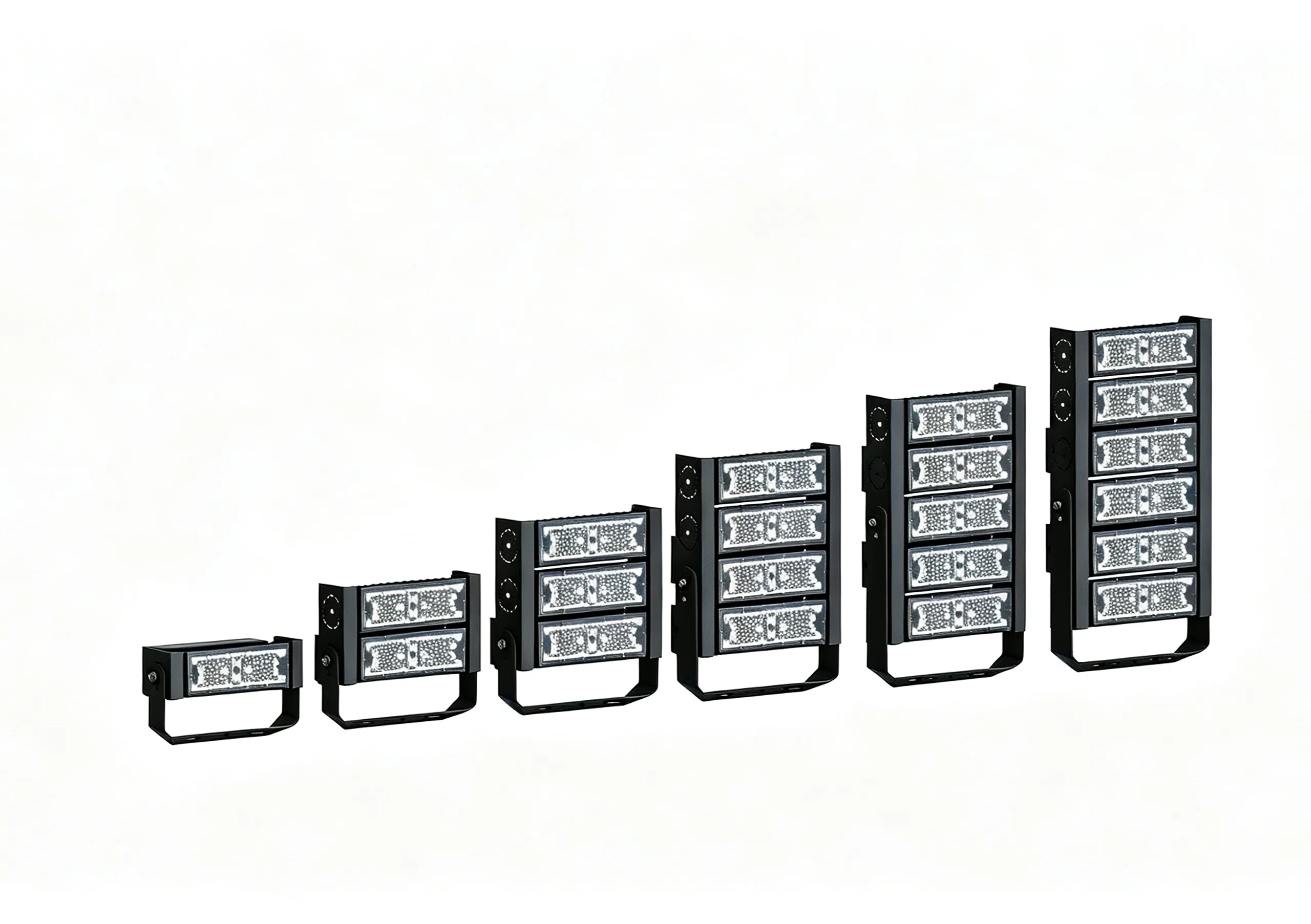

The TL01 Series LED Tunnel Light delivers high-efficiency illumination for indoor and outdoor industrial environments like tunnels, highways, and construction sites. It provides versatile, reliable, long-lasting performance across six adaptable sizes ranging from 50W to 600W.

Key Features

Modular Heat Dissipation

High-thermal conductivity aluminum heat sinks lower operating temperatures, extending LED lifespan and ensuring stable, long-term performance.

Corrosion-Resistant Frame

Built with a high-strength galvanized steel frame to resist oxidation and harsh environmental wear.

Versatile Light Distribution

Utilizes national standard modules compatible with multiple beam angles to suit diverse lighting environments.

Fast-Install Support Design

Support protrusion design paired with a U-shaped bracket streamlines mounting for quicker, hassle-free installation.

Inquire Now

Technical Specifications

Series	TL01 - LED Tunnel Light
Power	50/100W, 100/200W, 150/300W, 200/400W, 250/500W, 300/600W
Lumen Output	7000-108000 lm
Efficacy	140 lm/W, 180 lm/W
Input Voltage	AC 120-277V 50/60Hz
Color Temperature	3000K / 4000k / 5000K / 5700K / 6500K
CRI	140lm/W, Ra: 80 ± 2; 180lm/W, Ra: 70 ± 2
Beam Angle	15° / 25° / 30° / 45° / 60° / 90° / 120° / T2 / T3 / T4
Operating Temperature	-30°C to +45°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK08
Housing Material	ADC12 + SGCC + PC Lens
Mounting	U-shaped stent installation
Dimming	Optional 1–10V/0–10V dimming + DC 12V auxiliary power supply
Certifications	CE / RoHS / CCC / CQC
Warranty	3 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
