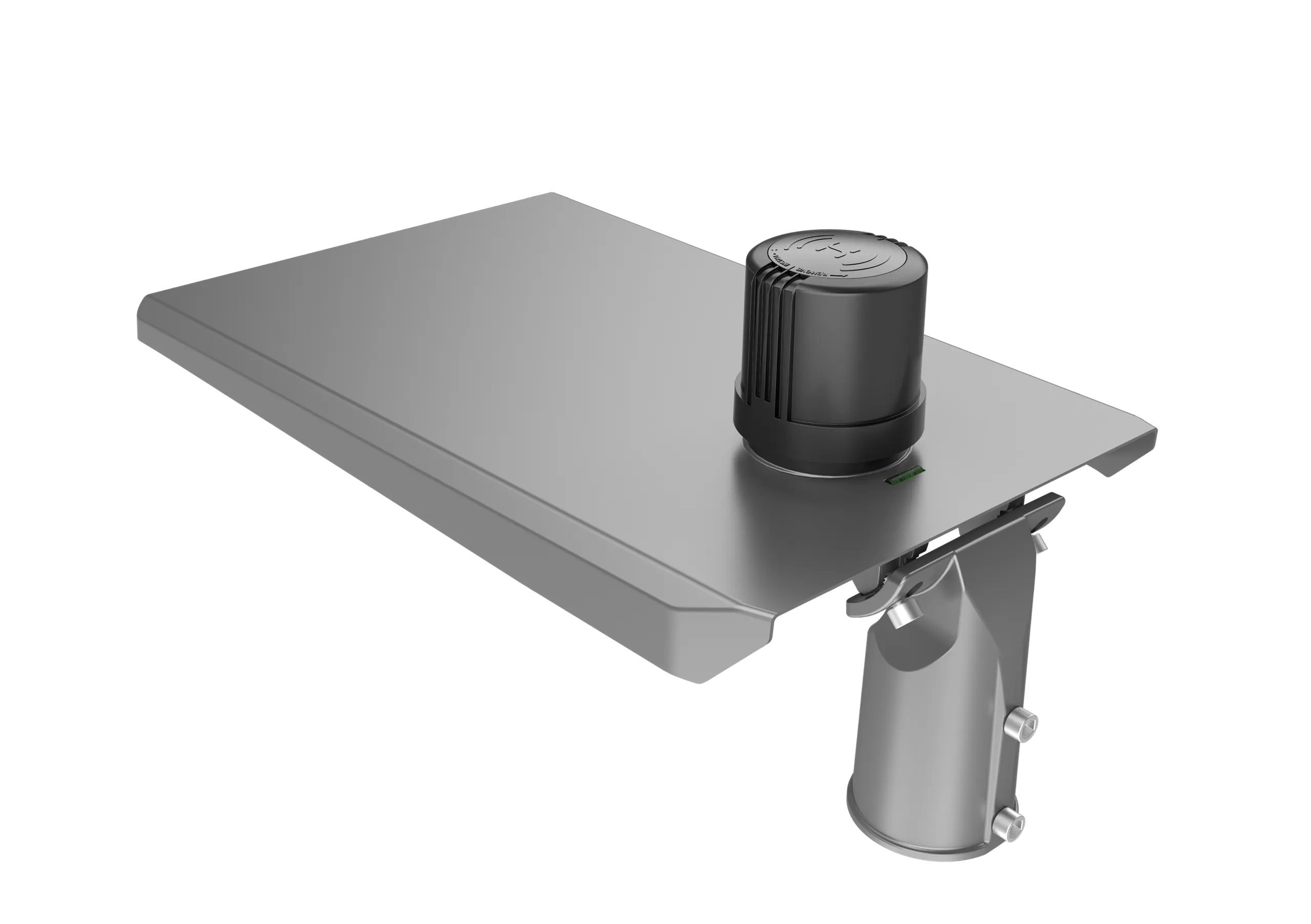

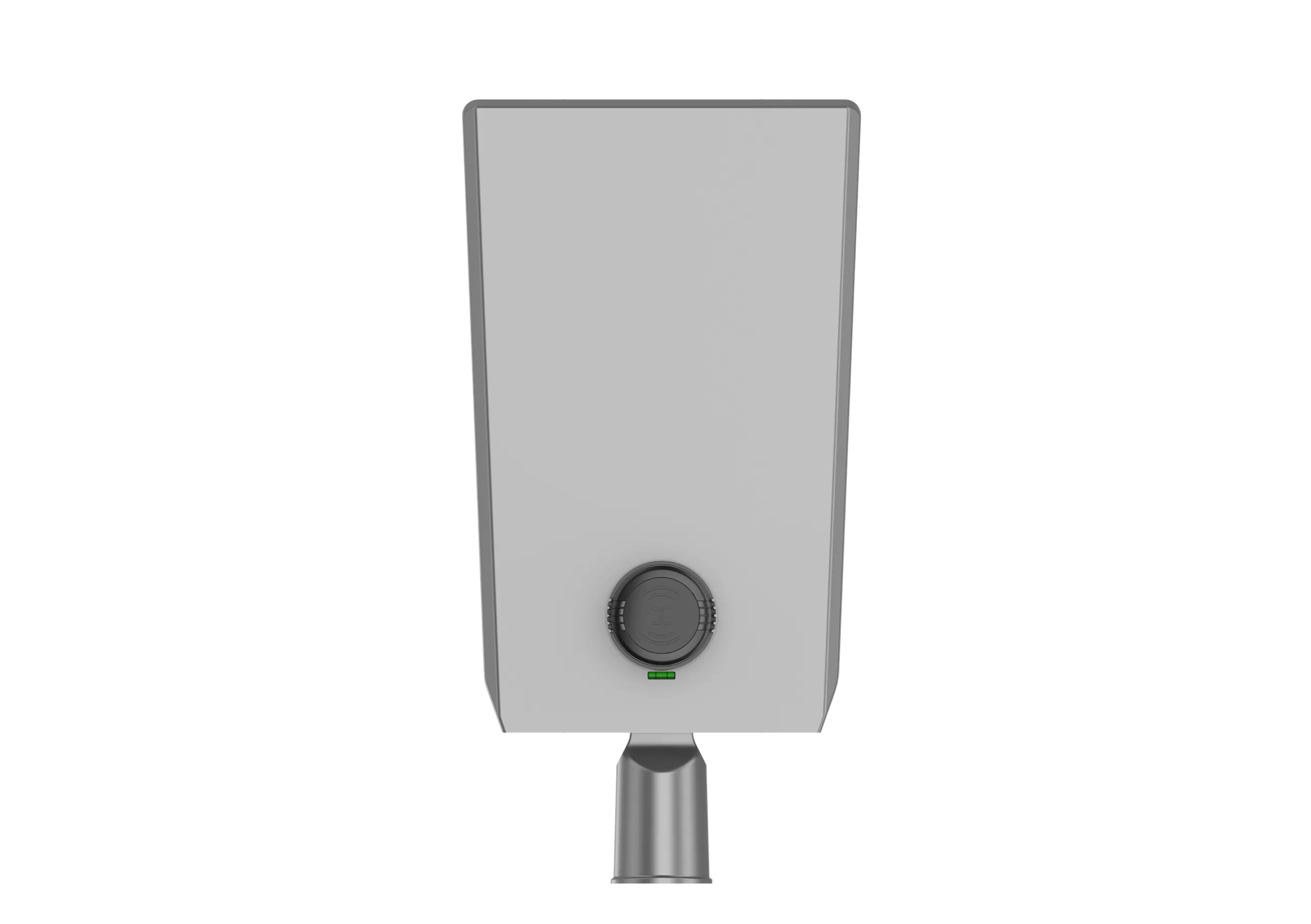

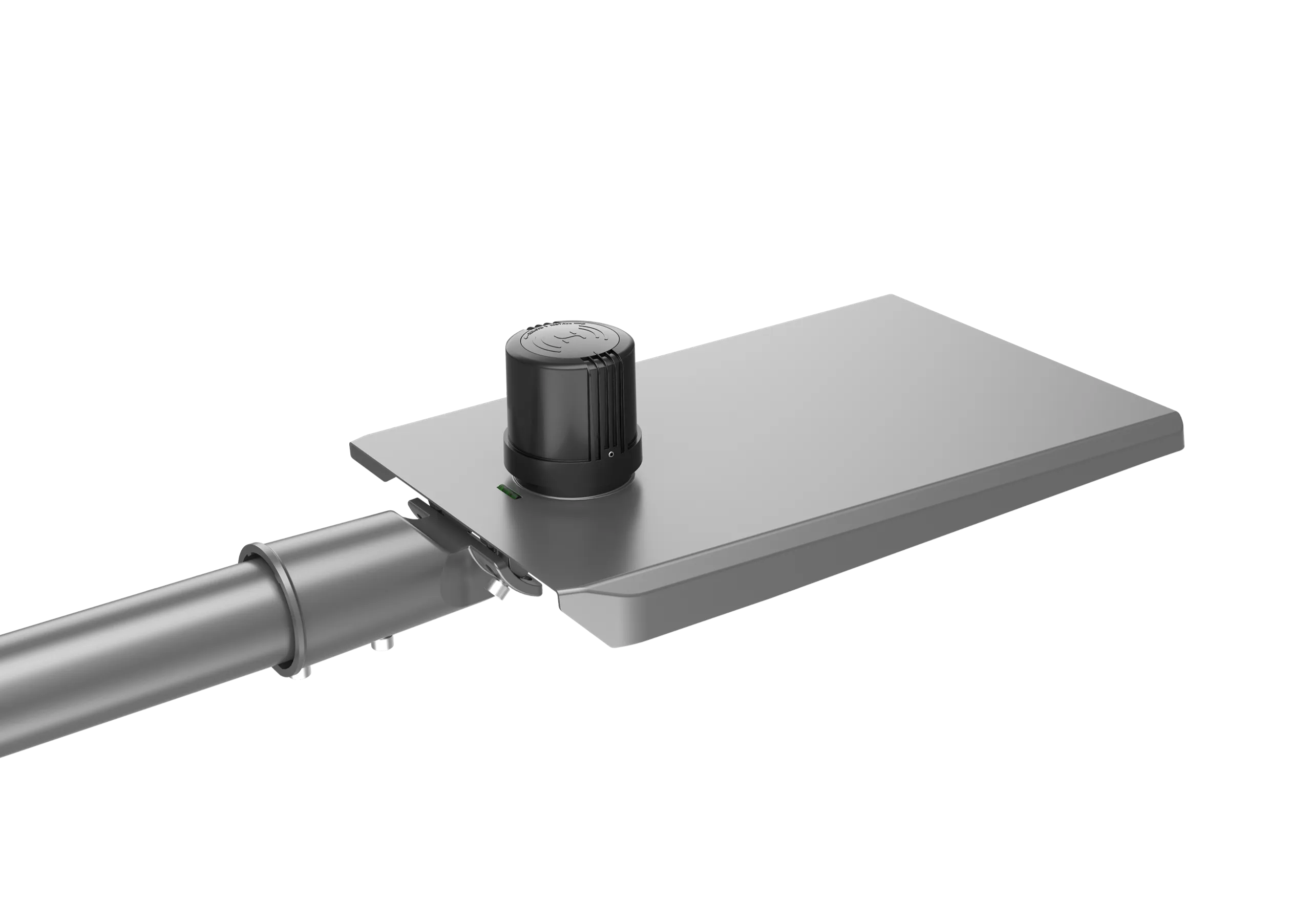

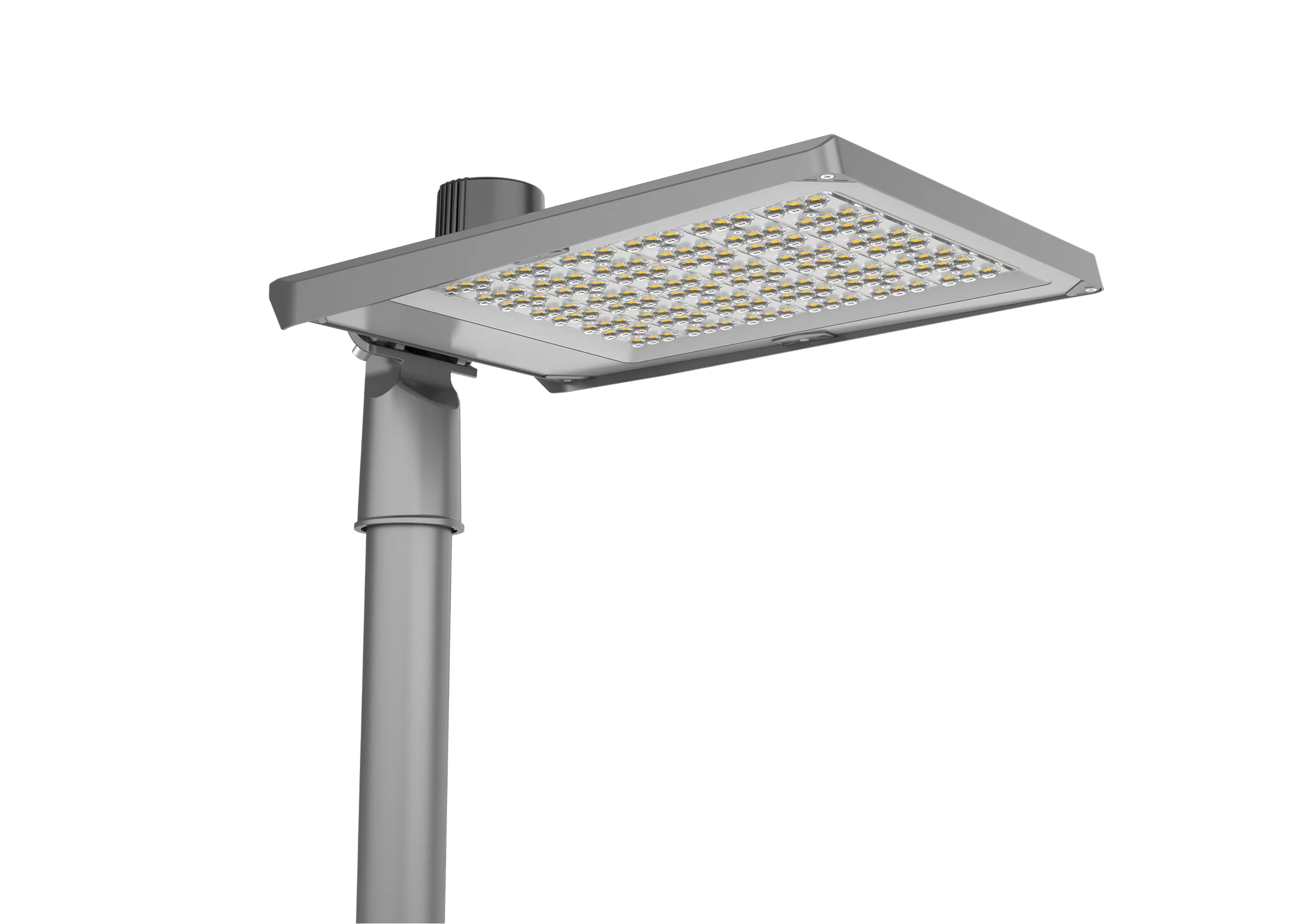

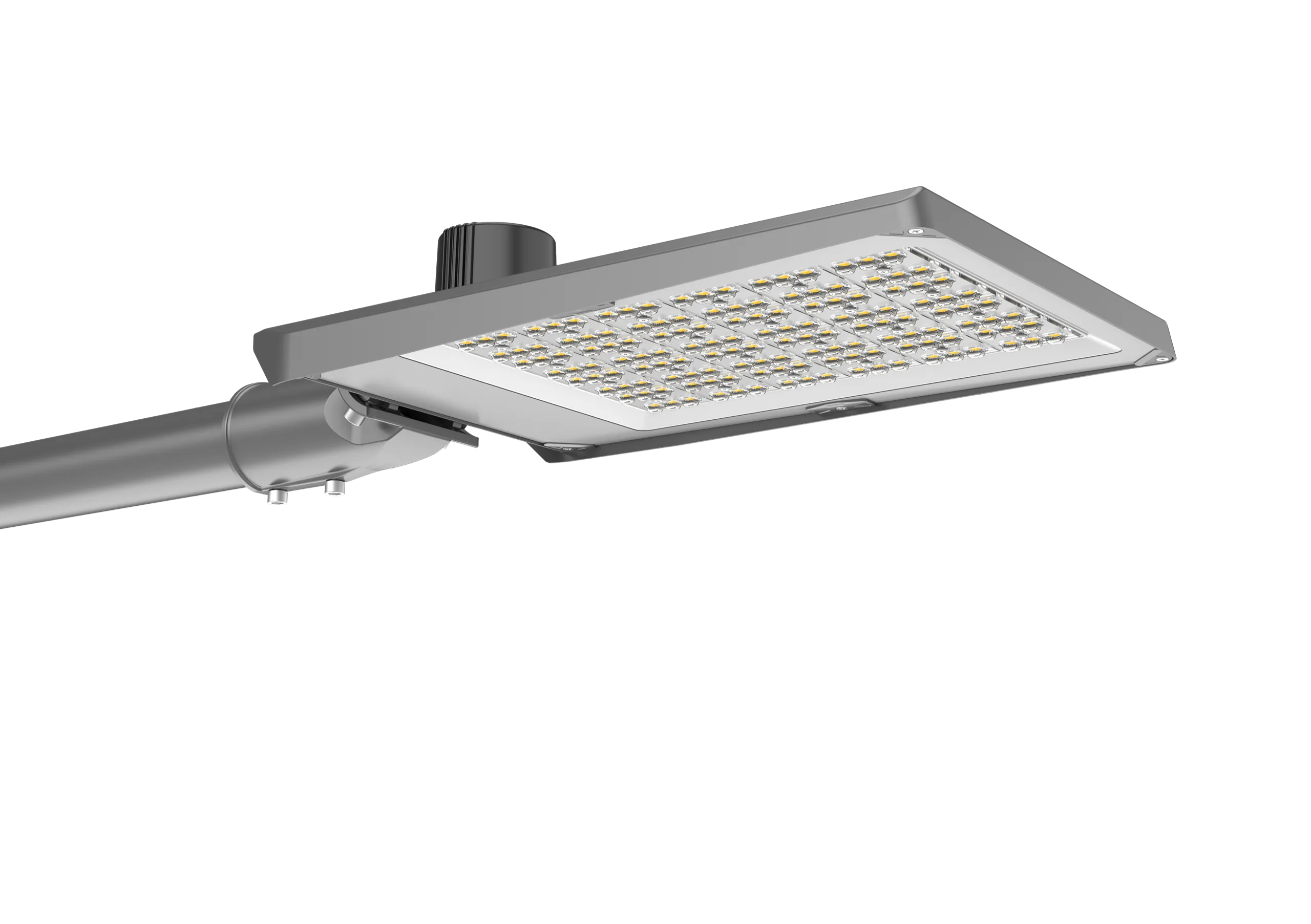

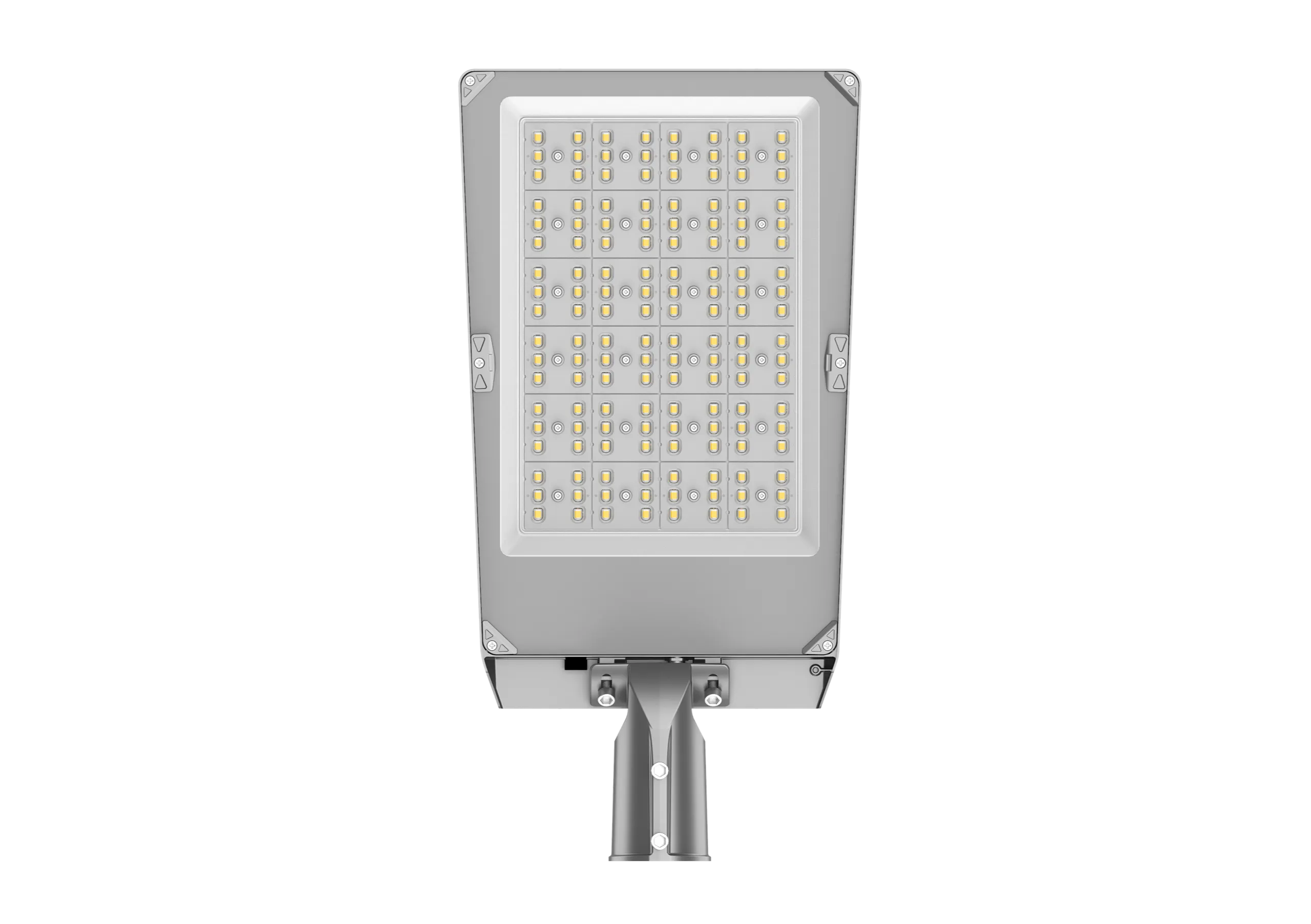

SL51

The SL51 Series Street Light delivers high-efficiency LED road illumination for highways, urban expressways, parks and other locations.
Available in 50–200W, it provides versatile, reliable, and intelligent outdoor lighting.

Key Features

NFC Offline Wireless Programming

Modify light parameters wirelessly without opening the housing, making installation and maintenance fast, safe, and effortless.

Adjustable ±15° Mounting Angle

Flexible lamp pole adapter supports both horizontal and vertical installations, allowing precise tilt positioning for optimal road coverage.

Rugged Self-Cleaning Aluminum Housing

ADC12 die-cast aluminum heat sink features a smooth back that prevents dust buildup, paired with IP66/IK08 durability ratings.

Intelligent Light Sensing & Dimming

Integrated light sensors and 0–10V dimming automatically optimize brightness and energy savings based on real-time ambient lighting.

Inquire Now

Technical Specifications

Series	SL51 - LED Street Light
Power	50W, 100W, 150W, 200W
Lumen Output	7500-36000 lm
Efficacy	150 lm/W, 180 lm/W
Input Voltage	AC 100-277V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	150lm/W, Ra: 80 ± 2; 180lm/W, Ra: 70 ± 2
Beam Angle	T2 / T3 / T4 / Polarized 45° / 90° / 60° / 30°
Operating Temperature	-30°C to +45°C, RH: 5%-90% non-condensing
IP Rating	IP66
IK Rating	IK08
Housing Material	ADC12 + PC Lens + Tempered Glass
Mounting	Side mounting/ top mounting, lamp pole diameter Ø40-Ø60 (standard); Ø76-Ø80 (customized)
Dimming	0-10V
Certifications	CE / RoHS / CCC / CQC
Warranty	5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
