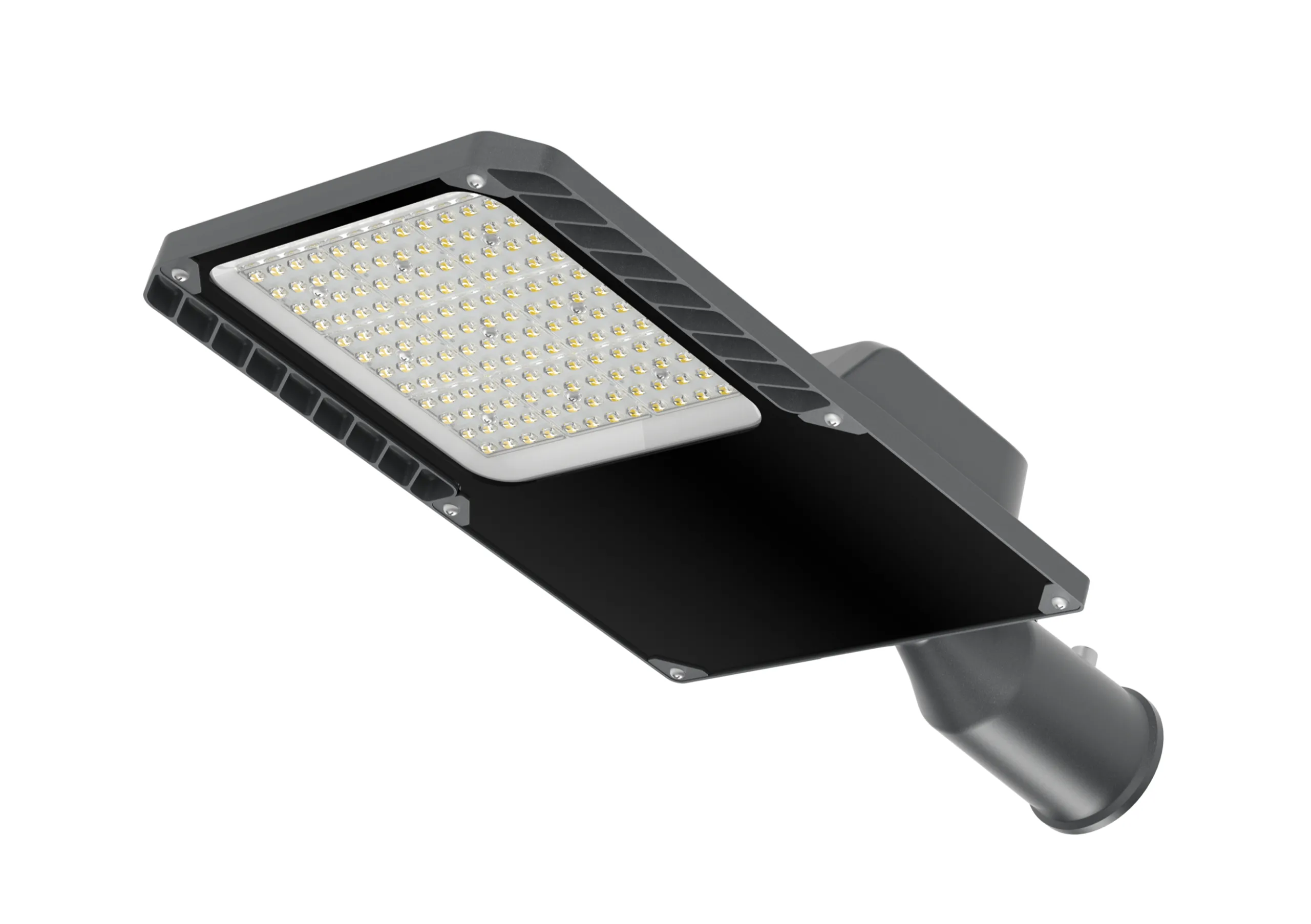

Solar-compatible LED street light SL21 for rural road projects

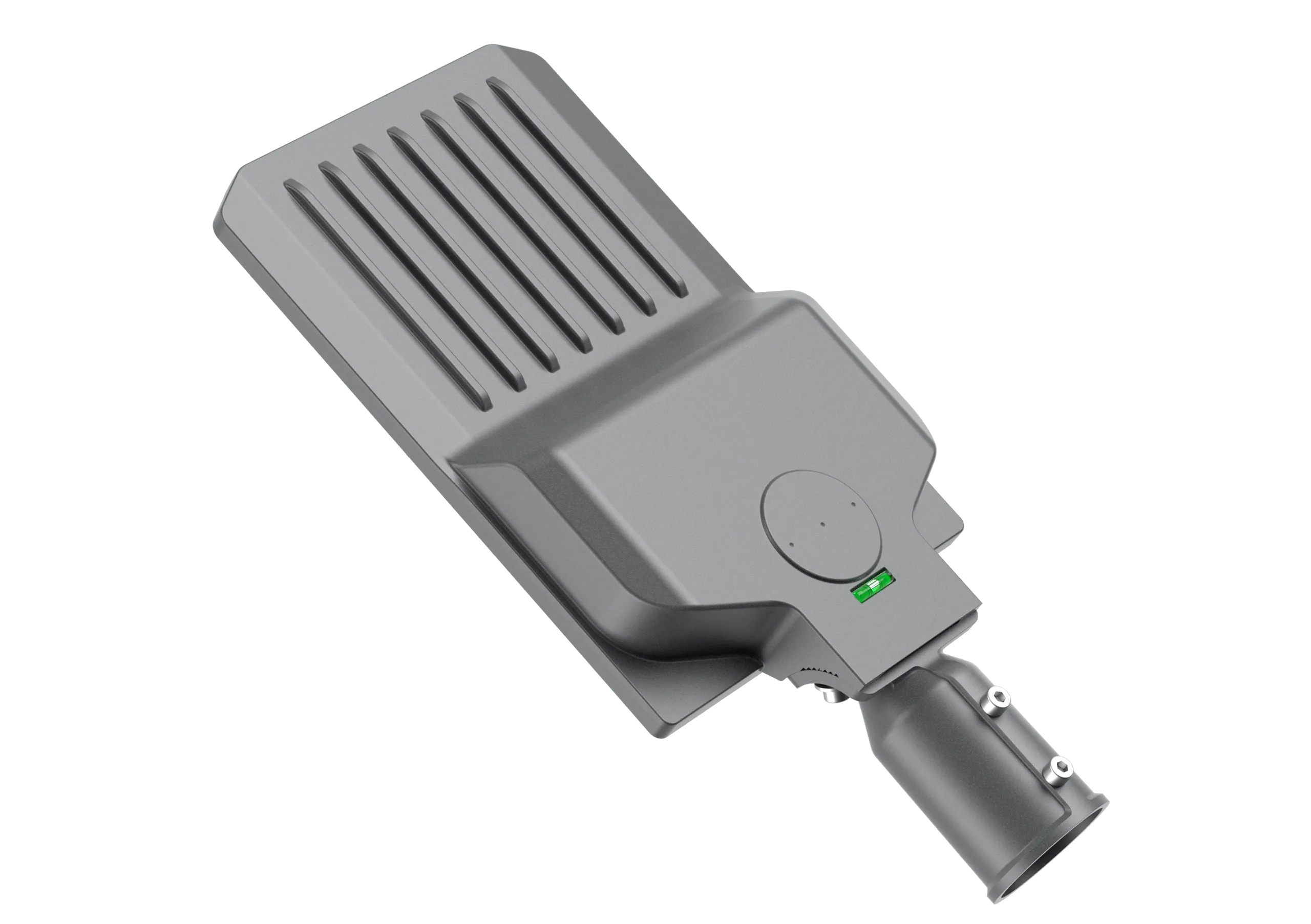

Wide beam angle SL21 LED street light for parking lot roads

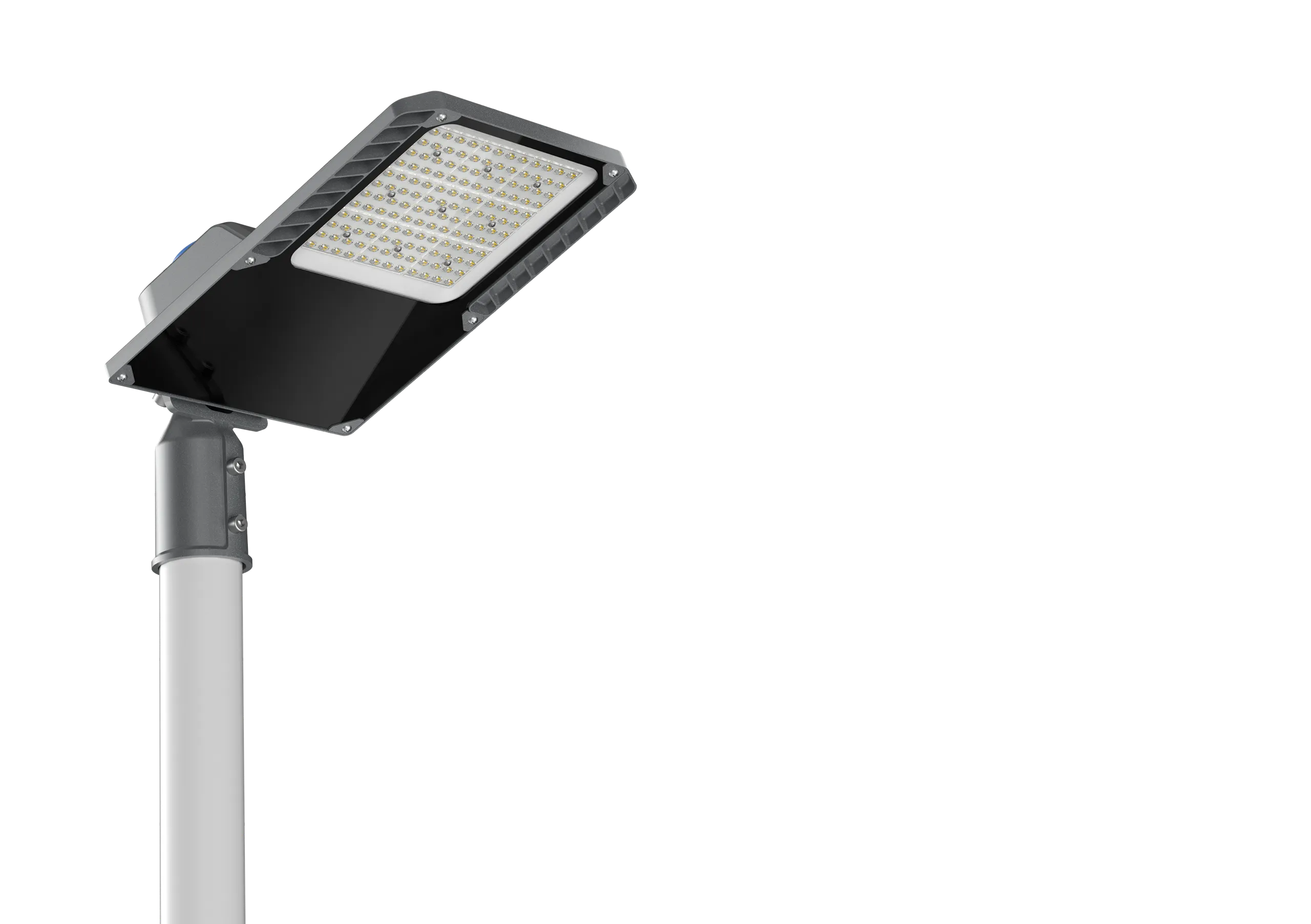

Corrosion-resistant SL21 LED street lights for coastal areas

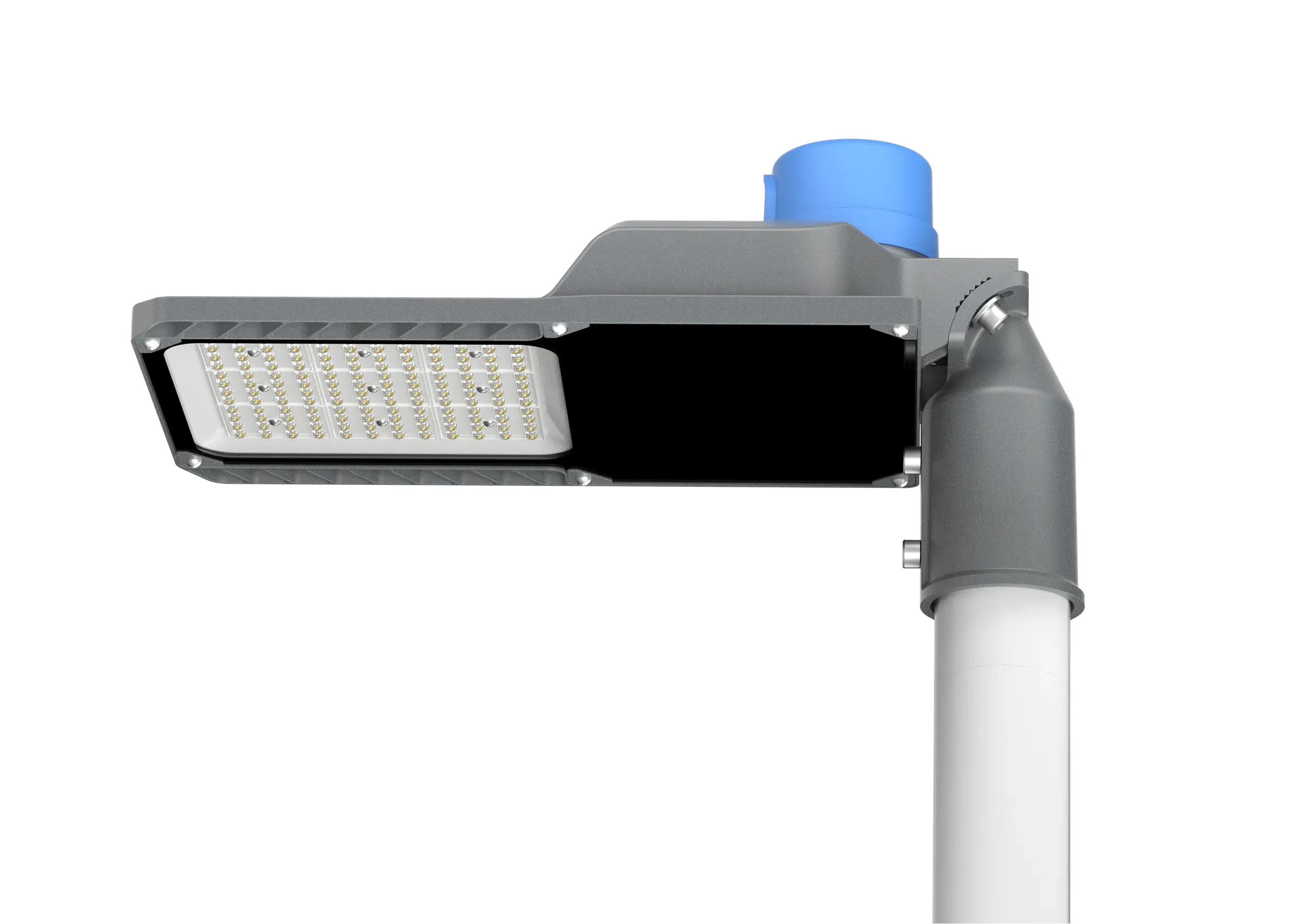

Motion sensor LED street lights SL21 for energy saving roads

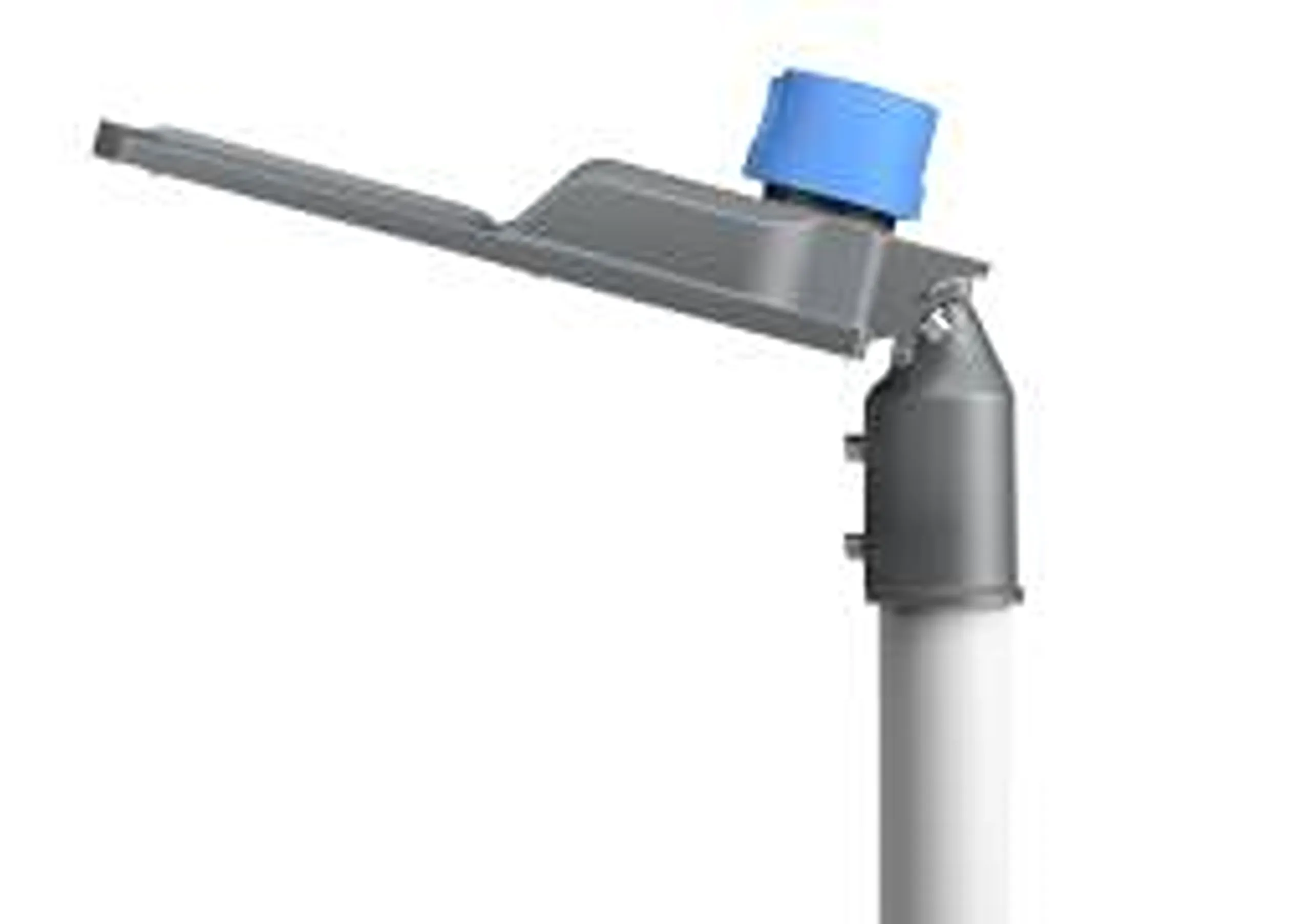

LED street lights with adjustable mounting bracket

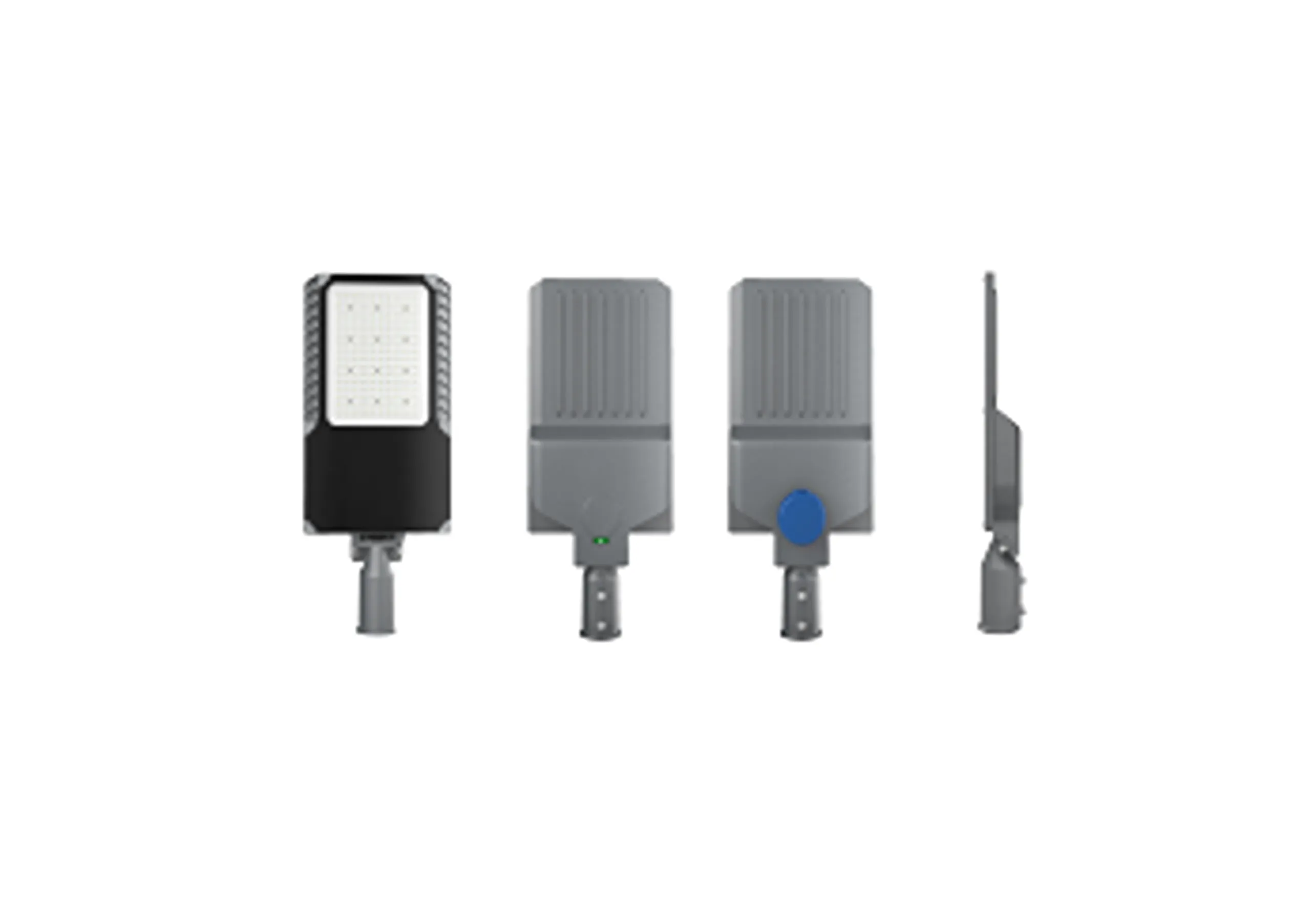

Premium LED street lighting SL21 for airport and port roads

SL21

The SL21 Series Street Light is designed for high-efficiency outdoor lighting across various municipal and residential applications.

Key Features

Comprehensive Power & Size Options

Offers 4 product sizes with power ratings spanning from 50W to 200W (SL21-50, SL21-100, SL21-150, SL21-200).

Built-In Level & Angle Adjustment

Features an adjustable-angle mounting adapter structure for flexible positioning and a built-in bubble level for simplified installation.

High-Efficacy Optical Design

Utilizes standard SMD2835 LED chips paired with a high-efficiency lens and glass design, delivering up to 160 lm/W luminous efficacy.

Smart Control Integration

Equipped with an optional NEMA ba se (3-wire, 5-wire, 7-wire) supporting optional light controllers and short-circuit caps.

Technical Specifications

Series	SL21 - LED Street Light
Power	50W, 100W, 150W, 200W
Lumen Output	6500-32000 lm
Efficacy	130 lm/W, 140 lm/W, 160 lm/W, 170 lm/W
Input Voltage	AC 120-277V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	130lm/W, Ra: 80 ± 2; 1600lm/W, Ra: 70 ± 2
Beam Angle	T2 / T3 / T4
Operating Temperature	-30°C to +45°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK08
Housing Material	ADC12 + Glass + PC Lens
Mounting	60mm diameter pipe
Dimming	/
Certifications	CE / RoHS / CCC / CQC
Warranty	5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
