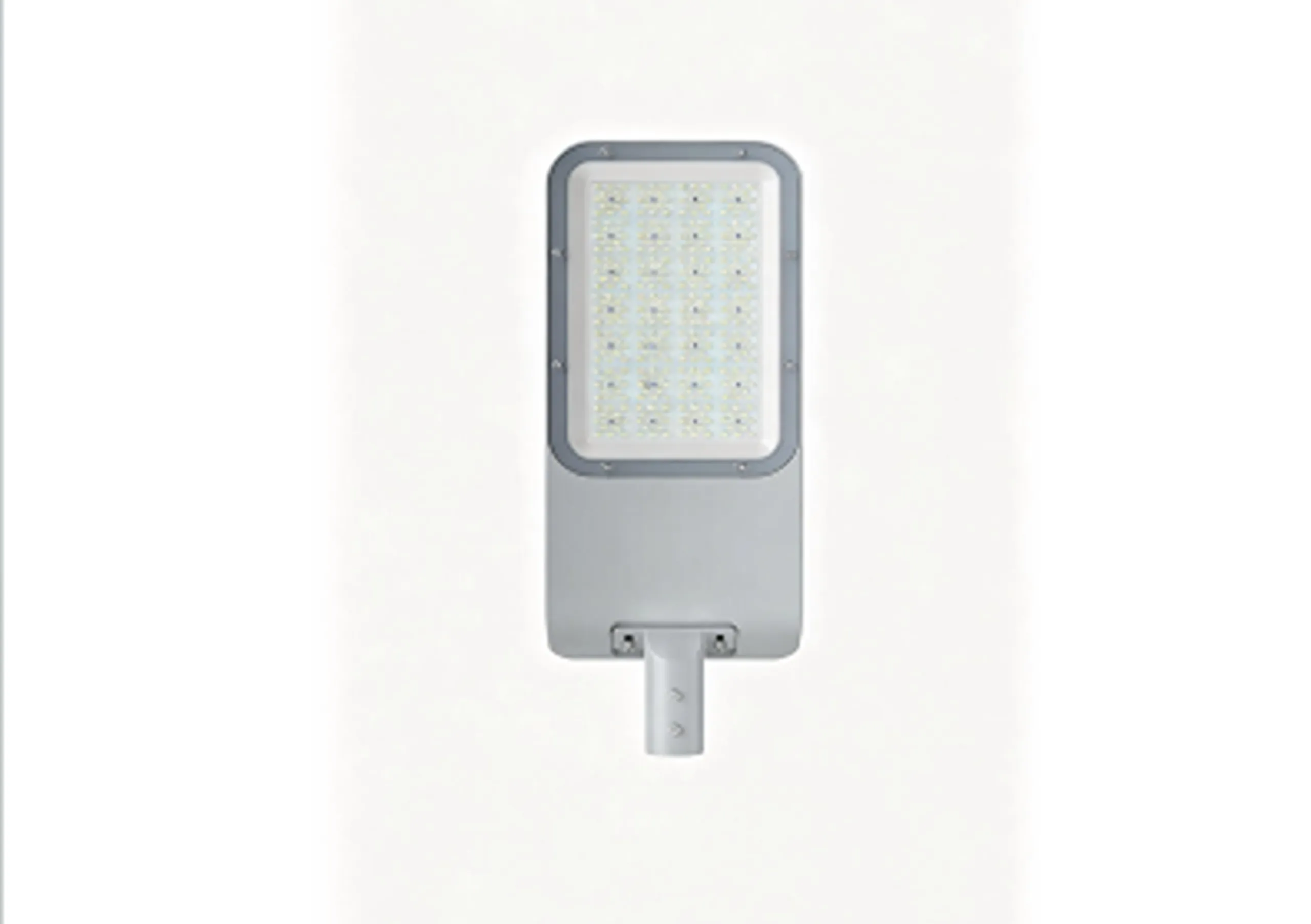

Anti-glare LED street lights SL02 for safe night driving

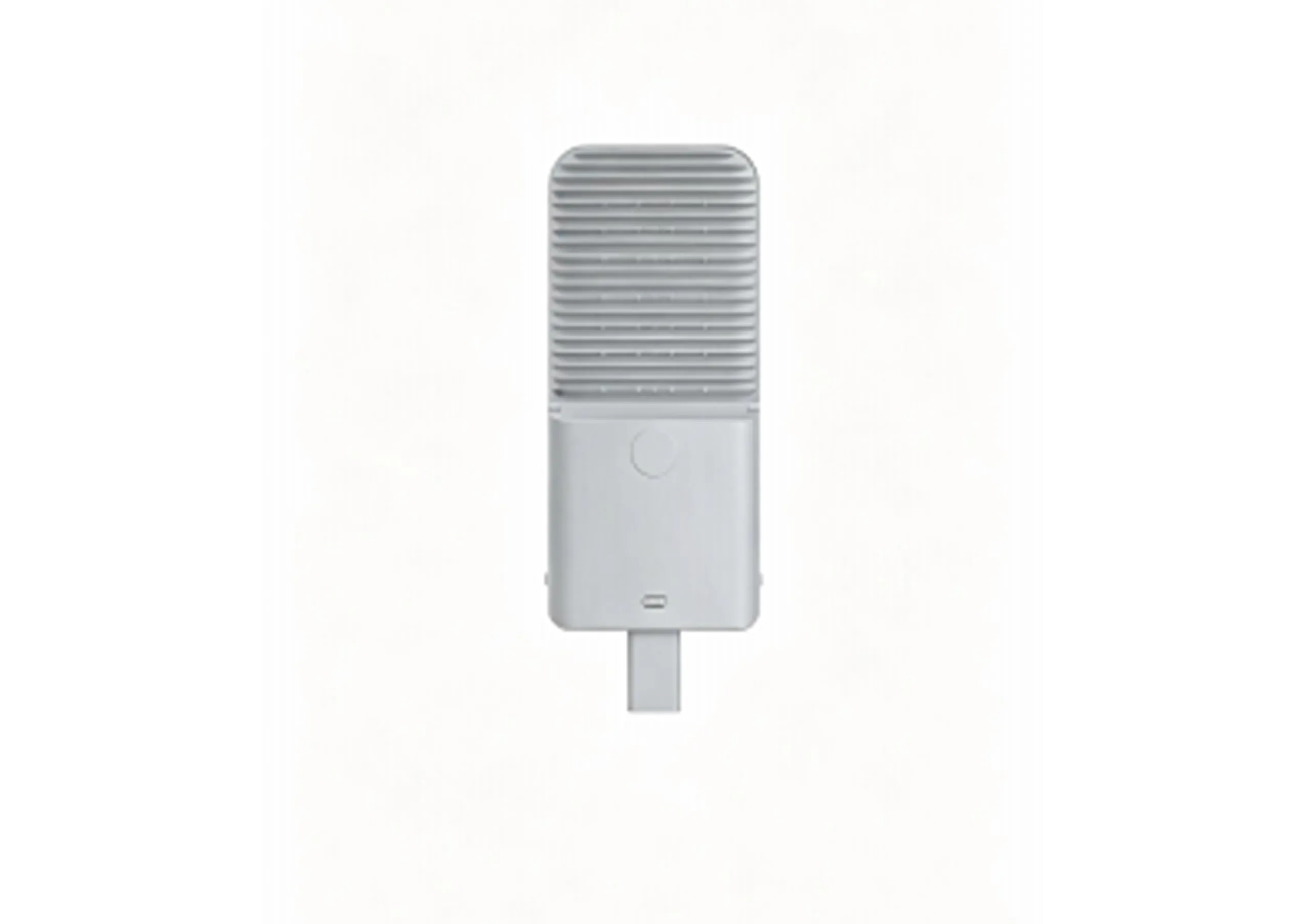

Modular design LED street lights SL02 for easy maintenance

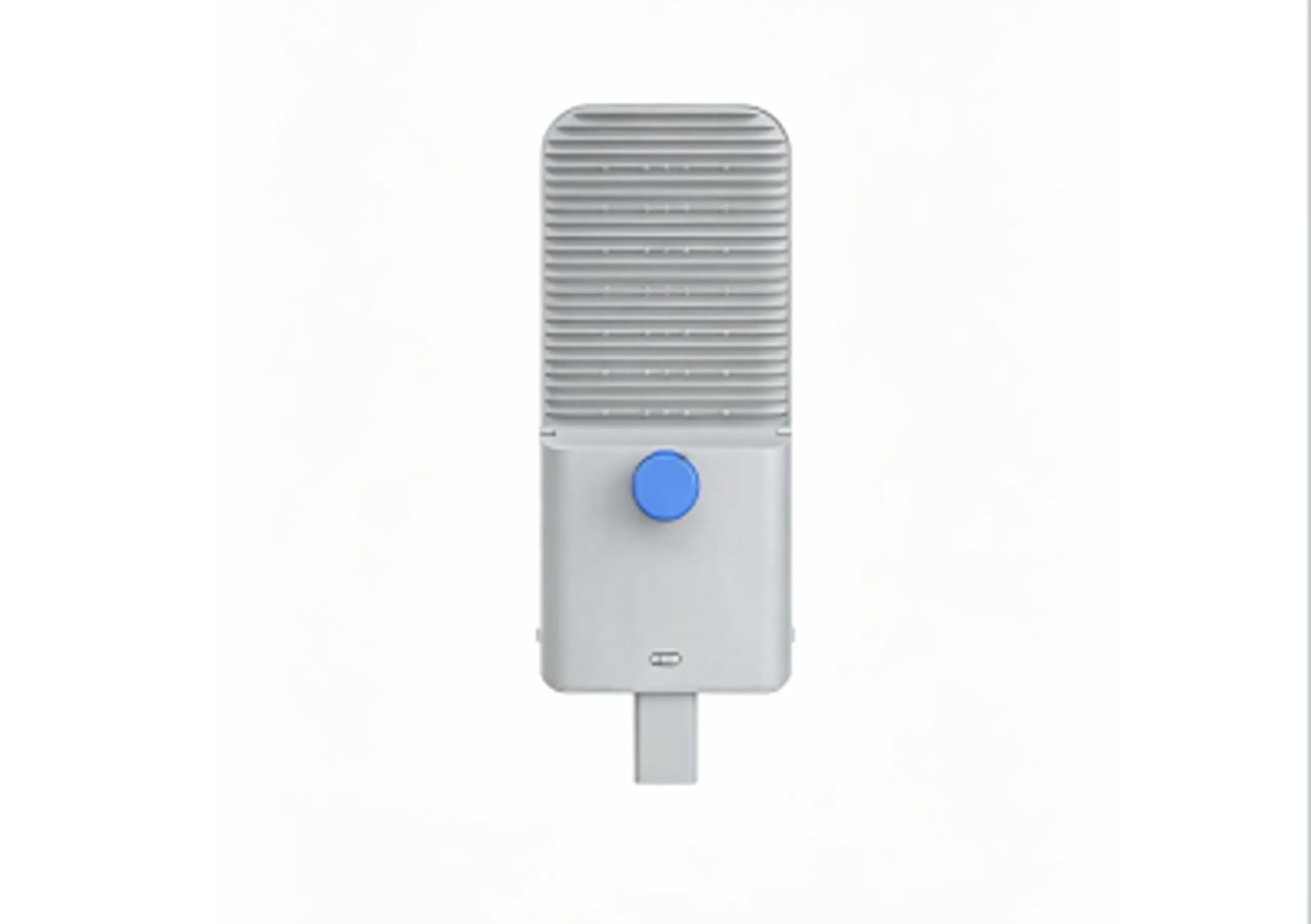

LED roadway lighting for expressways and factory areas SL02

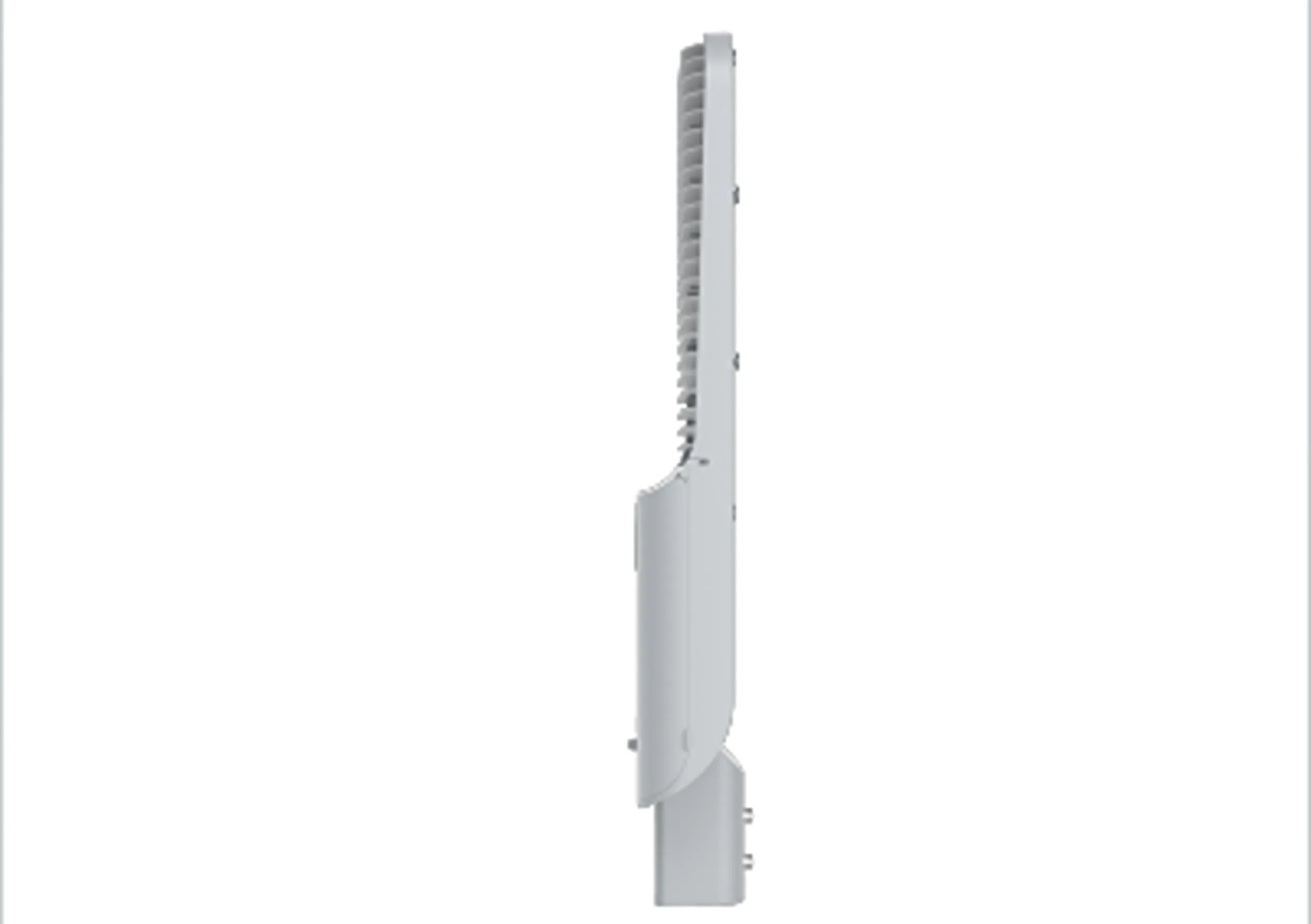

LED street lamps 300W for arterial roads SL02

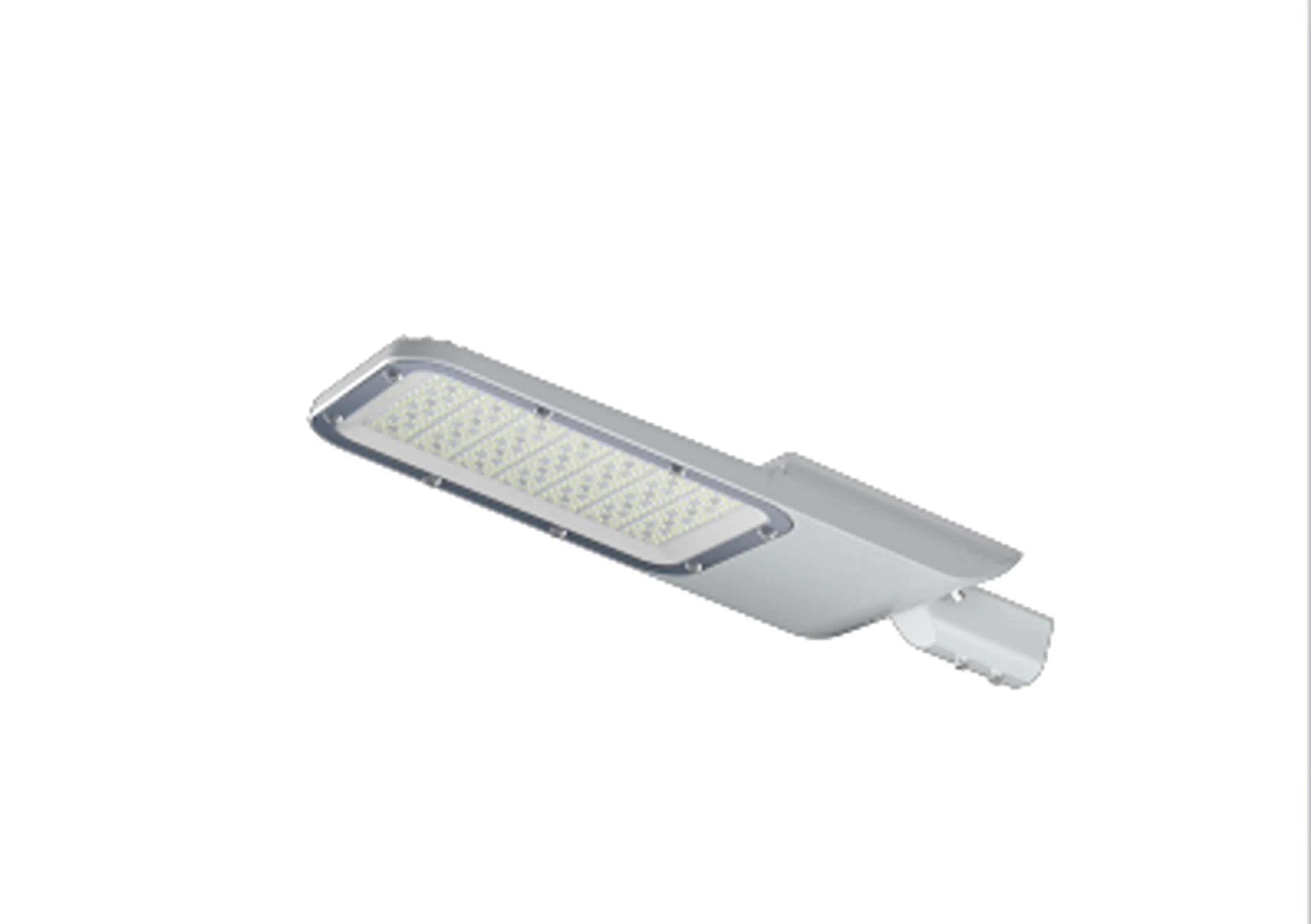

LED road lights with IP65 rating for city streets SL02

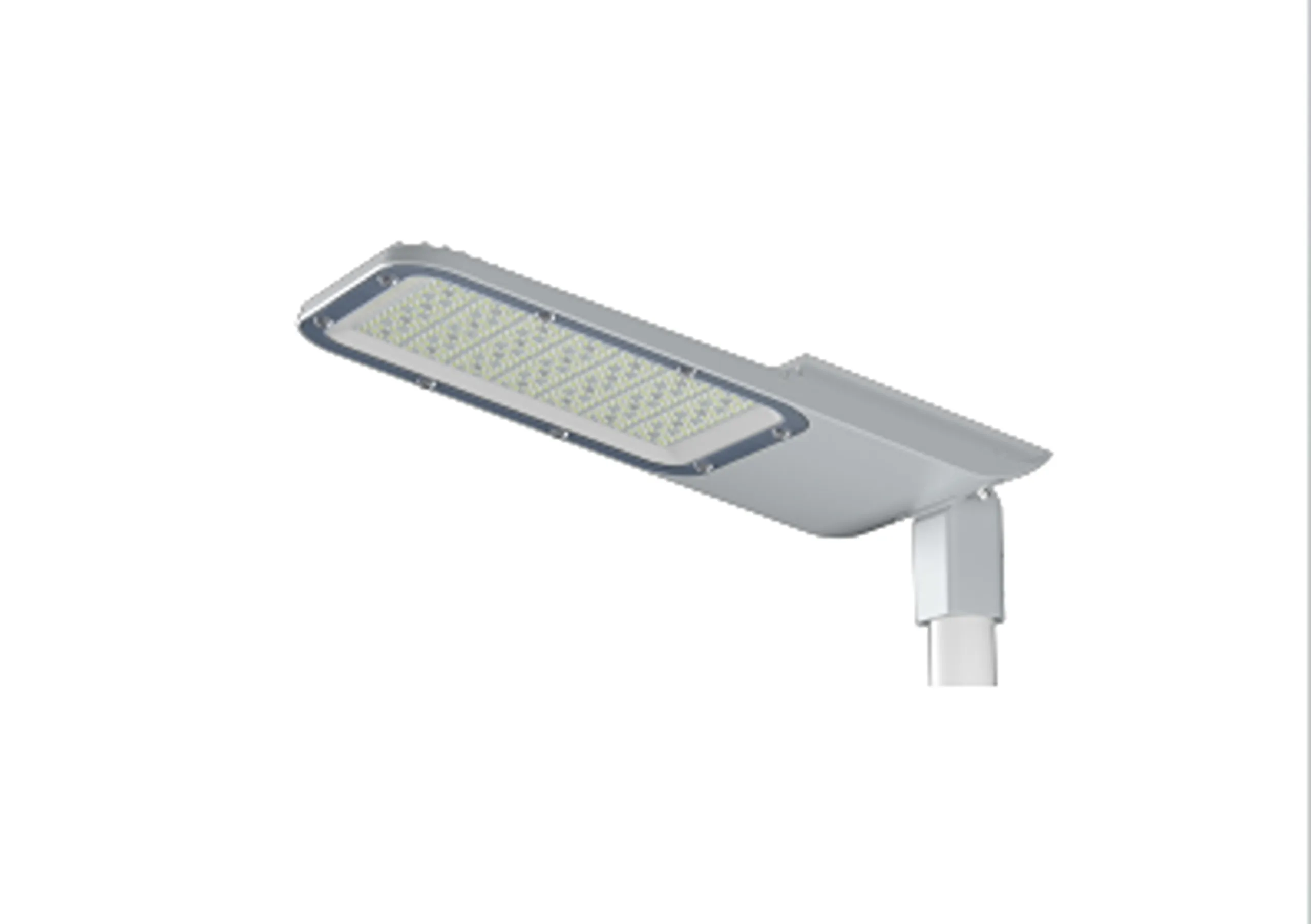

150W LED street lighting for national roads SL02
Anti-glare LED street lights SL02 for safe night driving
Modular design LED street lights SL02 for easy maintenance
LED roadway lighting for expressways and factory areas SL02
LED street lamps 300W for arterial roads SL02
LED road lights with IP65 rating for city streets SL02
150W LED street lighting for national roads SL02

SL02

The SL02 Series Street Light offers flexible, high-efficiency illumination across standard and custom roadway configurations.

Key Features

Flexible Power & Size Range

Spans 100W to 320W across 4 distinct product sizes, allowing precise matching for municipal roads, highways, and parkways.

Tool-Free Top Cover Maintenance

Designed with a top cover structure for tool-free maintenance and quick access to major components.

High Efficacy & Chip Options

Delivers light efficiency reaching up to 160 lm/W with SMD3030 chips and 185 lm/W with SMD5050 chips.

Adjustable Pole Adapter

Features an adjustable lamp pole adapter elevation angle of ±15° for precise on-site positioning.

Inquire Now

Technical Specifications

SeriesSL02 - LED Street Light
Power100W, 150W, 200W, 300W
Lumen Output16000-57600 lm
Efficacy160 lm/W, 185 lm/W
Input VoltageAC 100-277V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRI185lm/W, Ra: 80 ± 2; 160lm/W, Ra: 70 ± 2
Beam AngleT2-S / T2-M / T3-M
Operating Temperature-30°C to +45°C, RH: 5%-90% non-condensing
IP RatingIP65
IK Rating
IK08
Housing MaterialADC12 + PC Lens + Tempered Glass
MountingSide mounting/ top mounting, lamp pole diameter Ø40-Ø60 (standard); Ø76-Ø80 (customized)
Dimming0-10V/ 1-10V/ DALI
CertificationsCE / RoHS / CCC / CQC
Warranty5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
