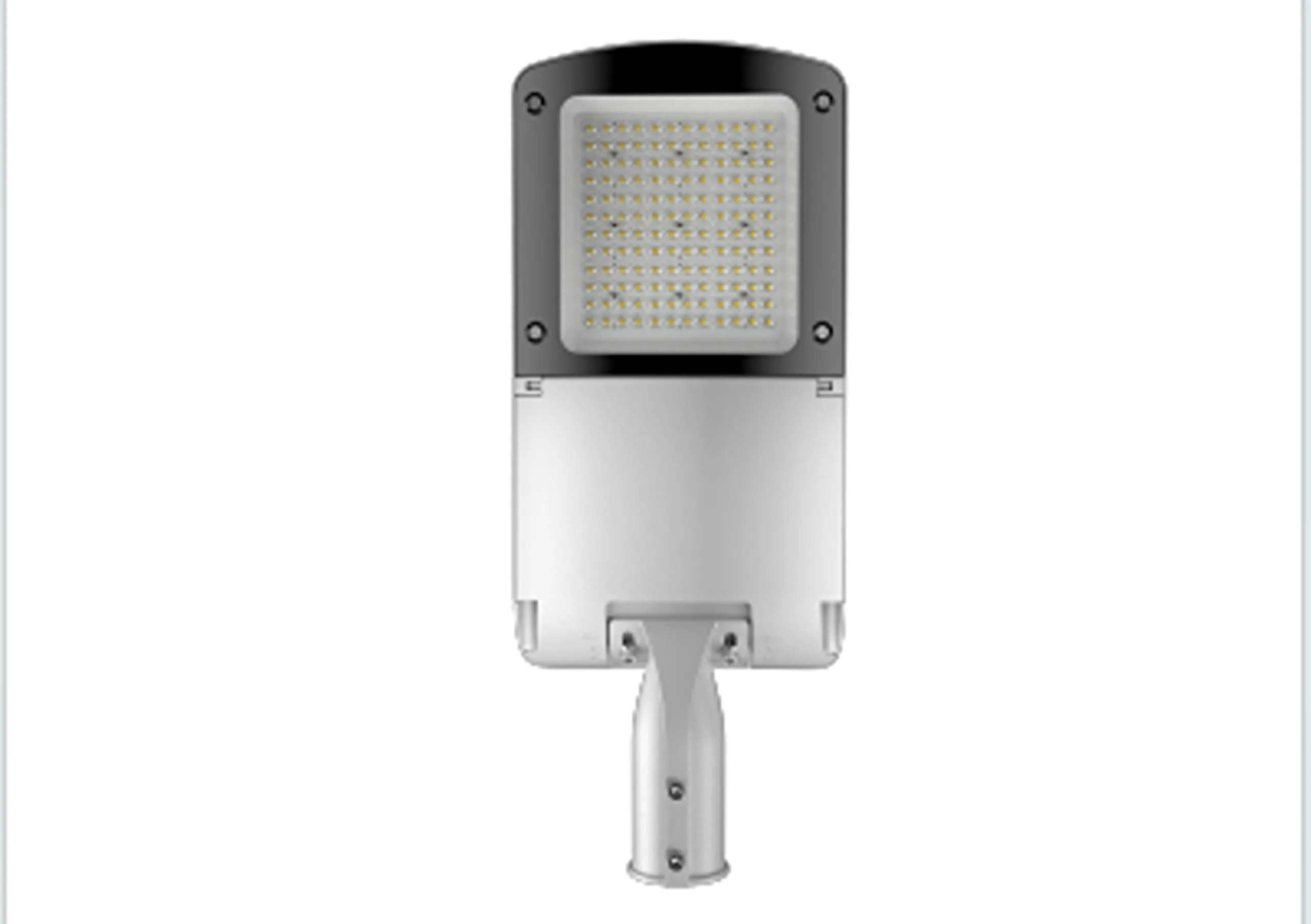

Energy-efficient LED street lights SL01 for urban road lighting
High lumen LED street SL01 luminaires for city roads

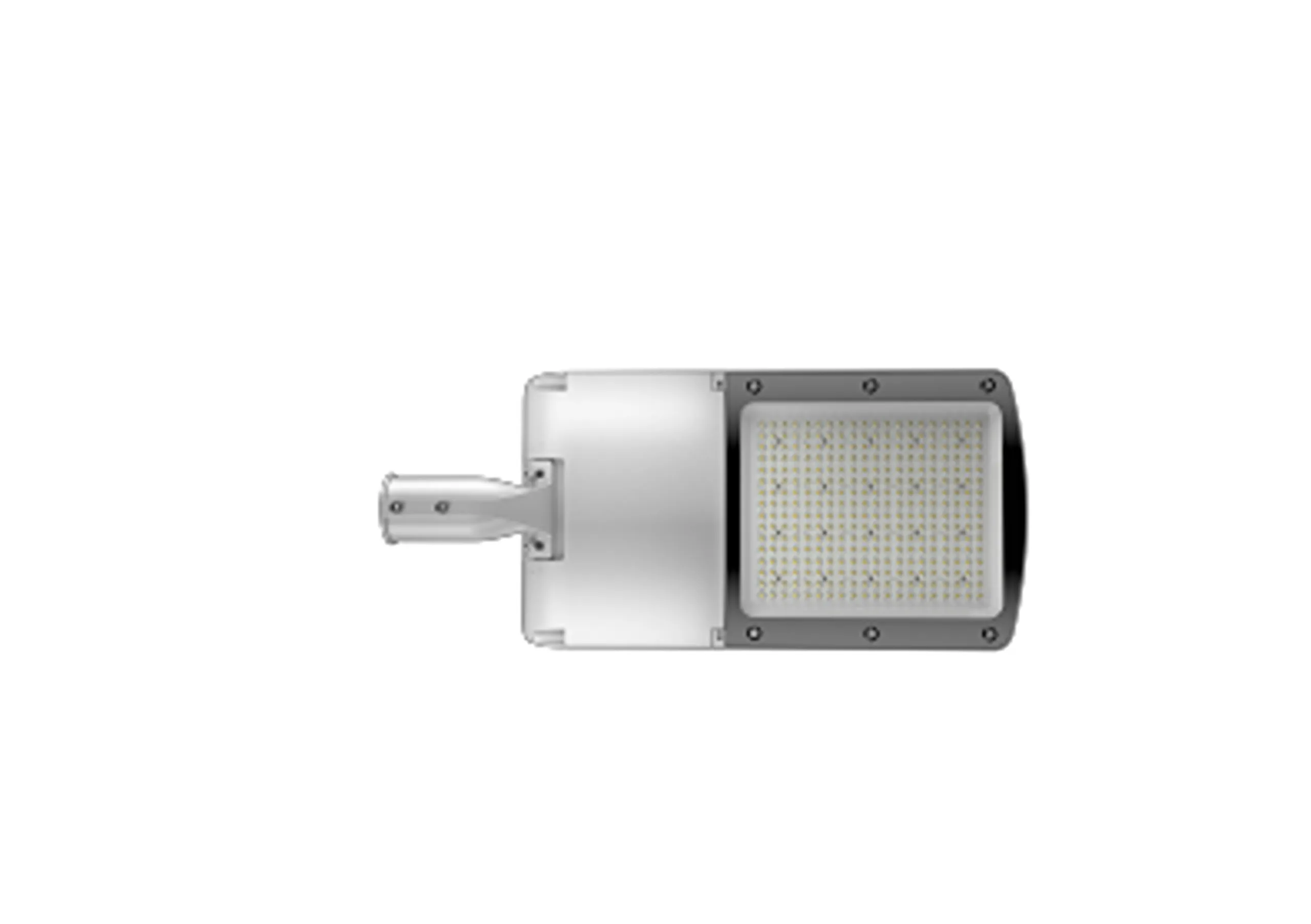

Die-cast aluminum LED street lights SL01 for outdoor roadway use

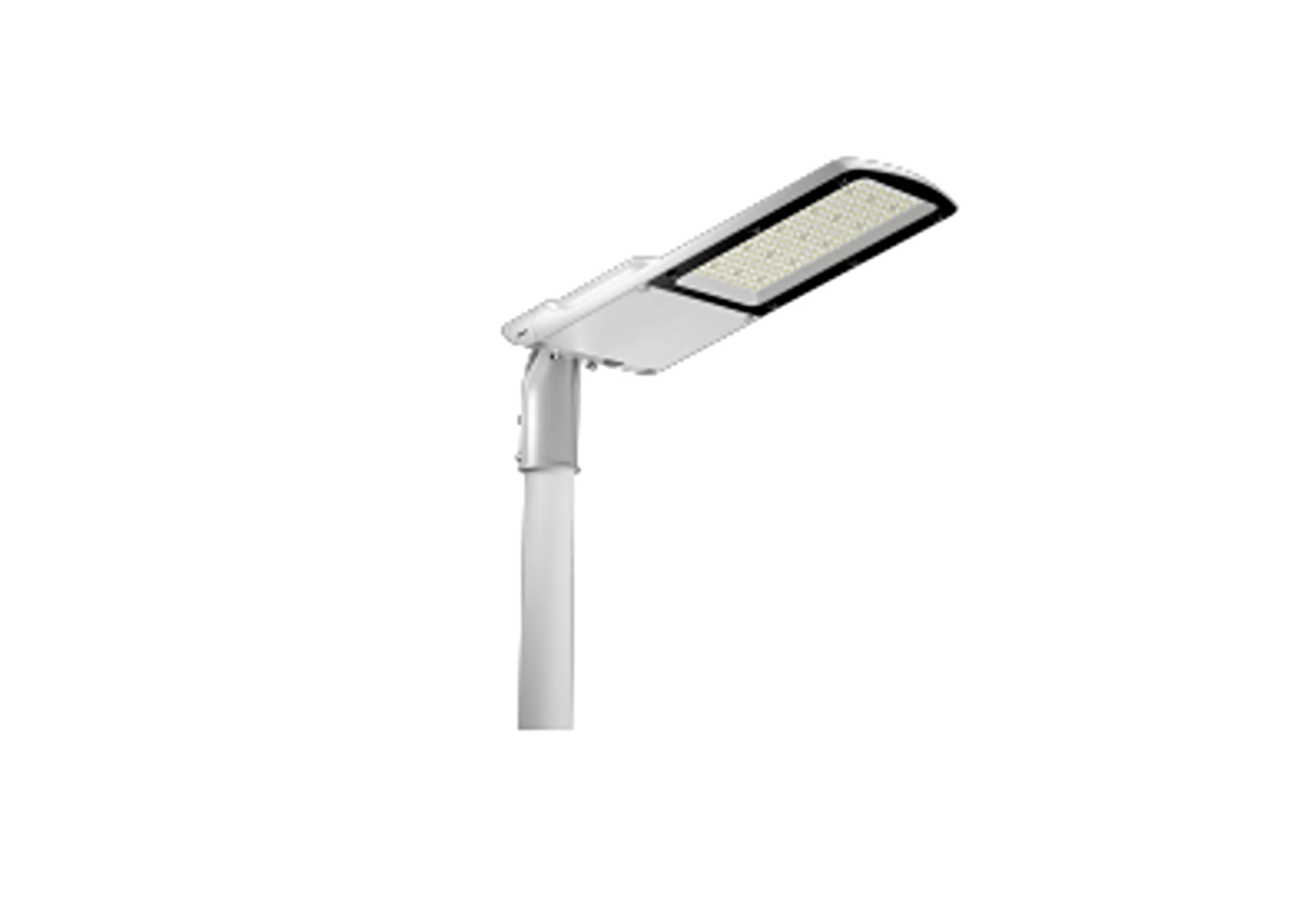

LED street lights SL01 with photocell sensor for smart city roads
Cost-effective LED street lighting SL01 for municipal projects
Energy-efficient LED street lights SL01 for urban road lighting
High lumen LED street SL01 luminaires for city roads
Die-cast aluminum LED street lights SL01 for outdoor roadway use
LED street lights SL01 with photocell sensor for smart city roads
Cost-effective LED street lighting SL01 for municipal projects

SL01

The SL01 Series AC Street Light delivers highly efficient, customizable illumination for arterial roads, highways, and residential communities.

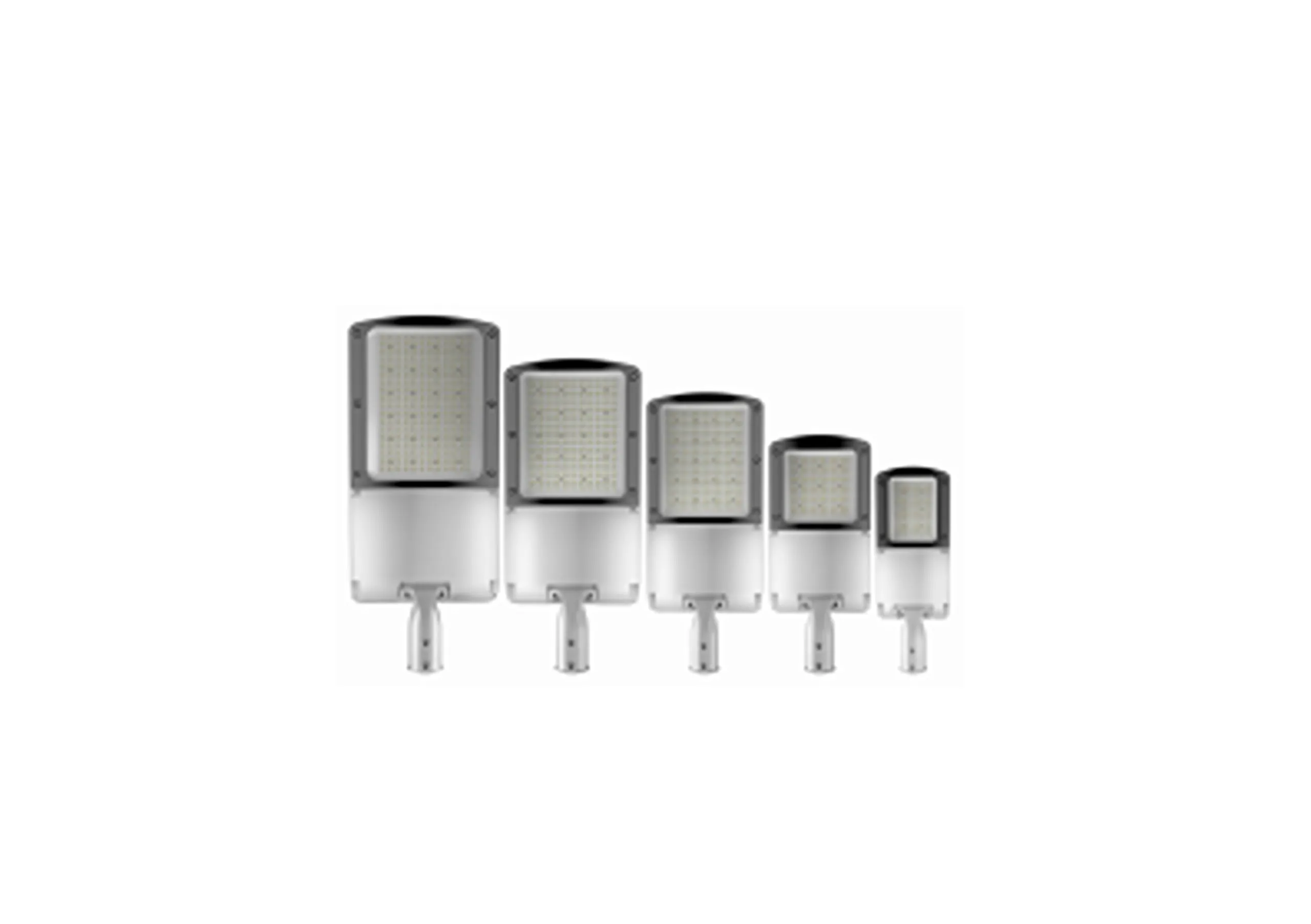

Designed with a full 30–320W output range across five sizes, it provides scalable performance and effortless maintenance for municipal lighting projects.

Key Features

Versatile Power Range

Spans 30W to 320W across five sizes, providing scalable outdoor illumination tailored for various road types and residential communities.

Tool-Free Maintenance Compartment

Features a flip-top power compartment compatible with multi-brand drivers, enabling effortless replacement and reduced long-term servicing effort.

Smart NEMA Integration

Supports optional NEMA bases and light controllers, allowing seamless integration with intelligent daylight sensing and automated control systems.

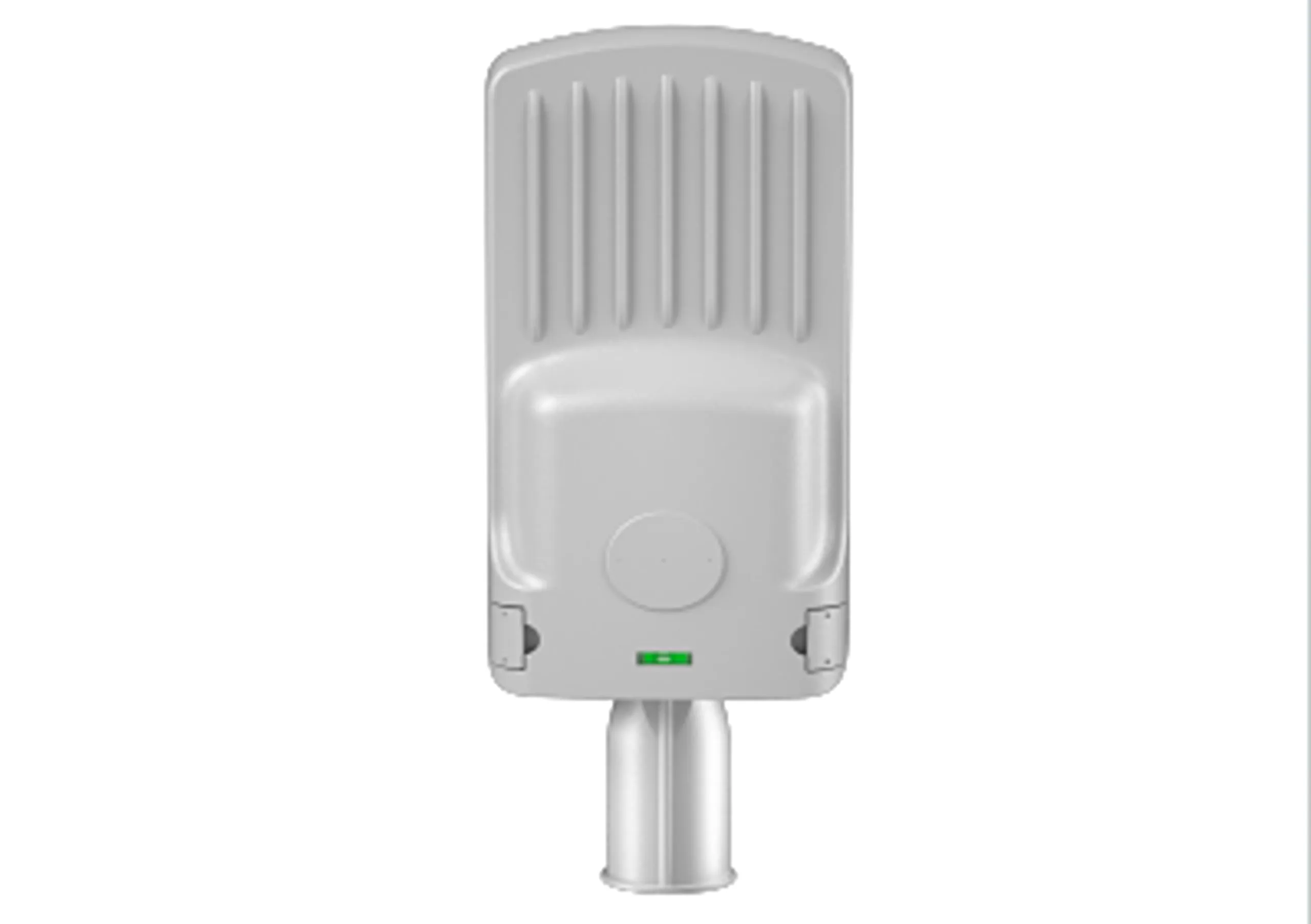

Self-Cleaning Arc Design

Built with an arc-shaped rear housing to prevent debris accumulation and maintain optimal performance in harsh outdoor environments.

Inquire Now

Technical Specifications

SeriesSL01 - LED Street Light
Power30W, 60W, 80W, 120W, 150W, 180W, 200W, 250W, 300W, 320W
Lumen Output3900-54400 lm
Efficacy100 lm/W, 160 lm/W
Input VoltageAC 120-277V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRI150-170lm/W, Ra: 80 ± 2; 200lm/W, Ra: 70 ± 2
Beam AngleT2 / T3 / T4
Operating Temperature-30°C to +45°C, RH: 5%-90% non-condensing
IP RatingIP65
IK Rating
IK08
Housing MaterialADC12 + PC Lens
Mounting60mm diameter pipe
DimmingDC12V auxiliary power supply + 0–10V dimming (no afterglow)
CertificationsCE / RoHS / CCC / CQC
Warranty5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
