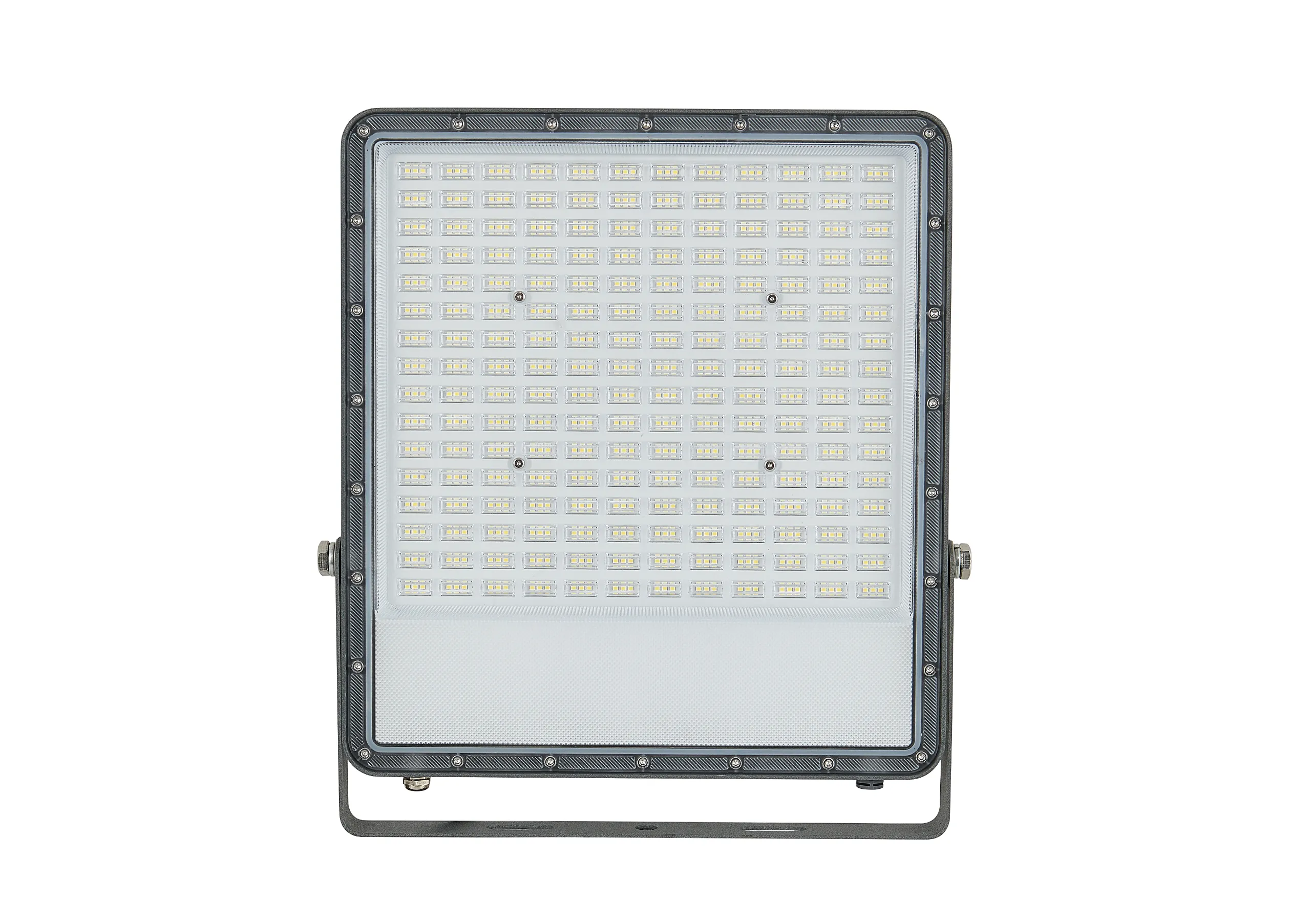

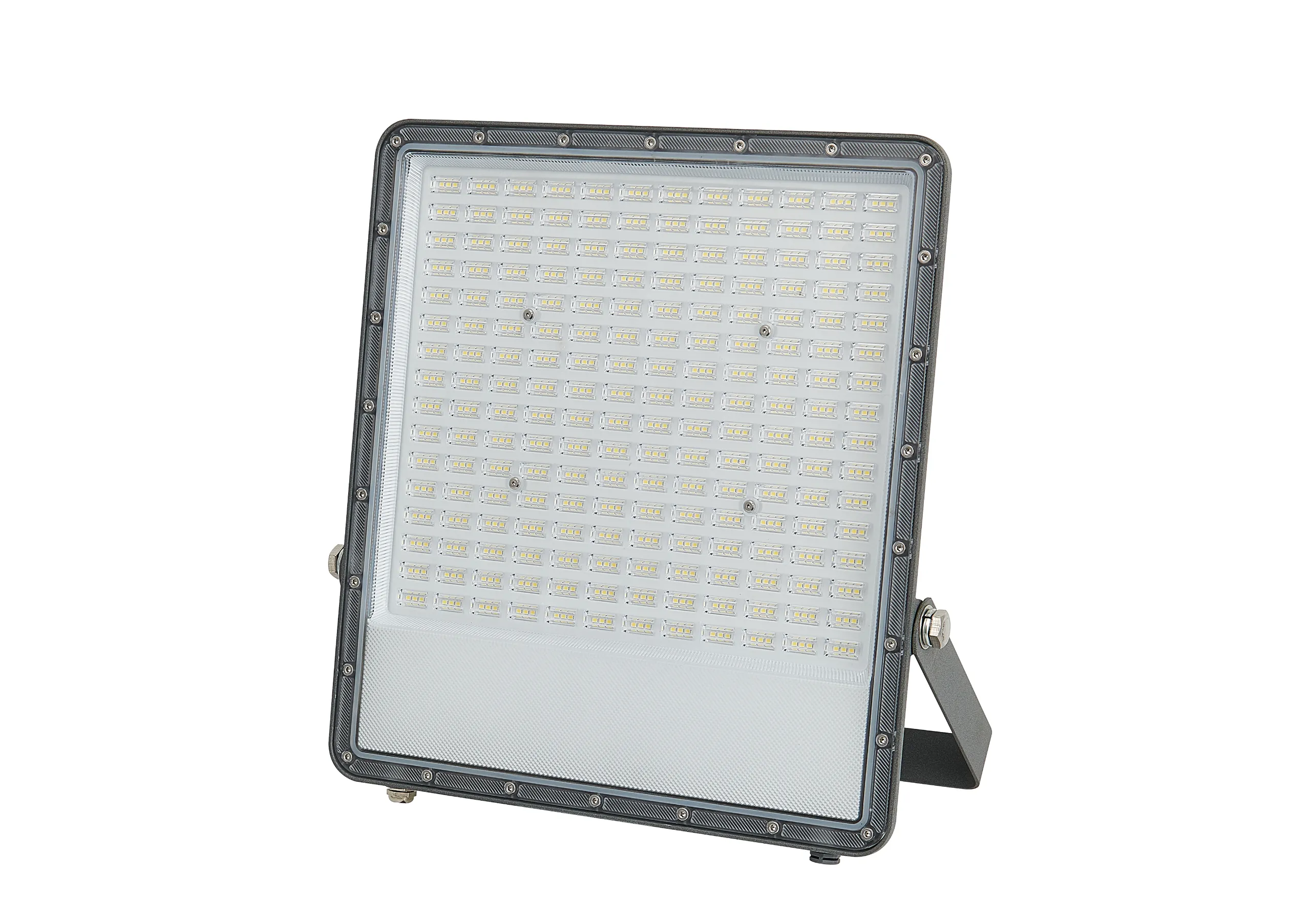

FL09

The FL09 Series LED Floodlight offers durable, high-efficiency illumination for parking, industrial, sports and large-scale venues.
Engineered with linear DOB driver technology and a compact die-cast housing, it delivers exceptional cost-effectiveness and long-lasting performance.

Key Features

Integrated Linear DOB Tech

Built-in IC controller components directly on the PCB optimize driver efficiency and lower production costs, providing maximum value and reliable performance.

Weatherproof & Impact Resistant

Features an IP65 rating, IK08-rated UV-resistant PC lens, and a breathable valve that prevents internal fogging in harsh outdoor environments.

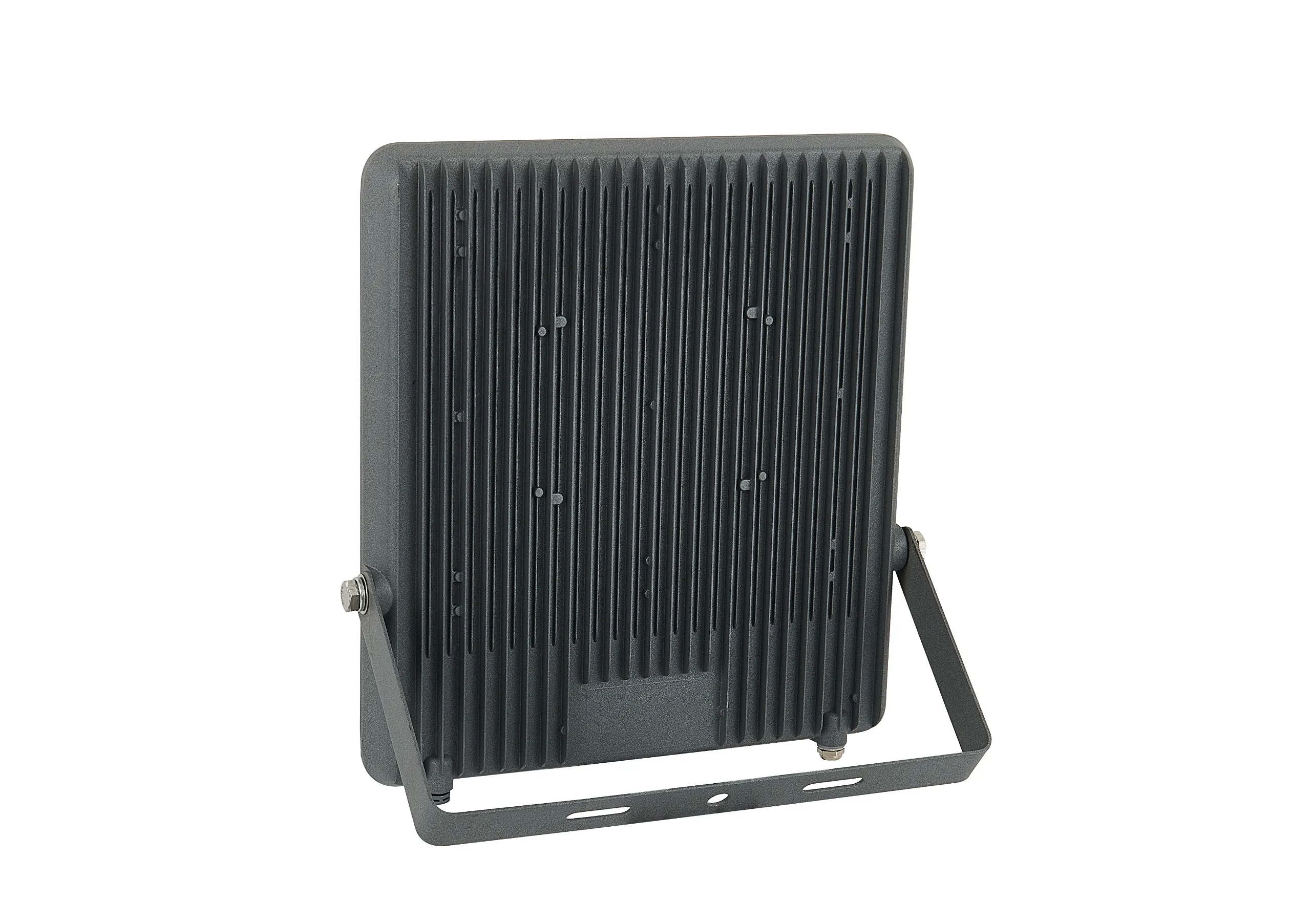

Die-Cast Thermal Housing

Built with a premium ADC12 aluminum alloy shell to maximize heat dissipation, protecting internal components and extending service life.

Versatile Mounting Options

Supports floor, ceiling, wall, or pole bracket mounting to seamlessly accommodate a wide range of commercial and industrial lighting setups.

Inquire Now

Technical Specifications

Series	FL09 - LED Flood Light
Power	30W, 50W, 100W, 150W, 200W, 300W, 400W
Lumen Output	3000-40000 lm
Efficacy	100 lm/W
Input Voltage	AC 220V / AC 120V 50/60Hz
Color Temperature	3000K / 4000k / 5000K / 5700K / 6500K
CRI	100lm/W, CRI>80
Beam Angle	70*110°
Operating Temperature	-30°C to +40°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK08
Housing Material	ADC12 + PC Lens
Mounting	Bracket mount
Dimming	/
Certifications	CE / RoHS
Warranty	3 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
