HB82

The HB82 Series High-Temperature Glass High Bay is a rugged LED luminaire engineered for extreme and corrosive industrial environments like chemical plants and steel mills.
It delivers up to 170 lm/W efficiency and reliable illumination in operating temperatures up to +80°C.

Key Features

Extreme Temperature Resilience

Operates continuously in extreme environments up to +80°C using heat-resistant 5050 EMC LEDs and drivers with efficient cooling design.

Anti-Fogging Waterproof Breather Valve

Integrated standard-fit waterproof breathable valve prevents internal fogging and moisture condensation, ensuring clear light output and extended luminaire lifespan.

Corrosion-Resistant Durable Construction

Features robust ADC12 housing, PC reflector, tempered glass, and electrostatic powder coating, delivering reliable IP65/IK07 protection in harsh conditions.

Versatile Industrial Mounting Options

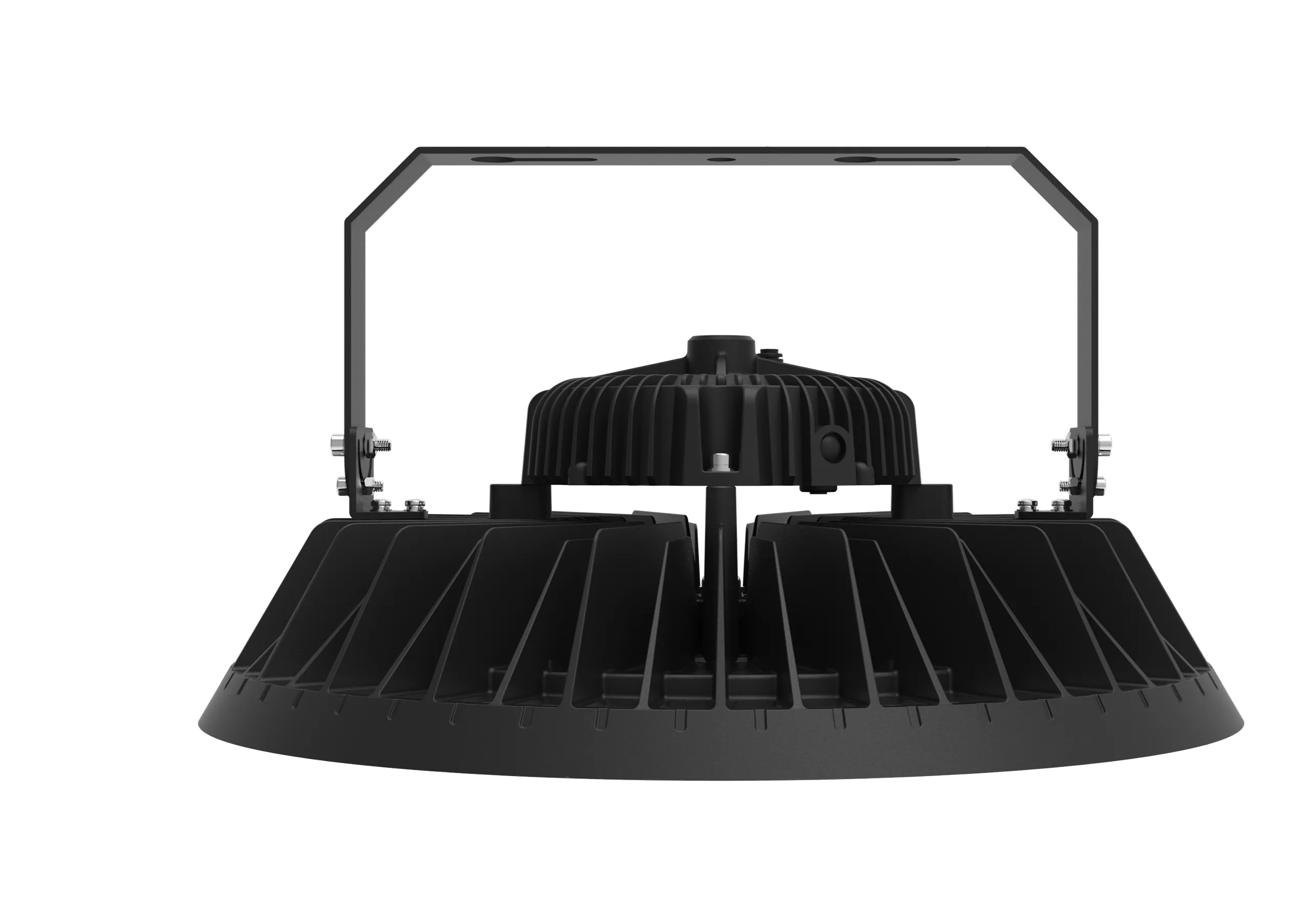

Includes a standard eyebolt with optional hook, mounting bracket, and 3/4″ threaded pipe adapter for flexible installation across various facility layouts.

Inquire Now

Technical Specifications

SeriesHB82-High-Temperature LED High Bay
Power100W, 150W, 240W
Lumen Output15000-17000 lm, 22500-25500 lm, 36000-40800 lm
Efficacy150 lm/W, 170 lm/W
Input VoltageAC 100–380V 50/60Hz
Color Temperature3000K / 4000K / 5000K / 5700K / 6500K
CRI150lm/W, Ra: 80±2; 170lm/W, Ra: 70±2
Beam Angle100°
Operating Temperature-30°C to +80°C, RH: 5%-90% non-condensing
IP RatingIP65
IK Rating
IK07
Housing MaterialADC12 + PC Reflector + Tempered Glass
MountingStandard eye bolt; optional hook; 3/4" threaded pipe adapter and mounting bracket
DimmingNone
CertificationsCE / RoHS / CCC / ETL
Warranty3 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

IES File

Photometric data for lighting simulation and design software.

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.
