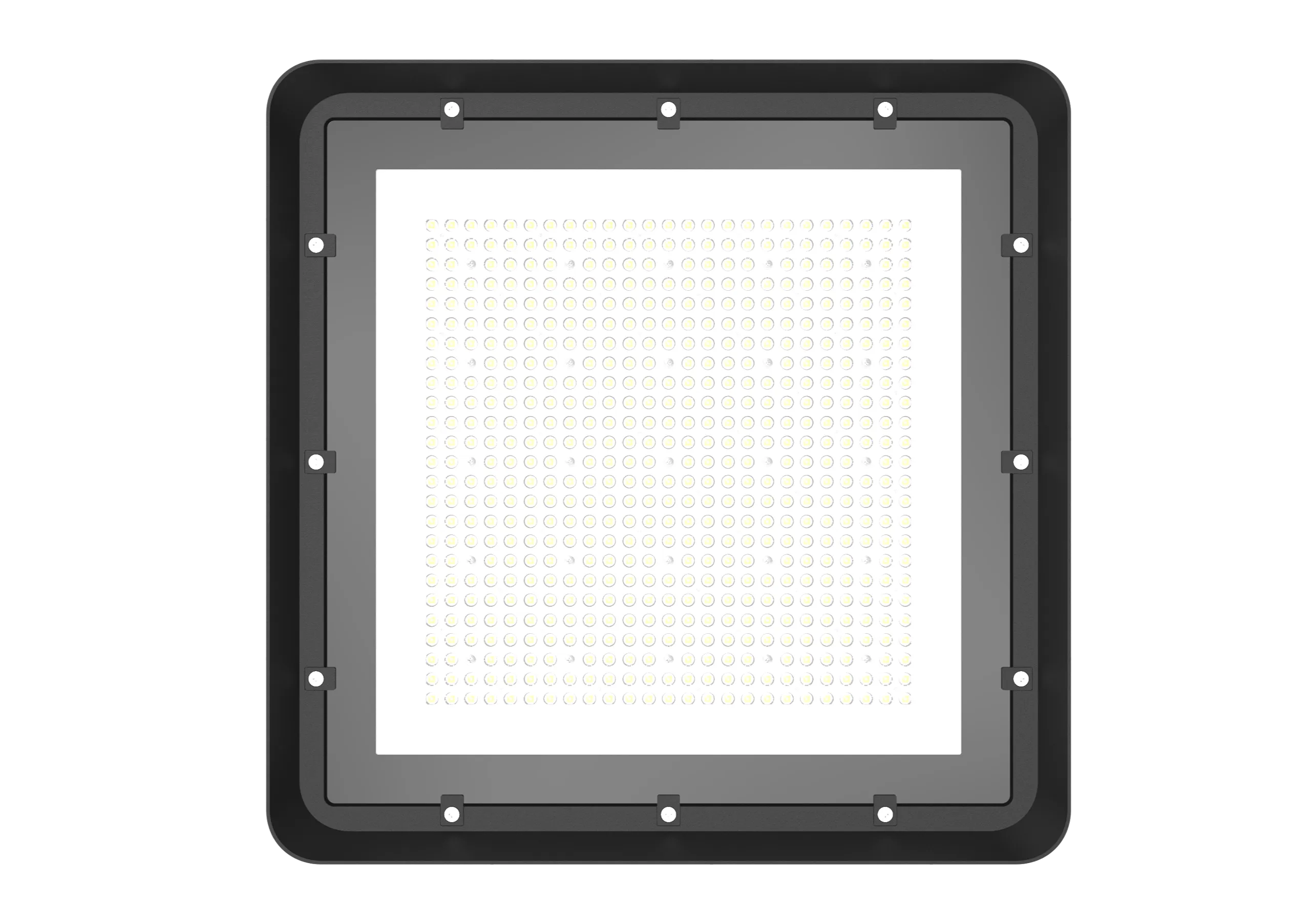

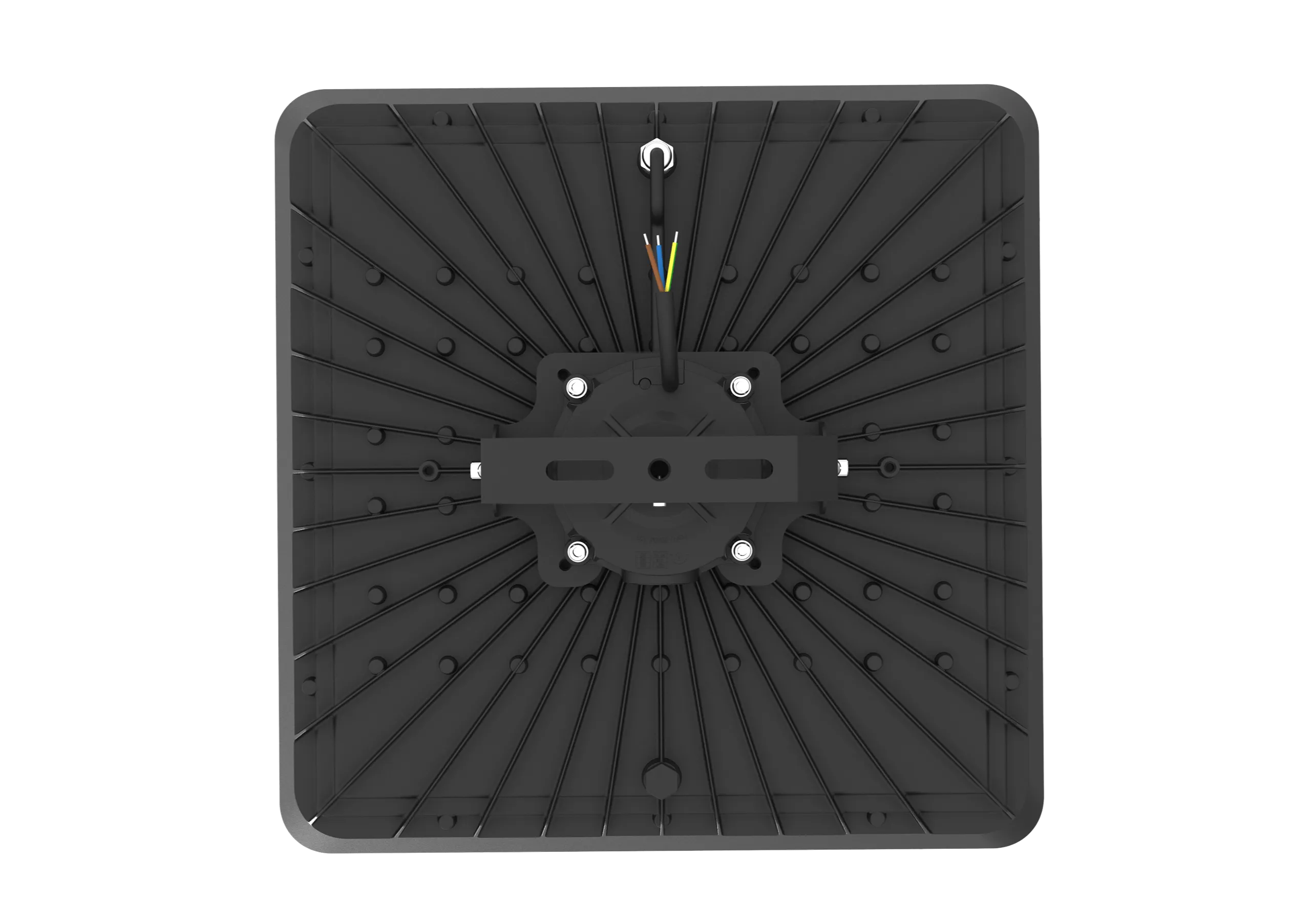

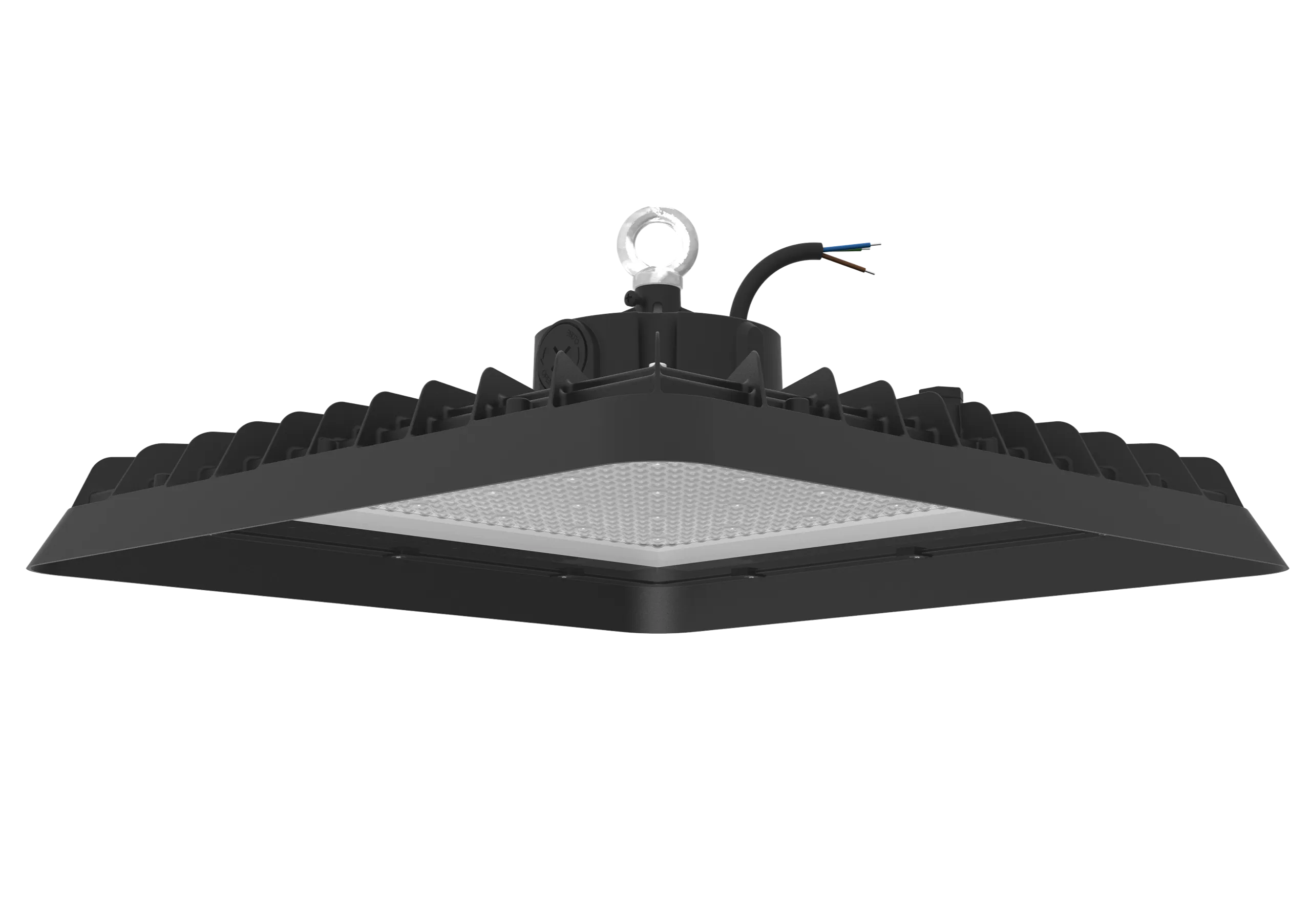

HB56

The HB56 Series High Bay Light delivers powerful, energy-efficient illumination for industrial plants, warehouses, and gymnasiums.
Built with convection-cooled die-cast aluminum and impact-resistant tempered glass, this fixture ensures dependable operation and outstanding efficacy – even in the toughest high-bay conditions.

Key Features

Flexible Power & Housing Options

Covering 100W to 240W across two housing sizes, allowing customized lighting setups tailored to your facility’s specific height and layout requirements.

Efficient Convection Thermal Management

High-quality ADC12 die-cast aluminum housing uses convection cooling for superior heat dissipation, ensuring clean aesthetics, low optical loss, and long-term energy savings.

Durable IP65 Weatherproof Housing

Built with impact-resistant tempered glass and sealed to IP65, this luminaire withstands dust, moisture, and the harshest factory floors – without compromising optical clarity.

Advanced Smart Dimming Capabilities

Optional 0–10V dimming and 12VDC auxiliary power allow easy connection to smart-home and automation systems for efficient energy control.

Inquire Now

Technical Specifications

Series	HB56 -Corrosion-Resistant Glass LED High Bay Light
Power	100W, 150W, 200W, 240W
Lumen Output	15000-40800 lm
Efficacy	150 lm/W, 170 lm/W
Input Voltage	AC 120-277V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	Ra: 80 / Ra: 70
Beam Angle	25° / 55° / 90° / 120° / T2-M / T3-M / T4-M
Operating Temperature	-30°C to +45°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK07
Housing Material	ADC12 + PC Optical Lens + Tempered Glass

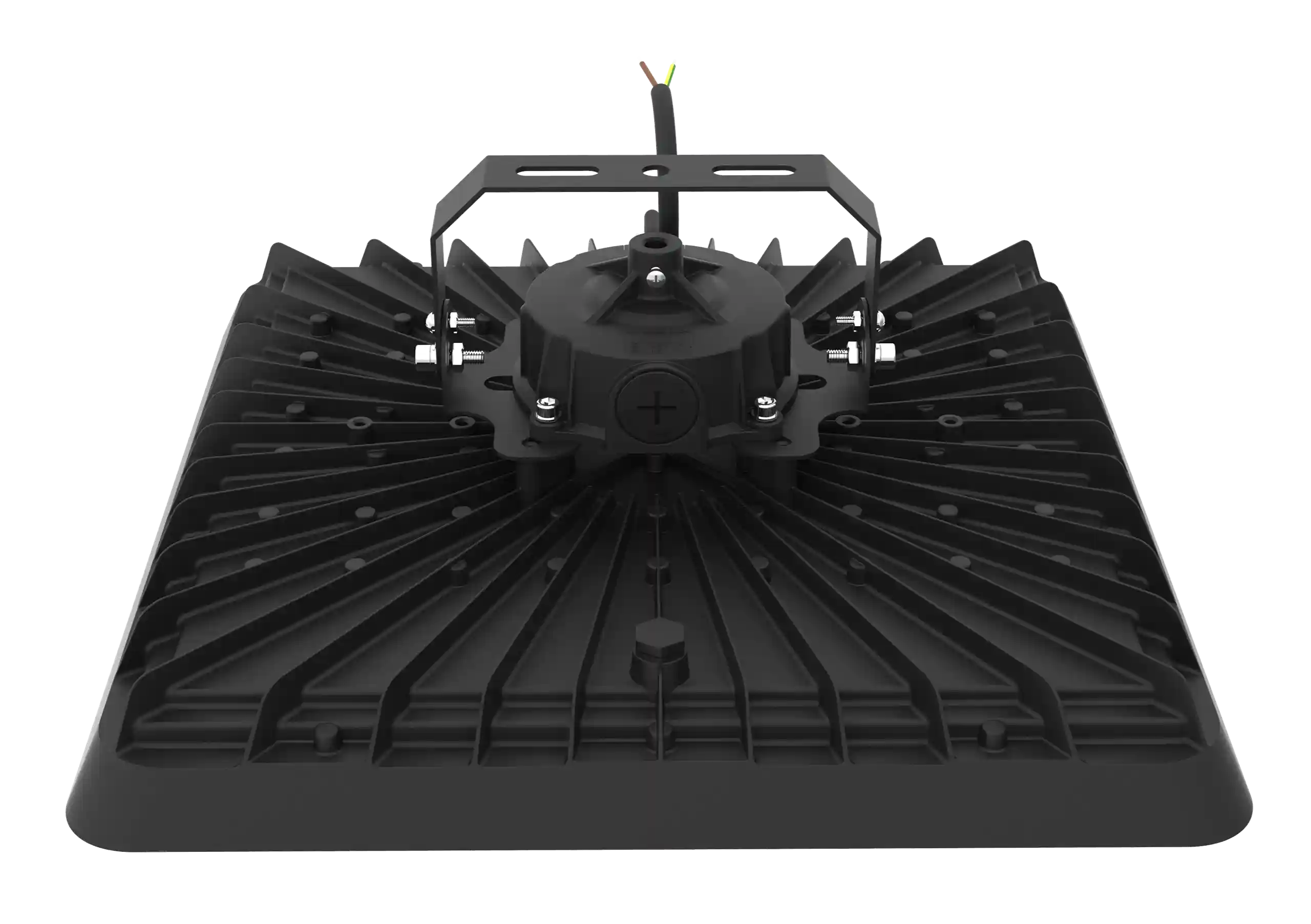

Mounting	Standard with hanging loop, optional hook, bracket mount, 3/4" tube tooth adapter
Dimming	0-10V
Certifications	CE / RoHS / CCC / CQC
Warranty	5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
