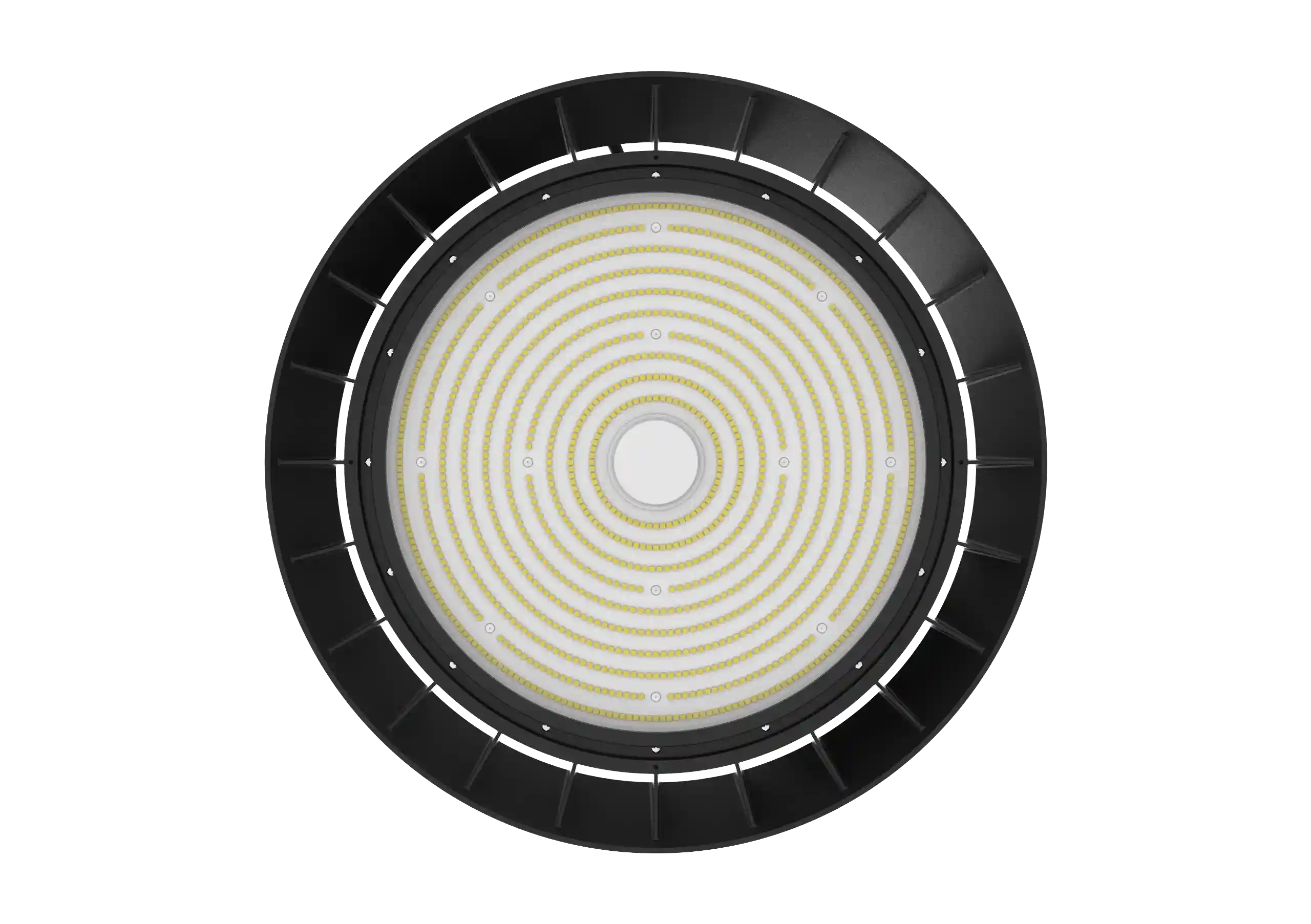

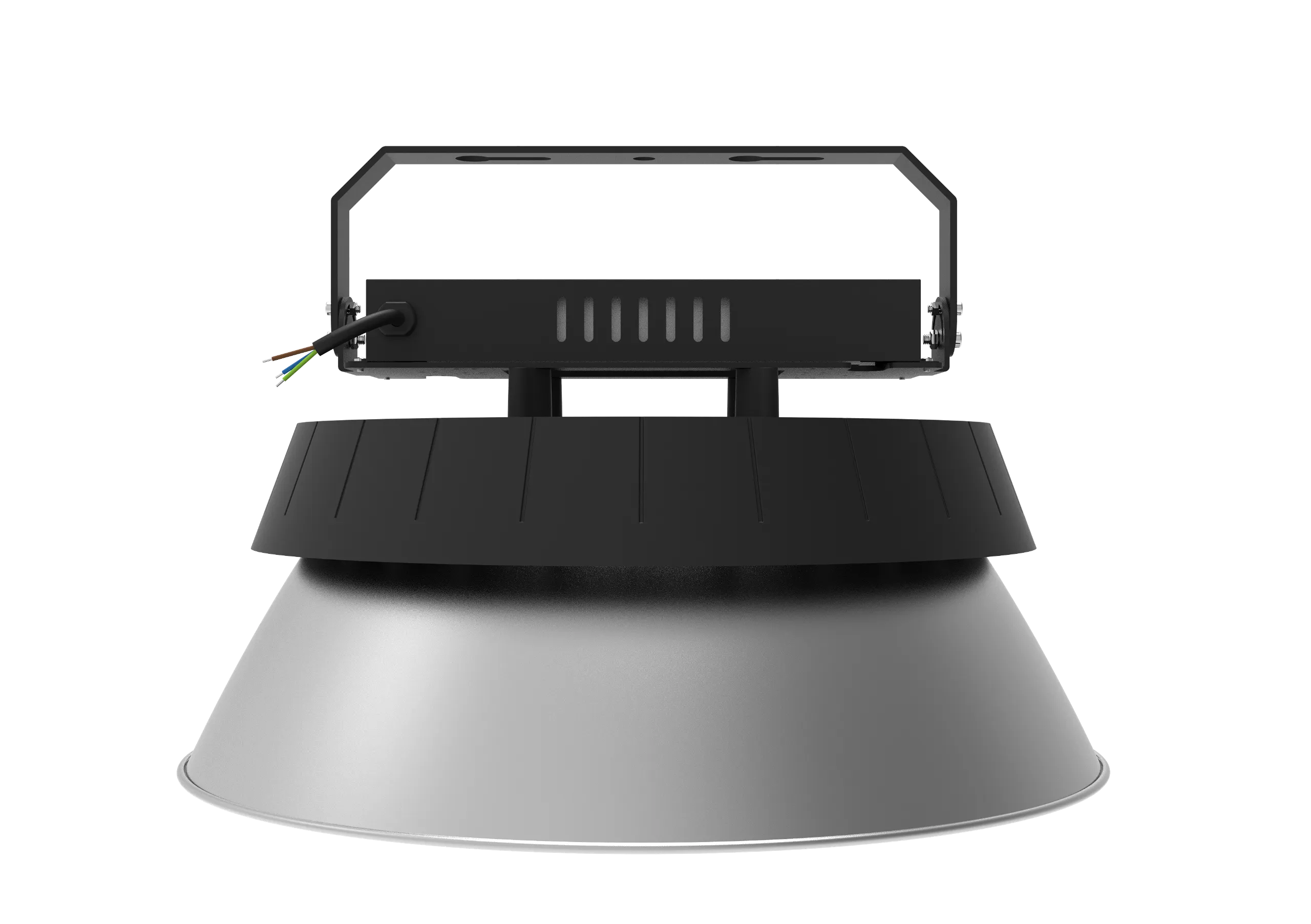

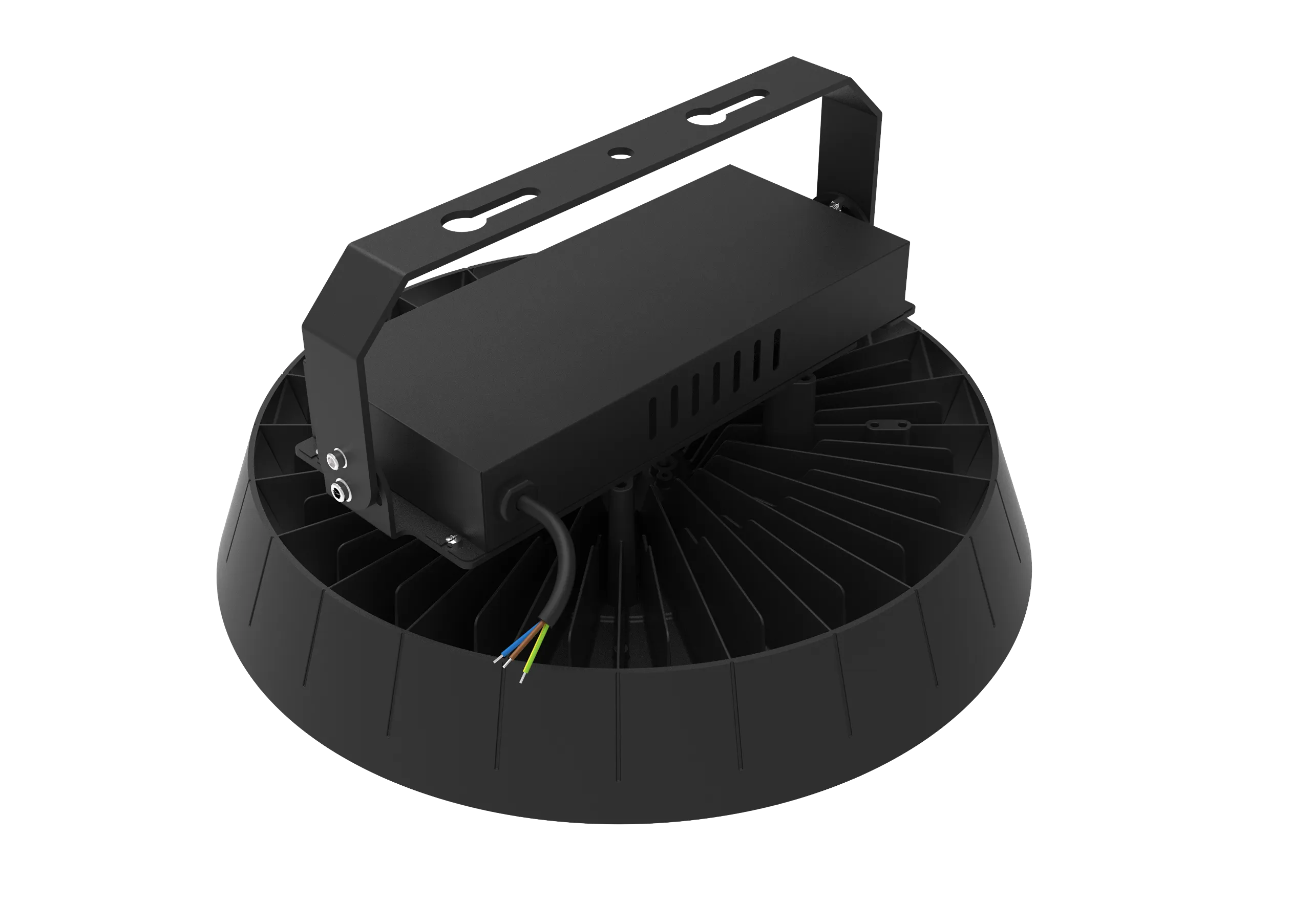

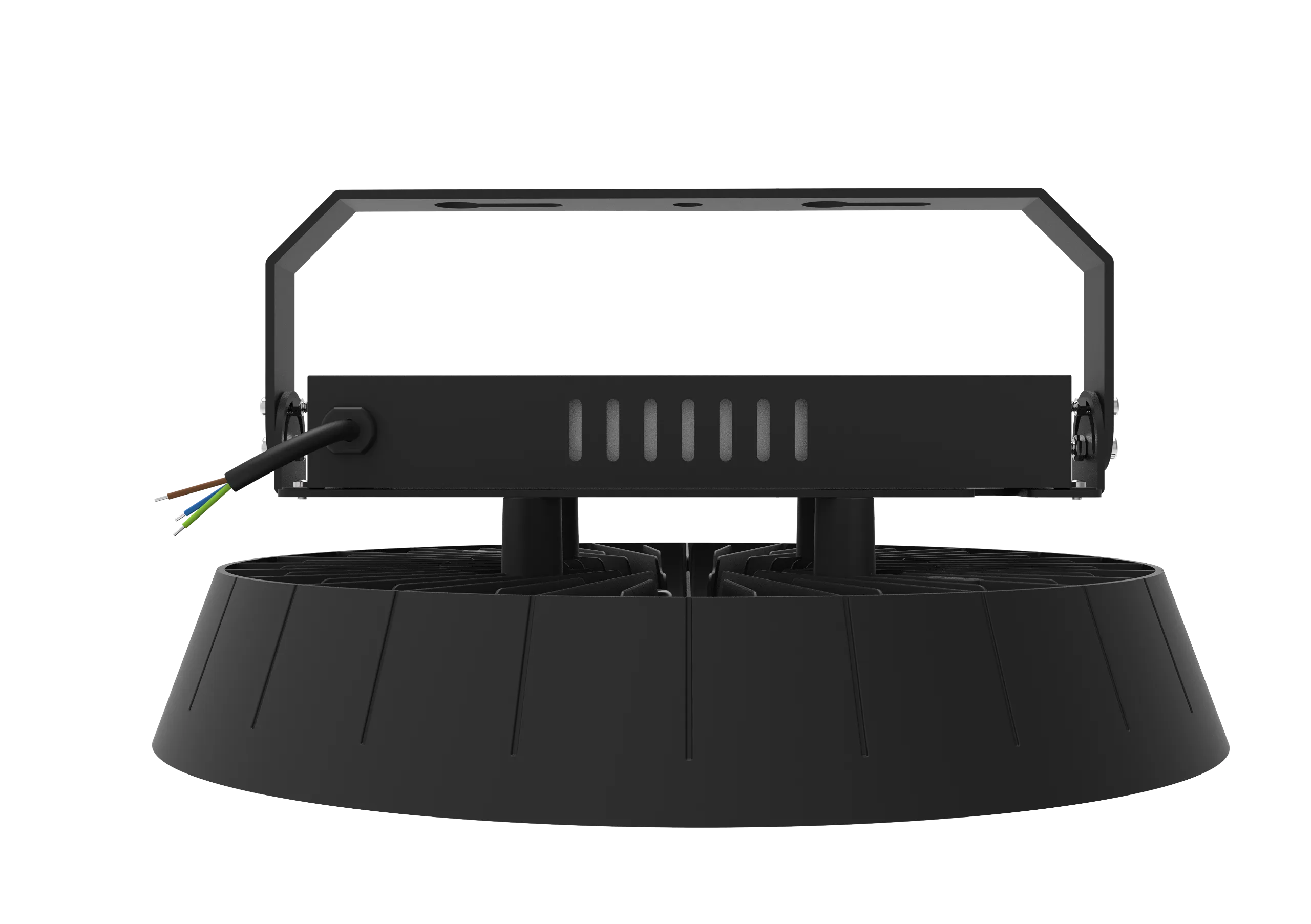

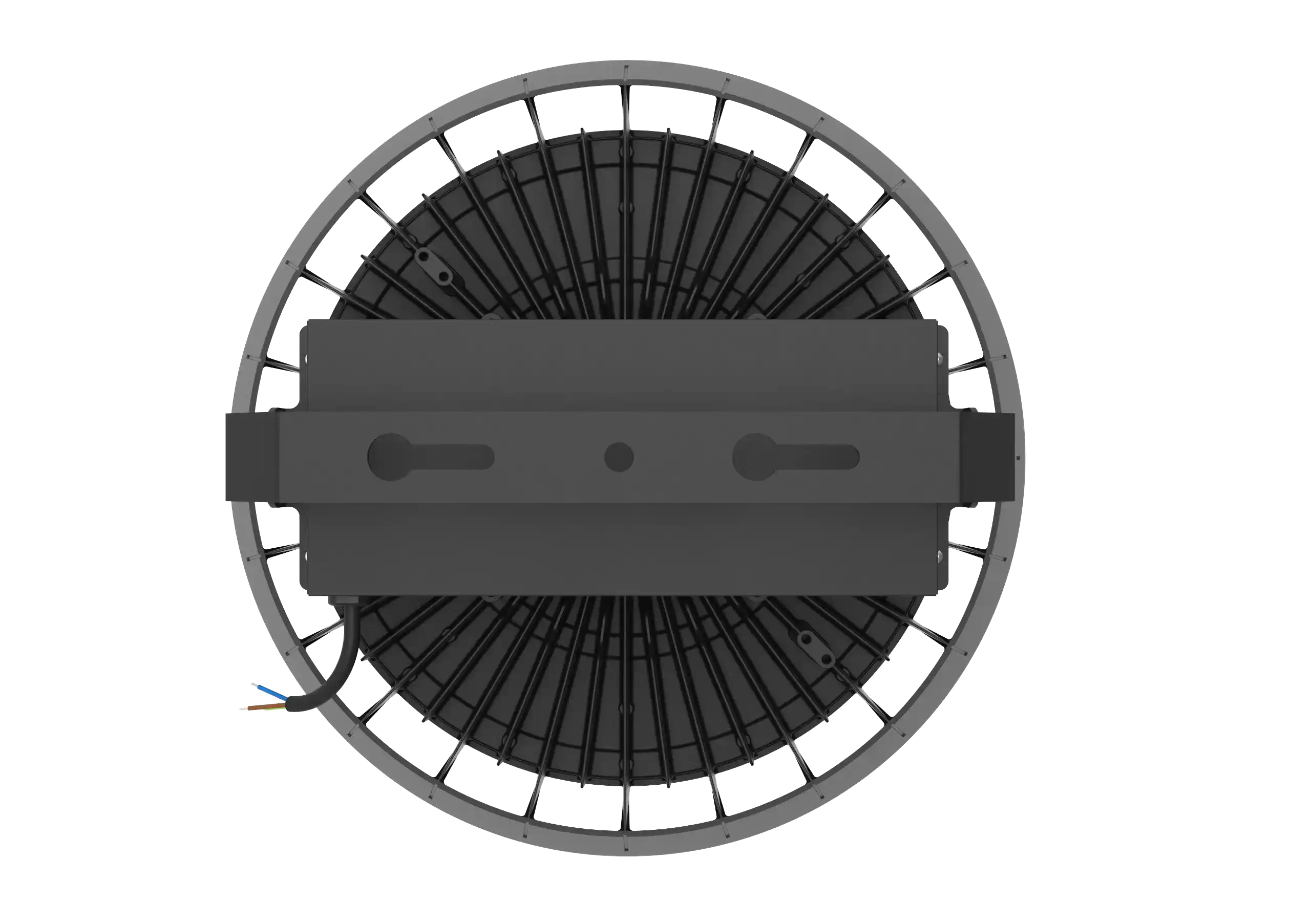

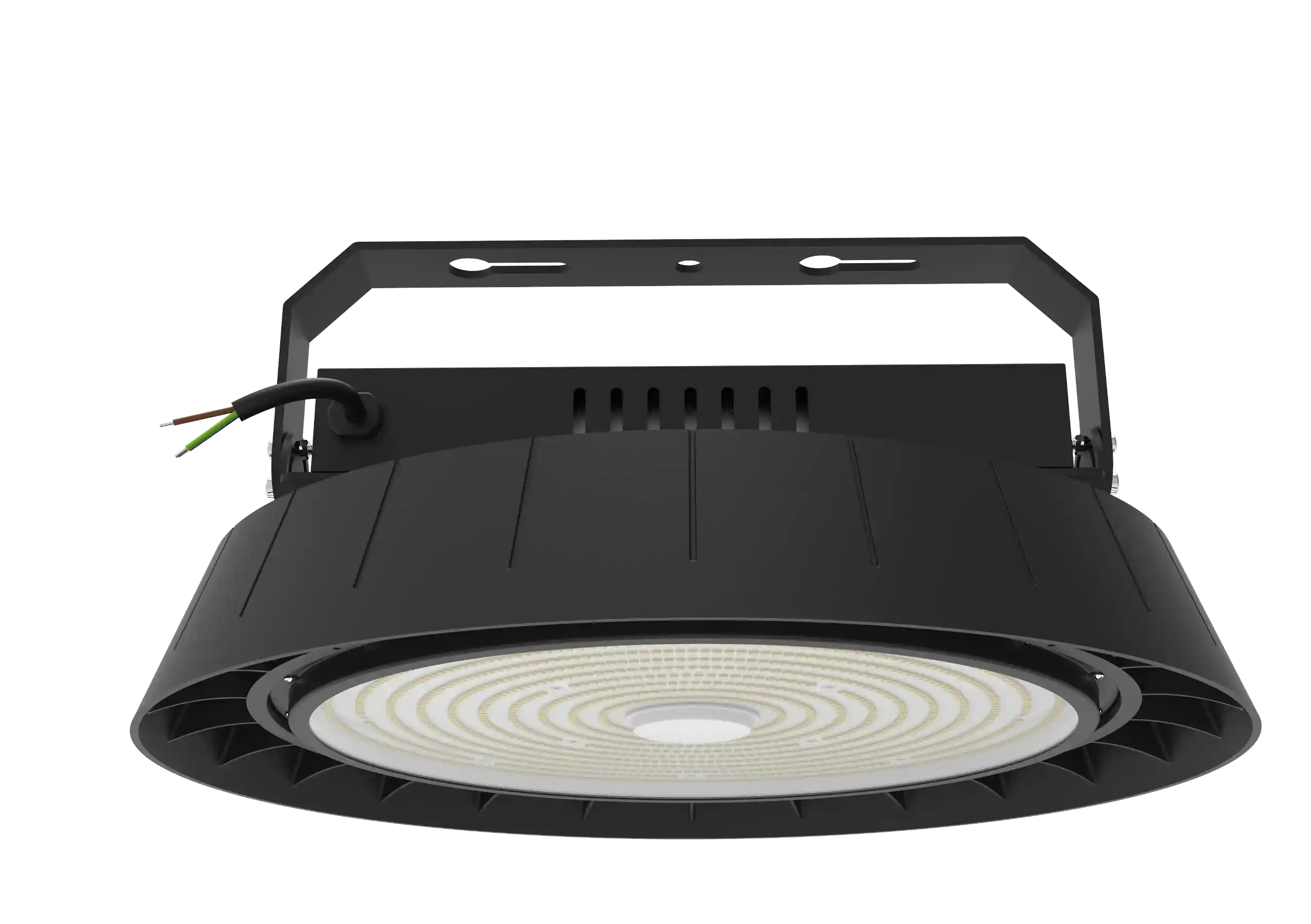

The HB53B Series High Bay Light offers versatile industrial illumination. Spanning 100W to 500W, it is ideal for warehouse, factory, and airport…
Delivering up to 190 lm/W efficacy and IP65 protection, it ensures energy efficiency, rugged durability, and long-lasting reliability.
Ranging from 100W to 500W across six sizes, this series easily adapts to diverse high-ceiling layout requirements.
Efficacy options reaching 190 lm/W maximize brightness while significantly cutting energy consumption and operational costs.
Compatible with Mean Well, Inventronics, or MOSO drivers, ensuring stable operation, advanced dimming capability, and extended lifespan.
Built with ADC12 aluminum and tempered glass, providing IP65 and IK07 protection for harsh industrial environments.
| Series | HB53B-Corrosion-Resistant Glass LED High Bay Light |
|---|---|
| Power | 100W, 150W, 200W, 240W, 300W, 400W, 500W |
| Lumen Output | 14500-95000 lm |
| Efficacy | 150 lm/W, 170 lm/W, 190 lm/W |
| Input Voltage | AC 120-277V 50/60Hz |
| Color Temperature | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | 150-170lm/W, Ra: 80±2; 190lm/W, Ra: 70±2 |
| Beam Angle | 120° |
| Operating Temperature | -30°C to +45°C, RH: 5%-90% non-condensing |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Housing Material | ADC12 + Tempered Glass |
| Mounting | Bracket Mounting |
| Dimming | 1-10V / DALI / 0-10V / D4i |
| Certifications | CE / RoHS / CCC / CQC |
| Warranty | 5 Years |
