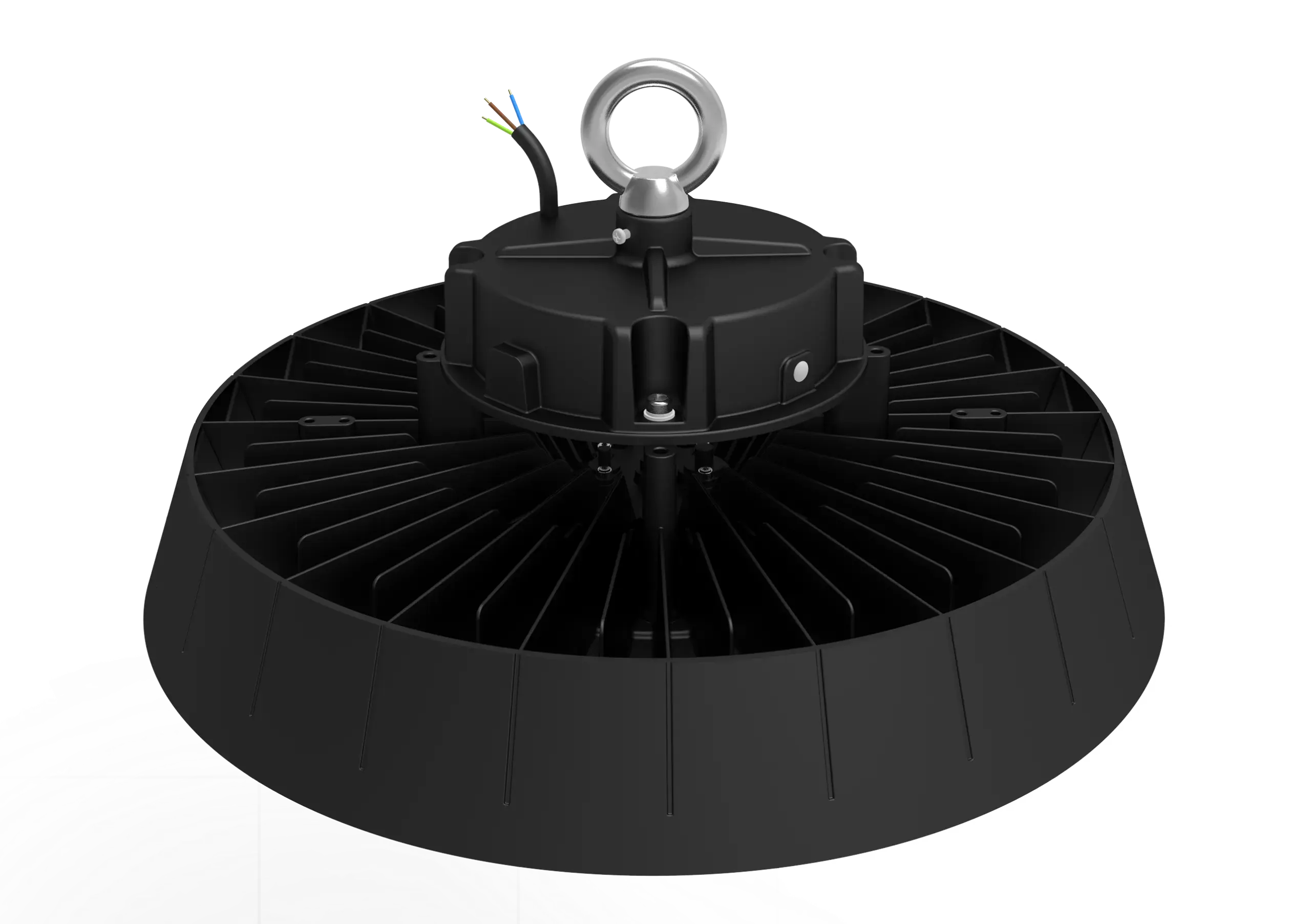

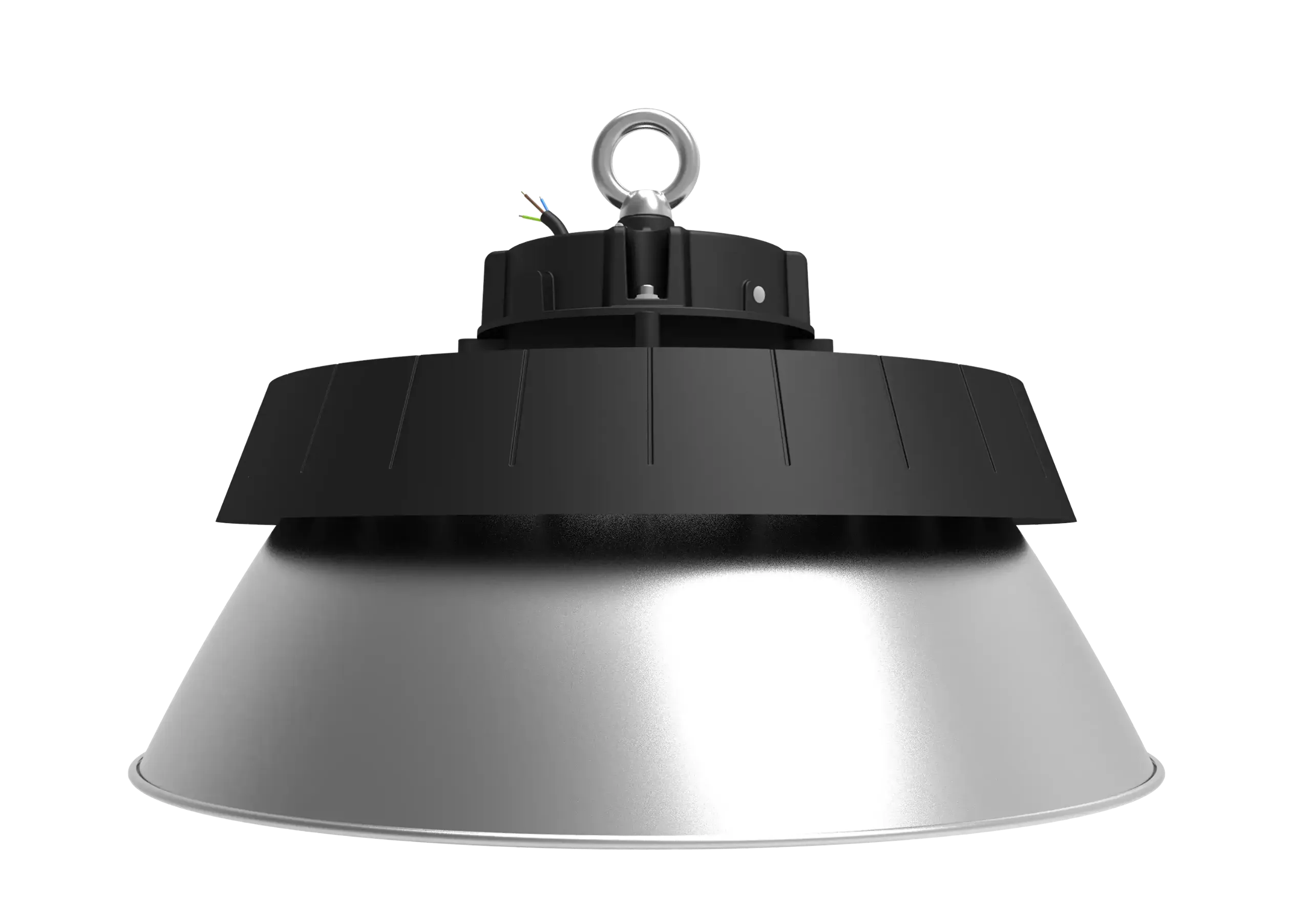

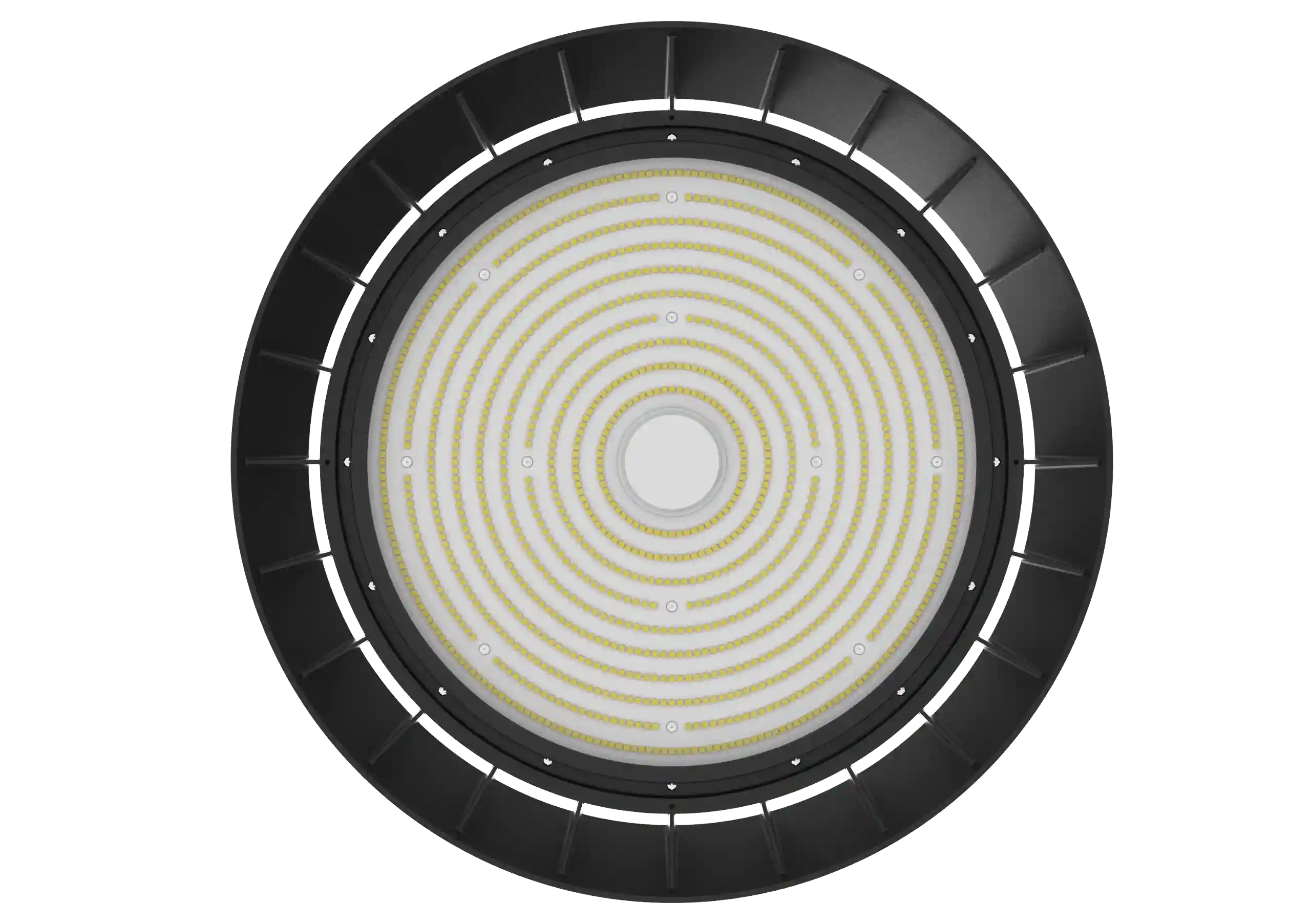

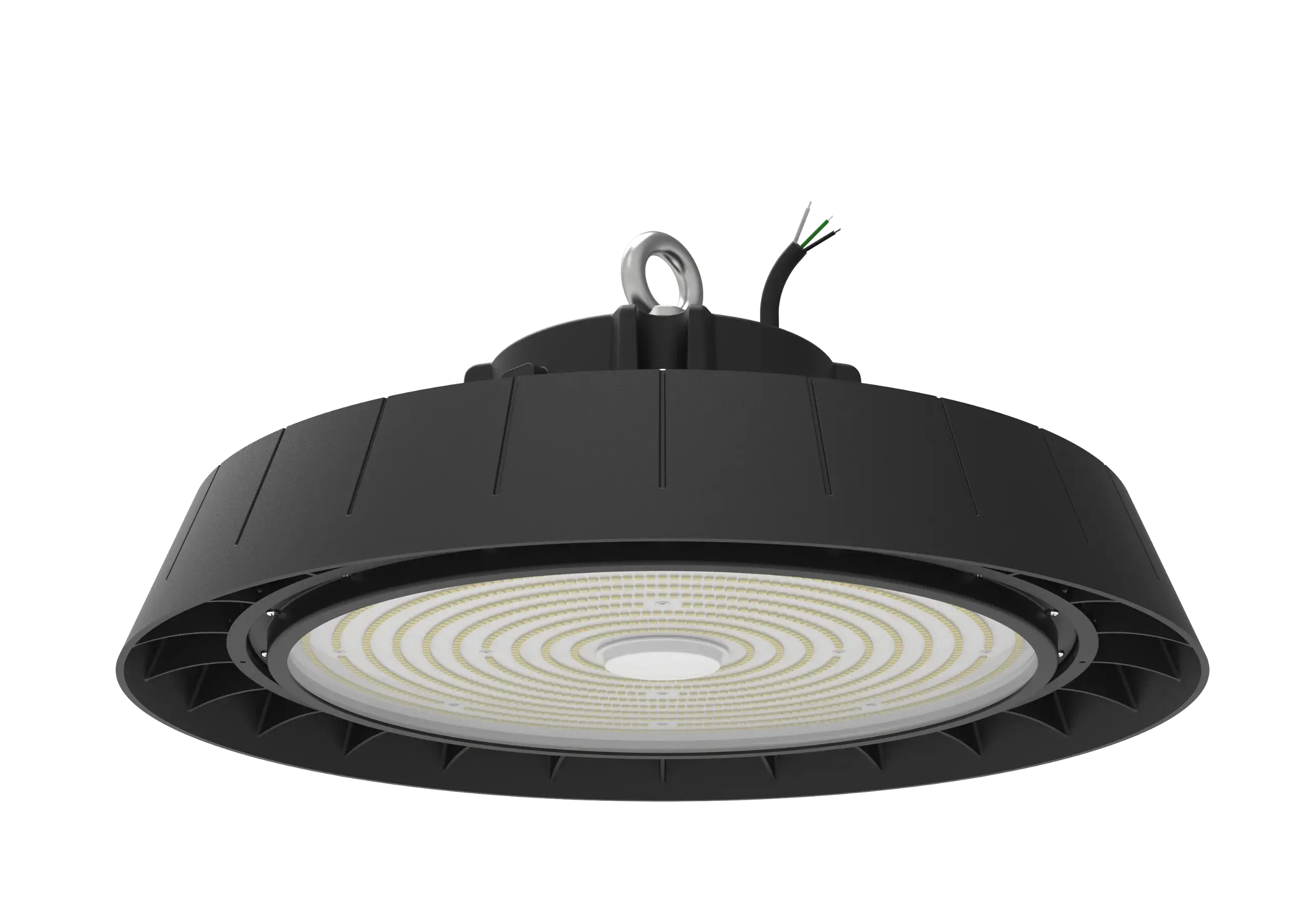

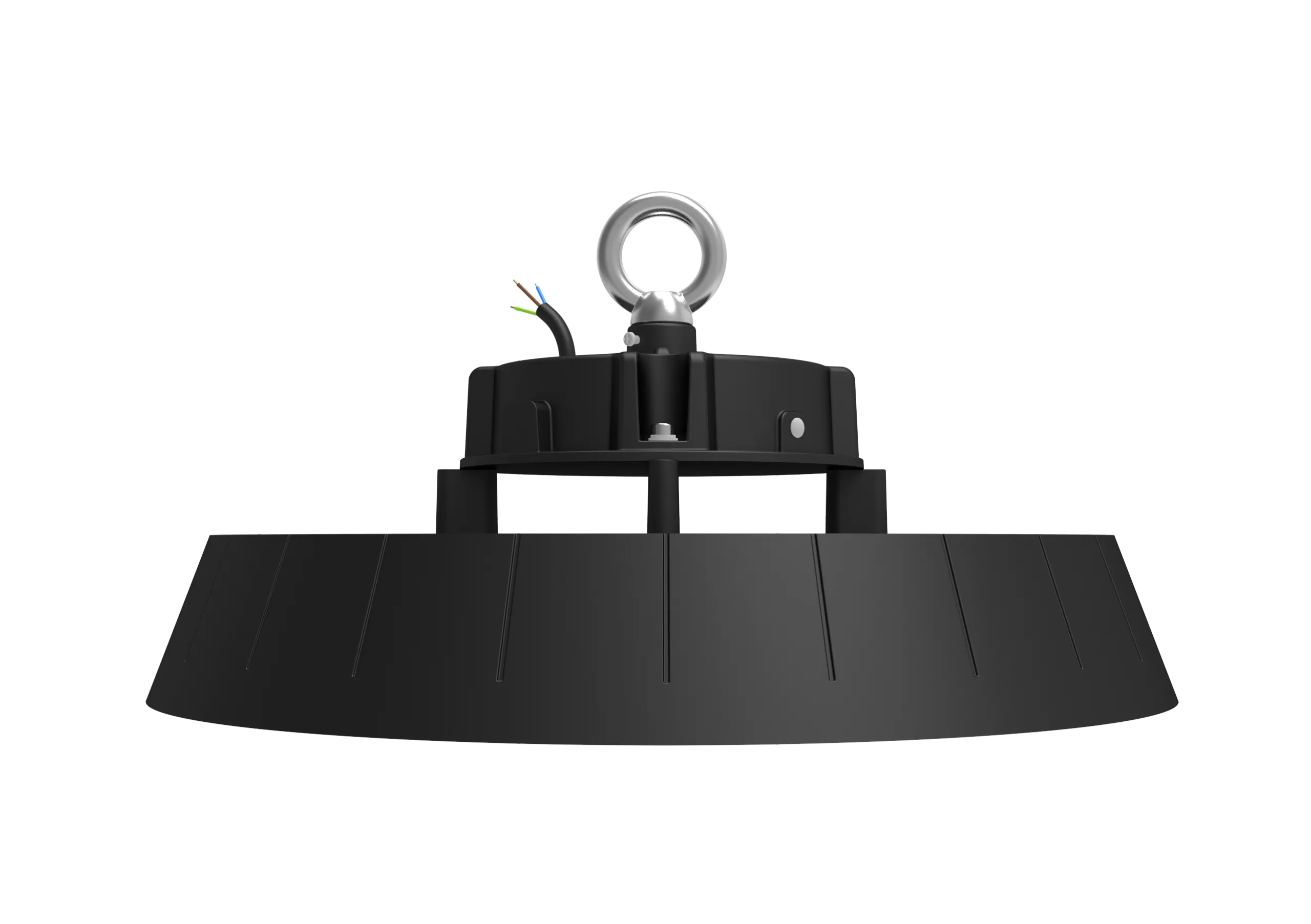

HB53

The HB53 Series High Bay Light delivers scalable, high-efficiency illumination (100W–500W) across five housing sizes.
Built for warehouses, factories, and commercial hubs, it provides energy-saving performance and robust durability.

Key Features

Flexible Power & Scale

Offers power options from 100W to 500W across five housing sizes, easily accommodating varying ceiling heights and facility layout requirements.

High-Efficacy Uniform Output

Delivers up to 200 lm/W efficacy with a wide 120° beam angle, maximizing bright, even illumination while reducing overall energy consumption.

Superior Thermal Management

Constructed with ADC12 die-cast aluminum and an air-convection cooling design, ensuring maximum heat dissipation and extending lifespan up to 100,000 hours.

Smart Control Ready

Supports 0-10V dimming, DC12V power, and plug-in microwave, infrared, or photocell sensors for effortless integration with intelligent lighting management systems.

Inquire Now

Technical Specifications

Series	HB53-Corrosion-Resistant Glass LED High Bay Light
Power	100W, 150W, 200W, 240W, 300W, 400W, 500W
Lumen Output	14500-100000 lm
Efficacy	150 lm/W, 200 lm/W
Input Voltage	AC 120-277V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	150-170lm/W, Ra: 80±2; 200lm/W, Ra: 70±2
Beam Angle	120°
Operating Temperature	-30°C to +45°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK08
Housing Material	ADC12 + Tempered Glass
Mounting	Standard with hanging loop, optional hook, bracket mount, 3/4" tube tooth adapter
Dimming	0-10V
Certifications	CE / RoHS / CCC / CQC
Warranty	5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
