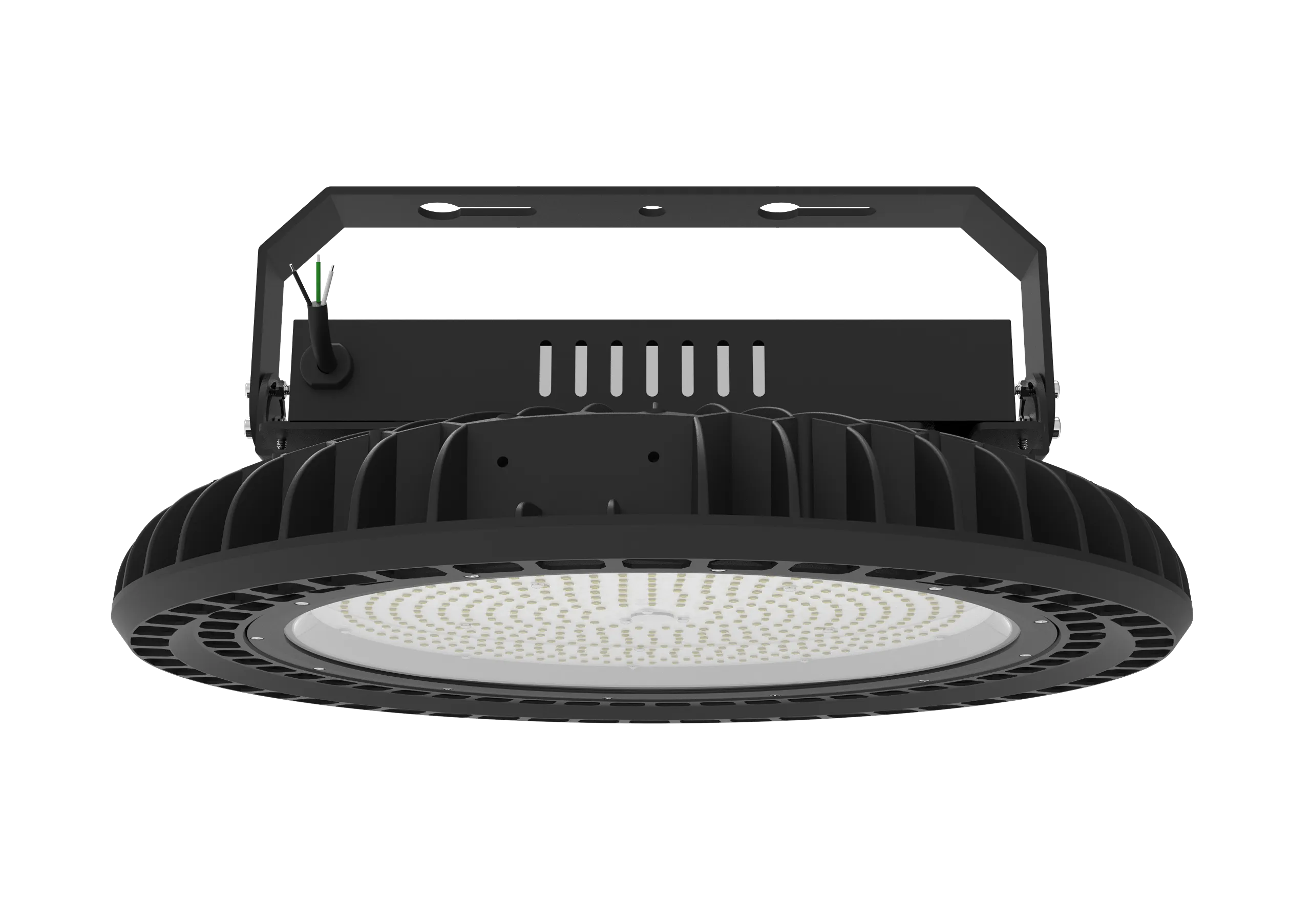

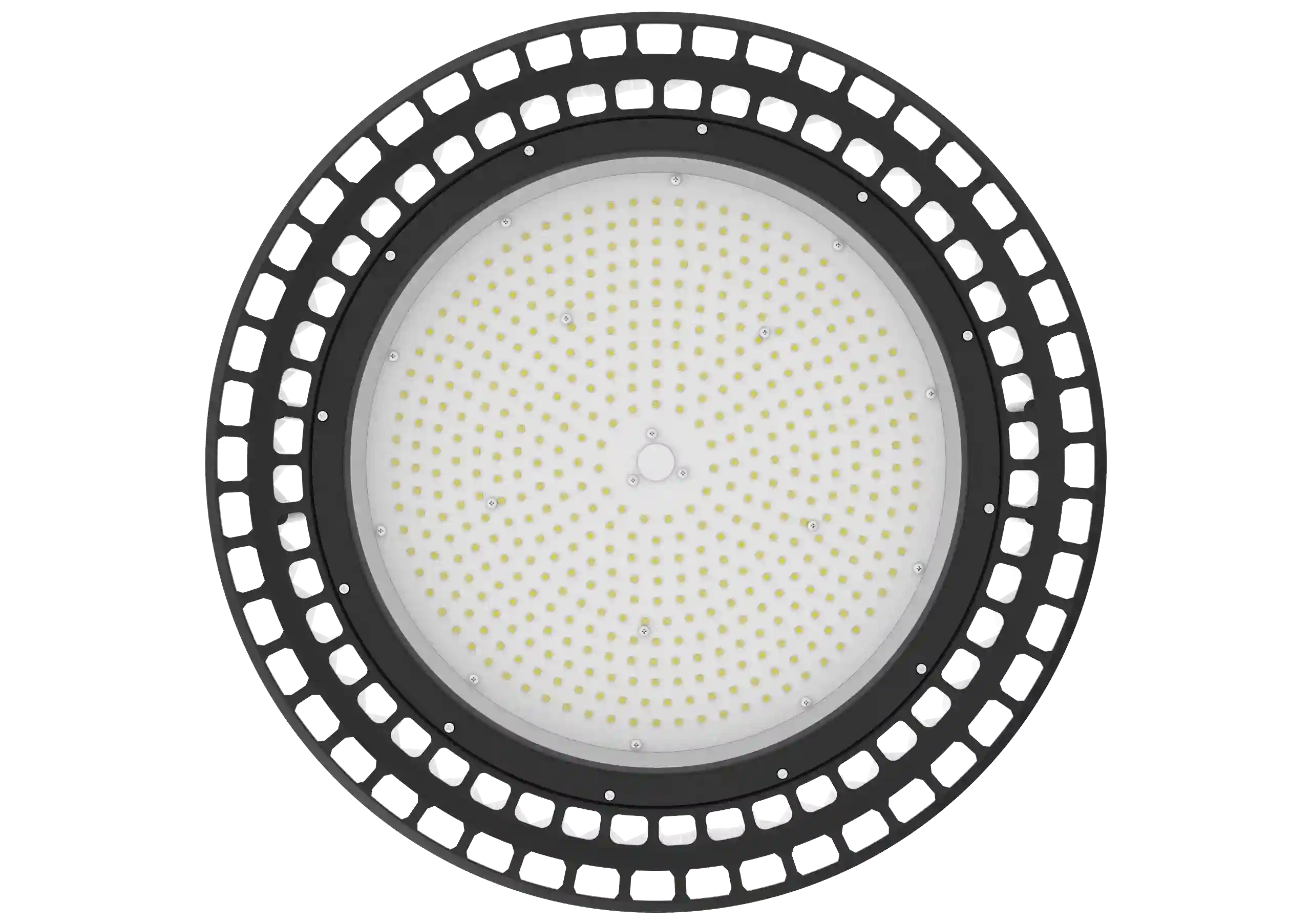

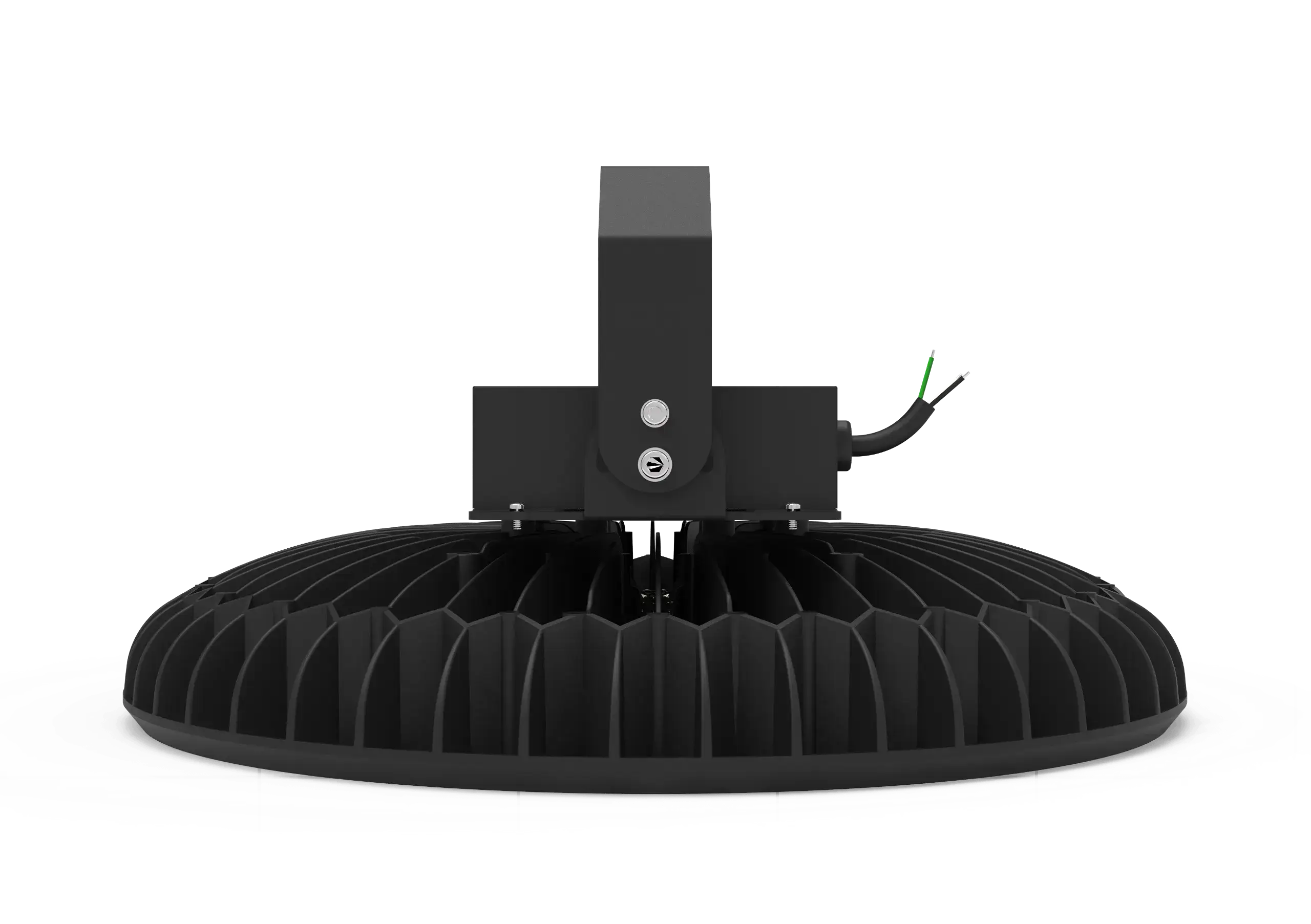

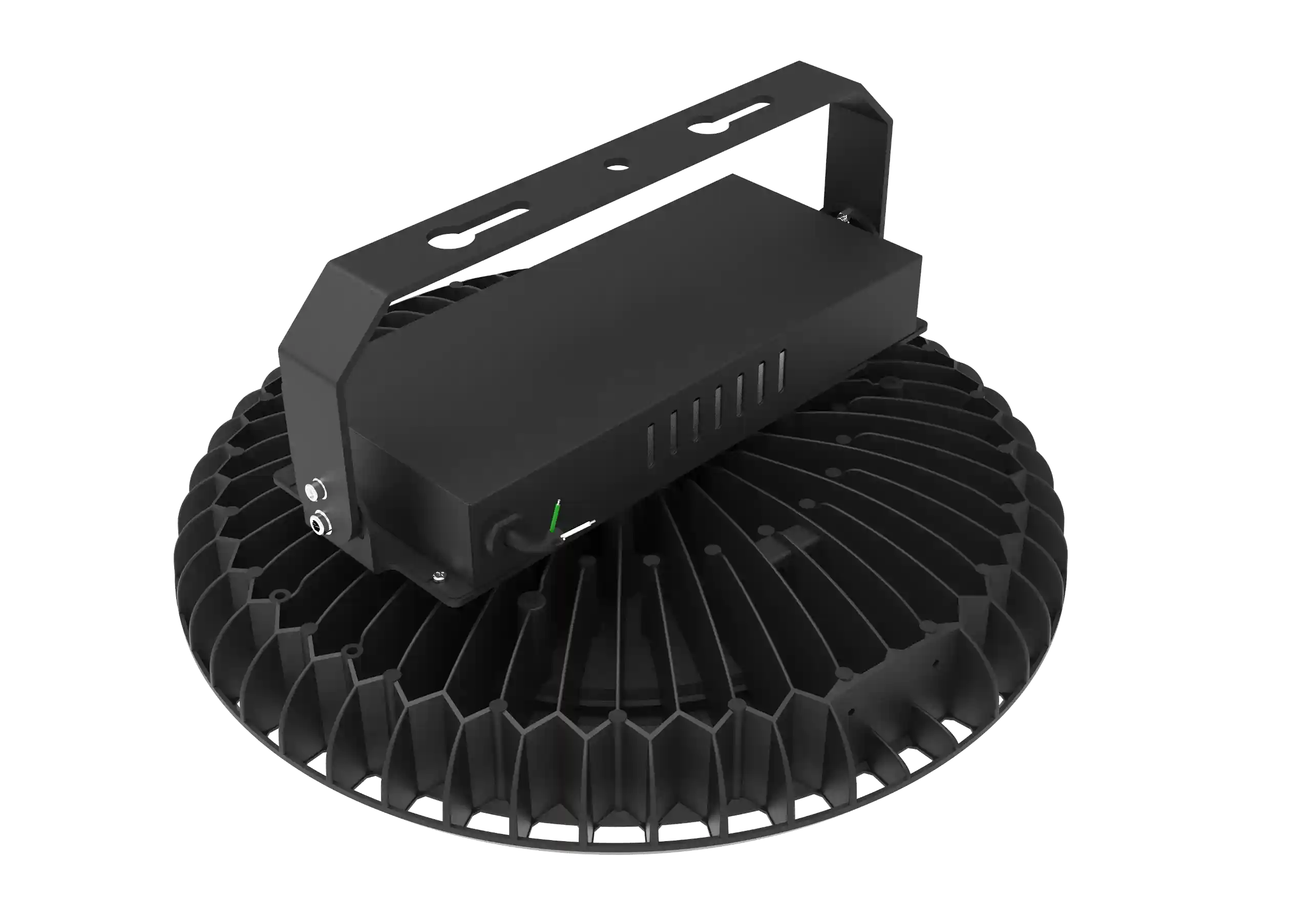

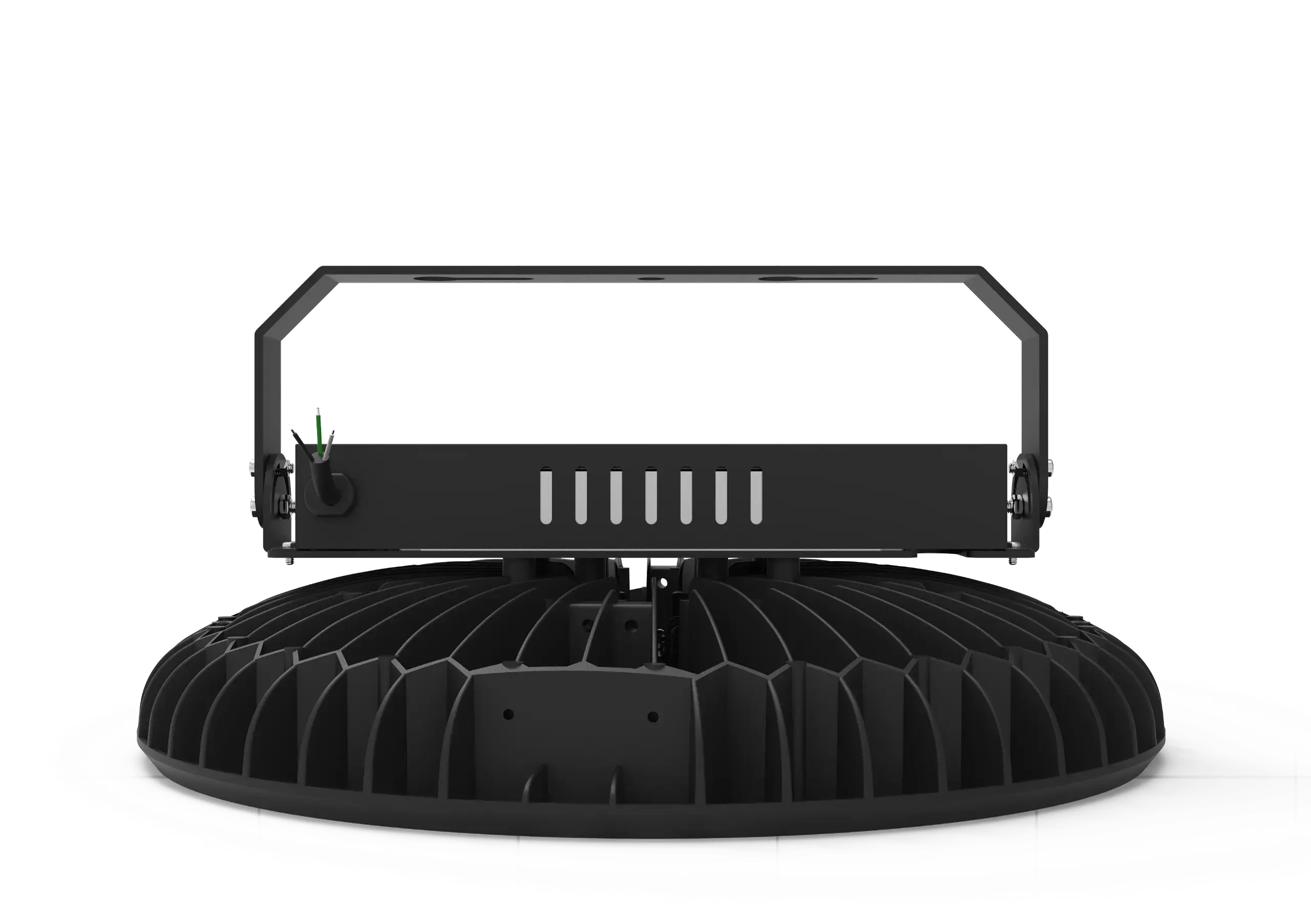

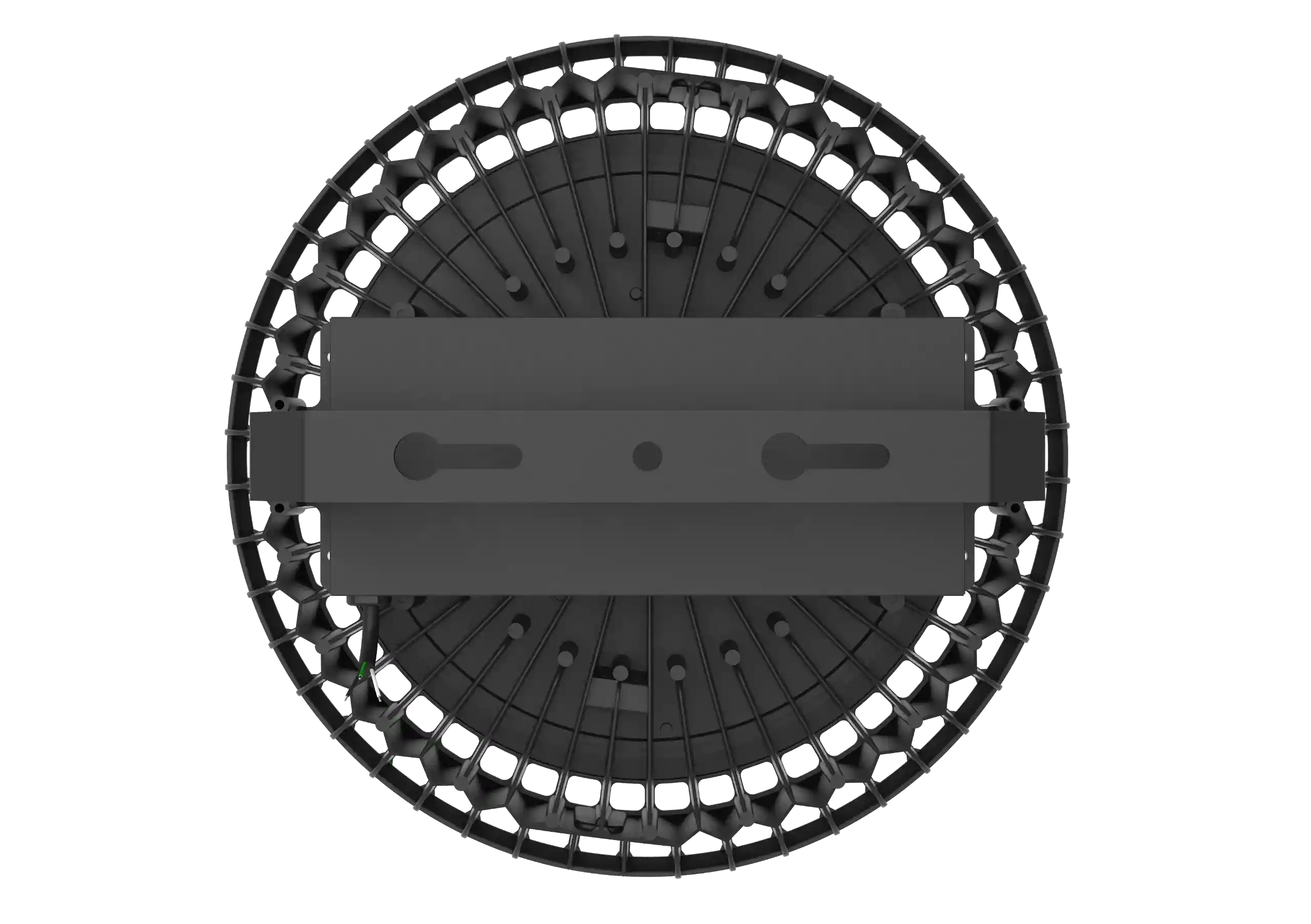

HB52

The HB52 Series High Bay Light offers versatile, high-efficiency industrial illumination (100W–500W) across five sizes.
Engineered for factories, warehouses, and logistics centers, it delivers robust performance, IP65 protection, and smart control integration.

Key Features

Flexible Power & Size Options

Ranging from 100W to 500W across five sizes, it allows customized, wide-coverage 120° illumination for diverse industrial ceiling heights.

Efficient Thermal Airflow Design

Built with ADC12 die-cast aluminum and air convection channels to optimize heat dissipation, extending total fixture lifespan up to 100,000 hours.

IP65 Waterproof & Rugged Build

Features high-quality tempered glass and IP65 sealing to protect against dust and water, ensuring reliable operation in harsh industrial environments.

Smart Dimming & Controls

Supports 0-10V dimming and DC12V auxiliary power, enabling seamless integration with smart lighting controllers and intelligent management systems.

Inquire Now

Technical Specifications

Series	HB52-Corrosion-Resistant Glass LED High Bay Light
Power	100W, 150W, 200W, 300W, 400W, 500W
Lumen Output	15000-85000 lm
Efficacy	150 lm/W, 170 lm/W
Input Voltage	AC 120-277V 50/60Hz
Color Temperature	3000K / 4000K / 5000K / 5700K / 6500K
CRI	150lm/W, Ra: 80±2; 170lm/W, Ra: 70±2
Beam Angle	120°
Operating Temperature	-30°C to +45°C, RH: 5%-90% non-condensing
IP Rating	IP65
IK Rating	IK07
Housing Material	ADC12 + Tempered Glass
Mounting	Bracket Mounting
Dimming	0-10V
Certifications	CE / RoHS / CCC / CQC
Warranty	5 Years

Technical Documents

Datasheet

Detailed technical parameters and product overview for reference.

Download

IES File

Photometric data for lighting simulation and design software.

Download

Installation Guide

Step-by-step instructions for safe and correct fixture mounting.

Download
